SPECIFICATIONS

Brand Name: diymore

Choice: yes

High-concerned chemical: None

Model Number: XY6020L

Origin: Mainland China

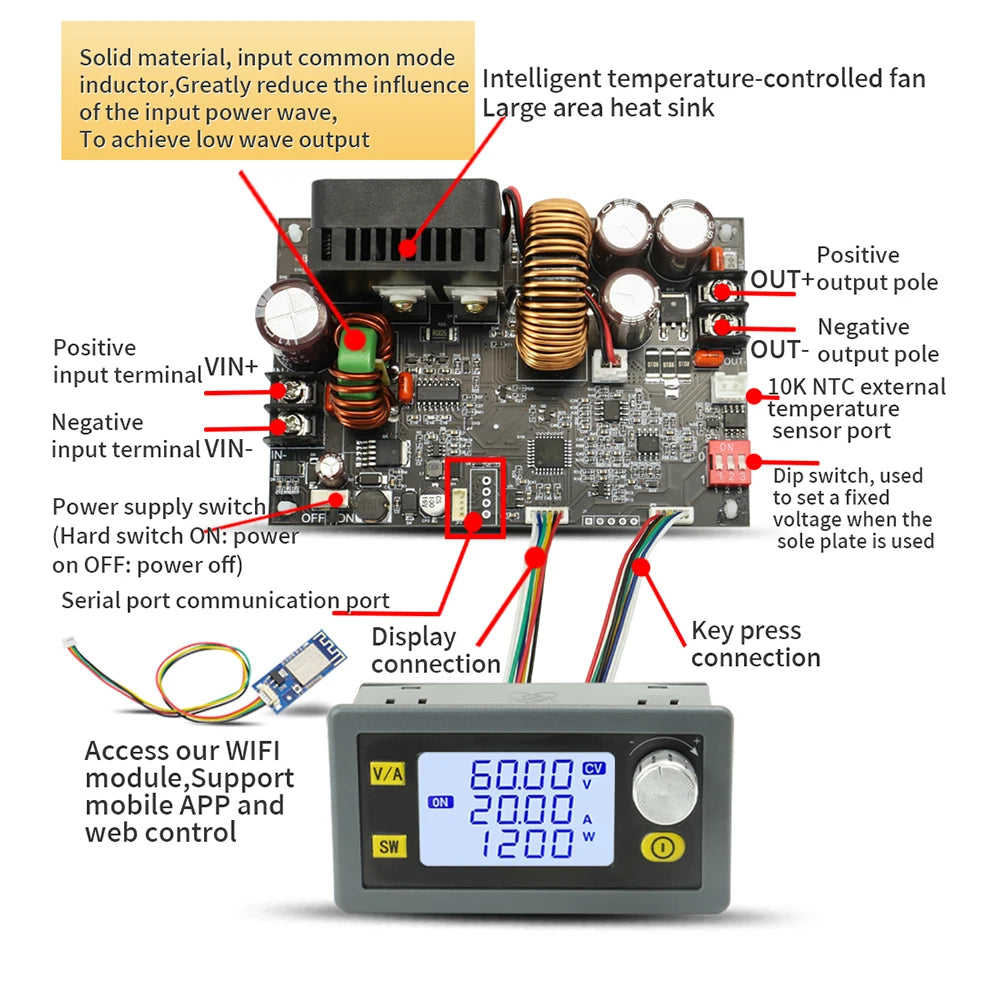

Features:
1.Use high-quality materials, durable

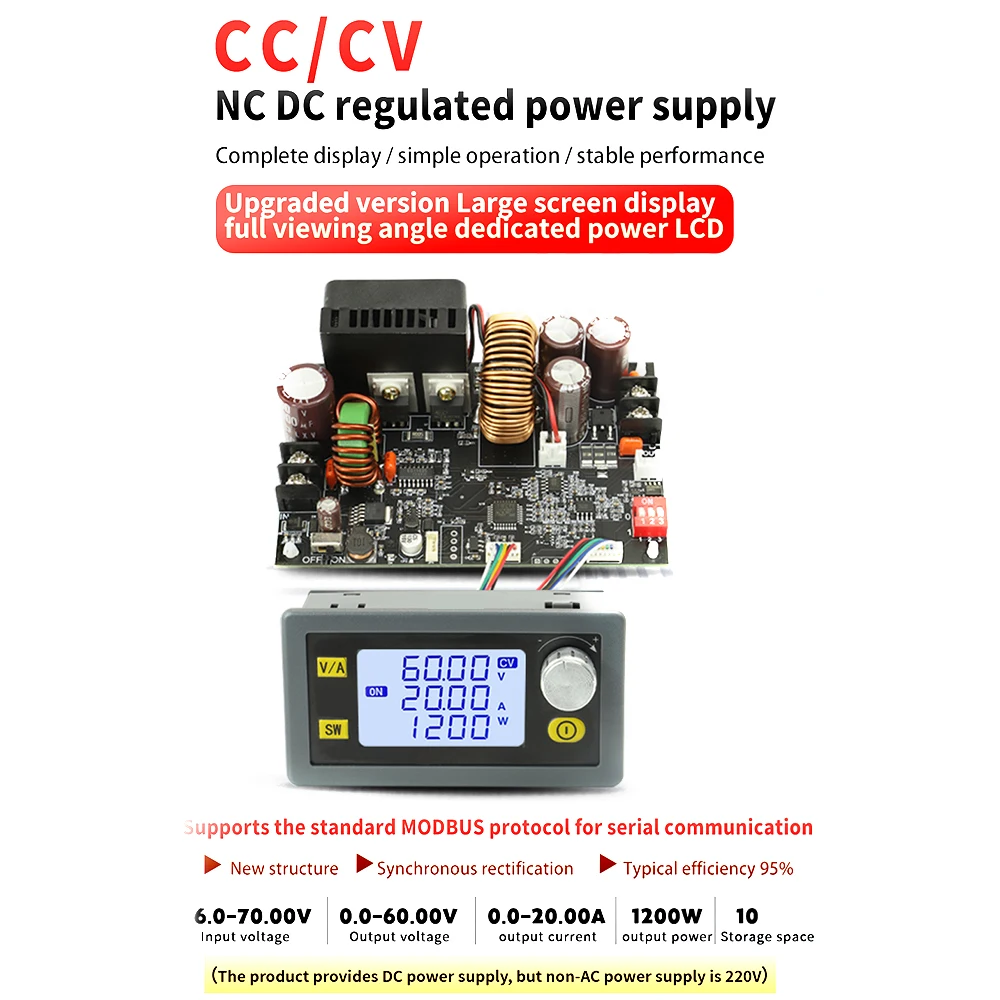

2.Constant voltage and constant current CNC DC stabilized voltage power supply
3.Large screen display, full view dedicated power LCD

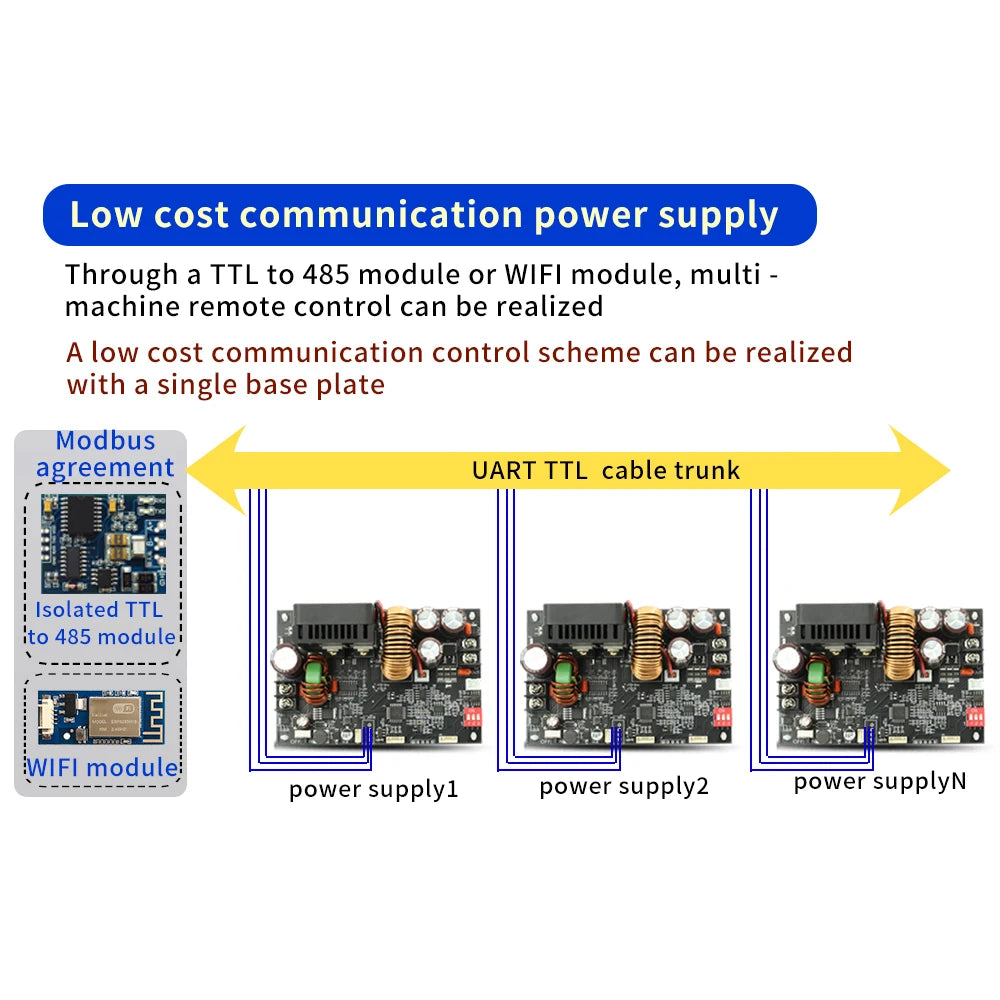

4.Support serial communication and standard MODBUS protocol
5.Complete display, simple operation and stable performance

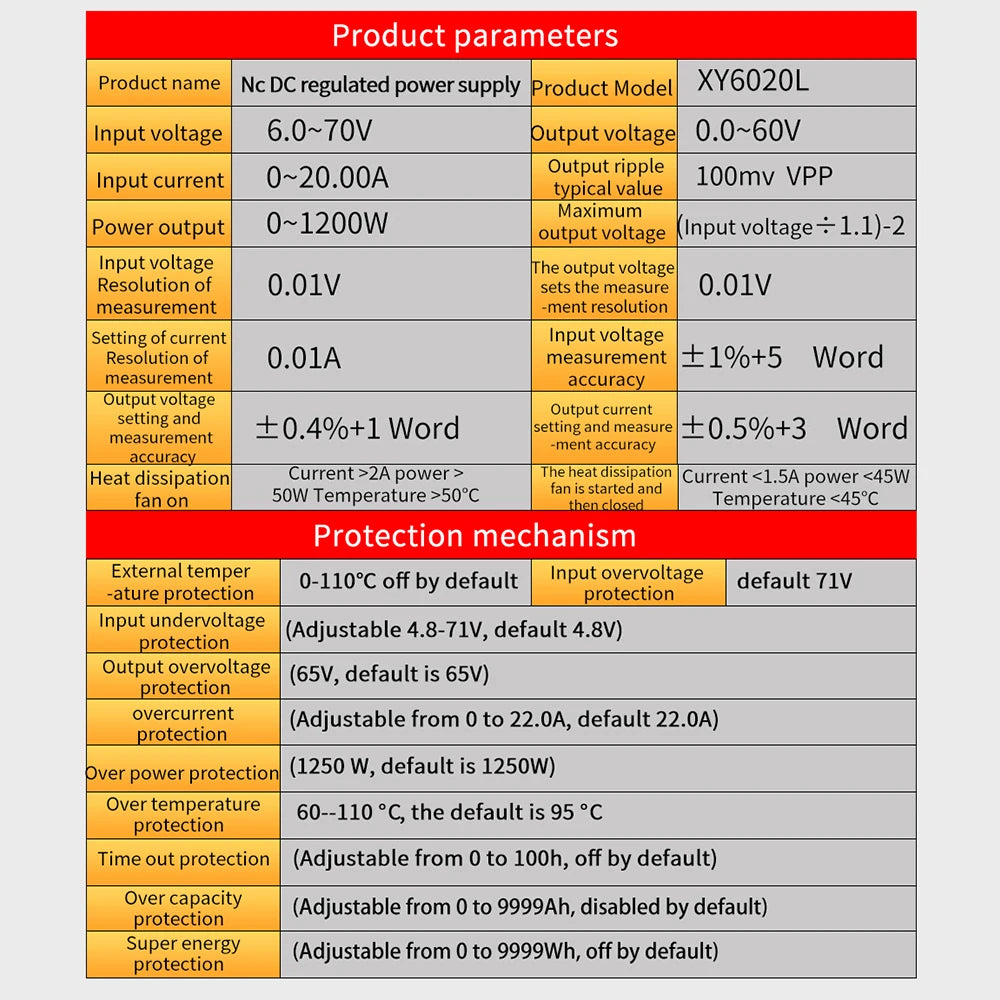

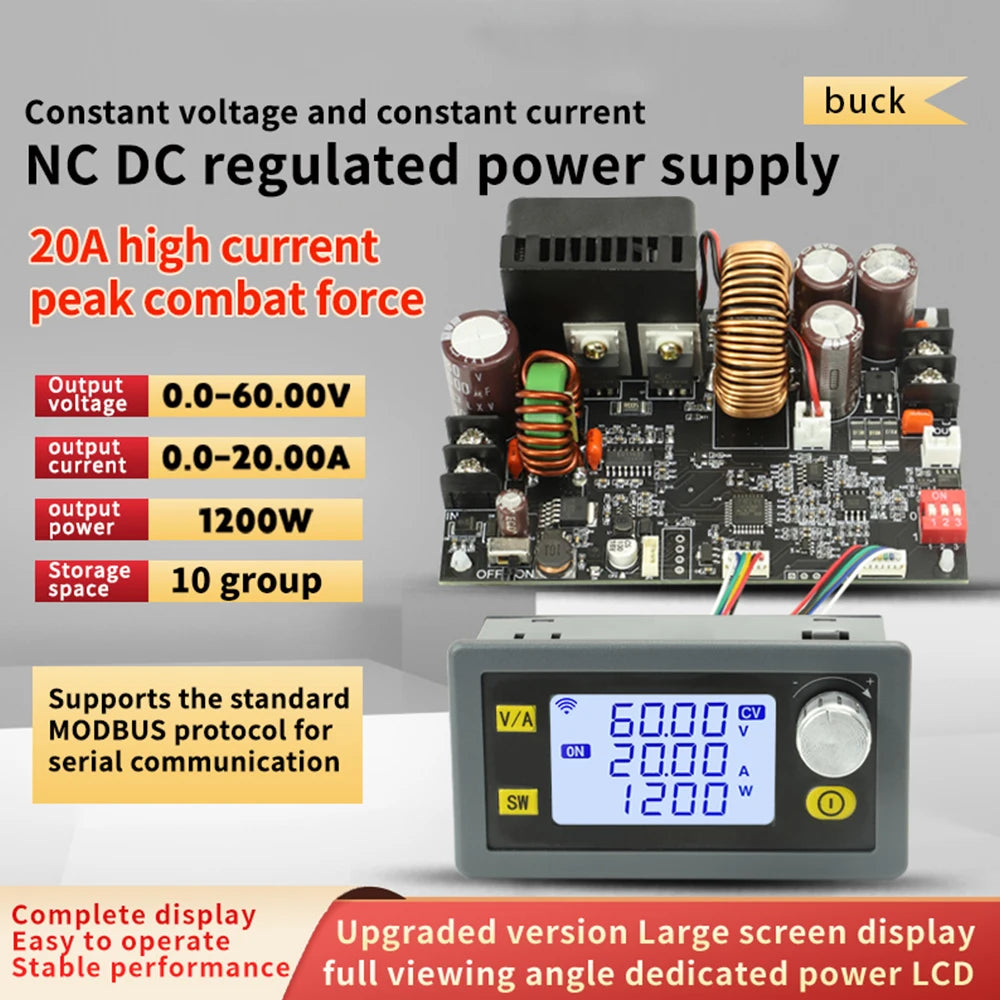

Parameters:
Input voltage: 6.0~70V
Output voltage: 0.0~60V
Output current: 0~20.00A
Typical value of output ripple: 100mv VPP
Output power: 0~1200W
Maximum output voltage: (input voltage+1.1) - 2
Input voltage measurement resolution: 0.01V
Output voltage setting measurement resolution: 0.01V
Current setting measurement resolution: 0.01A
Input voltage measurement accuracy: ± 1%+5 characters
Output voltage setting and measurement accuracy: ± 0.4%+1 word
Output current setting and measurement accuracy: ± 0.5%+3 words
Cooling fan on: current>2A power>50W temperature>50 ℃
Turn off the cooling fan after it is turned on: current<1.5A, power<45W, temperature<45 ° C

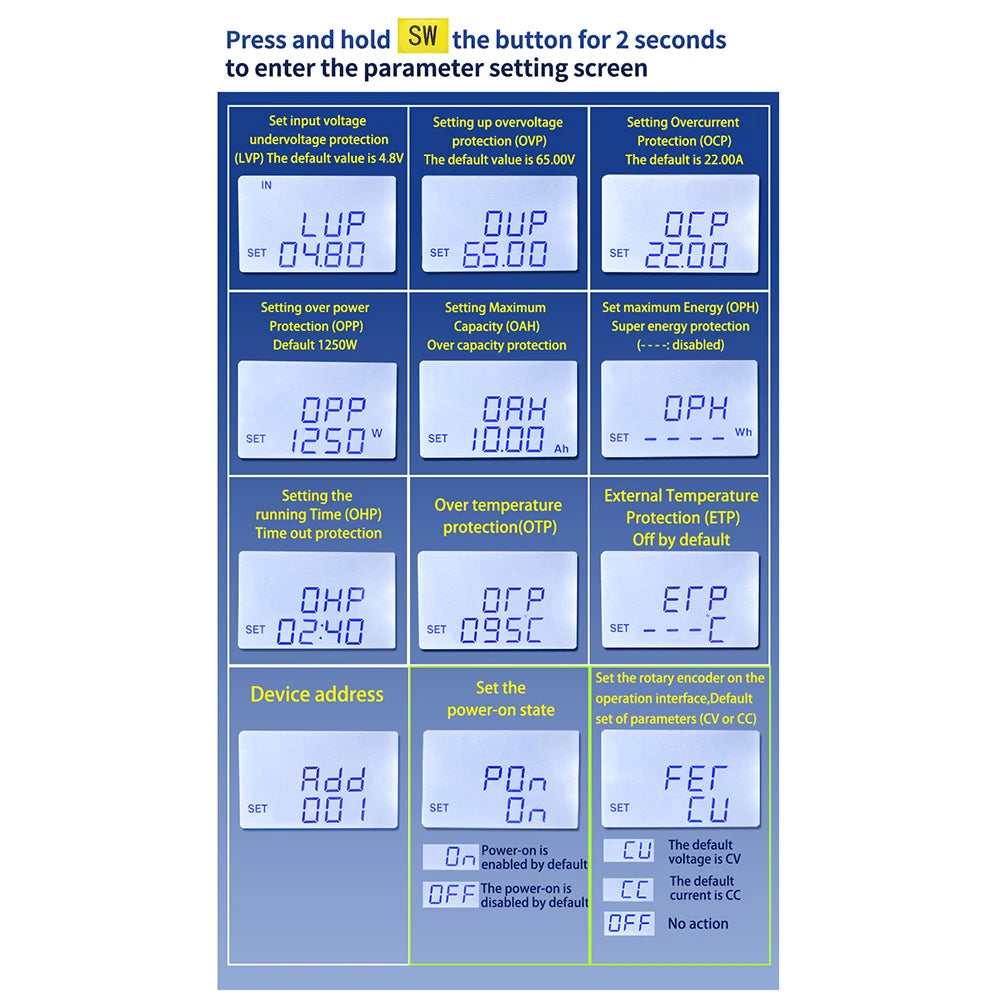

Protection mechanism:
External temperature protection: 0 - 110 ° C default off
Input overvoltage protection: 71V default
Input undervoltage protection: 4.8-71V adjustable default 4.8V
Output overvoltage protection: 0-65V Default: 65V
Output overcurrent protection: 0-16A, default 16A
Output over power protection: 0-950W Default: 950W
Over temperature protection: 60 -- 110 ° C, 95 ° C by default
Timeout protection: 0 - 100H adjustable default off
Overcapacity protection: 0~9999AH is adjustable and closed by default
Super energy protection: 0~9999WH, adjustable and closed by default

Package include:
Package A:
Header * 1
Base plate * 1
Wire * 2
Package B:

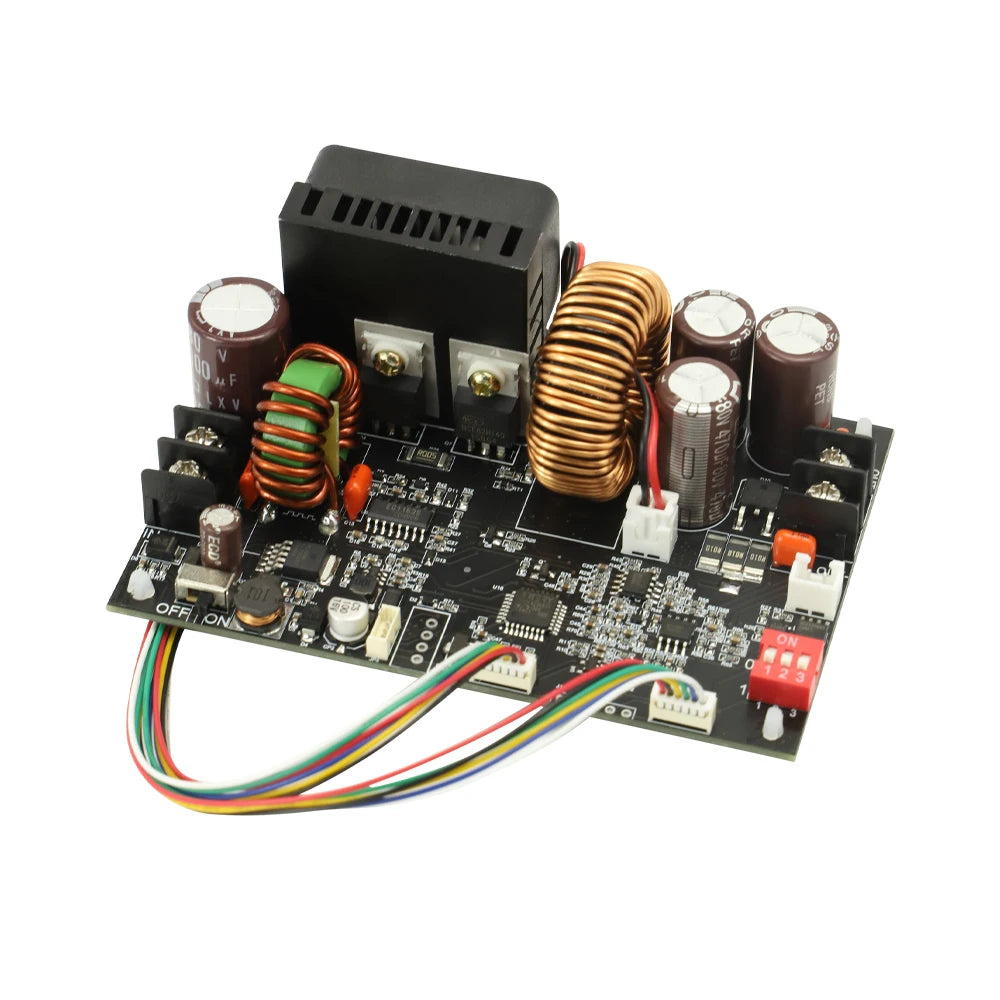

Bottom plate * 1 (output current 0-20A can be used separately for the bottom plate)
