SPECIFICATIONS

Brand Name: Szaoju

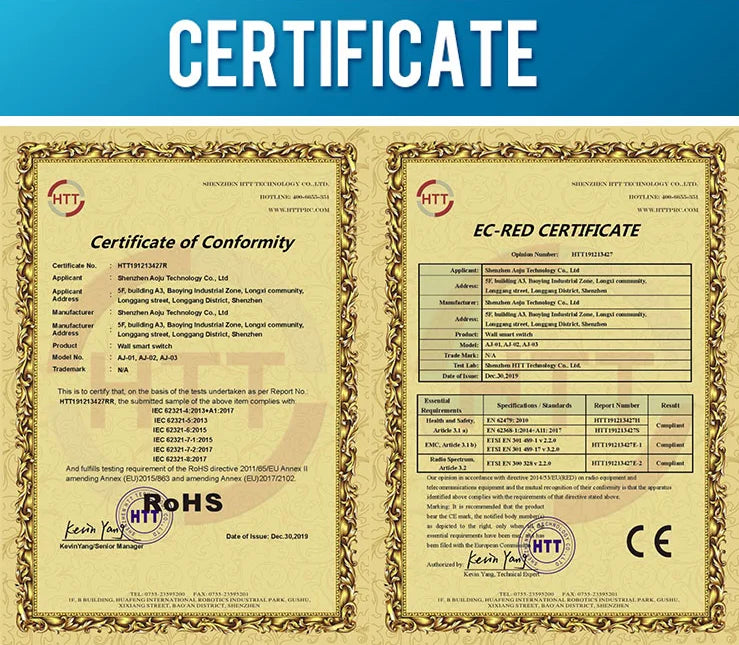

Certification: RoHS,CE,CCC,CCC,ce,ROHS

Choice: yes

Current: 10A

Features: Remote Control

High-concerned chemical: None

Is Smart Device: No

Item Type: SWITCHES

Material: Plastic

Origin: Mainland China

Remote Distance: 100M

Switch Type: Remote Control

Warranty: 1 Year

Working voltage: AC100-240V 60HZ/50HZ

Working frequency: 433MHZ

Power consumption in standby mode: <0.3W

Load power: <1100W

Receiving sensitivity: -108dBM

Working way:wireless control

Coding way: learning code

Modulation: ASK

Working temperature: -10*C~+70"C

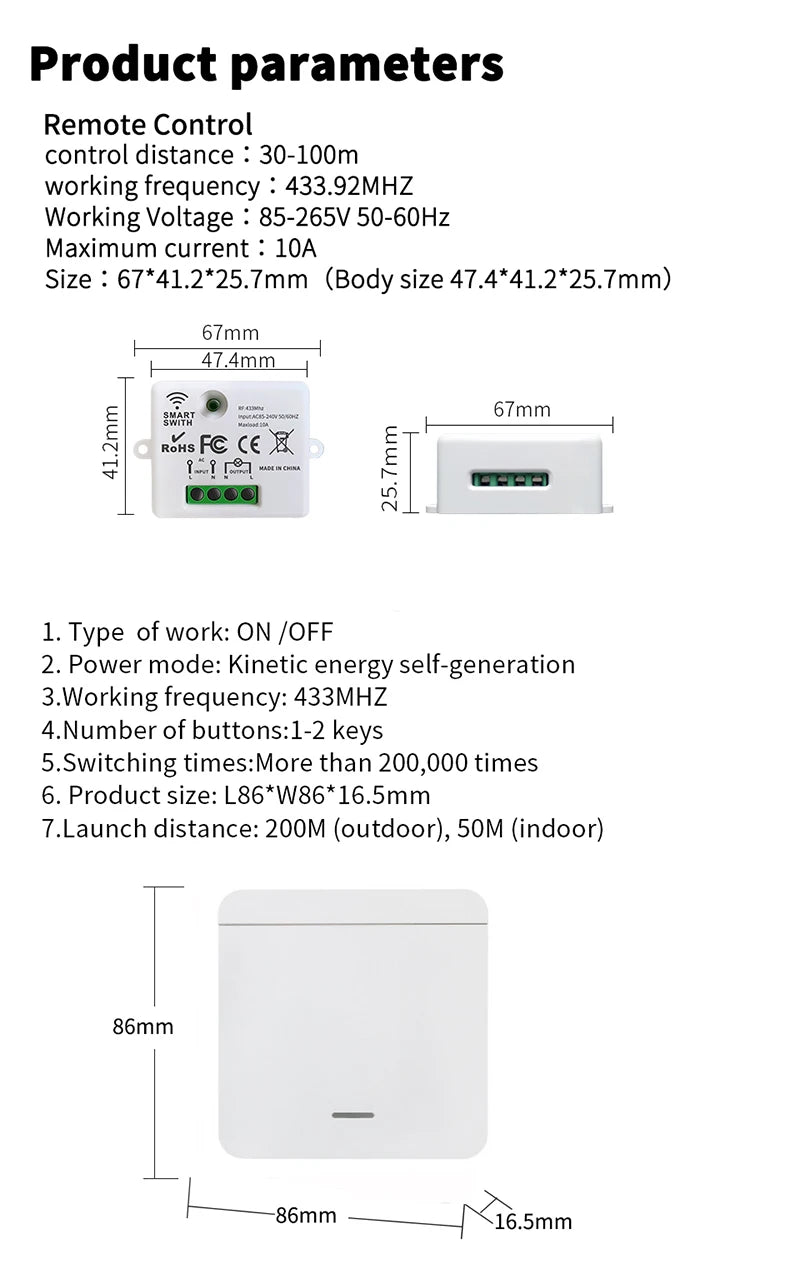

Size: 47.4*42*22.8 (mm)

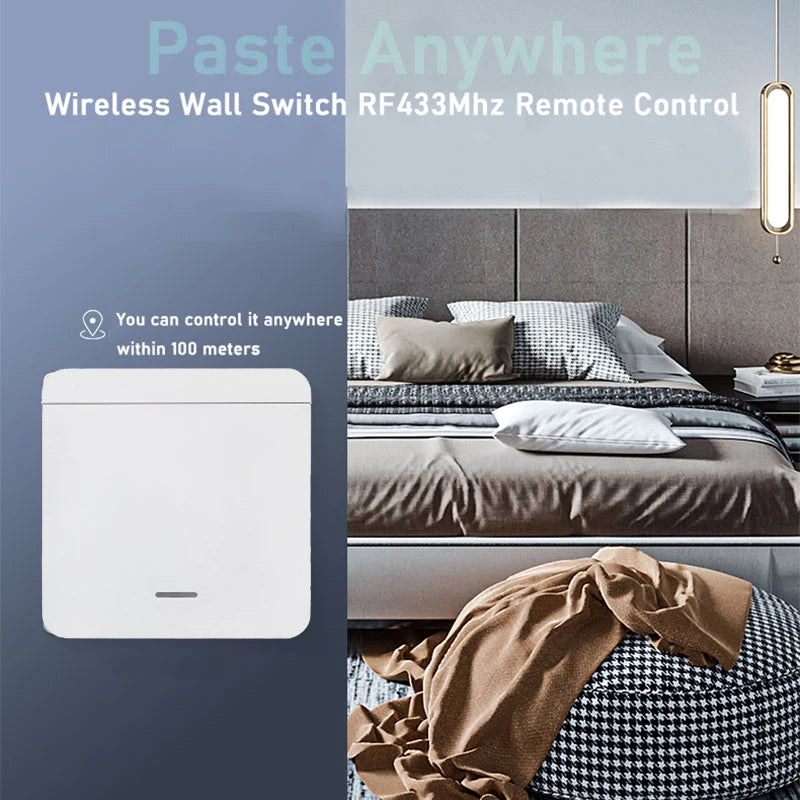

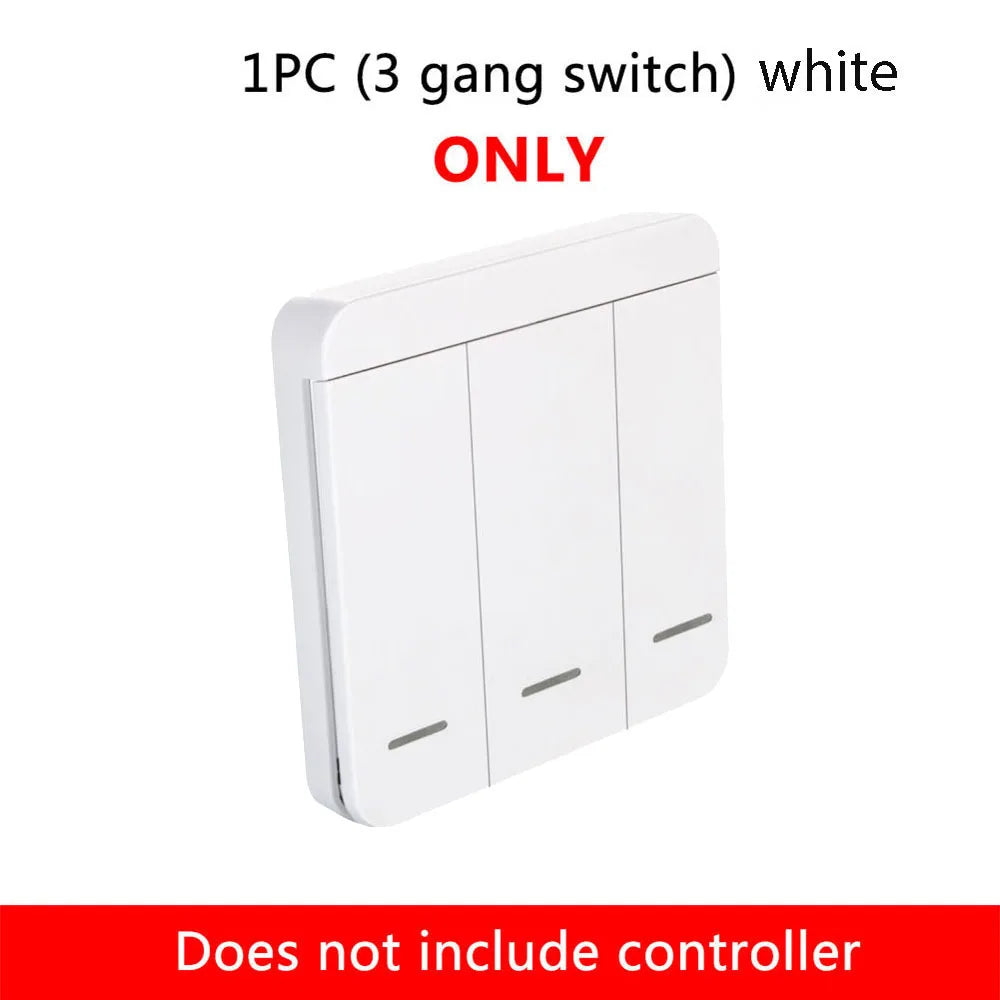

2.Wireless Wall Switch:

Working voltage: DC12V

working frequency:433MHZ

Power consumption in standby mode:<1uA

Transmitter power: <10mW

Working way: wireless control

Coding way: EV1527 learning code

Modulation: ASK

Working temperature:-10"C~+70*C

Size: 86*86* 15mm

Battery:work with 12V 27A battery(battery not included)

Features：

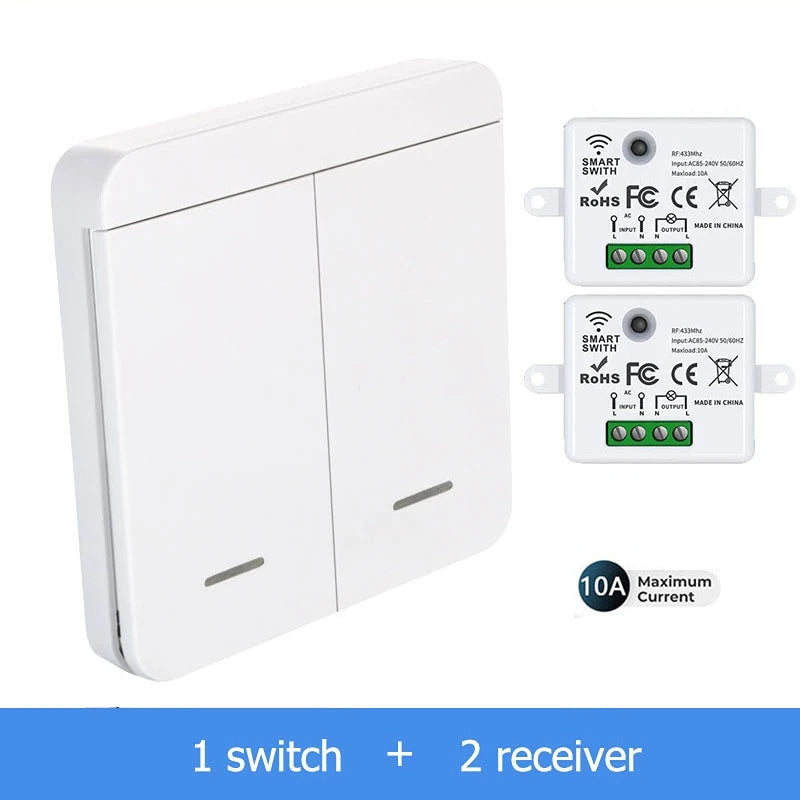

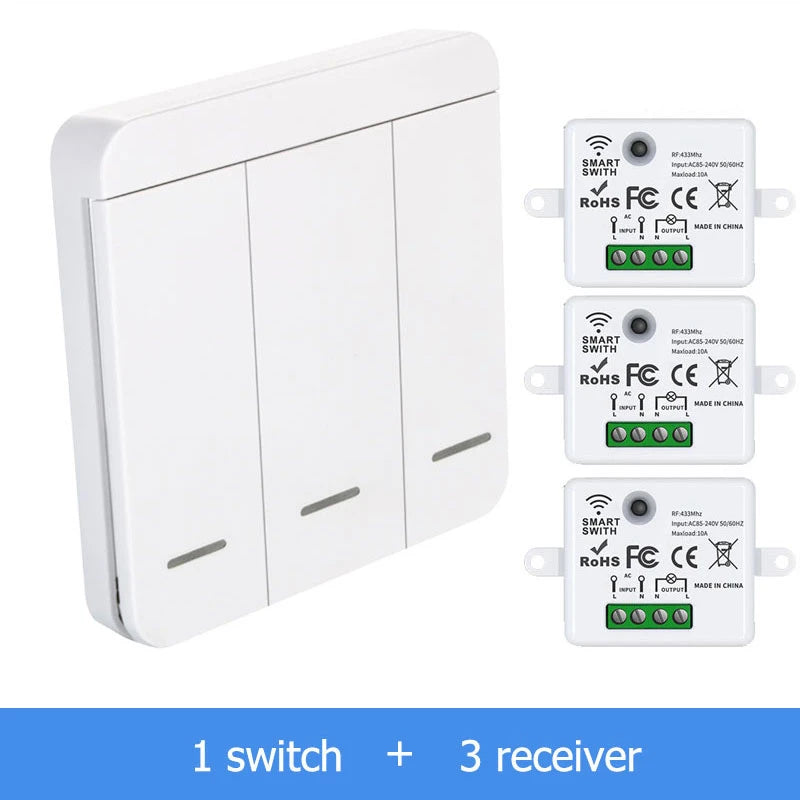

1.Multi switches can control different receivers.Save energy,avoid darkness.

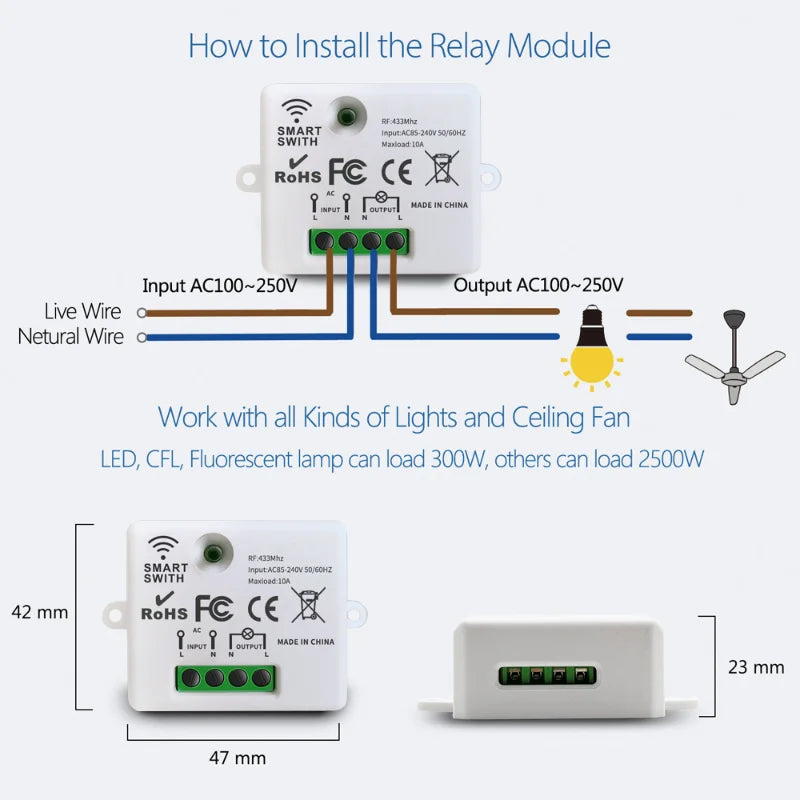

2.Working with all kinds of Lights and Ceiling Fan.LED,CFL,Fluorescent lamp can load 300W,other can load 2500w.

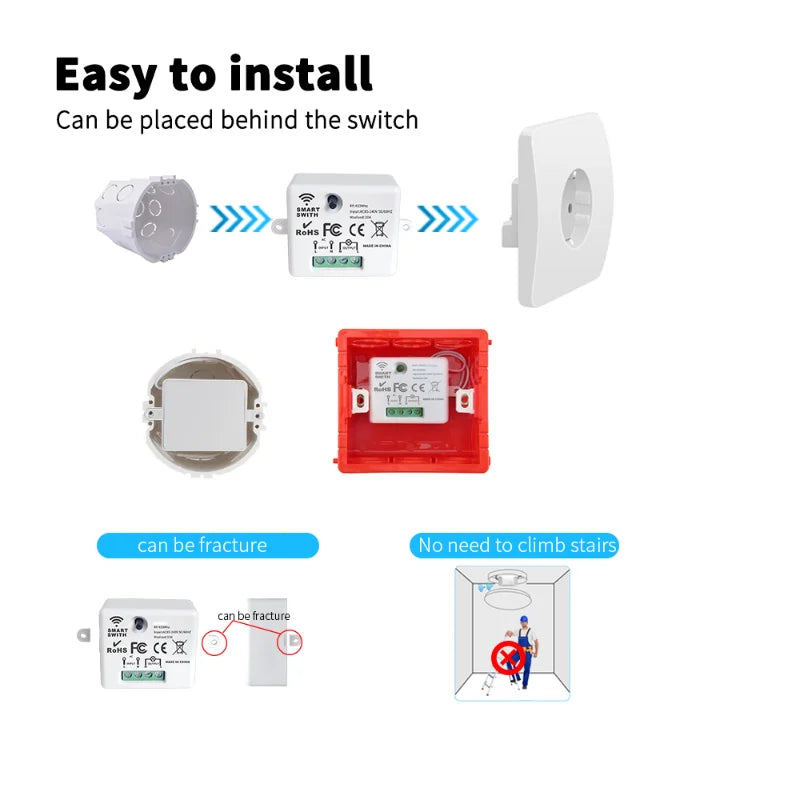

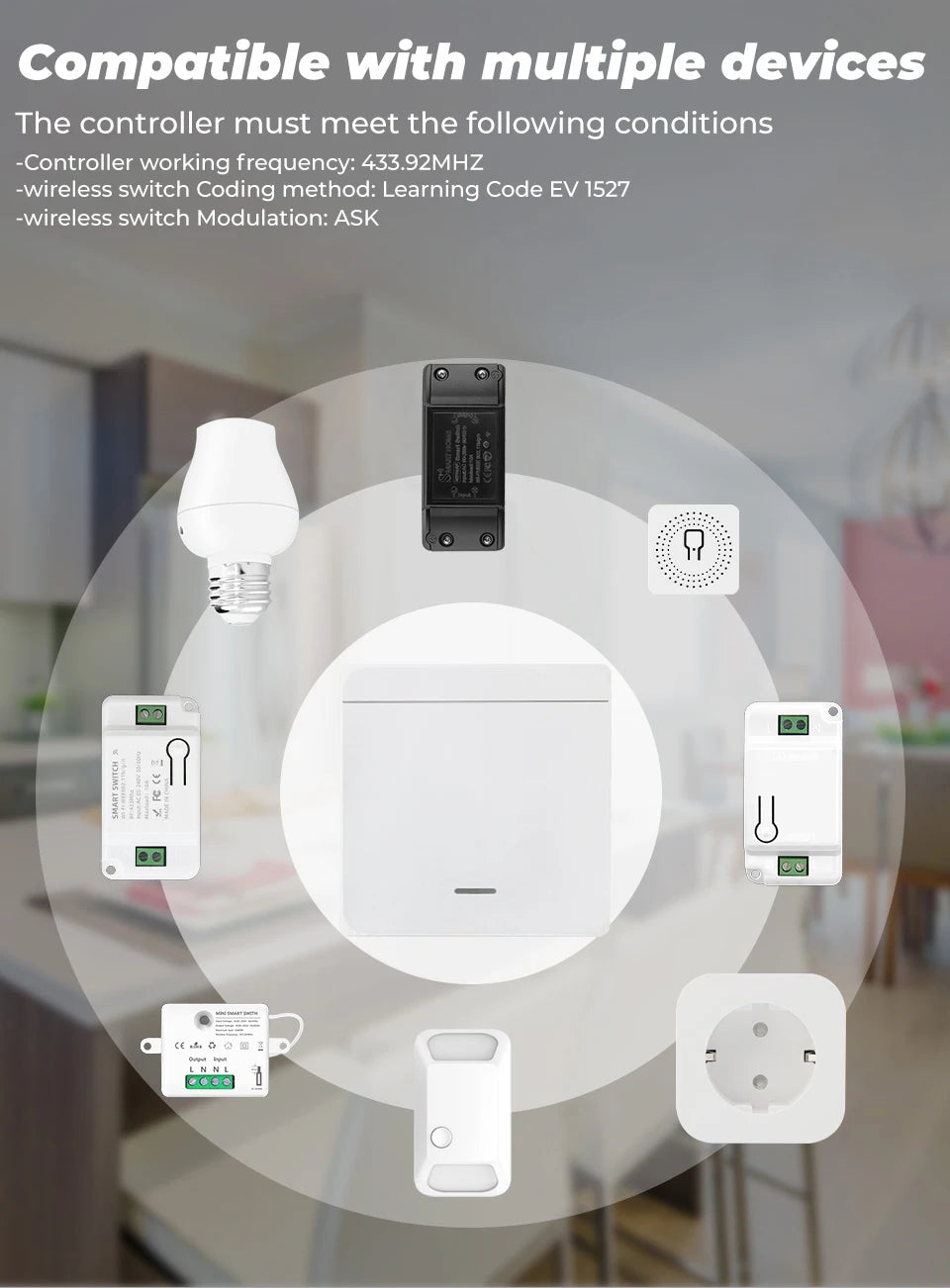

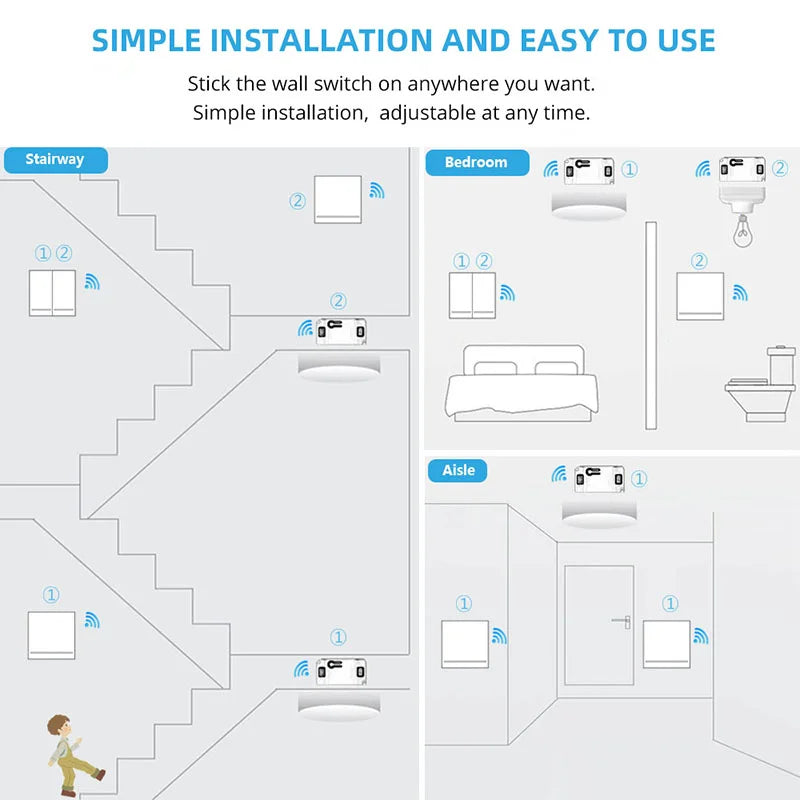

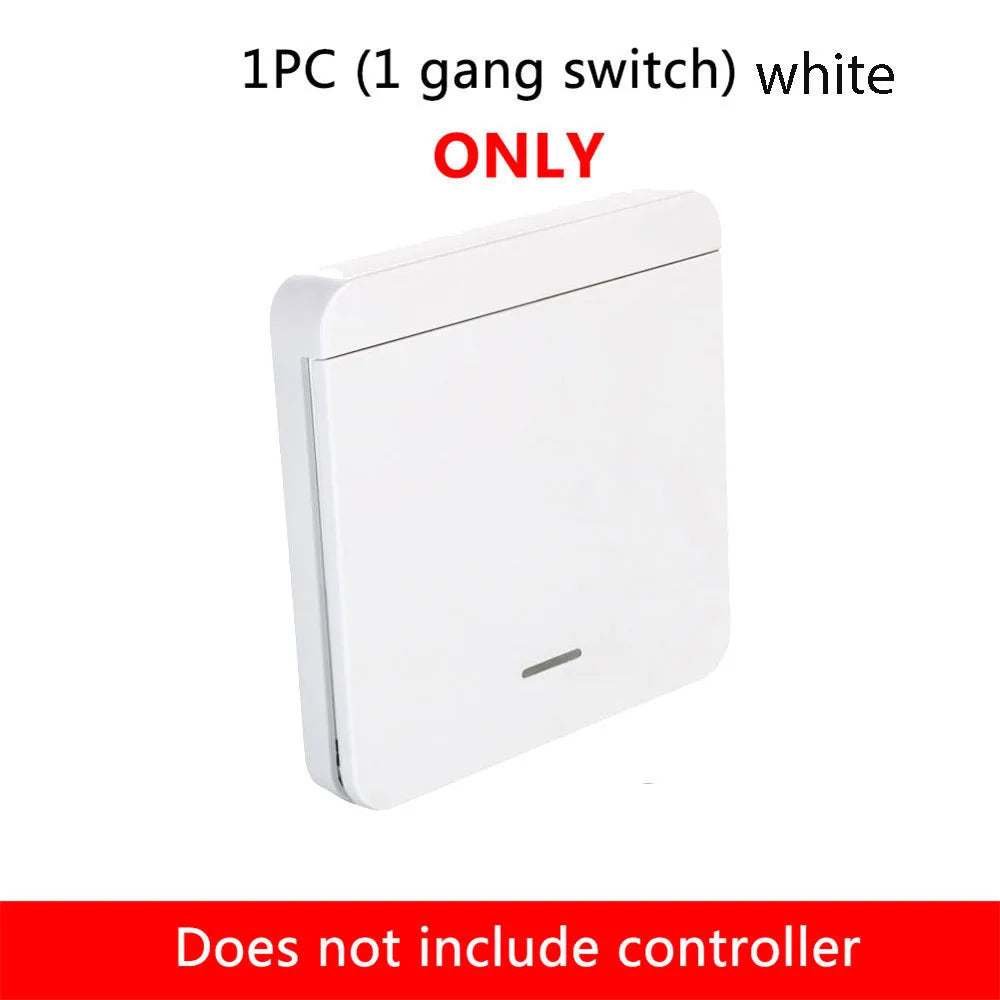

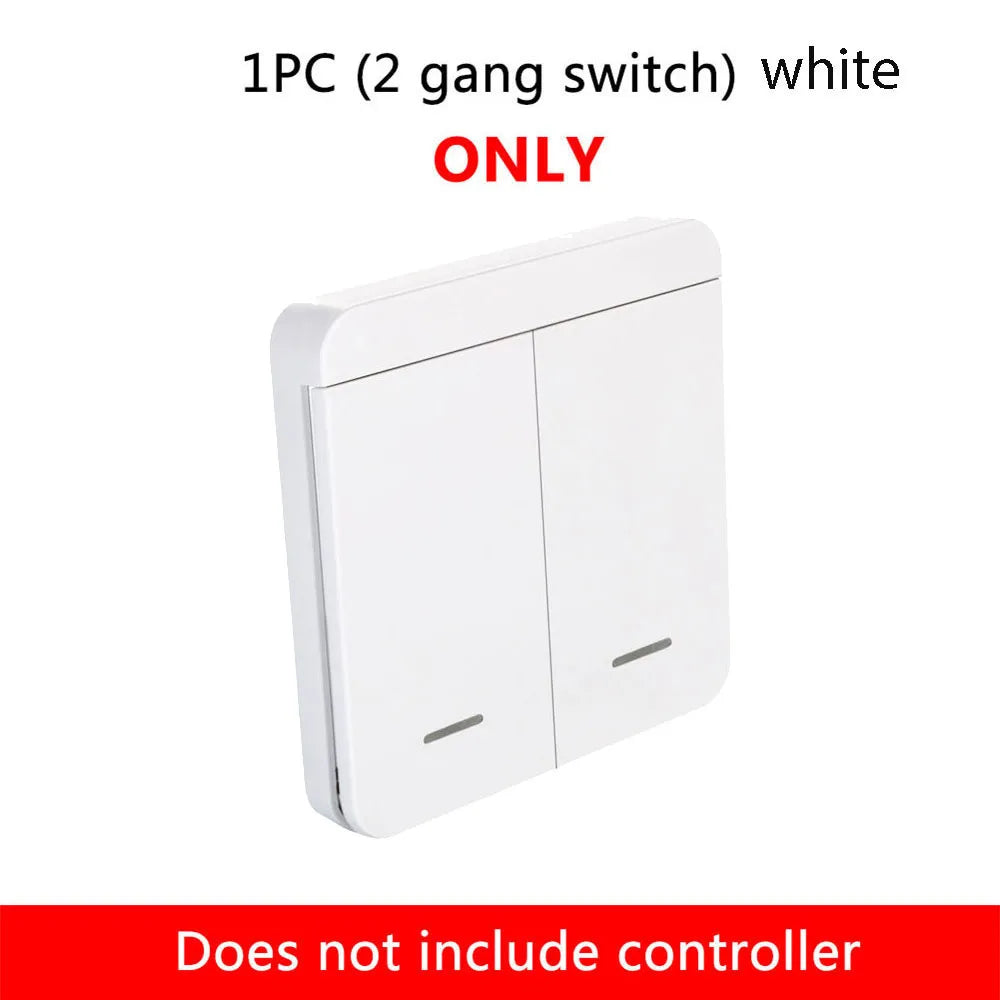

3.It is a 86 wall panel that can be stuck onto anywhere. It is a learning code transmitter EV1527 IC Chip. It can be learned into most of the learning code receiver.

Setting way:

How to get the signal：

Step 1: Press the learning button(on the Receiver) twice. Wait for 3 seconds;

Step 2: Press one button on the remote control. Wait for 3 seconds. Succeed.

How to clear the signal：

Only one step :Press the learning button(on the Receiver) 8 times. Wait for 3 seconds;
