SPECIFICATIONS

After-sales Service Provided: Engineers available to service machinery overseas

Application: oilfield

Brand Name: Tiger Rig

Core Components: Bearing

Dimension(L*W*H): Required

Drilling Rig Type: skid-mounted rig

Machinery Test Report: Provided

Max Center pipe lower Screw thread: 6 5/8 REG LH

Max weight/kg: 3230

Max. rotary speed r/min: 300

Place of Origin: Sichuan, China

Power Type: Electric

Product name: drilling swivel

Type: Rotary Drilling Rig

Video outgoing-inspection: Provided

Voltage: 380V/460V

Warranty: 1 Year

Weight: 1500 KG

color: yellow

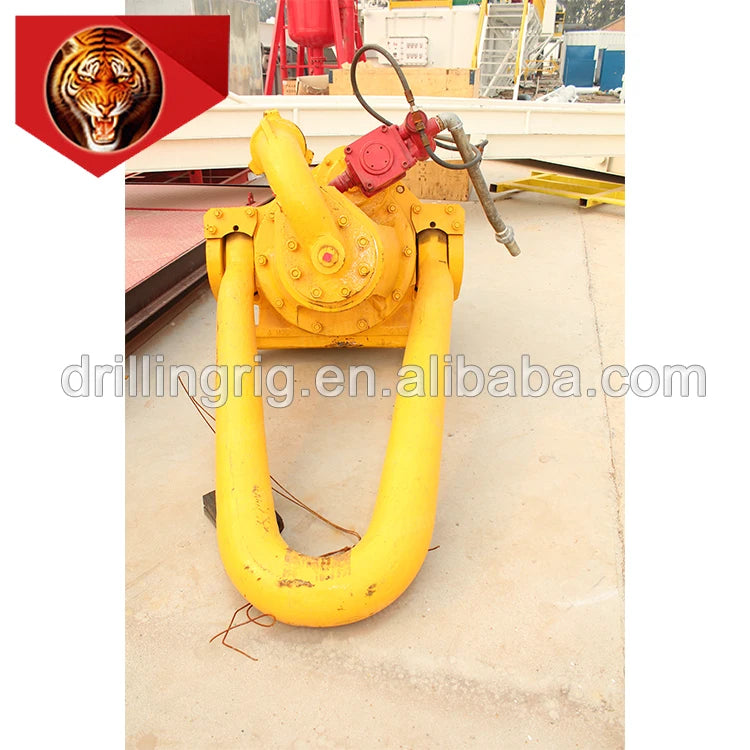

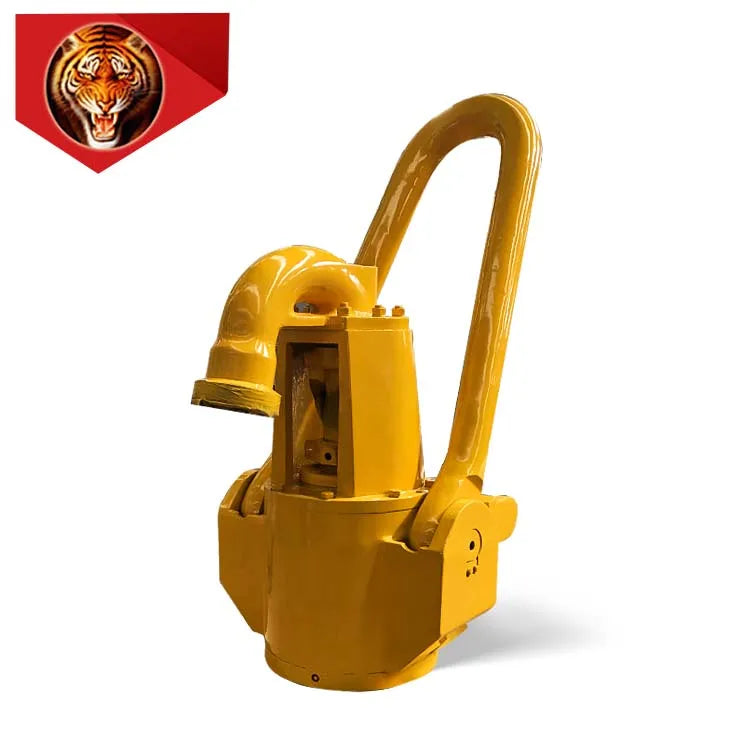

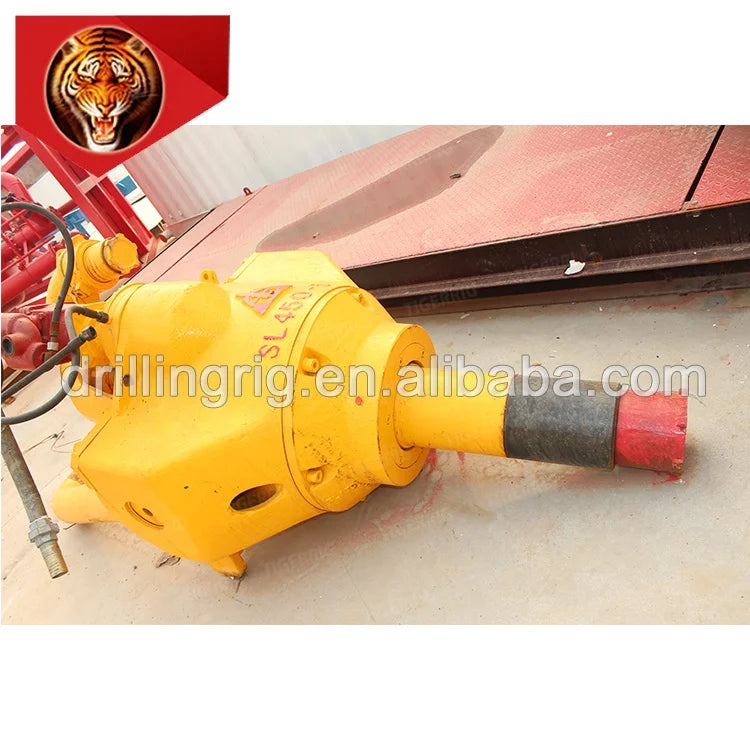

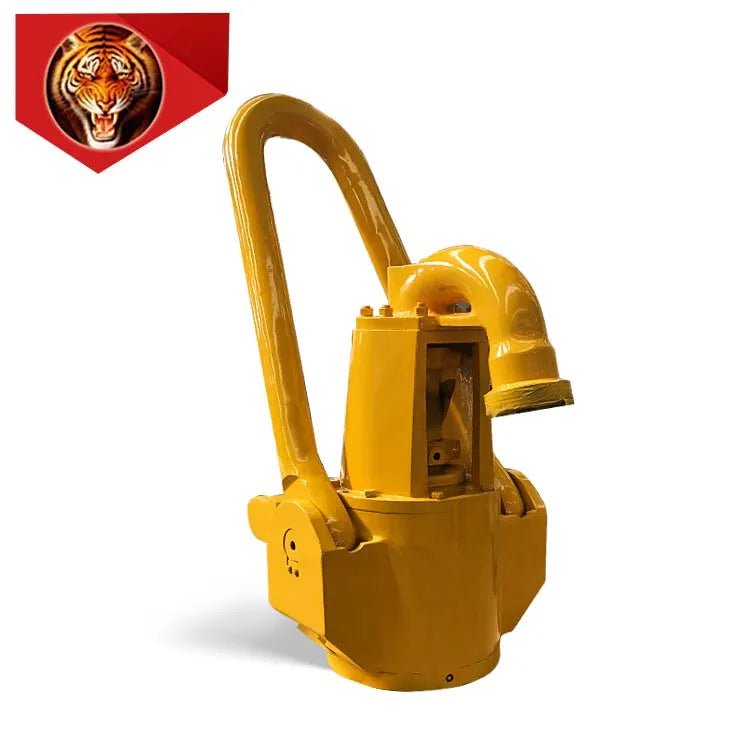

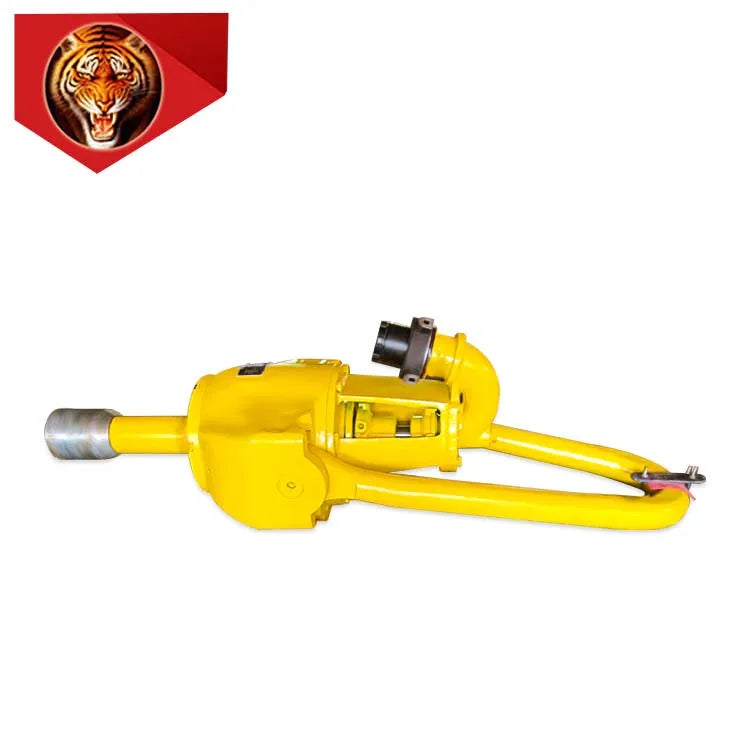

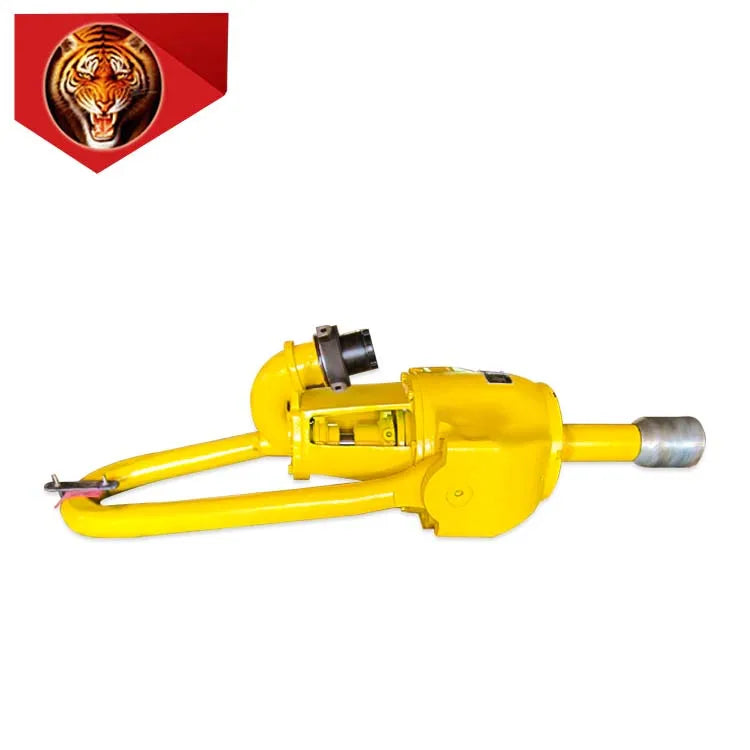

Tigerrig long manufacture history SL90 SL135 SL225 SL450 SL675 drilling swivel for drilling rig



Born in 20^th century, Zhonghang Machinery Ltd has over 25 years’ develop history. It manufactures all types of oil drilling equipment like ZJ30, ZJ40, ZJ50, ZJ70, ZJ90 and rig parts: Mud pump, Hook, Rotary Table, Swivel, Crown block, Travelling Block, iron roughneck, etc. Our products have certificated by international institutions, API and ISO, GOST. We import technology from US, so that our quality is guaranteed. We always stick to the principle of ensuring quality and servicing customers. Visiting our company and factory will be warmly welcomed.





Major features of drilling swivel



1.Standard bail and double pin (male) alloy sub

2.The wash pipe and packing are box structure, convenient to replacing on drill floor, no need to disassemble rotary hose and gooseneck,

3.Hole in gooseneck top provides passageway for well logging wire line.

4.Standard gooseneck connection, screw thread conforms to API STD 5B.

5.Conform to API Spec 8A and marked with API monogram.



Model		SL90	SL135	SL225	SL450	SL675
Max. static load  KN		900	1350	2250	4500	6750
Max. rotary speed  r/min		300	300	300	300	300
Max. working pressure MPA (psi)		25 (3570)	35 (5000)	35 (5000)	35 (5000)	53 (7000)
Clearance between bail and gooseneck mm (in)		435 (17 1/8)	495 (19 1/2)	540 (21 1/4)	549 (21 5/8)	640 (25)
Center pipe diameter mm(in)		64 (2 1/2)	64 (2 1/2)	75 (3)	75 (3)	102 (4)
Center pipe upper screw thread	Connect to center pipe API In	4 1/2 REG LH	4 1/2 REG LH	6 5/8 REG LH	7 5/8 REG LH	8 5/8 REG LH
Center pipe lower Screw thread	Connect to  Kelly API in	6 5/8 REG LH	6 5/8 REG LH	6 5/8 REG LH	6 5/8 REG LH	6 5/8 REG LH
Gooseneck connection screw thread		3″-8 teeth/inch	3″-8 teeth/inch	4″-8 teeth/inch	4″-8 teeth/inch	4″-8 teeth/inch
Dimension (L x W x H) mm		2505×758×840	2505×758×840	2880×1026×1065	3015×1096×1065	3649×1450×1162
Weight kg		940	1345	2402	3310	6230
Note: For above models, spinner (makeup and breakout) is optional.

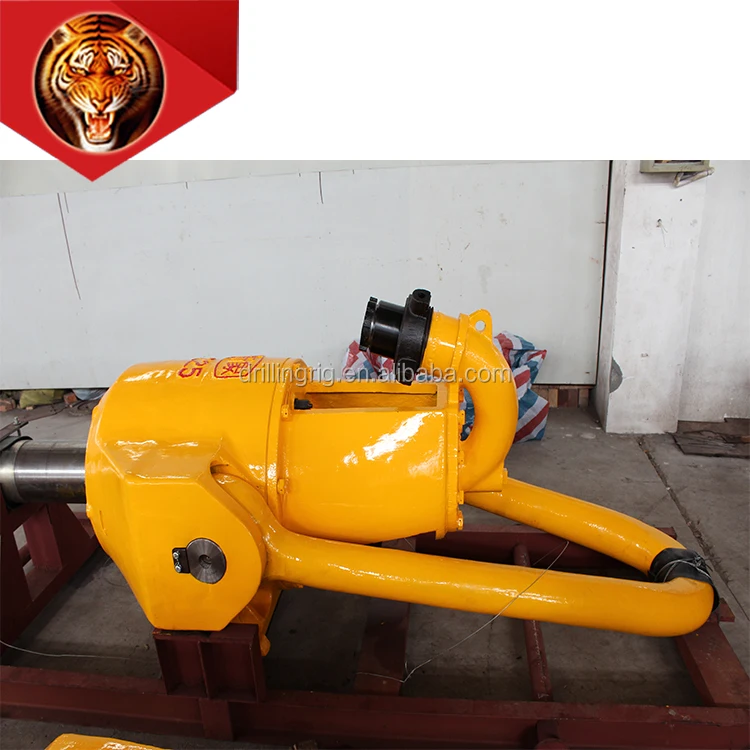

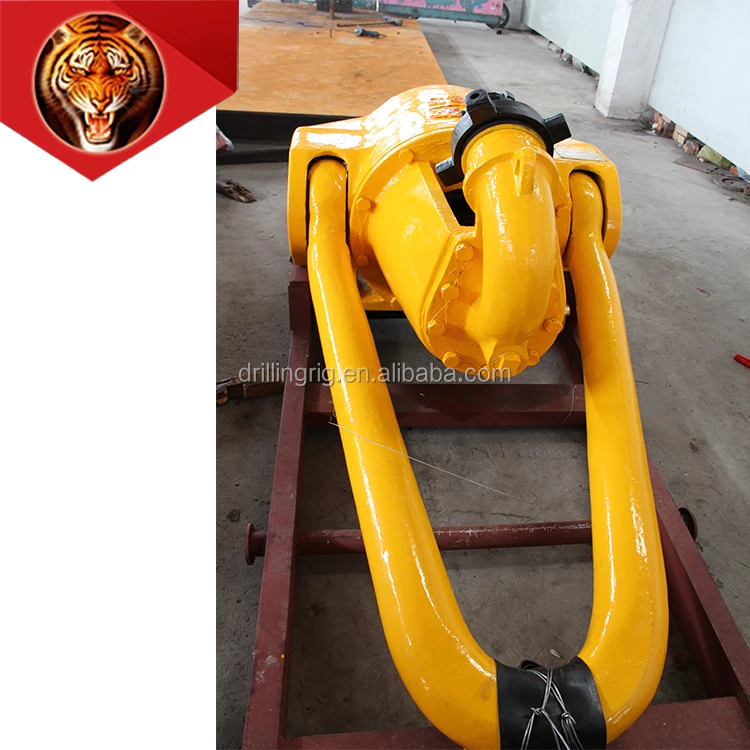

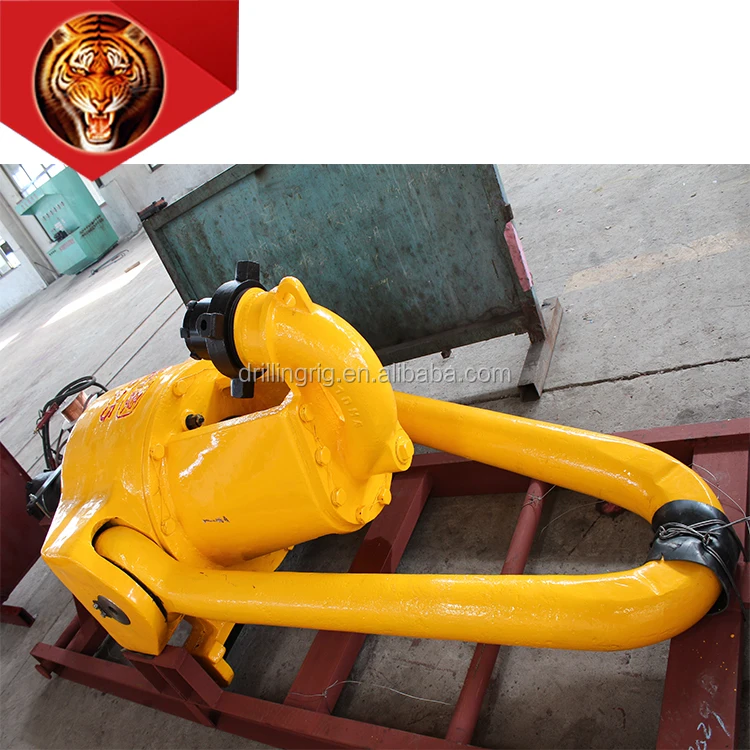

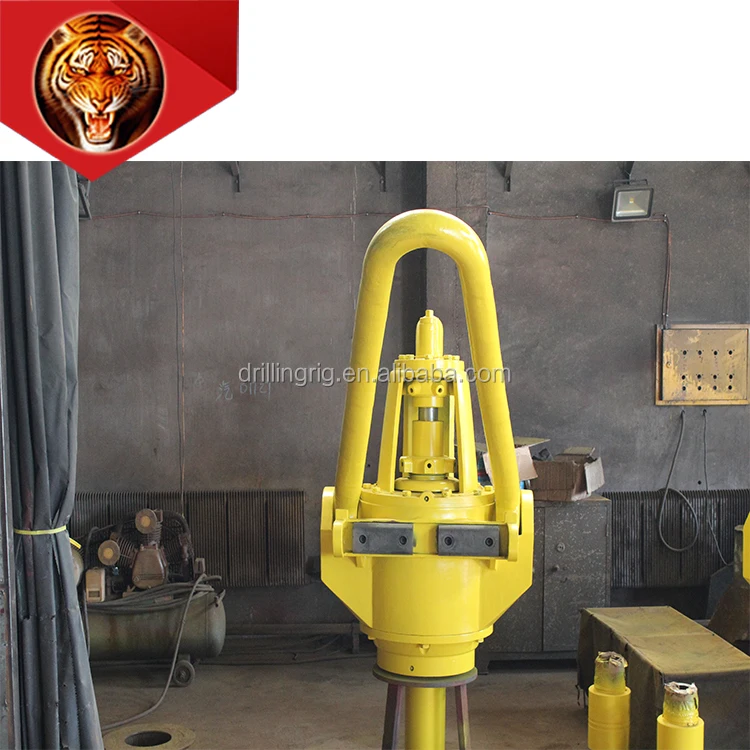

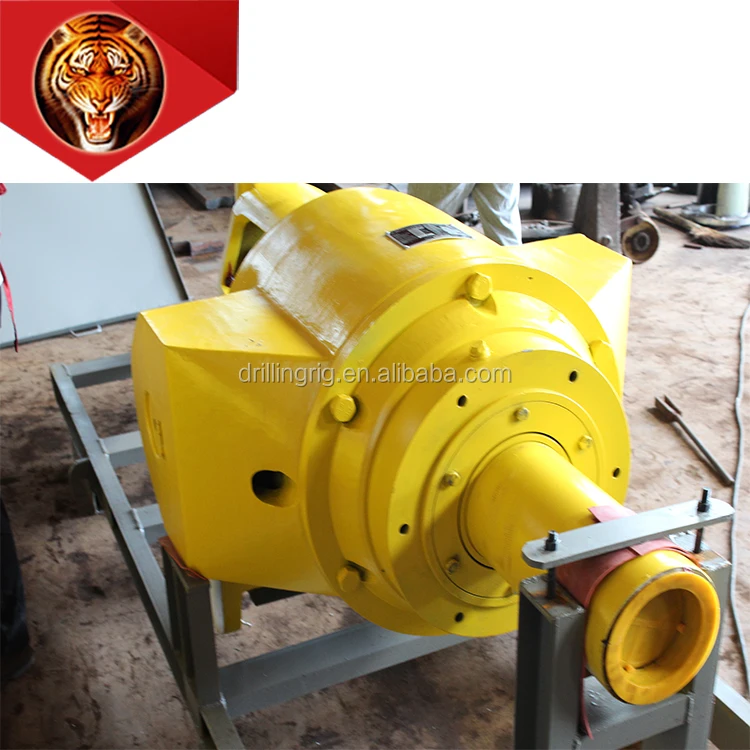

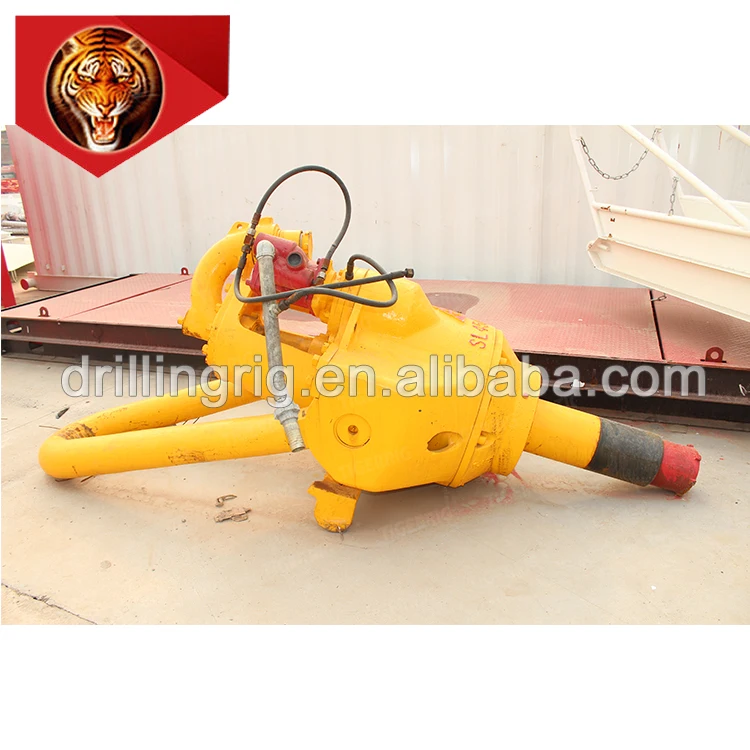

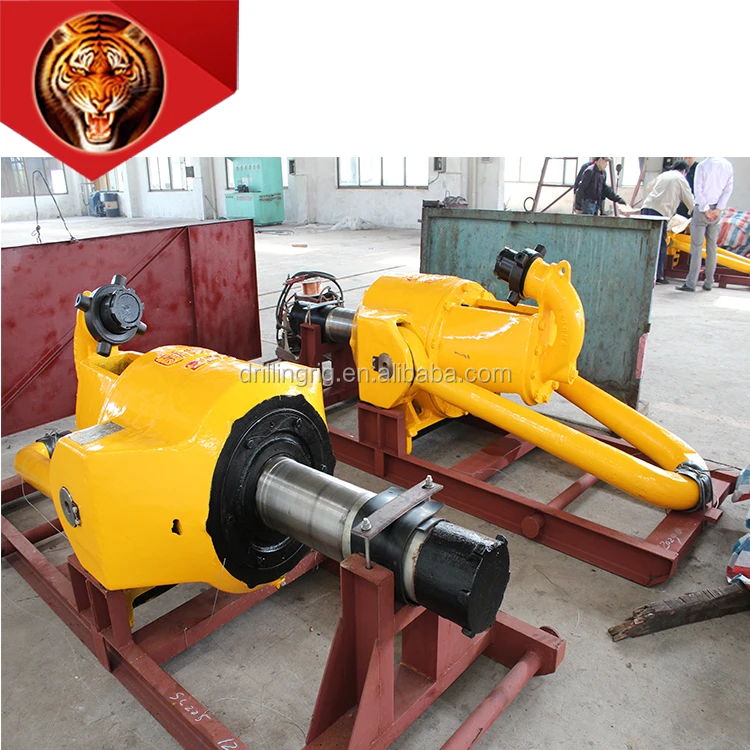

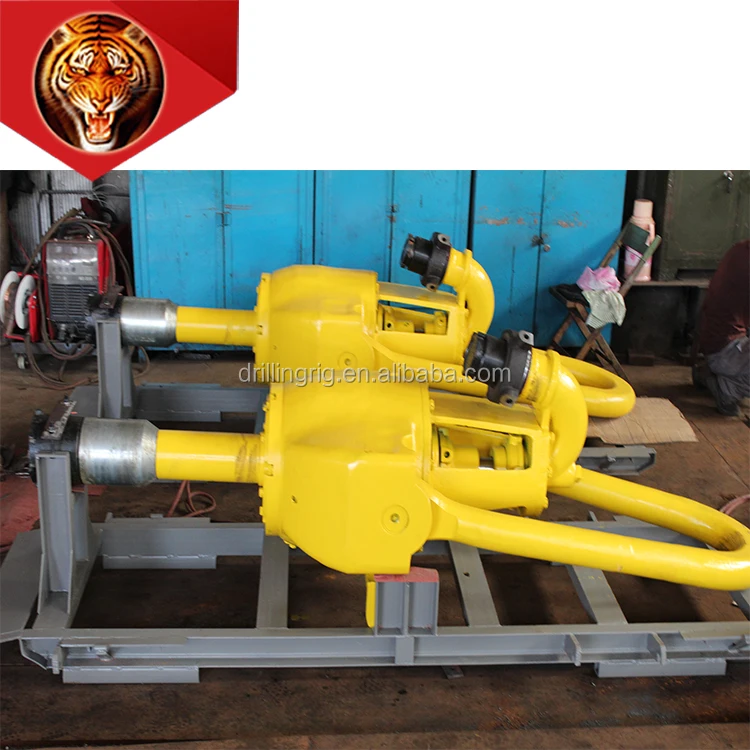

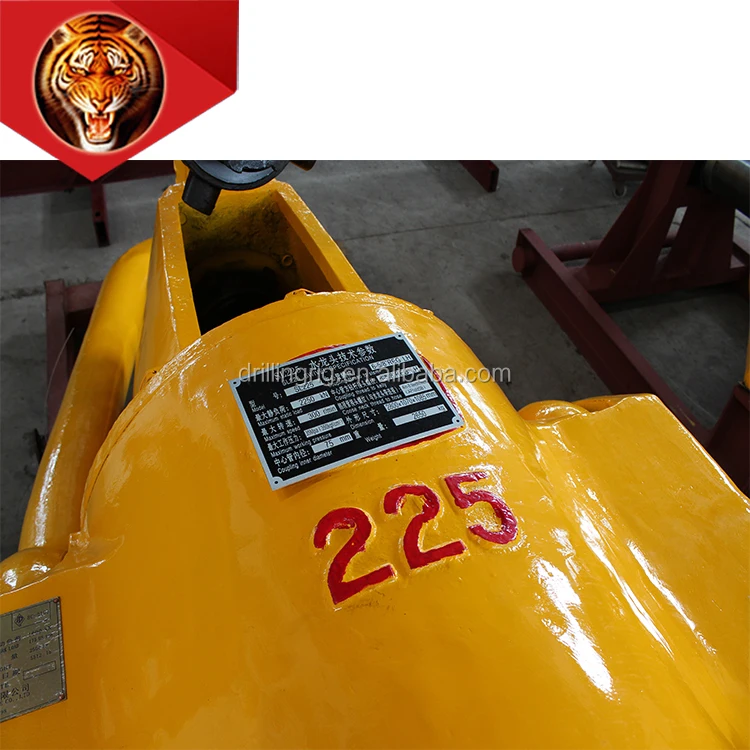

100% real in our workshop shooting,  not online shop or magazine reprinted.













Packing



1.The goods will be covered with plastic or other rainproof coat.

2.The packing of goods, which should be delivered to destination in accordance with the agreement we signed, will be offered by our company. And we will be held responsible for the consequences if damage of the product or loss of accessories occurs by the time the goods have shipped to port of destination.



Delivery time

1. Warehouse machine: 1 days after 100% payment.

2. booked machine: 30-45days after 30% payment.

Welcome oversea rig manufacturer to cooperate with us.















Tiger Agent Requirements



 1.Over 30 years old

 2.Having the capital background in the local place

 3.Having the working experience on the oilfield, such as oil technician, oil exploit, oil sales etc, and the one who has customer resources, is prior

 4.Working near the oil field, thus convenient to visit customers

 5.Capacity of English communication













As the drilling rig crown block price compete, many company would use poor materials, such as poor seals, low quality square parts,use Casting instead of forging to drop the cost. So please never compare the price only. For us, we always insist high quality first, we hope can do long-term business with you. So we always use better materials to ensure the high quality, be honest and fine workmanship always to customers and do long term business.
