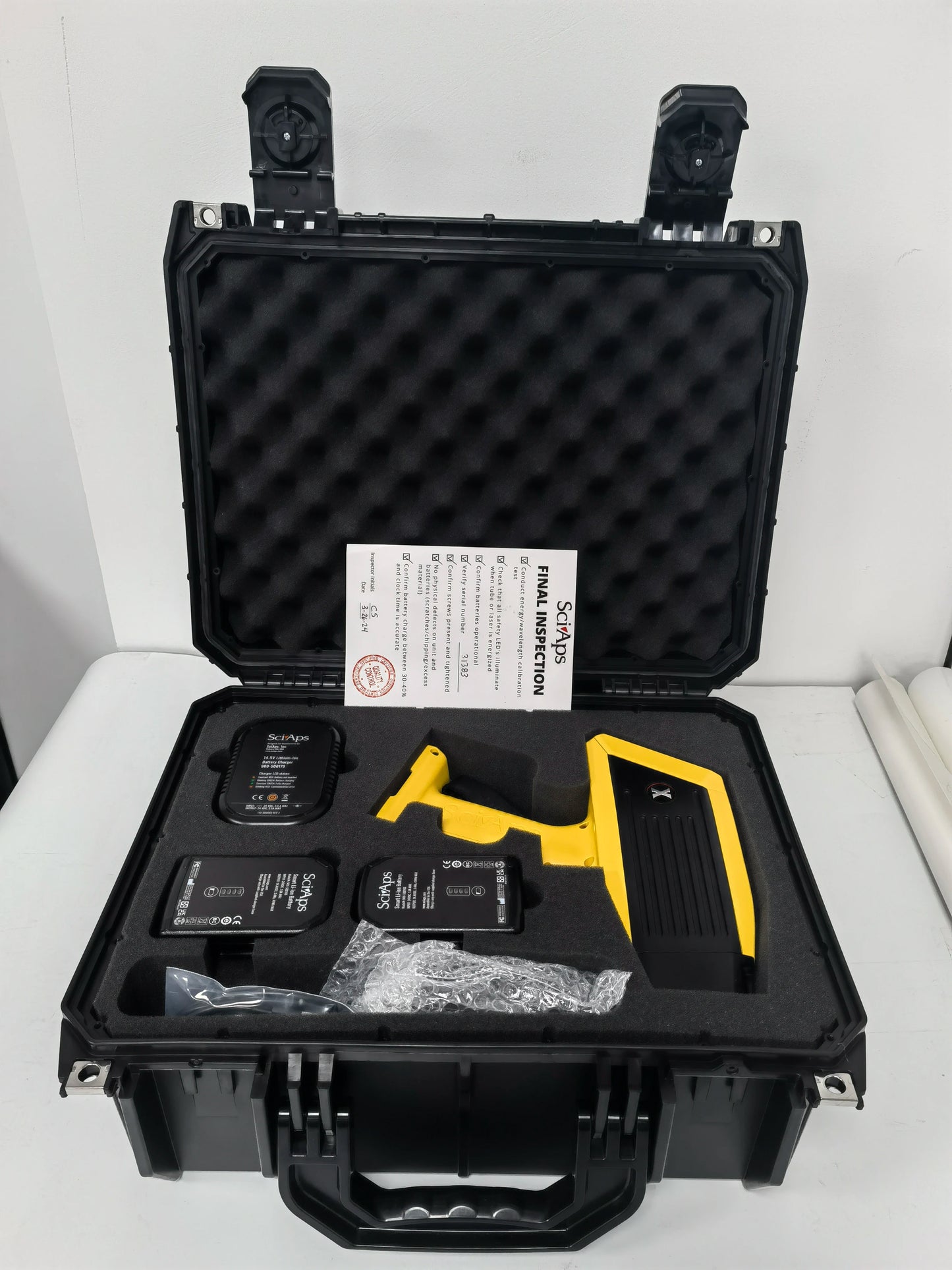

SCIAPS X-200 XRF Portable Handheld Previous Metal Alloy Analyzer Spectrophotometer for Metal Elements Gold Testing

51.157,44 €

Sale Sold out

Shipping calculated at checkout.

Wavelength Range X-200

SPECIFICATIONS

Analytical Range: 32elements standard

Available Apps: Precious metals/Alloy modes

Detector: 20 mm2 silicon drift detector

Display system: 3.5-inch(88.9mm) color capacitive touchscreen

Environmental Temperature Range: 10F to 130F at 25%duty cycle

Excitation Source: 5 W X-ray tube. Typical: 50 kV, 200 uA

Regulatory: CE, RoHS, USFDA registered, Canada RED Act

Spectral Bandwidth: 1

Wavelength Resolution: 0.1

X-ray Filtering: Multi-position filter wheel for beam optimization

brand name: SCIAPS

customized support: NO

model number: SCIAPS X-200

place of origin: USA

type: X-Ray Spectrometer

warranty: 1 year

wavelength repeatability: 0.1

weight: 10KG,3.1 lbs. ( 1.40kg) with battery

wifi&Bluetooth: yes

Products Description

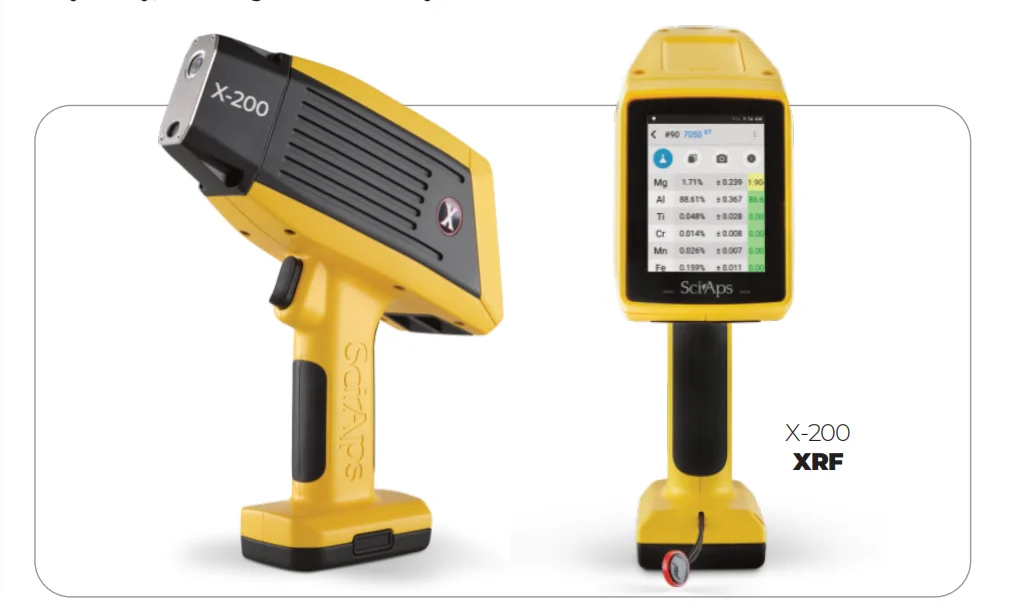

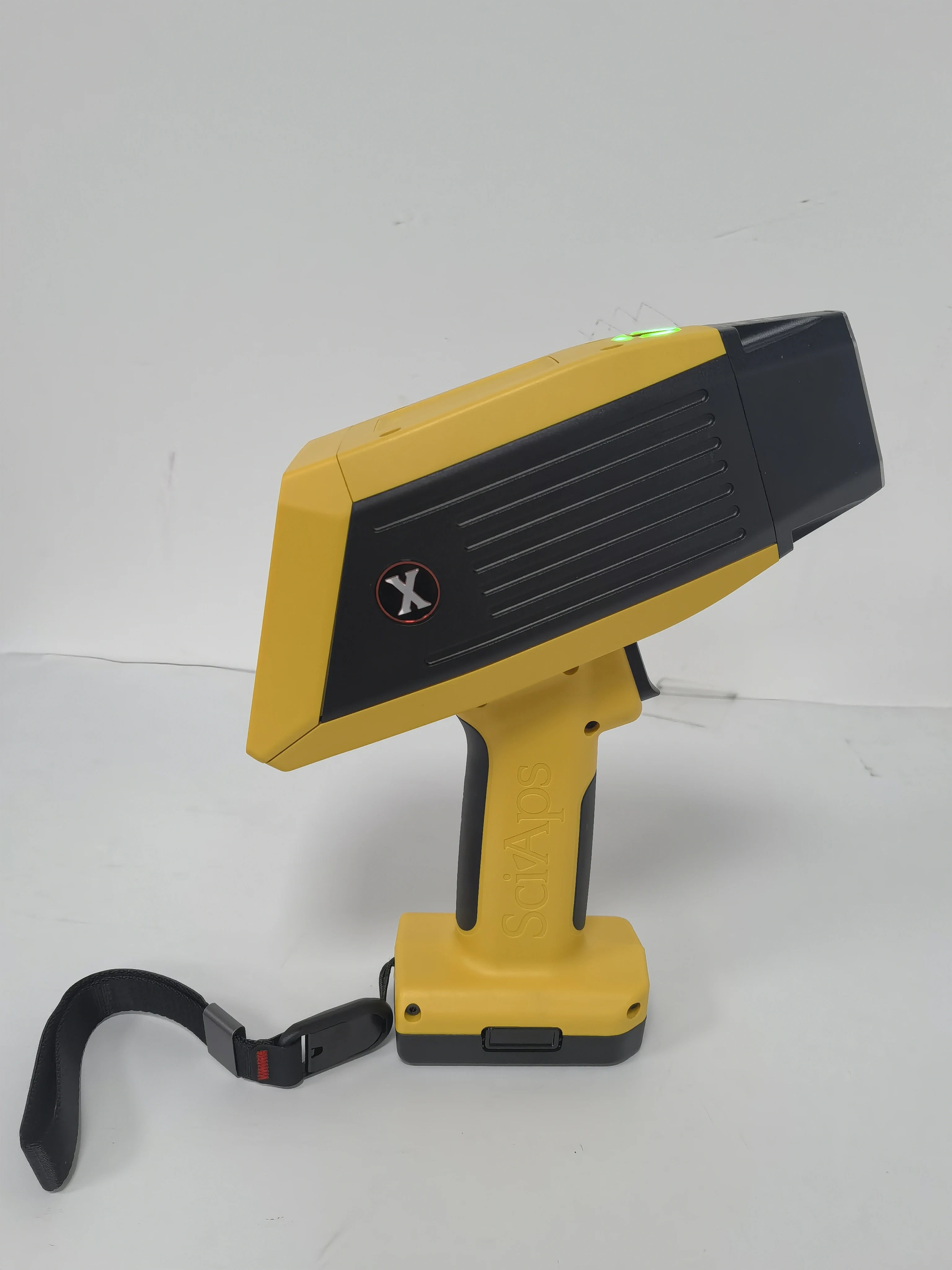

SciAps X-200 XRF

Ultra Fast, Precise X-ray Fluorescence Analyzer

The workhorse XRF

• 50 kV anode

• Factory calibrations, or userdefined empirical calibrations • Fast, precis

Get exactly what you need in a perfect blend of high performance and attractive price. A little beefier than SciAps sleeker models, X-200 still offers comparable or superior speed and precision to the top end analyzers from other brands. Combining a top-performing SDD with highly optimized X-ray tube and detector geometry, the X-200 is rapidly becoming the choice for scrap processing and non-destructive testing. It’s fast on every alloy family, including aluminum alloys.

Fast, precise tests with SciAps X-200

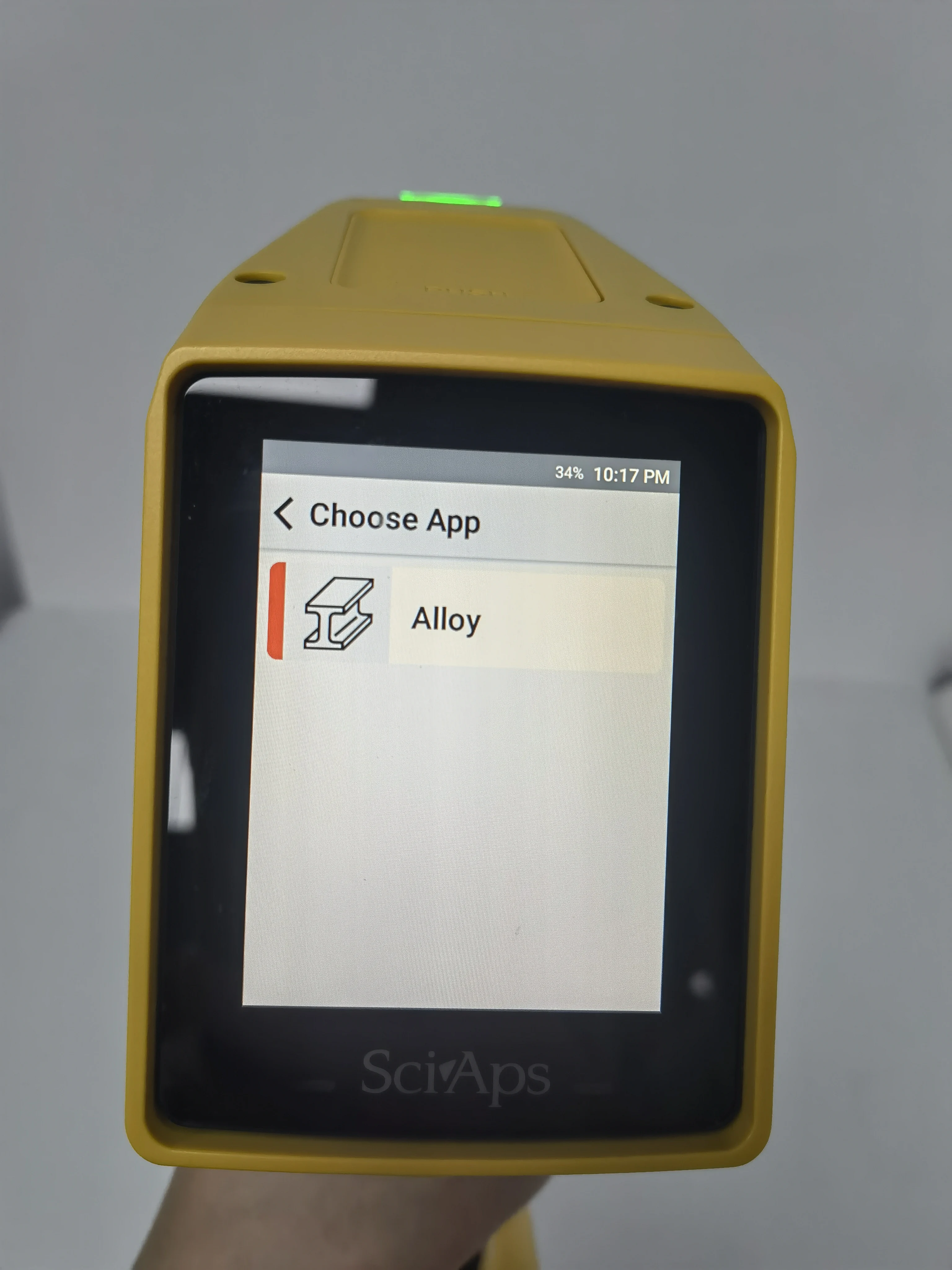

SciAps X-200 analyzes common alloys in 1-2 seconds or less. Alloys requiring longer test times or two-beam light-element analysis are readily measured by industry-specific apps. Tap the Alloy App for ultra-fast verification of any metal. Even aluminum grades that confound other X-ray guns — 3003/3004/3005, cast 356 and 357, and 2014/2024 —are easy for the X-200. The analyzer uses pre-set testing times to measure low concentrations of Cr, Ni, and Cu, then calculates its sum. Operators won’t be adjusting test times in the field or generating unexceptional data due to insufficient testing times.

Connectivity and Android

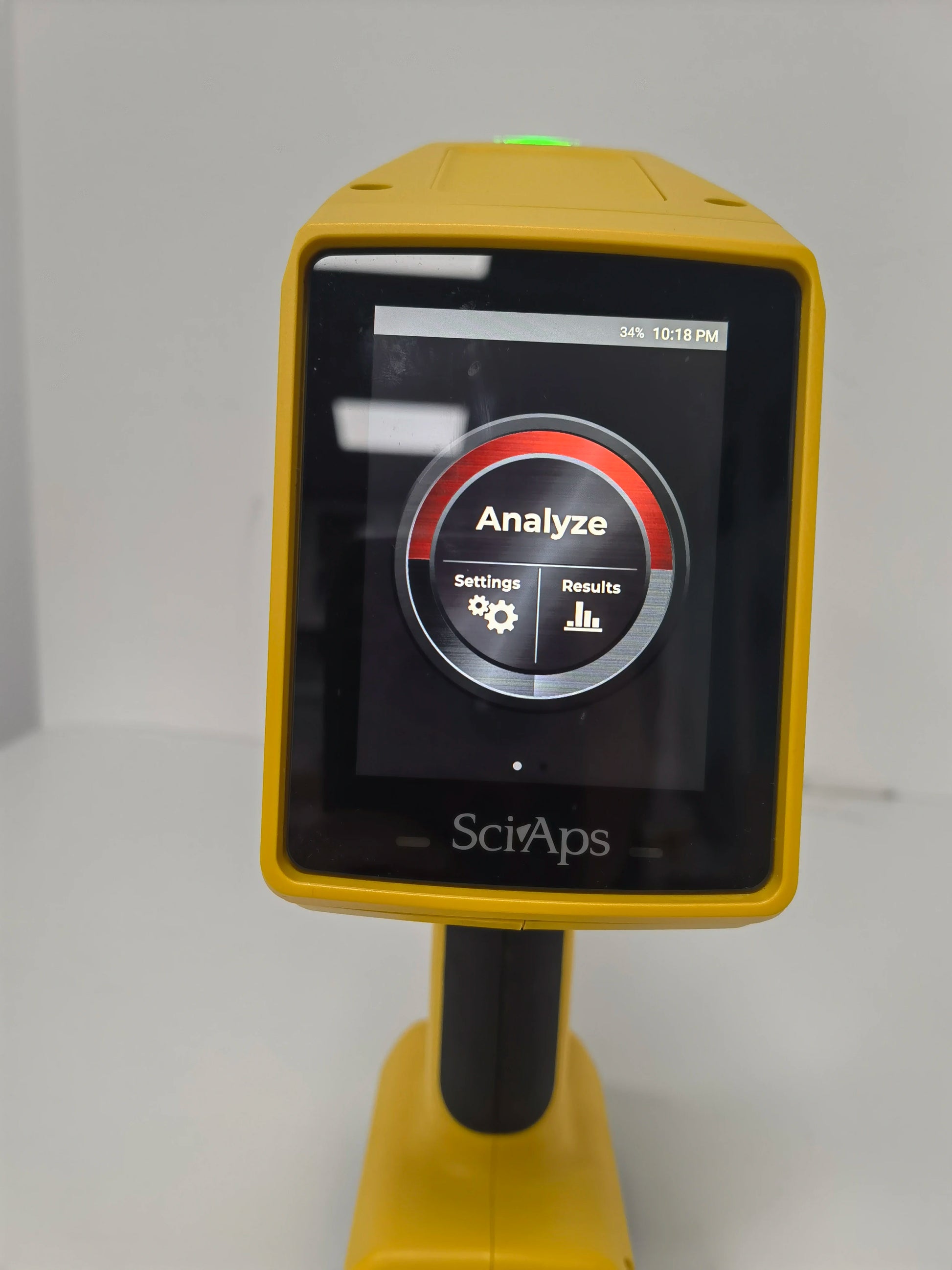

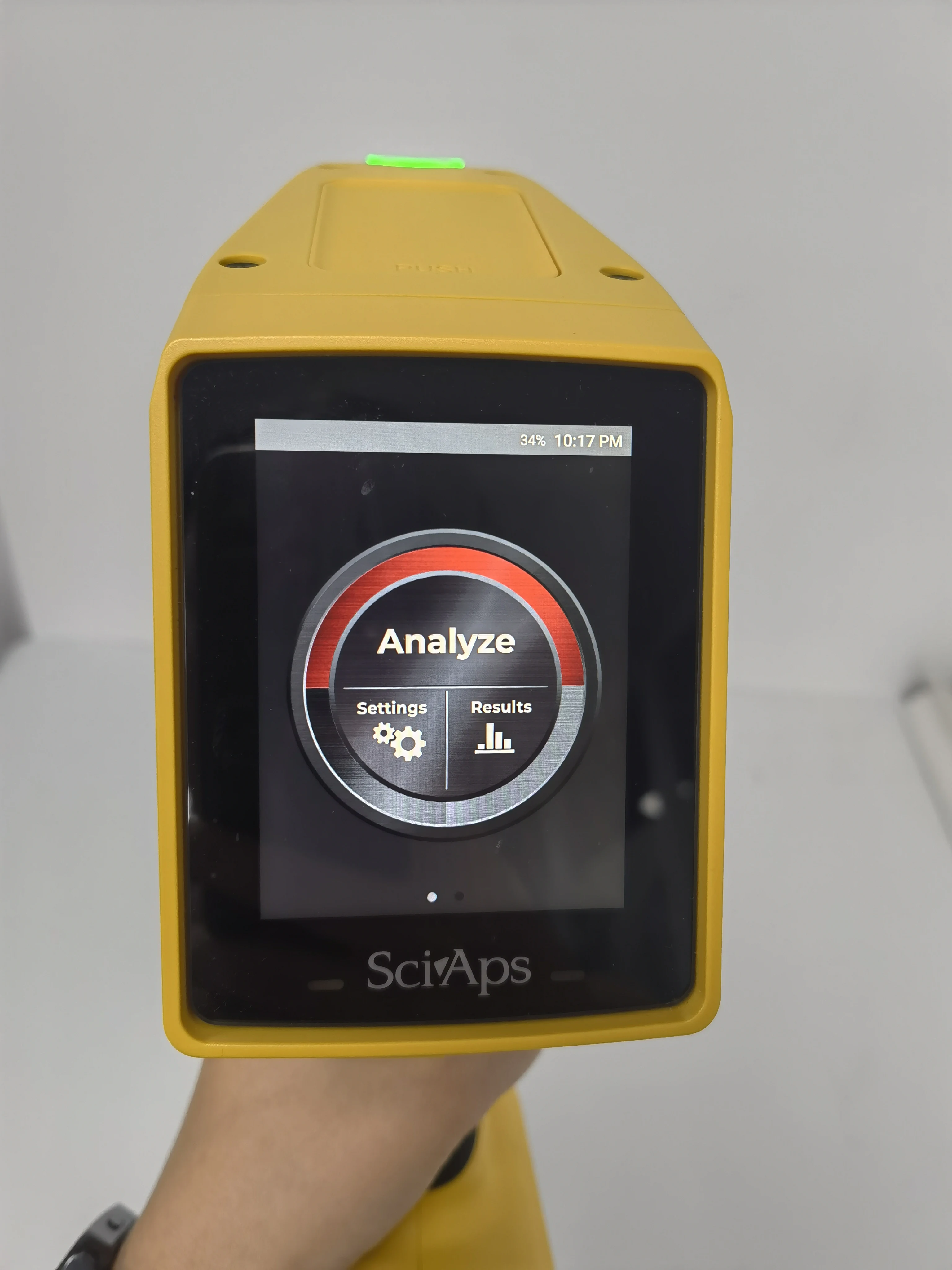

Built on Google’s Android platform, SciAps X Series has the feel of a smartphone, with results easily viewed on a vibrant display and on-board macro camera for photodocumentation or 2D/3D bar code reading and storage. Use built-in Wi-Fi, Bluetooth, GPS and USB to print, email, or connect to virtually any information management system for efficient test data and reporting.

Analytical Range	32 elements standard,specific elements vary by app. Additional elements may be added upon user request.Precious metals appis 22 elements standard.
Processing Electronics and Host Processing	1.2GHz quad ARM Cortex A5364/32-bit, RAM:2GB LP-DDR3,Storage:16 GB eMMC(storage)
Pulse Processor	12bit with digitization rate of 80 MSPS 8Kchannel MCA USB2.0 for high- speed data transfer to host processor. Digital filtering implemented in FPGA for high throughput pulse processing 20 nS-24uSpeaking time.

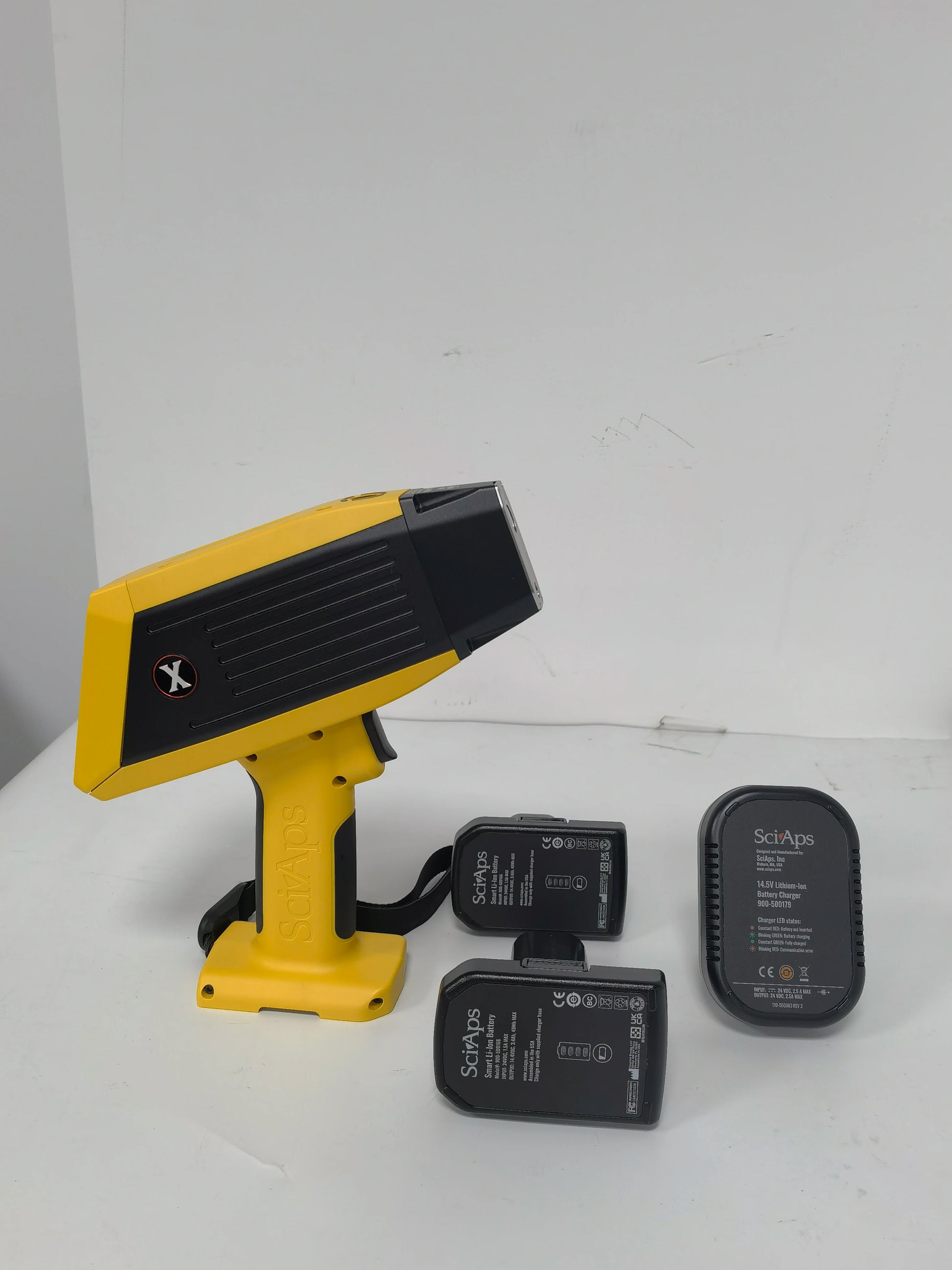

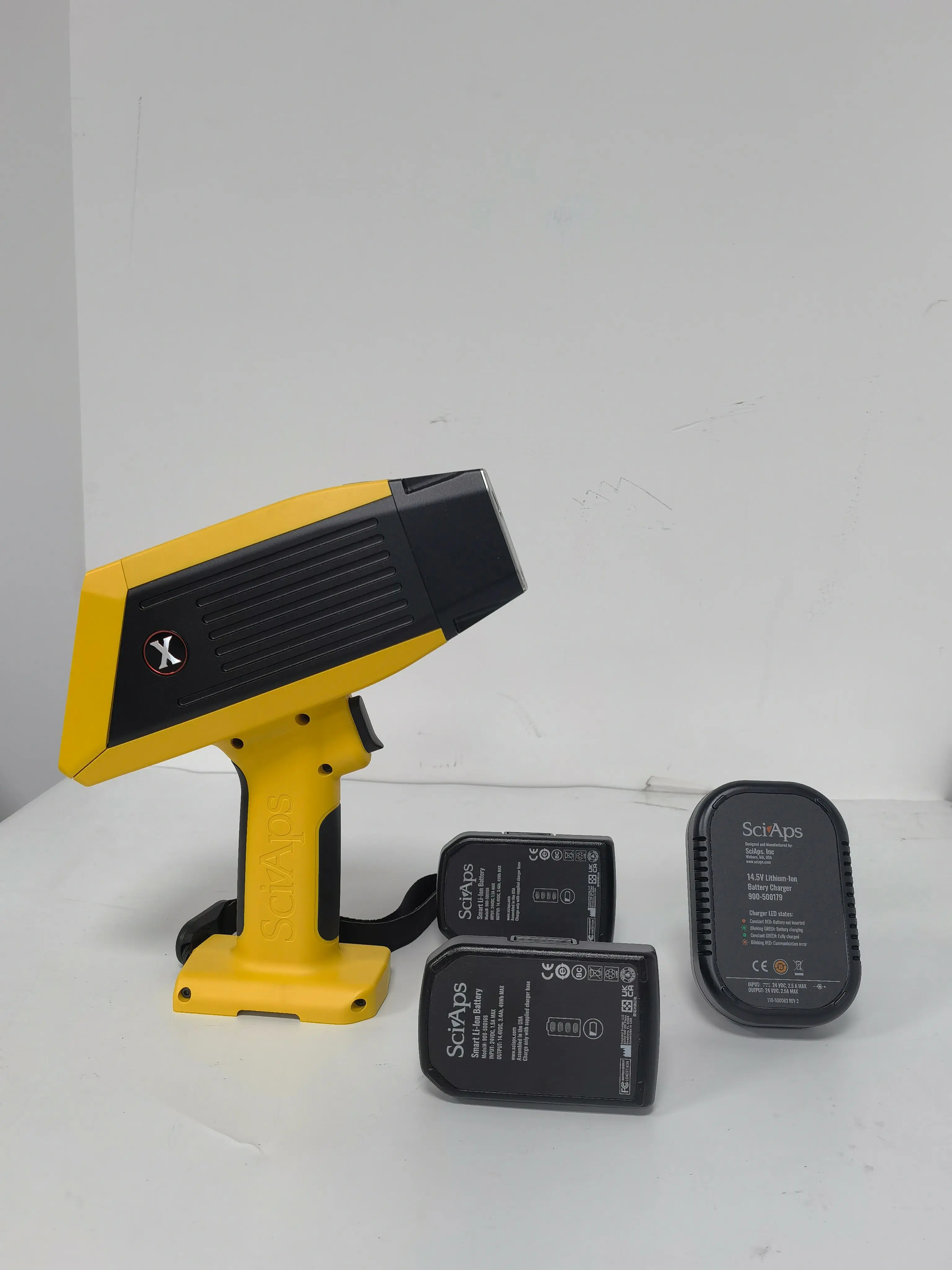

Power	On-board rechargeable Li-ion battery,rechargeableinside device or with external charger,AC power,hot-swap capability (60smax swap time)
Display	35-inch(88.9mm)color capacitive touchscreen—400 MHz Qualcomm Adreno 3062D/3D graphics accelerator

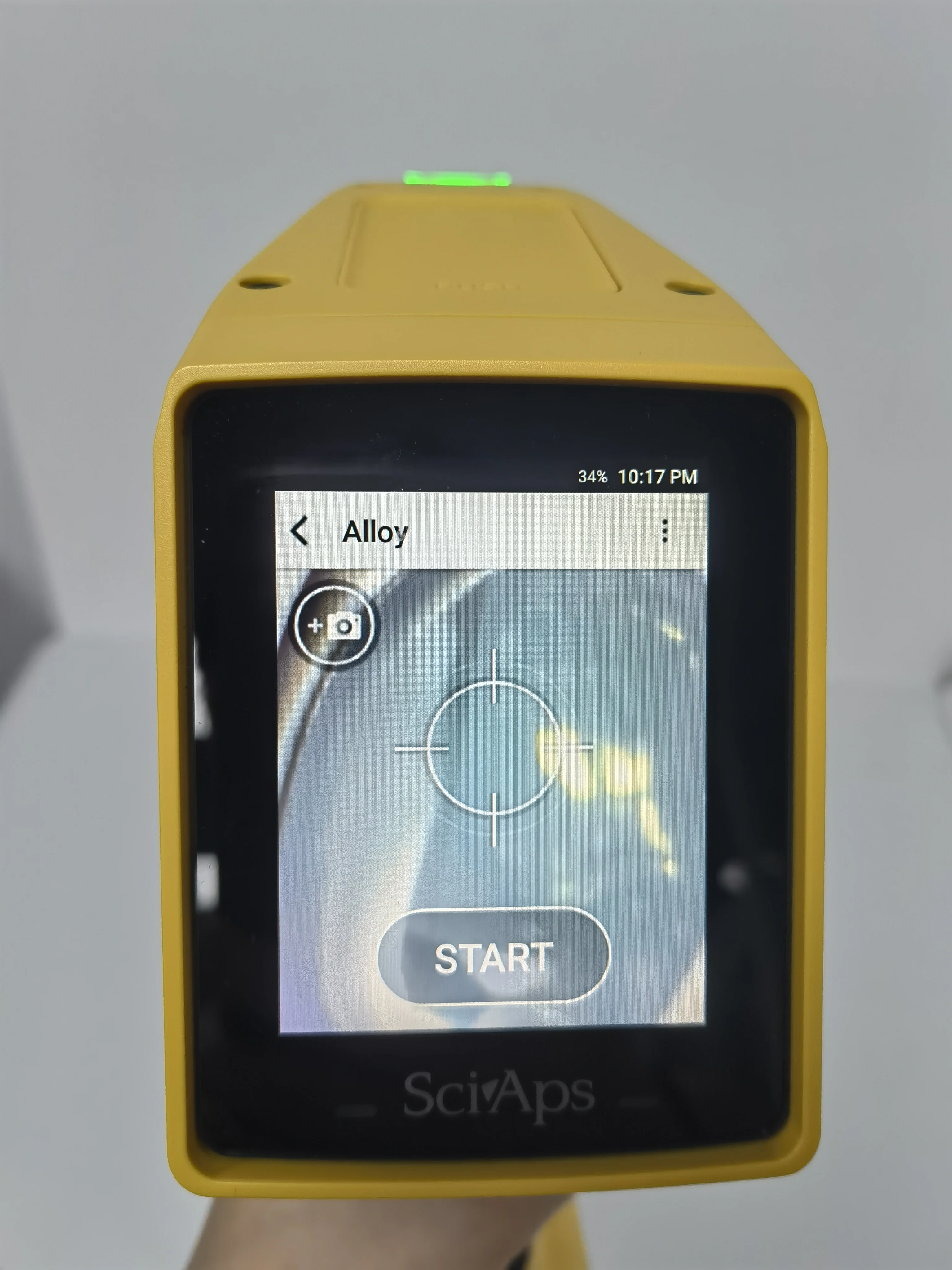

Sample Viewing	Internal camera for viewing sample before and during analysis for proper sample alignment. Second macro-camera for scanning QR or barcodes and for photo-documentation and report generation.
Comms/Data Transfer	Wifi,Bluetooth,USB connectivity to most devices,including SciAps ProfileBuilder PCsoftware
Calibration	Fundamental parameters. For Geochem and Environmental Soil apps, users may also choose"Compton Normalization"method and/or use empirically derived calibrations
Calibration Check	External 316 stainless check standard for calibration verification and energy scale validation
Grade Library	Standard library contains 500+grades,nopractical size limit. Multiple libraries supported,grades may be added on analyzer or via PC software package(ProfileBuilder)
Security	Password protected usage(user level)and internal settings(admin)
Regulatory	CE,RoHS,USFDA registered,Canada REDAct
