SPECIFICATIONS

Advantage: Delivery Quickly

Ambient Temperature: -40℃-+40℃

Application: Distribution System,Transmission

Brand Name: Daelim Transformer

Coil Number: Two Windings,Multi Winding,Three Windings

Coil Structure: Layer Coil

Feature: High Efficiency

Frequency: 50 Hz,60 Hz

Input Voltage: 12.47 kV,35 kV,2400V,4160V

MOQ: 1

Model Number: ZGS

Output Voltage: 480 V,415 V,208V,277V,600V,347V

Phase: Three

Place of Origin: Beijing, China

Port: Tianjin\Qingdao\Shanghai

Standard: IEC ANSI IEEE CSA DOE

Tap Changing Method: Off-Load

Type: Oil-Immersed Transformer

Type of cooling: ONAN ONAF KNAN KNAF

Why Choose Us

1、Transformer production in accordance with IEEE/ANSI, CSA, AS/NZS, IEC, EN 60076, GOST standards and UL/cUL, CESI,CE,FM etc certifications.

2、Fast product delivery with online video factory inspection and lab testing
3、We have local after-sales service team online 24 hours a day to solve your worries

4、We export thousands of transformers annually to the Americas, with over tens of thousands successfully deployed and providing exceptional energy solutions to our customers locally.

Product Paramenters

Rated Power (KVA)	High Voltage (V)	Low Voltage (V)	Dimension(mm)					Weight(KG)
						W	D	H	Oil Weight	Total Weight
75	44000 34500/ 19920 13800/ 14400 13200/ 7620 12470/ 7200 or others	240 480 480Y/ 277 600Y/ 347	1390	910	1430	120	645
112.5					1420	920	1430	138	729
150					1510	980	1530	201	989
225					1600	1000	1660	230	1195
300					1660	1080	1680	260	1415
500					1810	1160	1790	325	1905
750					2030	1300	2030	535	2755
1000					2110	1549	1854	650	3235
1500					2210	1470	2150	748	5835
2000					2380	1600	2220	950	6430
2500					2480	1650	2330	1020	8865

The maximum capacity of our three-phase transformer can reach 10MVA, the voltage can reach 44KV, and we can also customize the design according to your needs.

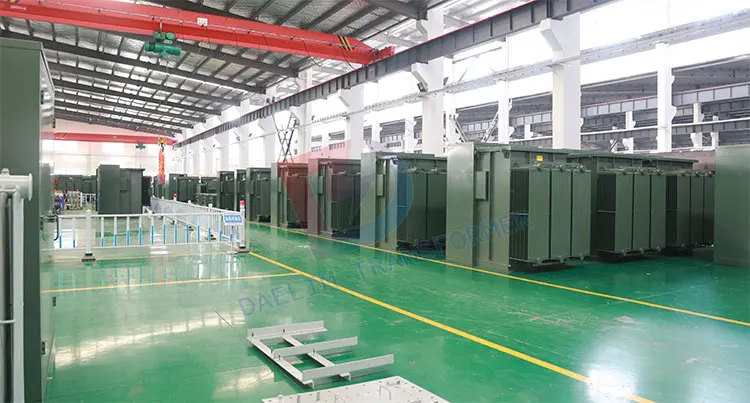

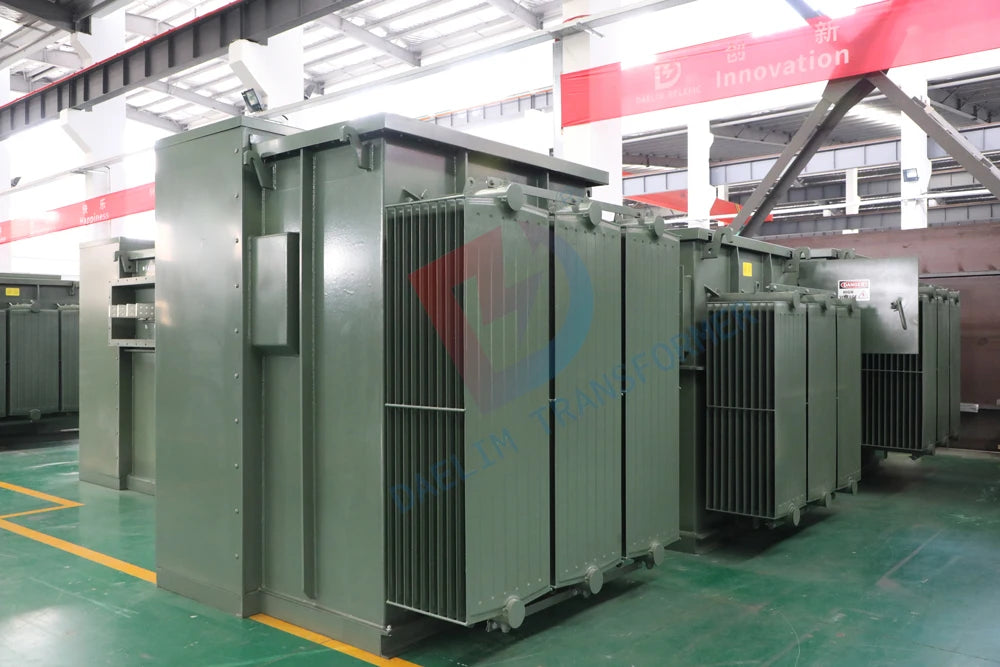

Production Processes

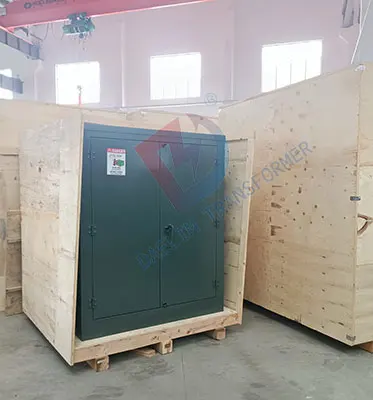

Product packaging

Recommend Products

Company Profile

Daelim Transformer

Daelim Transformer is the top transformer supplier in China. The factory is located in Jiangsu Province, covering an area of 60,000 square meters. With more than 20 years of transformer export experience, the professional technical team can meet your requirements for all technical standards; the professional marketing team will quickly and efficiently promote your transformer project, saving you more time and economic costs.

Various international certifications of transformers to ensure product quality, safety and reliability. The practical application of Daelim Transformer in nearly a hundred countries will make you more confident in Daelim Transformer. Daelim Transformer will be your best choice.
