SPECIFICATIONS

Application: Construction

Brand Name: Top Brand

Color: Yellow

Core Components: PLC,Engine,Bearing,Gearbox,Motor,Pressure Vessel,Gear,Pump

Engine Model: WP6G240E330/OM906LA.E3A/2

Engine rated power: 176/2300kW/(r/min)/190/2200kW/(r/min)

Fully-extended boom + Jib: 92.6m

Machinery Test Report: Provided

Max. Lifting Height: 92,6M

Max. travel speed: 90km/h

Min. ground clearance: 326mm

Min. turning diameter: 23m

Model: XCT100

Place of Origin: Jiangsu, China

Rated Lifting Moment: 4704kn.m

Rated Loading Capacity: 100T

Span: 7.9m

Total weight in travel: 55000KG

Track: 2449/2315mm

Video outgoing-inspection: Provided

Warranty: 1 Year

Weight (KG): 55000

Product Description

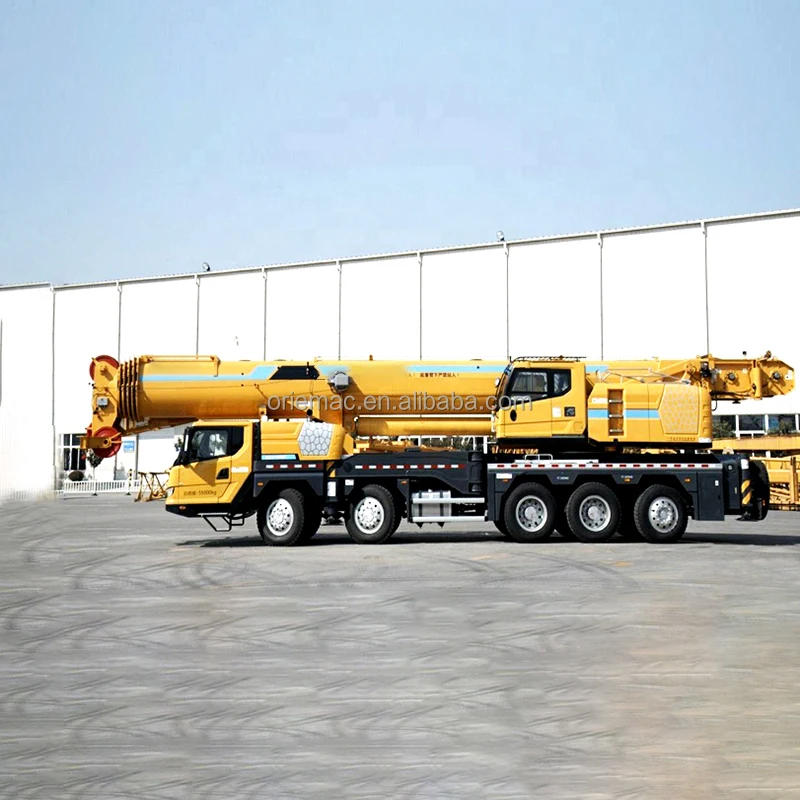

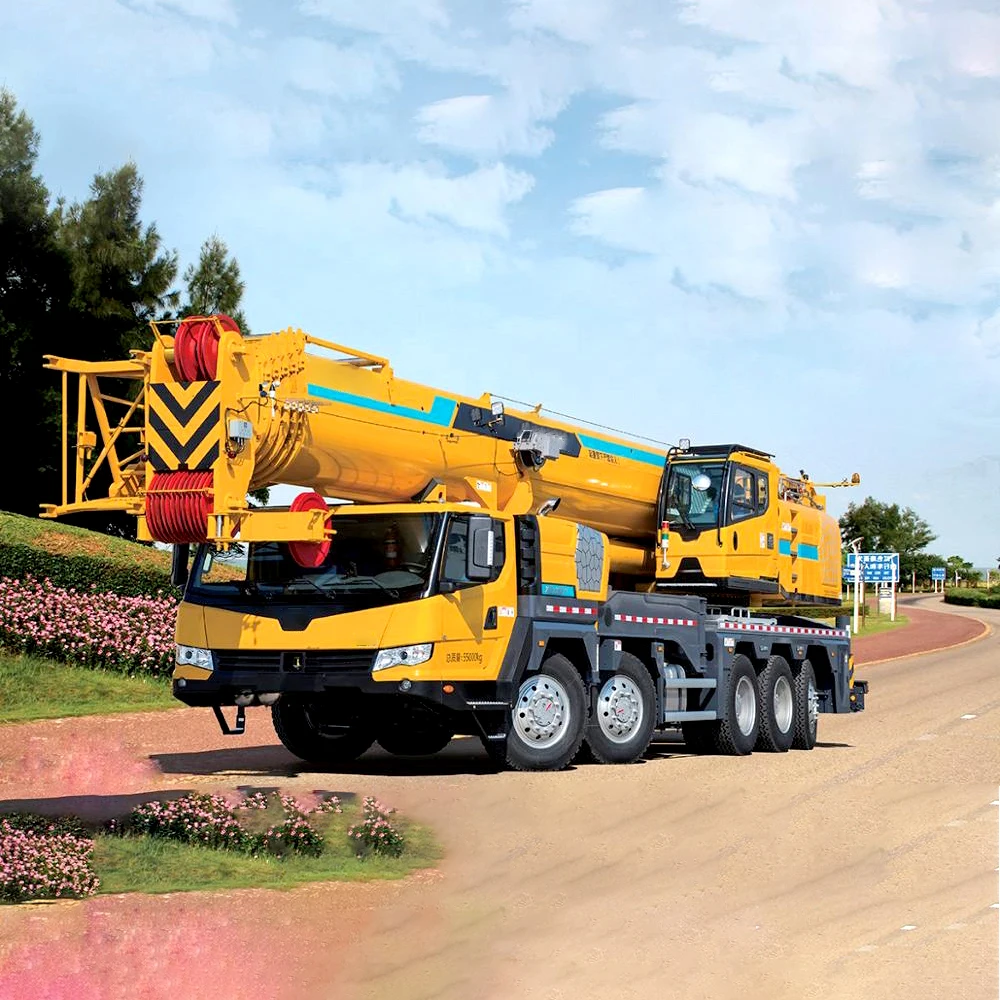

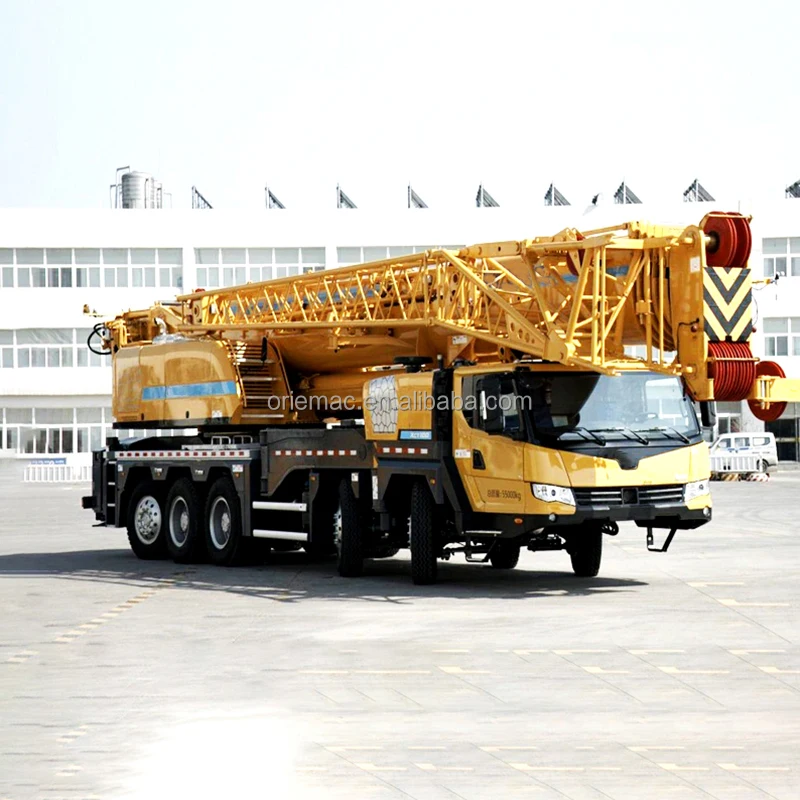

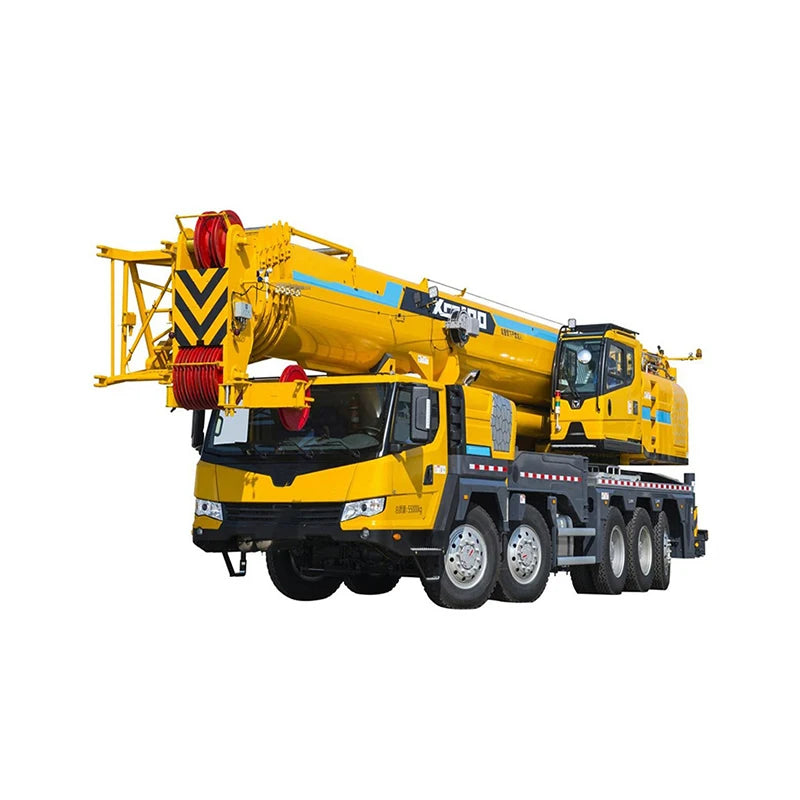

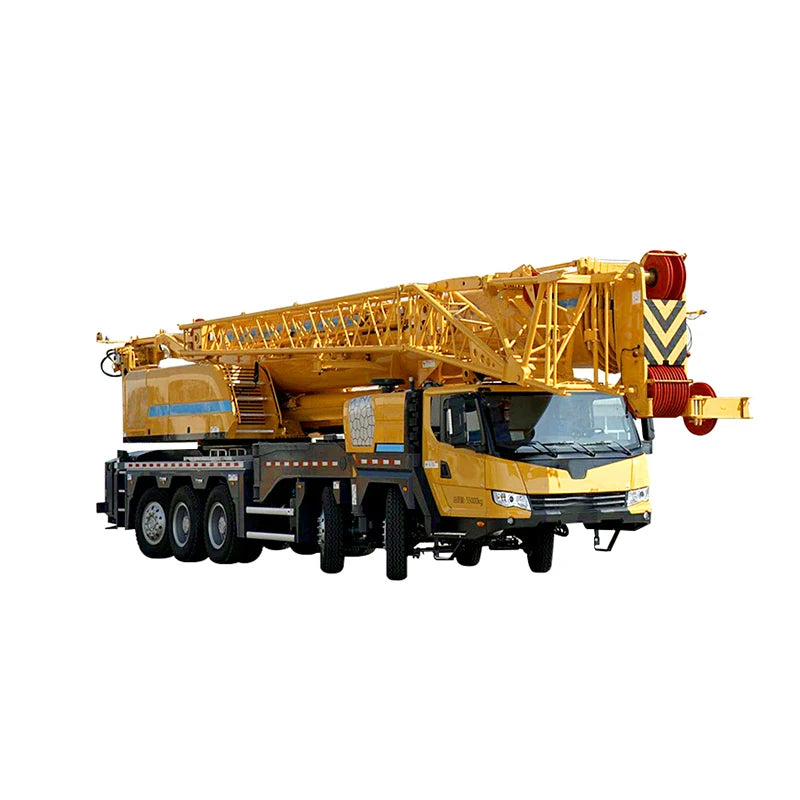

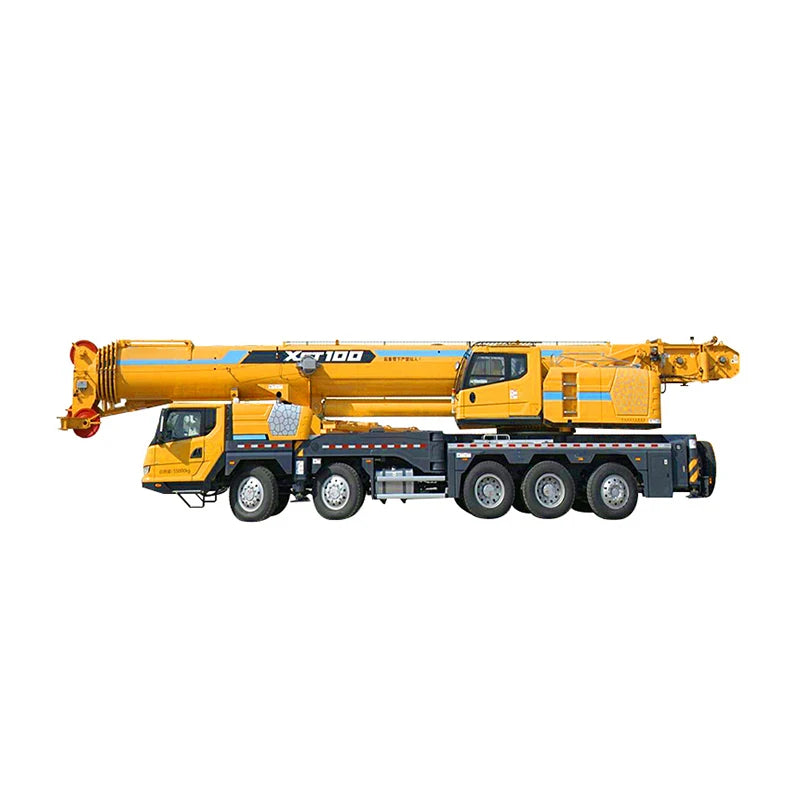

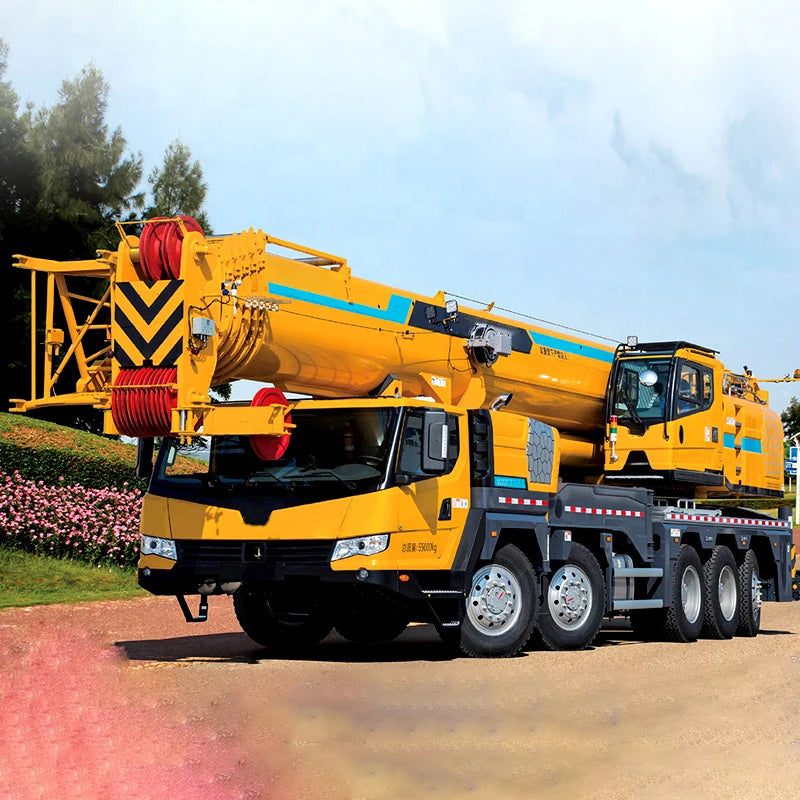

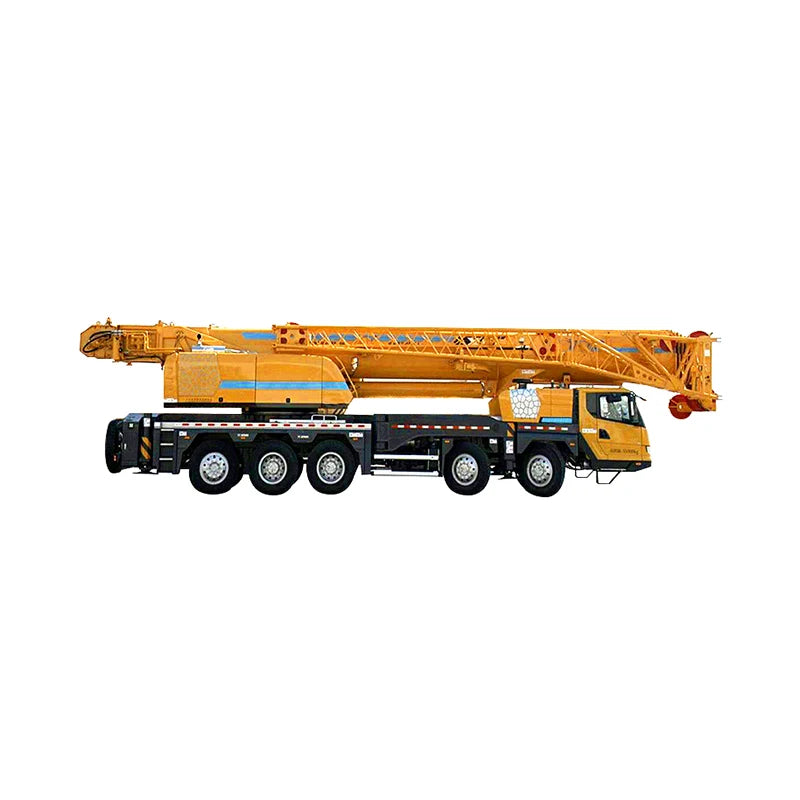

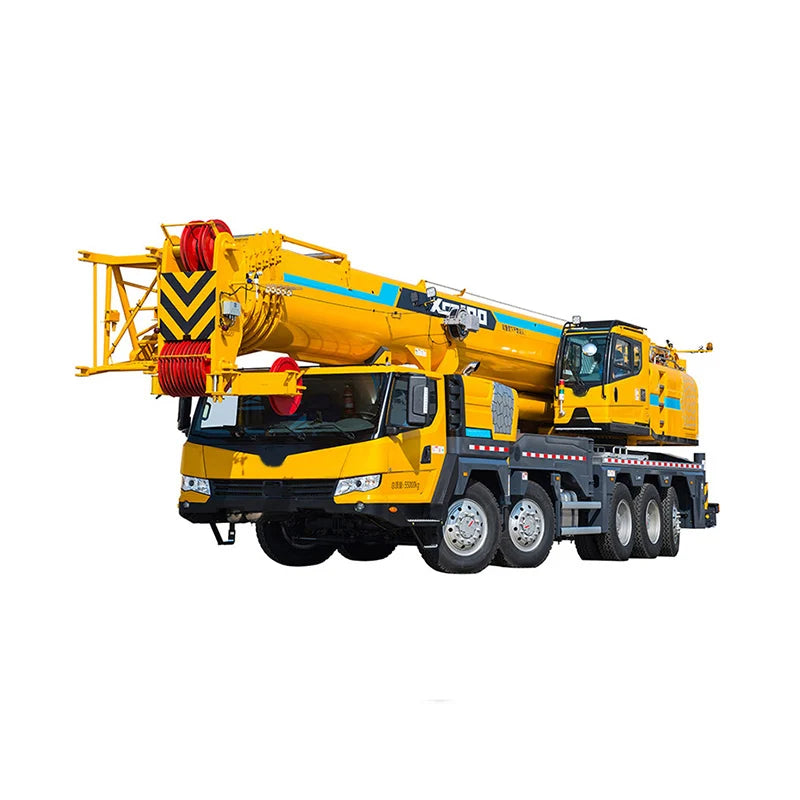

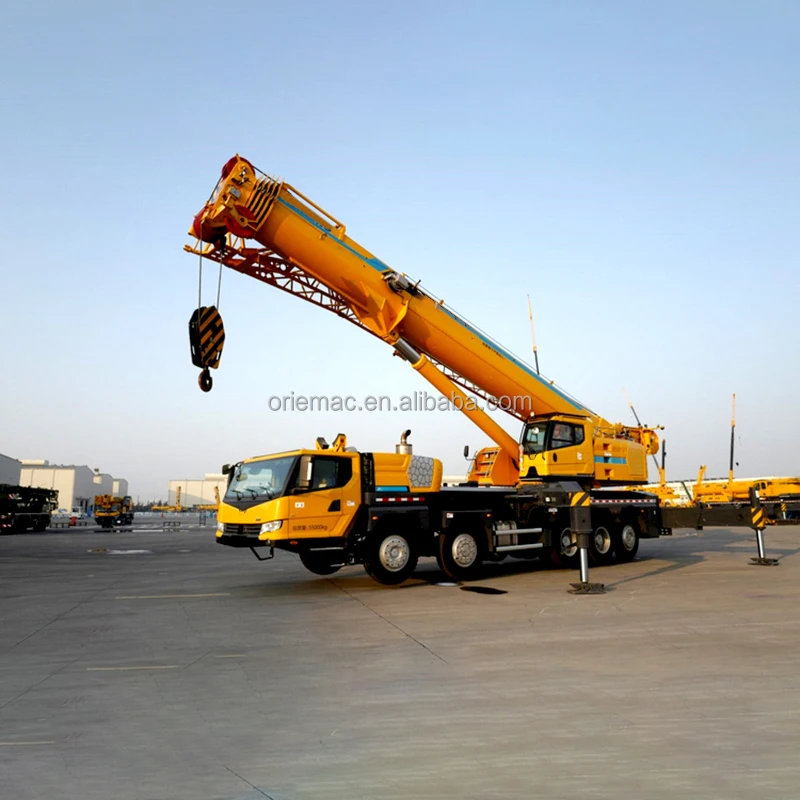

Truck Crane XCT100

Truck crane is a kind of crane mounted on the chassis of ordinary or special automobile. Its driving cab is separated from the crane control cab. The advantages of this crane are good maneuverability and fast transfer. This kind of crane usually has two control rooms, the upper and the lower, and its legs must be extended to maintain stability in operation.

Specification

Description			Unit	Parameter value
Overall length			mm	15600
Overall width			mm	3000
Overall Height			mm	3870
Wheel Base			mm	1920+3500+1420+1505
Track(front/rear)			mm	2449/2315
Front/Rear overhang			mm	2650/2765
Front/Rear extension			mm	1840/0
Total vehicle mass in travel configuration			kg	55000
Axle load	1st and 2nd Axle	kg	10000
			3rd and 4th Axle		13000
			5th Axle		9000
Engine Model				WP6G240E330	M906LA.E3A/2	WP12.430N
Engine rated power			kw/(r/min)	176/2300	190/2200	316/1900
Engine rated torque			N.m/(r/min)	860/1200-1700	1000/1200-1600	2060/1000-1400
Max. travel speed			km/h	90
Min. turning diameter			m	23
Min. ground clearance			mm	326
Max. grade ability			%	45
Approach angle			°	18
Departure angle			°	13
Braking distance (at 30 km/h, full load )			m	≤10
Oil consumption per 100km			L	70
Noise level at seated position			dB(A)	≤90
Exterior noise level			dB(A)	≤88
