SPECIFICATIONS
Applicable Industries: Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Restaurant,Energy & Mining,Food & Beverage Shops
Applicable diameter: 20-89mm
Cooling method: Circular water cooling system
Core Components: motor
Head Weight: 6
Input voltage: 380V 10% 50HZ / 60HZ
Key Selling Points: Automatic
Keyword: Orbital Welding Machine China
Machinery Test Report: Provided
Marketing Type: New Product 2023
Protective gas: Argon
Showroom Location: None
Tungsten diameter: 2.4
Utillzation factor: 60% at 400A
Video outgoing-inspection: Provided
Wall thinckness: 1-10mm
Warranty of core components: 6 Months
brand name: E-work
condition: New
current: 4
dimensions: 768*470*906mm
machine type: Welding Manipulator
place of origin: Henan, China
rated duty cycle: 60% at 400A
usage: ss pipe welding
voltage: 380V 10% 50HZ / 60HZ
warranty: 1 Year
weight (kg): 2.5

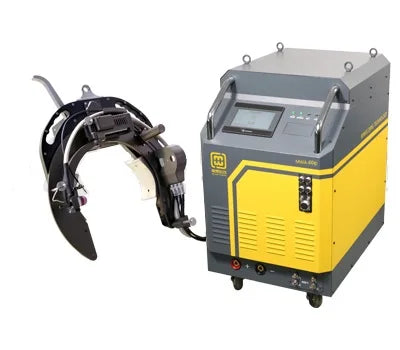

Our range of open welding heads allows you to make very high-quality welds in minimal space.On these heads,you will find a mechanical tracking system to keep a constant arc height.The torch can tilt to weld at an angle.This type of machine can be used to weld carbon steel tubes.Open heads offer very wide welding possibilities thanks to the inclination of the torch and the addition of filler metal.The clamping
range is achieved without the addition of jaws.The tracking system is by roller so as not to scratch the tube. All the parts in contact with the tube are made of stainless steel so as not to contaminate it.

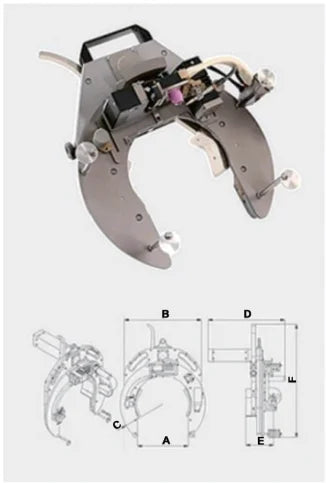

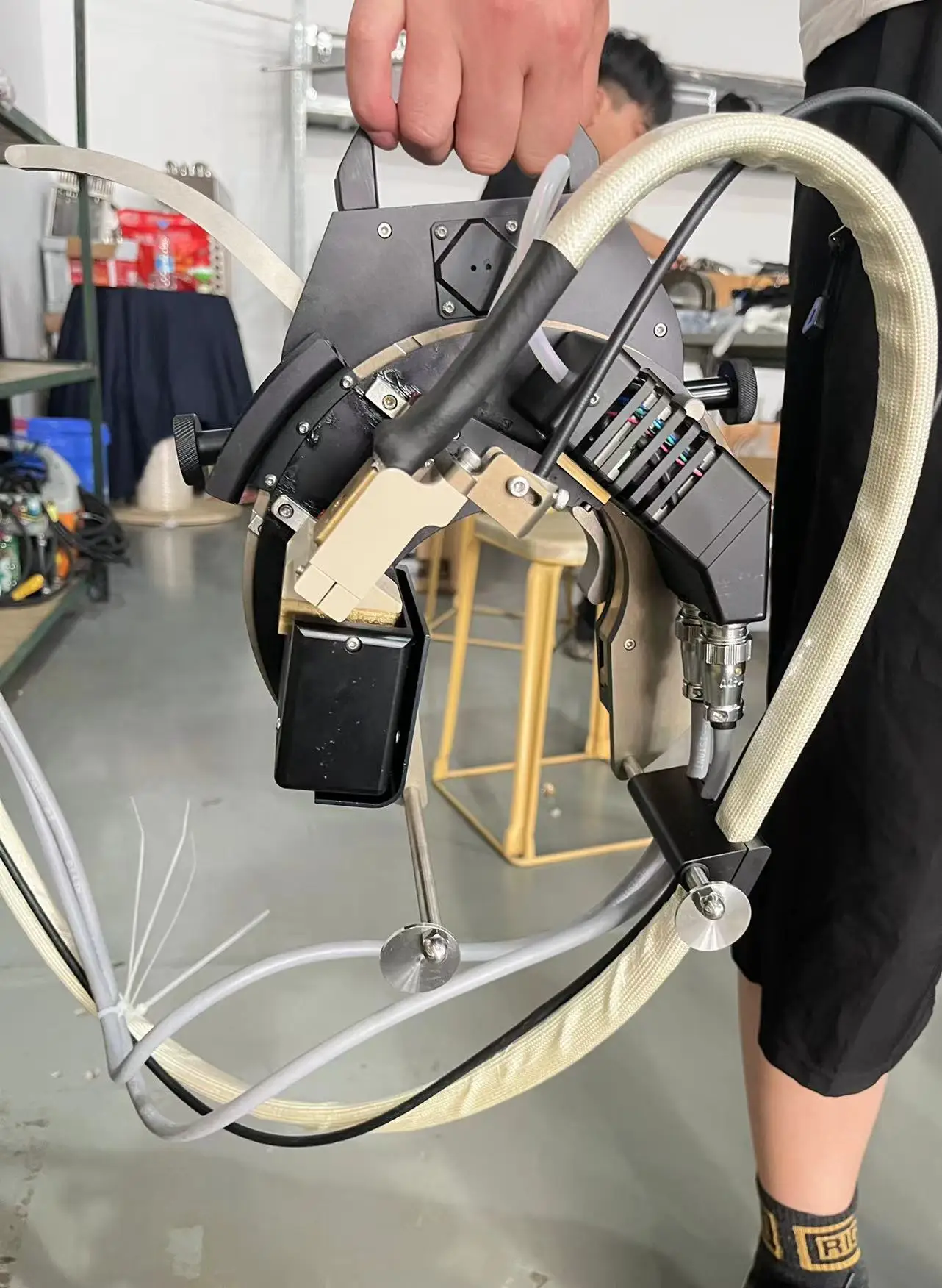

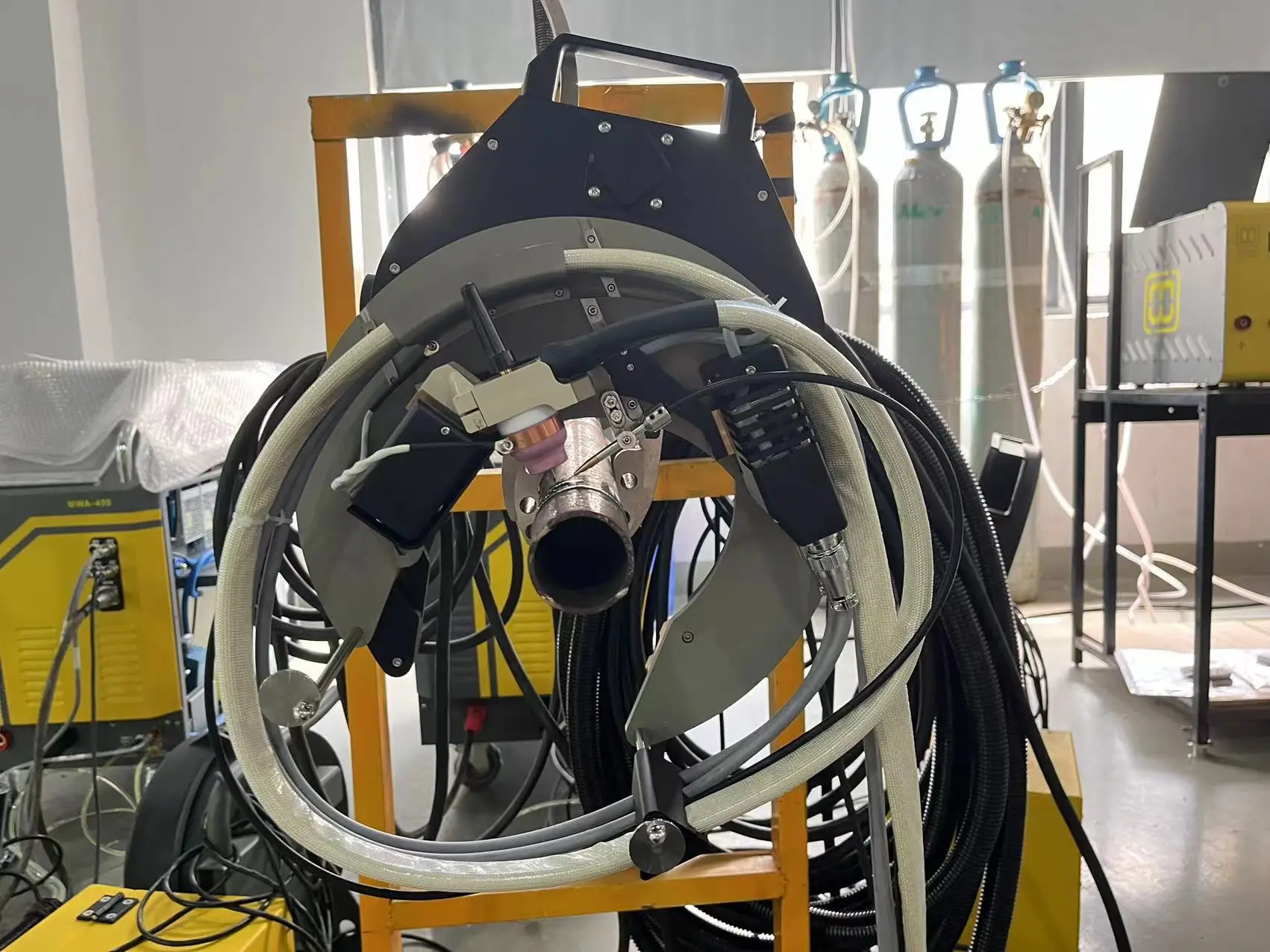

Open Orbital Weld Heads
1.The equipment adopts a standard modular design, the replacement of spare parts is convenient, and the use cost is low; 2.With the speed measurement function with feedback, the rotation of the welding torch is more accurate and stable, and the angle of the welding seam is monitored in real-time. The rotation speed of the welding torch is accurate and stable, and the perfect welding quality is achieved;
3.With automatic arc length and yaw function, it can meet the welding of pipe fittings of different sizes;
4.The welding torch is cooled by circulating water, with a high-duty cycle, and it can work stably and reliably for a long time without heating;
5.Under the same conditions, different pipe diameters can be welded without readjusting the welding parameters;
6.The welding torch adopts the Haval fixture, which can be adjusted according to the diameter of the pipe fittings so that the welding torch can firmly lock the pipe fittings.

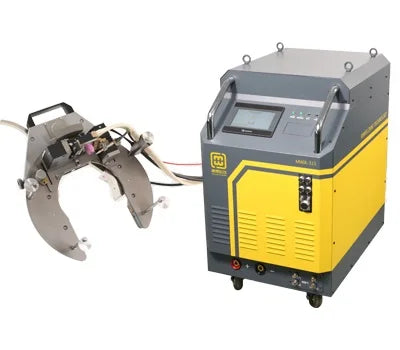

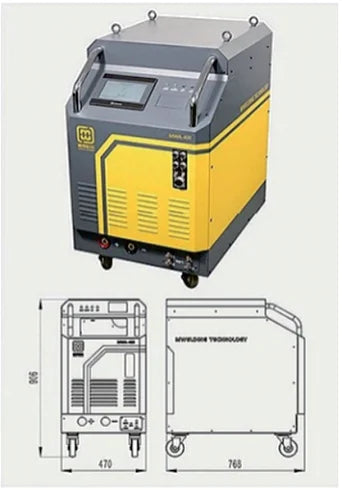

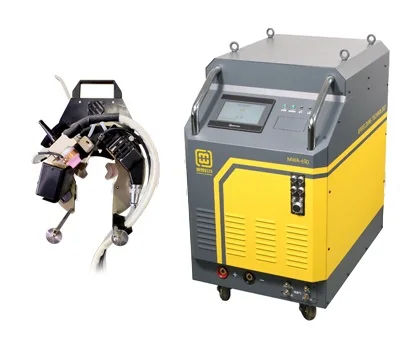

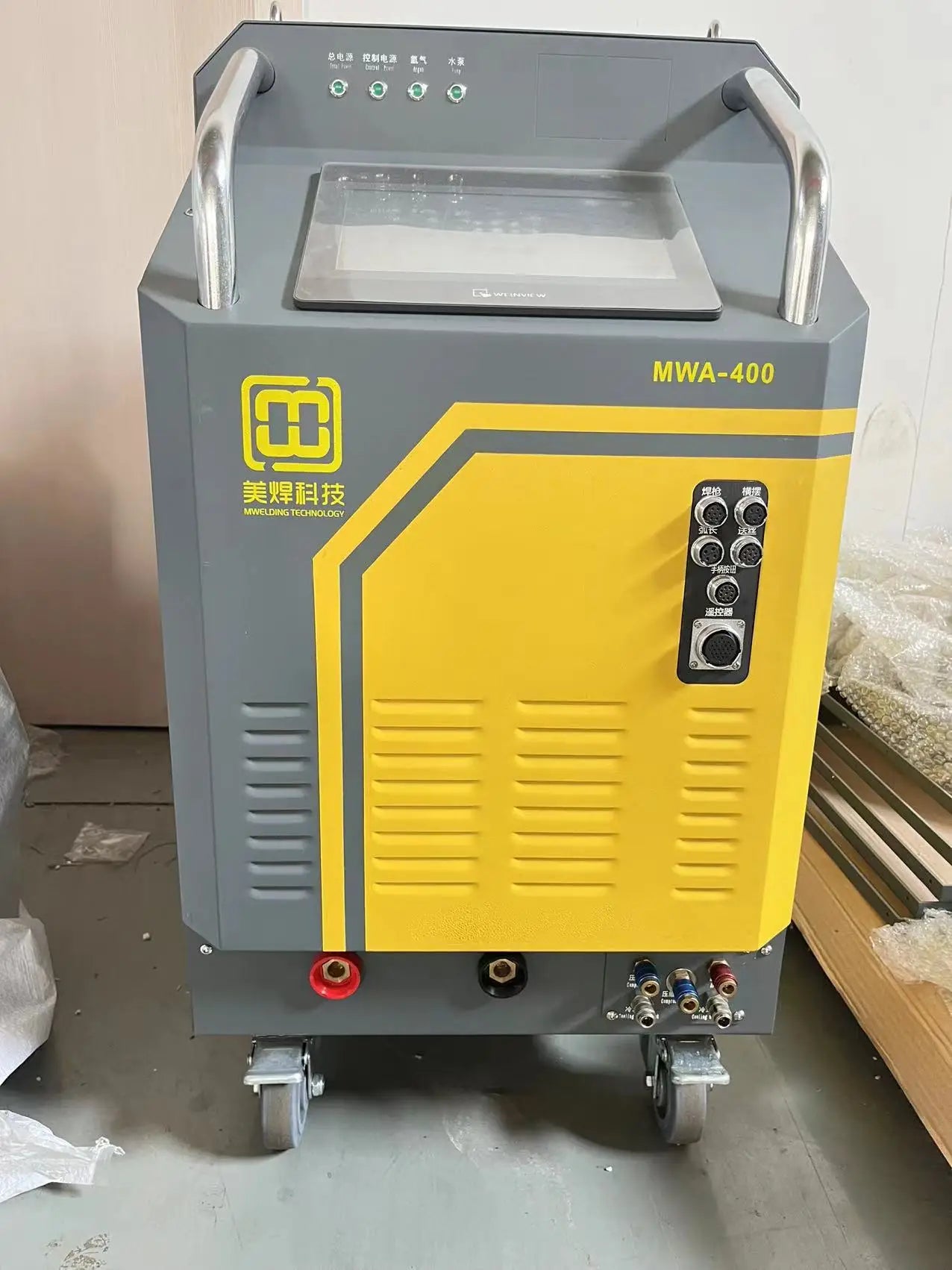

Integrated Control Power Supply MWA-400
1.MWA-400 programmable welding power source consists of the control system, inverter core, cooling water tank, etc.
2.The equipment adopts a German Siemens PLC control system, EWM welding movement, Swiss Maxon motor, Omron relay, and other imported configurations. Precise control of various input and output signals.
3.Using touch man-machine interface, fast switching between Chinese and English interfaces, color 10-inch touch screen, graphic and step interface design, easy to operate and easy to learn and meet the requirements of different venues.
4.With functions such as parameter saving/printing, it can be operated with basic welding skills.
5.Real-time monitoring of welding parameters such as current, voltage, and speed during the welding process to ensure the safety and efficiency of the welding process.

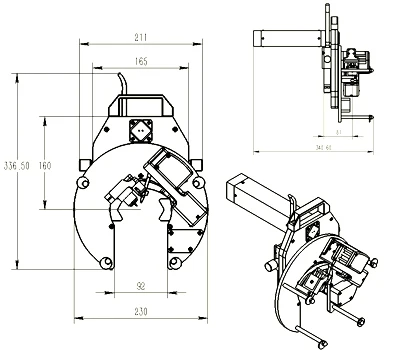

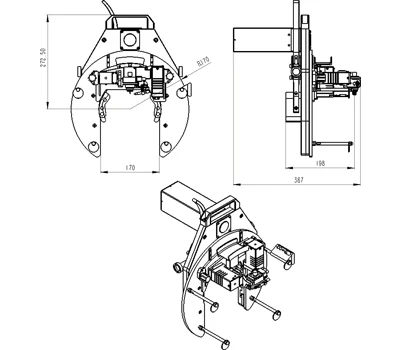

Product Parameters Unit:mm/kg
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Circular water cooling system |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

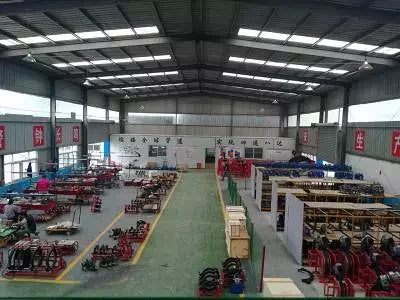

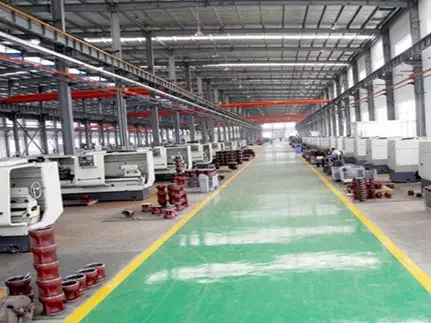

Henan E-work Industrial Equipment Co., Ltd. is a professional company dedicated to the R&D, production and sales of piping tools and solutions to related pipeline problems.
