SPECIFICATIONS

After-sales Service Provided: Engineers available to service machinery overseas

Application: construction machinery

Brand Name: EVANGEL

Core Components: Motor,Gearbox

Engine Brand: Top Brand

Hydraulic Cylinder Brand: Top Brand

Hydraulic Pump Brand: Top Brand

Hydraulic Valve Brand: Top Brand

Hydraulic parts: Telescopic Mobile Crane Made

Machinery Test Report: Provided

Max. Lifting Height: 15 meters

Maximum lifting moment: 20

Model: SQ8SK3Q

Place of Origin: Jiangsu, China

Product name: Truck Mounted Crane

Rotation angle: 360 Degree

Type: Truck Mounted Crane Mobile Crane Truck

UNIQUE SELLING POINT: High operating efficiency

Video outgoing-inspection: Provided

Warranty: 1 Year,one year

Weight (KG): 43000 kg

maximum lifting height: 9.92m

maximum lifting load: 8000kg

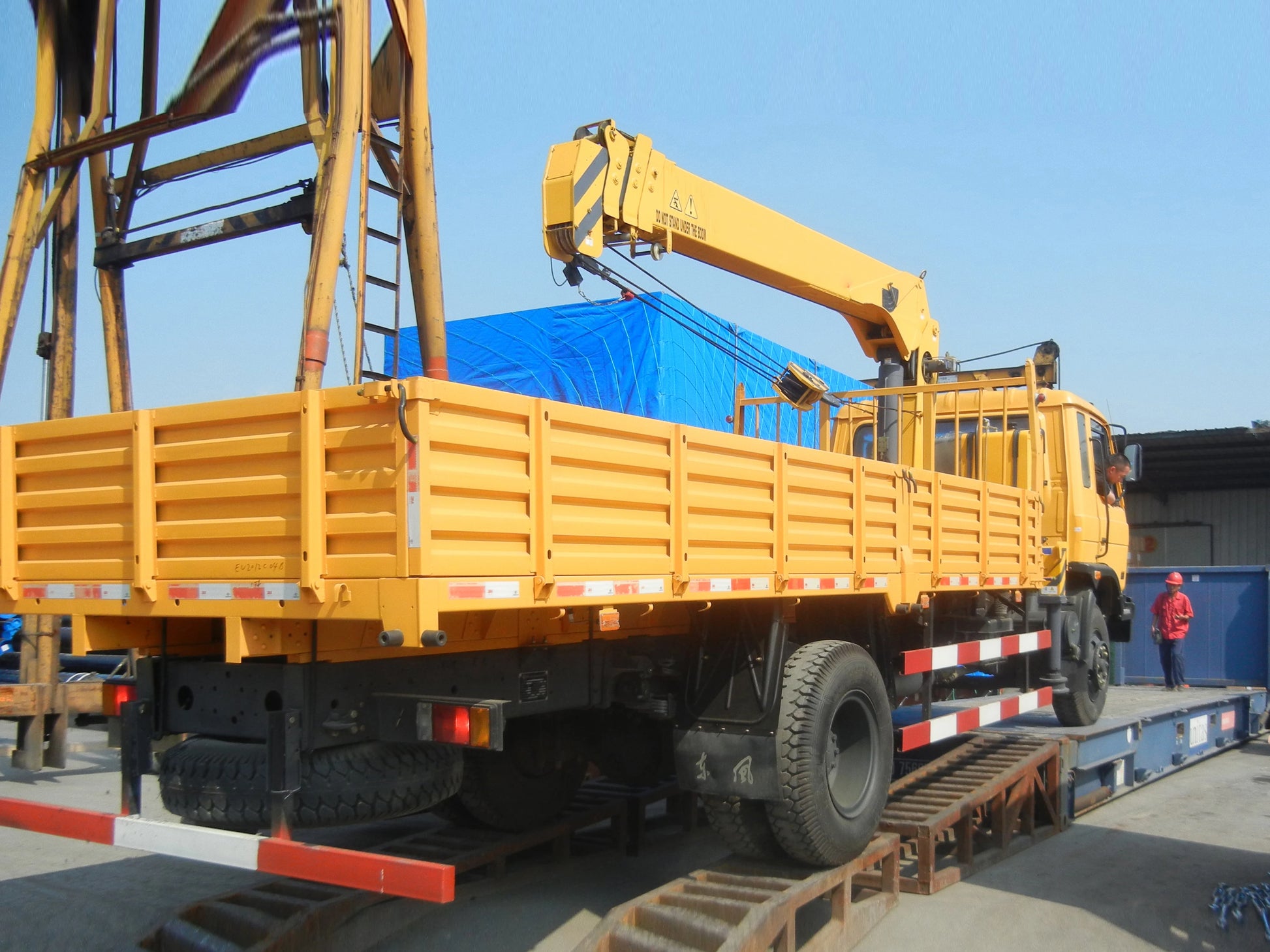

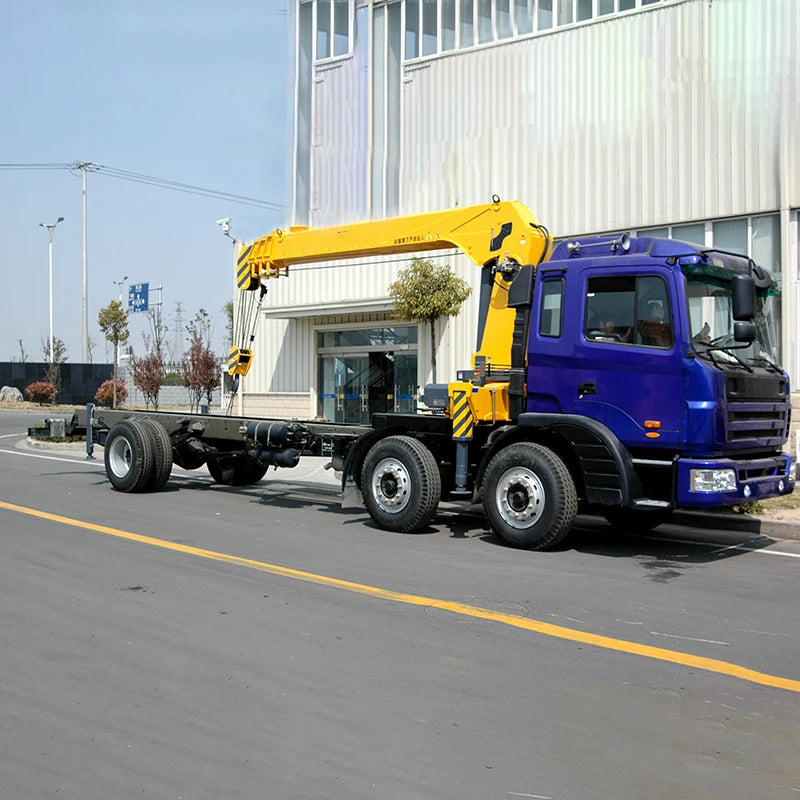

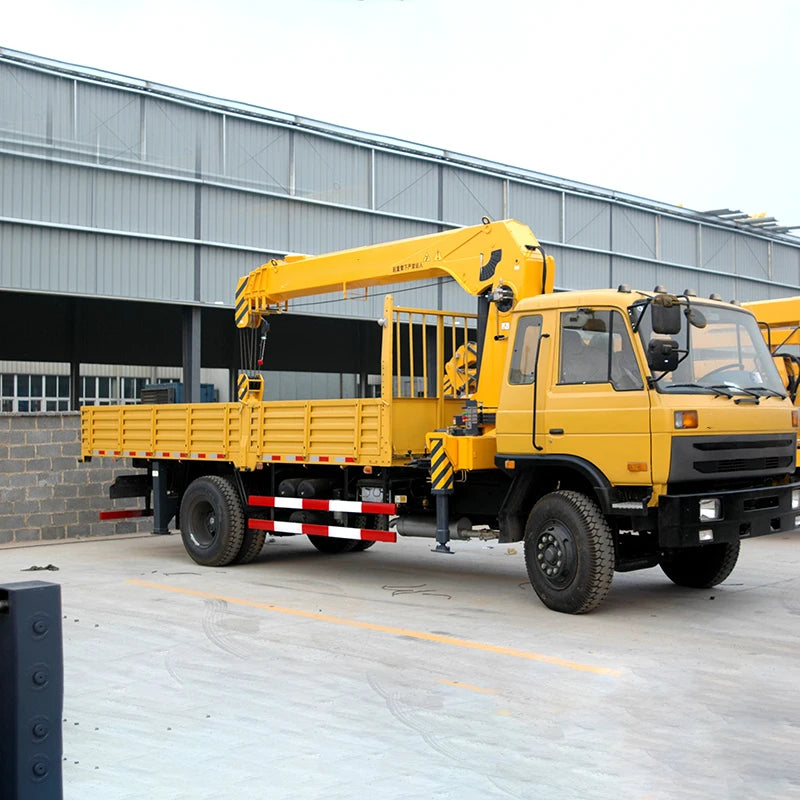

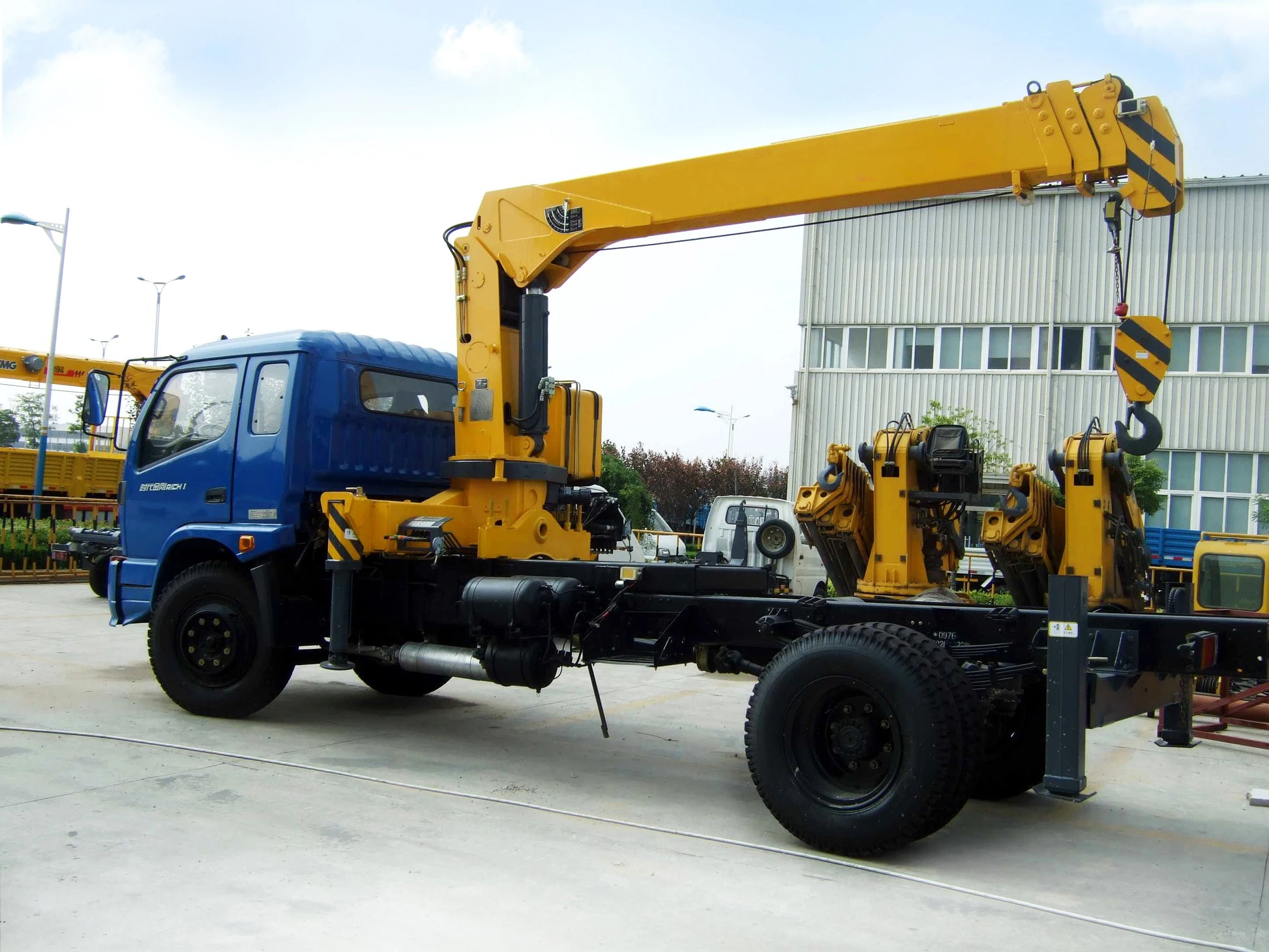

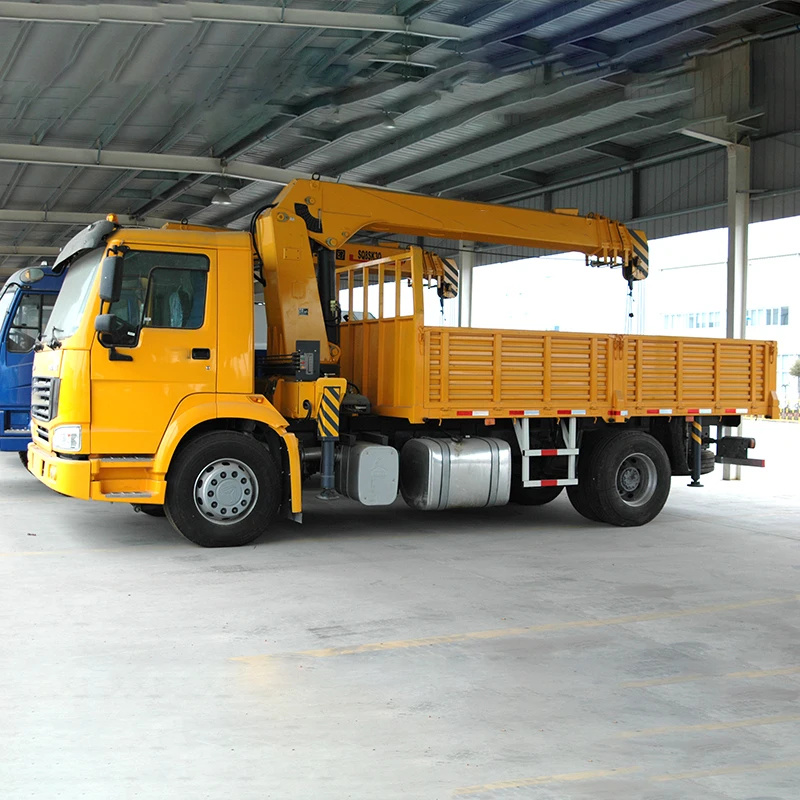

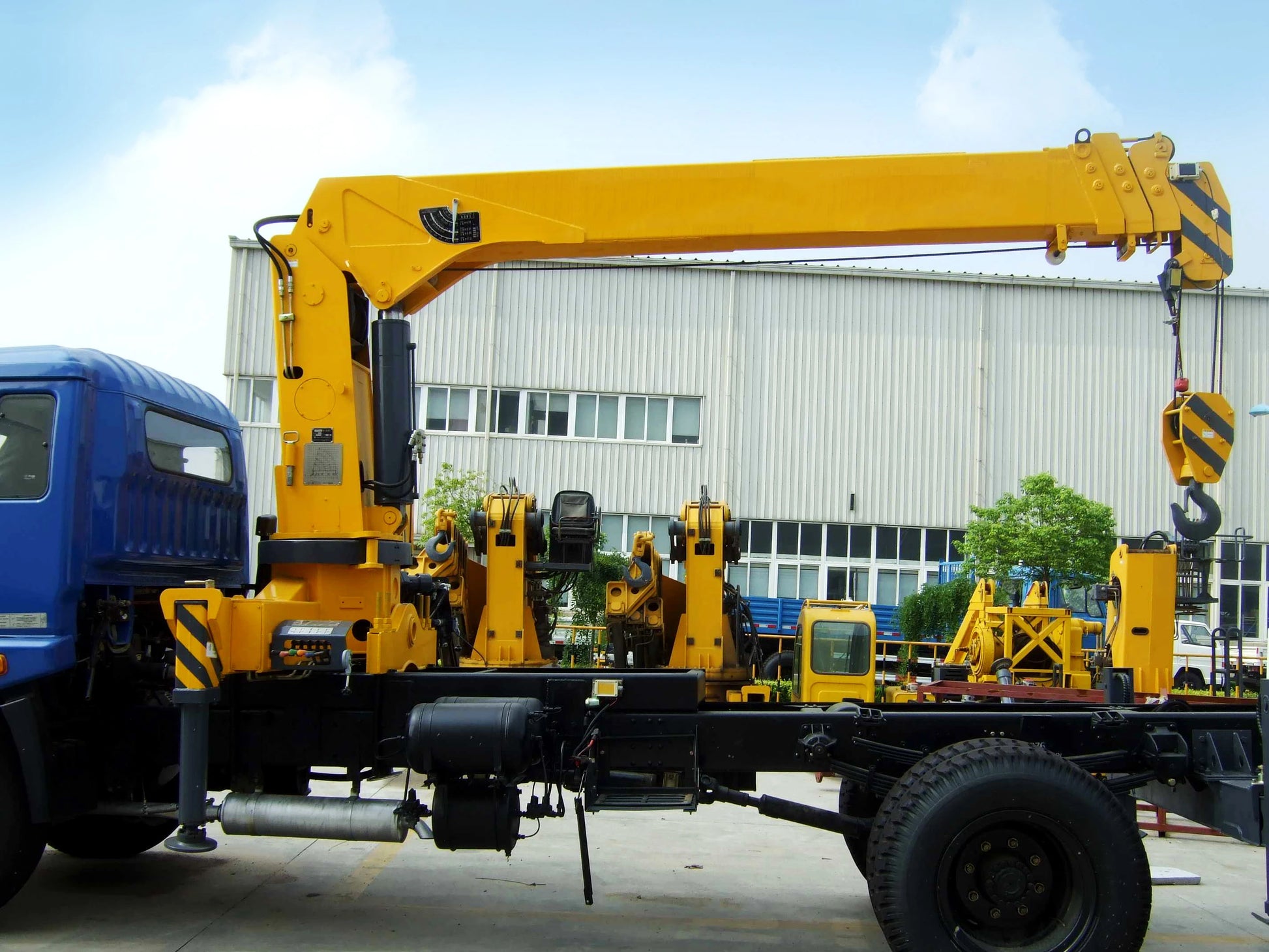

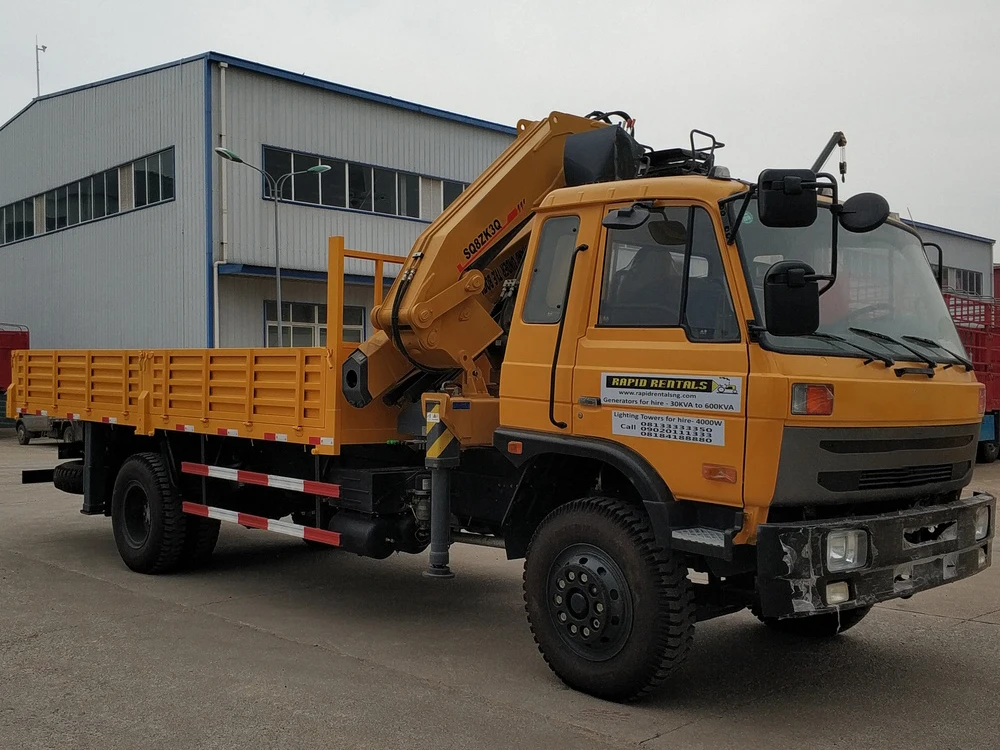

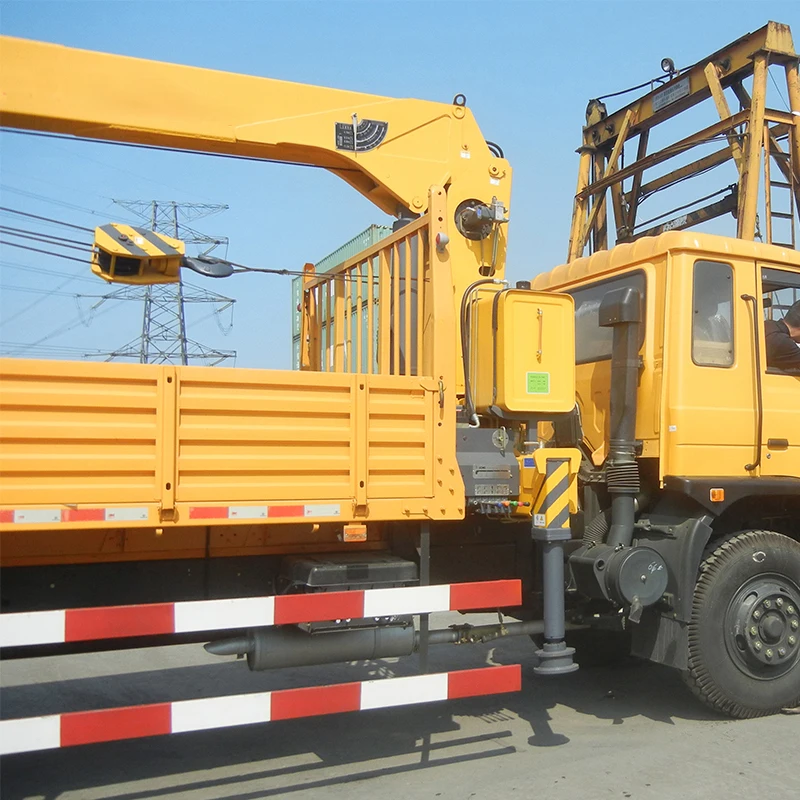

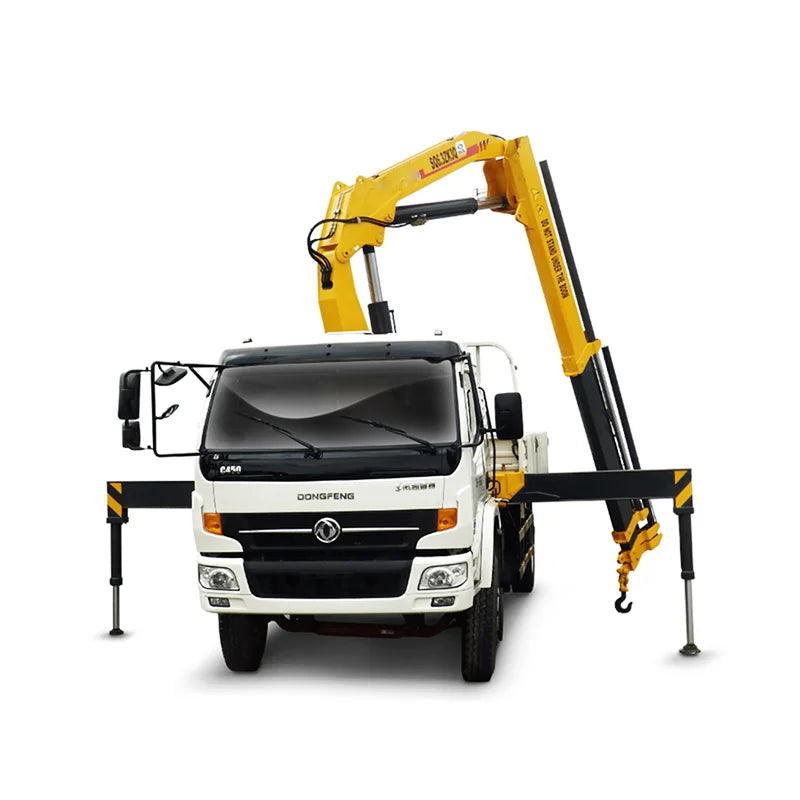

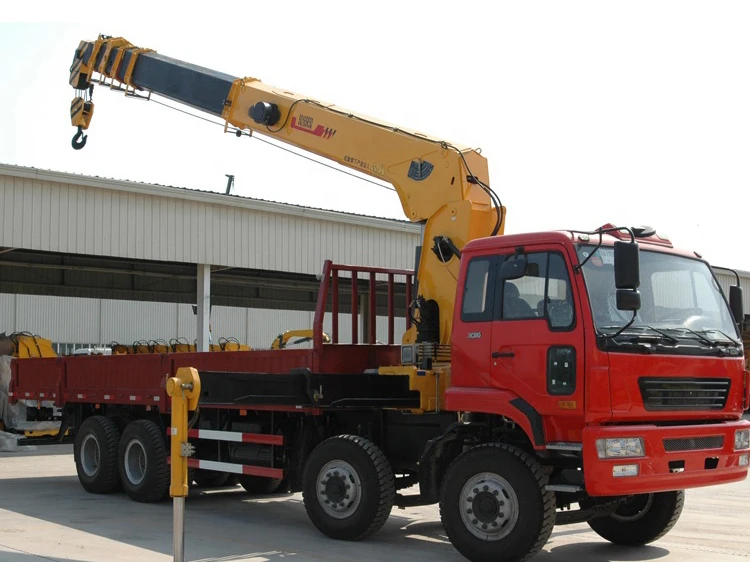

SQ8SK3Q Truck Mounted Crane
1, Throttle Control System
Changing the form of previous manipulation and throttle operation individually,Realization of the bilateral handle synchronous and
driving throttle acceleration and deceleration automatically, due to the speed change steady,it can easily to carry out the
lifting work.
2, End position automatic hook device
Maximum savings in preparation time before and after operation, to ensure that customer's vehicle could be in a driving state in
the shortest time, and prevent crane damage accident caused by hoist swing to enhance the safety of driving.
3, Hoisting overwinder device
If a user is negligent or unfamiliar with the operation of lifting hooks,the hoisting overwinder device will stop hook raise in
time, to prevent the safety of personal and property caused by fracture of wire rope.

Model	SQ8SK3Q					Unit
Max Lifting Capacity	8000					kg
Max Lifting Moment	20					T.M
Recommend Power	28					kw
Max Oil Flow of Hydraulic System	55					L/min
Max Pressure of Hydraulic System	27					MPa
Oil Tank Capacity	160					L
Rotation Angle	All Rotation
Crane Weight	3300					kg
Installation Space	1200					mm
SQ8SK3Q Lifting capability diagram
Working radius (m)	2.5	4.5	7			9	11.5
Lifting capacity (kg)	8000	4400	2500			1750	1100
