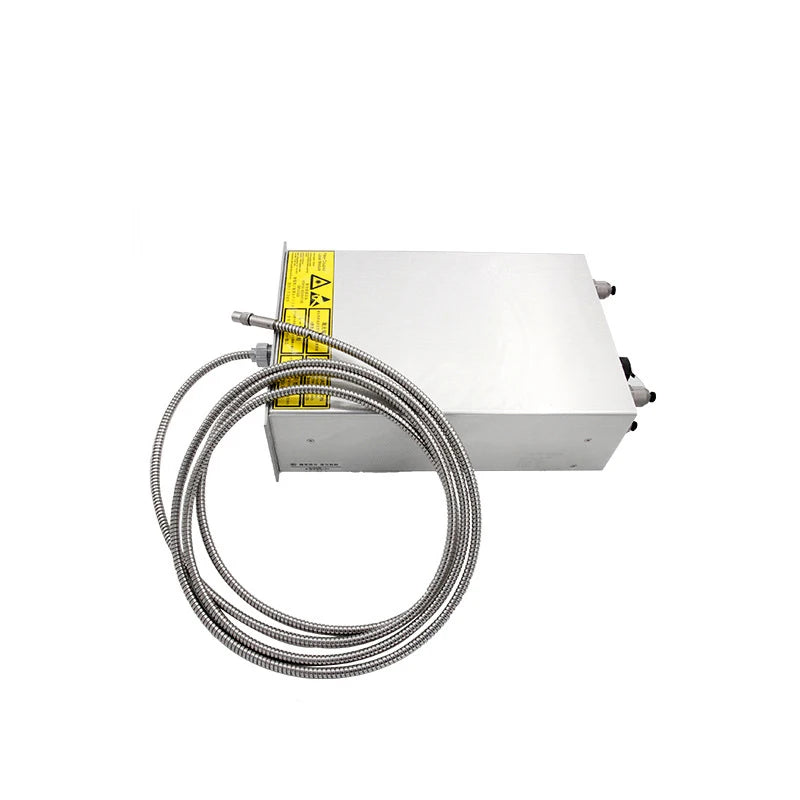

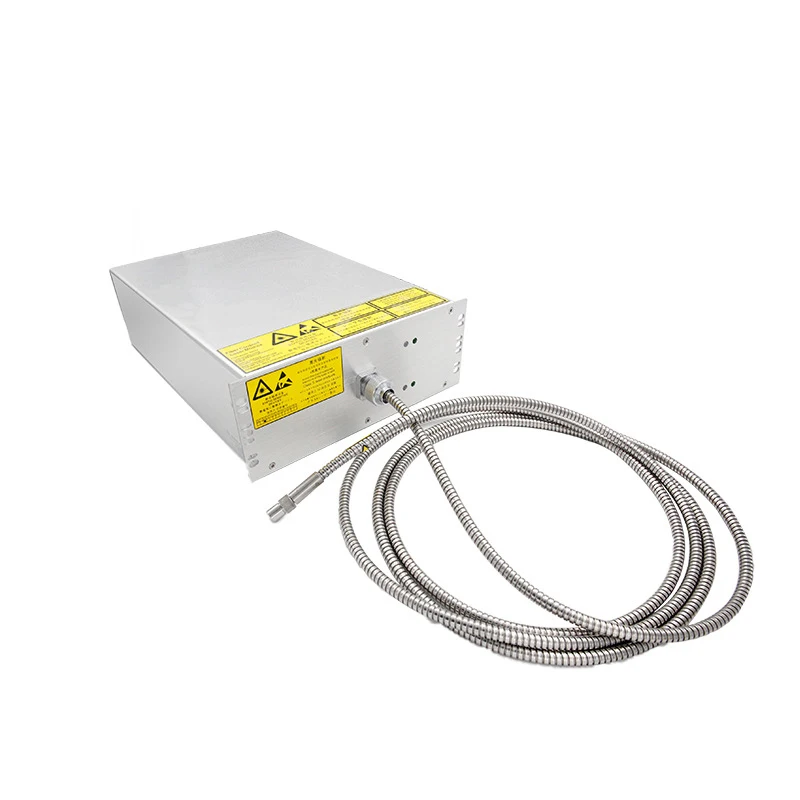

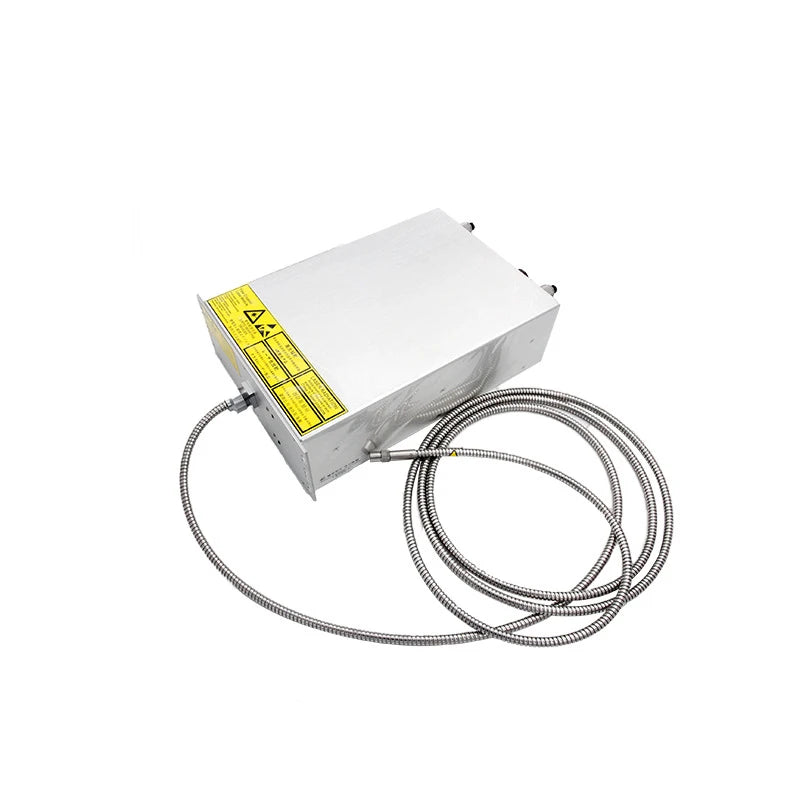

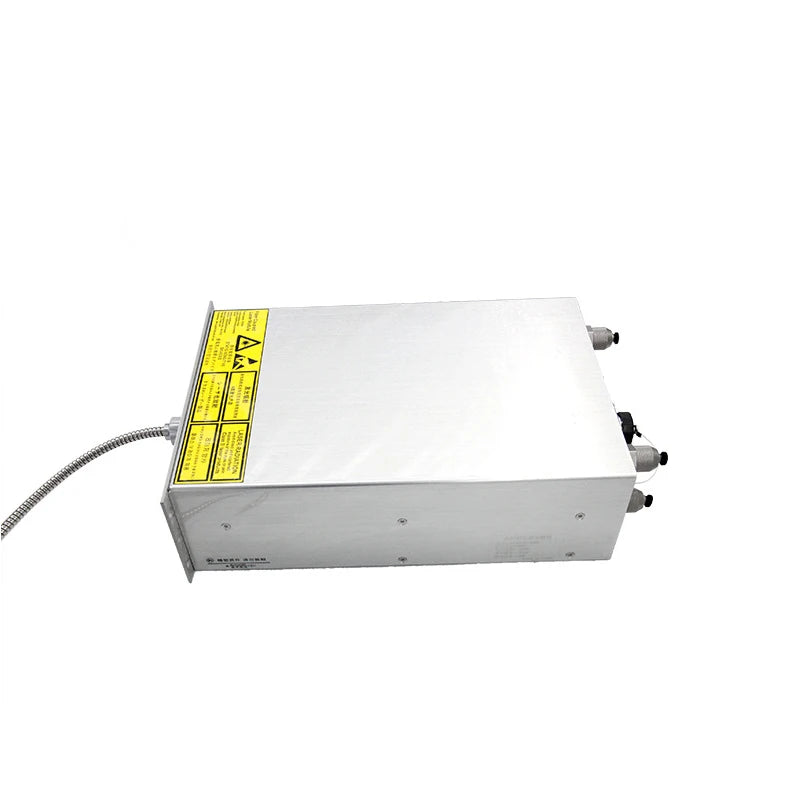

New XinLand High Power 100W 405 nm Fiber Coupled Laser High Stability UV-resistant Laser Diode

55.959,42 €

Sale Sold out

Shipping calculated at checkout.

model number XL405FM33123186-10W

SPECIFICATIONS

Accessory Type: Interface

Fiber Bend Radius: 120mm

Fiber Core Diameter: 105μm

Fiber Interface: SMA

Fiber Length: 3M

Laser Power: 100W

Laser Wavelength: 405nm±3nm

Operating Current: 20~21A

Operating Voltage: Dc 24V,24~26V

Product name: 405nm Fiber Coupled Laser

Size: 331*231*86mm

Wavelength: 405 nm

brand name: XinLand

condition: New

key selling points: Easy To Operate

place of origin: Shaanxi, China

spare parts type: Laser

warranty: 1 Year

weight (kg): 5

Specification

Parameters	Min	Typ	Max	Notes
Output Wavelength	402	405	408	nm
Laser Power		100	105	W
Operating Voltage		24	26	V
Operating Current		20	21	A
Slope Efficiencies	1.4	1.8	2.2	mW/mA
Electrostatic Discharge			500	V
Cooling Medium		Purified Water		H2o
Environment Temperature	18	22	25	℃
Storage Temperature	-30	25	70	℃
Water Temperature	18	19	22	℃
Water Pressure		0.2	0.5	Mpa
Flow Velocity	20			Liter / min
Humidity		55%	70%	%RH
Fiber Bend Radius	-	120	-	mm
Fiber Axial Pulling Force	-	-	2	kgf
Fiber Core Diameter	-	105	-	μm
Numeric Aperture	0.2	0.22	0.24
Combined Beam Diameter	-	1.9	-	mm
Optical Fiber Length	-	3	-	m
Fiber Optical Interface	-	SMA	-

Products Description

1. High-end quality Fiber laser module provides 100W laser power through 105μm bundled fiber, dual fiber laser module. 2. Low power consumption and high reliability Fiber laser modules provide high brightness, small size, and ease of thermal management through distributed laser diodes.

3. Good performance and high stability Enables a water-cooled architecture with predictable high reliability, good performance, and uniform light spot. 4. Miniaturization and modularization 100W 405nm fiber module, small size/high power, core diameter 105μm, SMA interface dual fiber laser.
