SPECIFICATIONS

No. of Spindles: ATC

Spindle Motor Power (kw): 9.6kw one set

Working Table Size(mm): 1220×2400

brand name: BLULE ELEPHANT

cnc or not: CNC

control system: Taiwan syntec

core components: Bearing,Motor,Pump,Gear,PLC,Pressure Vessel,Engine,Gearbox

dimension(l*w*h): 2500*1300*240mm

key selling points: High Productivity

machine type: Nesting CNC Router

machinery test report: Provided

motor and drive: yaskawa motor and drive

number of axes: 3

place of origin: Shandong, China

positioning accuracy (mm): 0.02 mm

power of spindle: air cooled spindle 9.6kw*5sets

range of spindle speed(r.p.m): 1 - 24000 rpm

repeatability (x/y/z) (mm): 0.02 mm

rotation speed of spindle: 24000r/min

running speed: 15m/min

table type: vacuum adsorption table of double layers

tool storage: double disc tool changing automatically

transmission: european qualified ball screw on x/y/z axis

travel (x axis)(mm): 2440 mm

travel (y axis)(mm): 1228 mm

video outgoing-inspection: Provided

voltage: according to customer local voltage

warranty: 2 Years

weight (kg): 9000

working table size: 2440*1228mm

workpiece processed size: 2440*1220*40mm

Product Description

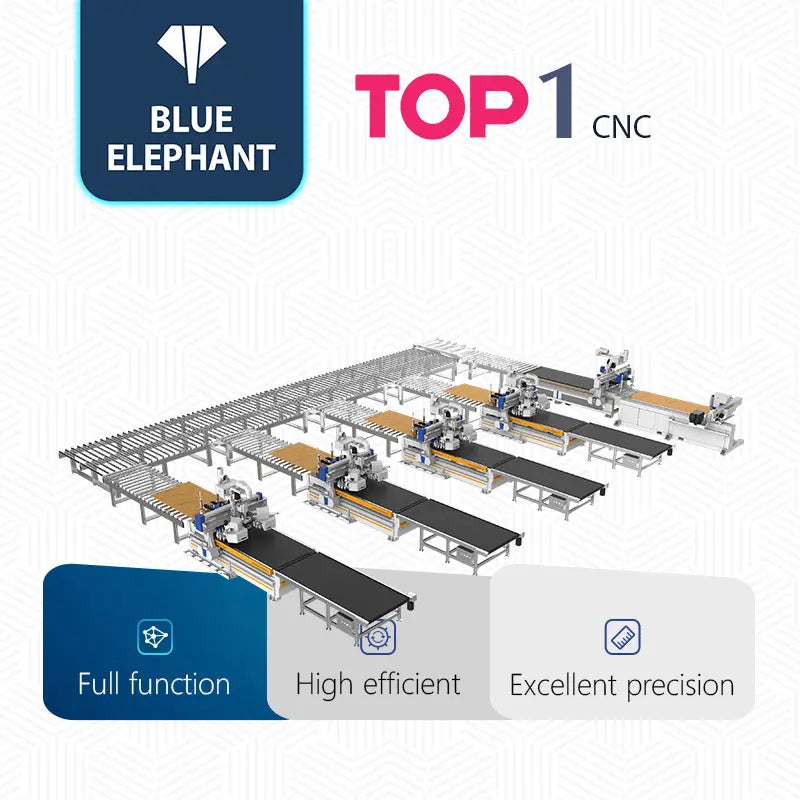

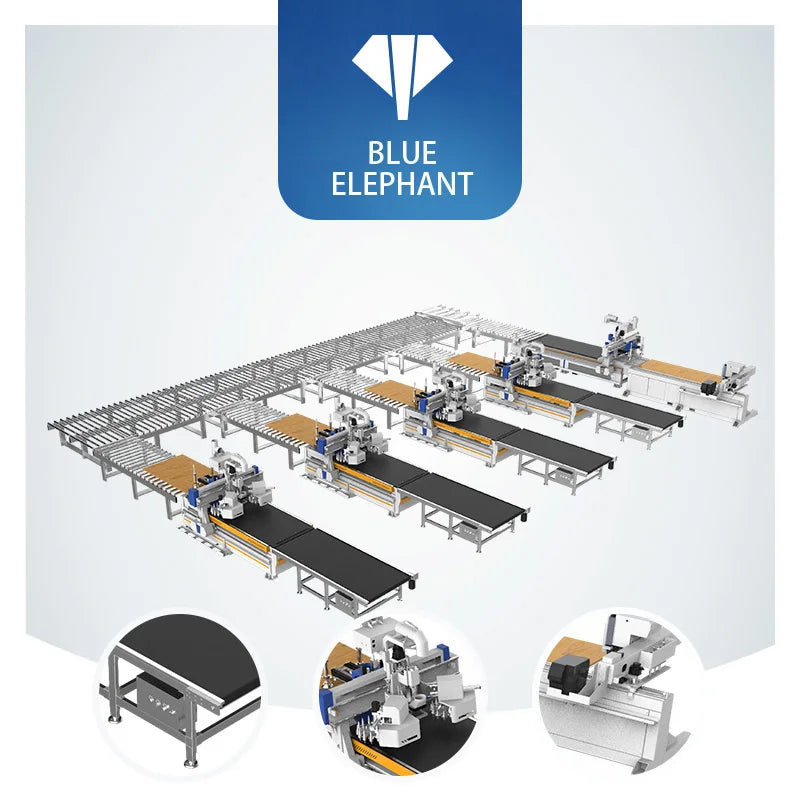

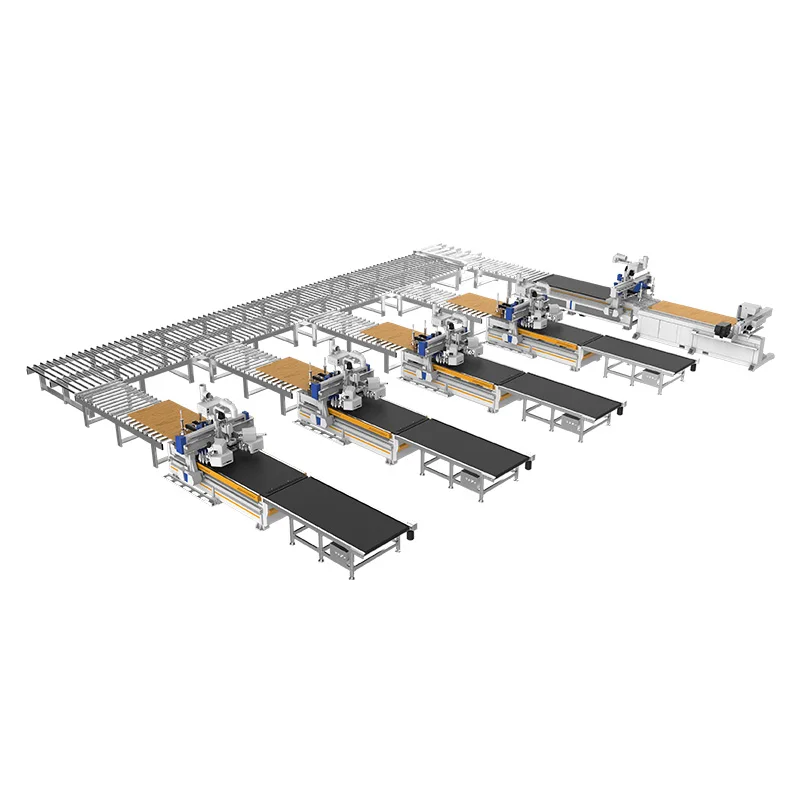

Door panel mold processing connection line is consists of labeling machine, CNC nesting machine with automatic loading and unloading, power roller line, panel turnover machine, CNC ball screw cutting machine with automatic loading and unloading. And it suitable for fully automated processing of the front and back of the molded door panel, greatly improving production efficiency and saving labor costs.
