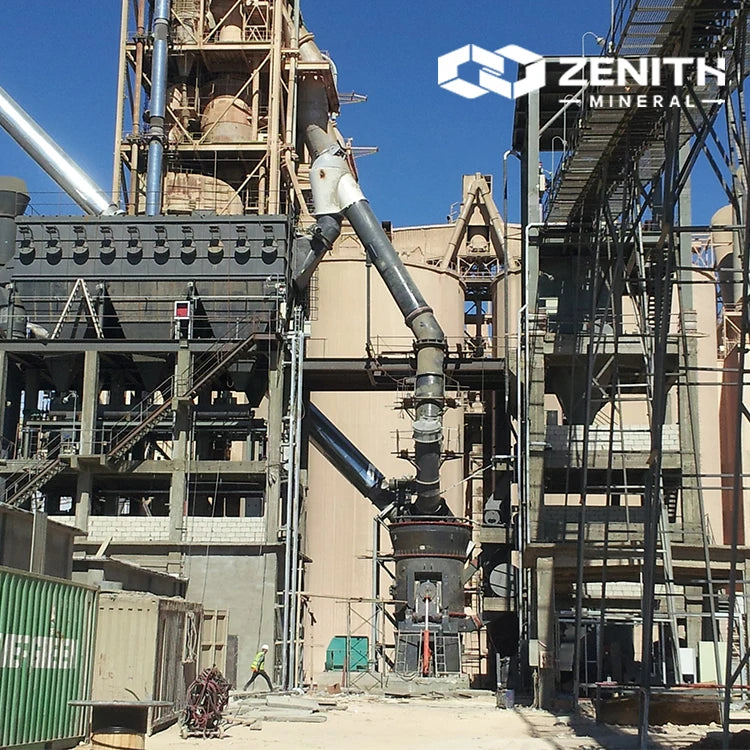

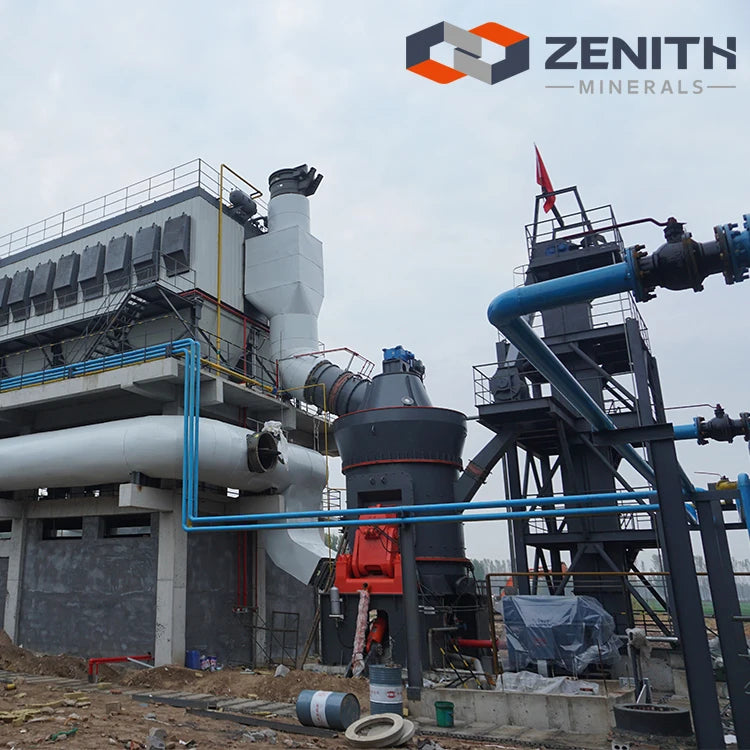

Hot Sale Powder Mill Machine Vertical Coal Mill

50.338,92 €

Sale Sold out

Shipping calculated at checkout.

Power(W) 20

Model Number vertical mill

SPECIFICATIONS

After sale service: Life Time

Brand Name: ZENITH

Capacity(t/h): 3-370

Color: Iron Grey

Core Components: PLC,Engine,Bearing,Gearbox,Motor,Pressure Vessel,Gear,Pump

Dimension(L*W*H): as per model

Input Size: 0-70mm

Installation: Engineer's Guide

Keywords: vertical coal mill

Machinery Test Report: Provided

Material: calcite, dolomite, petroleum coal

Model: calcium carbonate powder grinding mill

Motor Type: AC Motor

Place of Origin: Shanghai, China

Product name: vertical coal mill

Quality: High Level

Spare parts supplying: Service Life

Type: Raymond Mill

Video outgoing-inspection: Provided

Warranty: 1 Year

Weight: 2800 KG

Hot Sale Powder Mill Machine Vertical Coal Mill

vertical coal mill

Product Description

vertical coal mill

Hot Sale Powder Mill Machine Vertical Coal Mill

Based on the absorption of advanced technologies of famous international corporations and 30 years’ experience in grinding mill production, ZENITH has launched the LM Vertical Grinding Mill which integrates five functions of crushing, grinding, powder selection, drying and material conveying. It is characterized by centralized technological process, small occupational area, low investment, high efficiency, energy conservation and environment protection.

Product Features: Integration of multiple functions, more stable and reliable production and more excellent capacity
Input Size: 0-70mm
Capacity: 3-340TPH
Material: Limestone, calcite, dolomite, petroleum coal, gypsum, barite, marble, talc, coal powder, etc.

Hot Sale Powder Mill Machine Vertical Coal Mill introduction:

Less Comprehensive Investment

LM Vertical Grinding Mill integrates crushing, drying, grinding, separating and transport. The structure is simple while the layout is compact. Its occupational area is about 50% of that of the ball-milling system. The LM grinding mill can also be arranged outdoors, which greatly reduces the investment cost.

Comprehensive Optimization, Lower Operating Costs

From aspects of grinding efficiency, powder drying, abrasion of vulnerable parts and maintenance & replacement of spare parts, ZENITH’s LM Vertical Grinding Mill achieves lower energy consumption, stronger drying capacity, as well as lower abrasion and easier checks of core parts, saving the operating costs greatly.

Short Grinding Time & Low Iron Content

The materials linger in the grinding mill for a short time, which can reduce repeated grinding and is easy to detect and control the grain size and chemical component of the product. In addition, the grinding roller and millstone do not contact directly. The iron content in the product is very low, and the iron generated due to mechanical wear is easy to be removed, thus effectively guaranteeing the whiteness and purity of the material.

Greener & More Automated

The operation of LM grinding mill is stable and has small vibration, so that the noise is small. The system is sealed in an integral manner and works under negative pressure, so that there is no dust spilling and the environment can keep clean with the emission standard far better than the international standard. LM grinding mill is also equipped with expert-level automatic control system, which can realize free switch between remote control and local control. The operations are simple and labor-saving.

Digitalized Processing, Higher Precision

There are tens of lines of numerical controlling machine tools. Operations such as steel plates’ cutting, bending, planing, milling and paint spraying are all controlled numerically. The machining precision is high, especially for the core parts.

Sufficient Supply Of Spare Parts, Worry-Free Operation

ZENITH, whose businesses cover production and sales, takes responsibility for every machine produced by ourselves. We can offer customers technical services about products and original spare parts to ensure the worry-free operation.

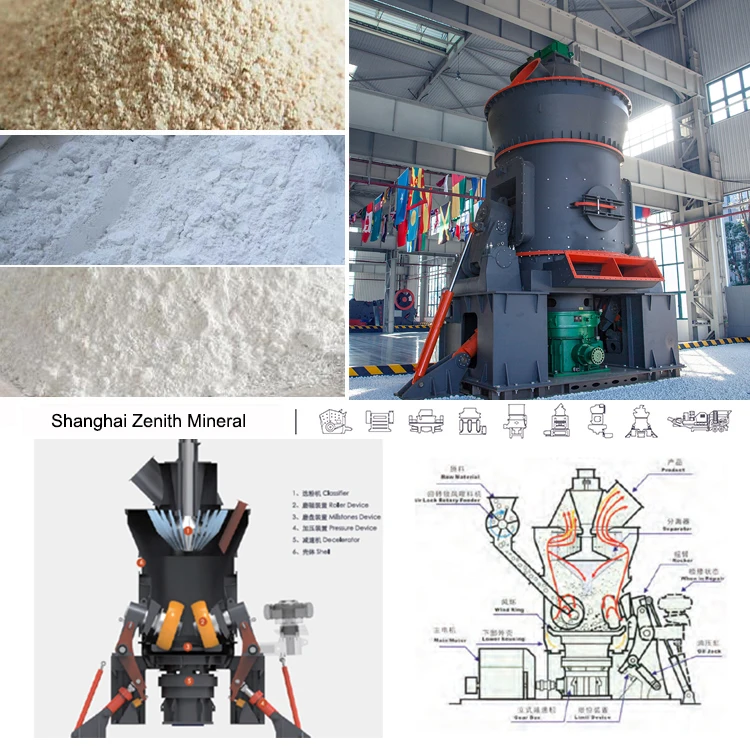

Hot Sale Powder Mill Machine Vertical Coal Mill working principle:

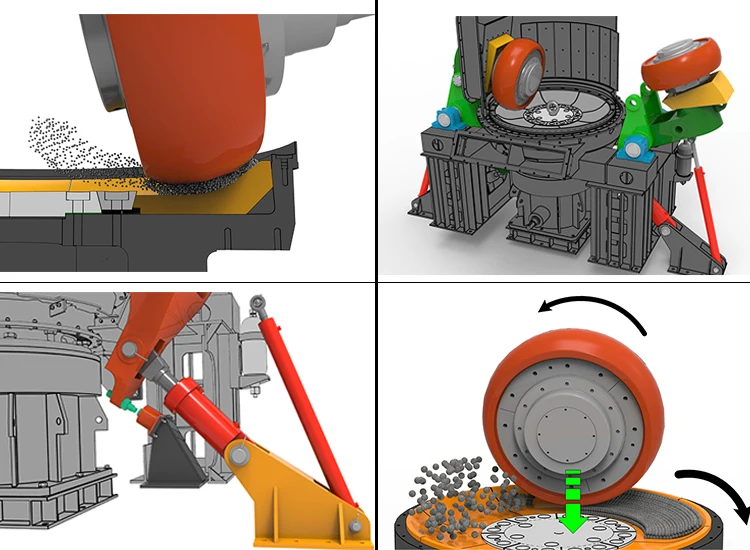

The grinding plate rotates under the action of main motor of LM Vertical Grinding Mill and the reducer. Meanwhile, hot wind enters the vertical mill. After raw materials fall onto the center of grinding plate, they move to the edge of grinding plate under the action of centrifugal force. While passing through the grinding area between roller and grinding plate, bulky materials are broken directly by the pressure of roller while fine materials form a layer where materials crush each other. Broken materials after grinding continue moving to the edge of grinding plate until they are brought away by the airflow at the air ring. For coarse materials which cannot be brought away would fall onto the grinding plate for another grinding. When passing the upper separator, materials in the air flow will be divided into two parts by the blades of rotor, that is, coarse particles and fine powders. Coarse particles would be sent back to have another grinding while the qualified fine powders enter the powder collector with airflow as finished products. For sundries like iron block in materials, when they move to the fringe of grinding plate, because of their heavier weight, they would drop to the lower cavity of grinding mill and next be sent into the discharging port by scarper installed at the bottom of grinding plate and finally be discharged out of the grinding mill.

vertical coal mill

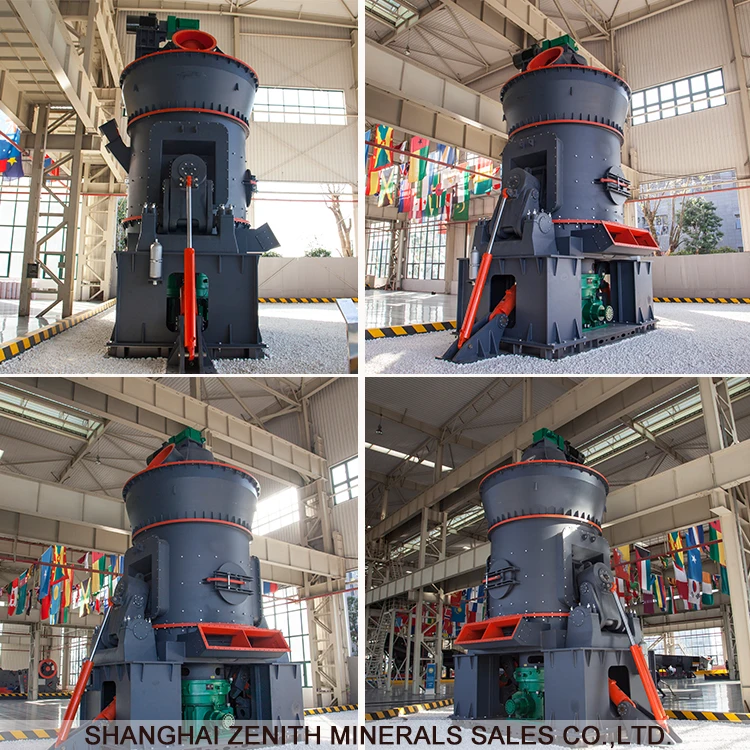

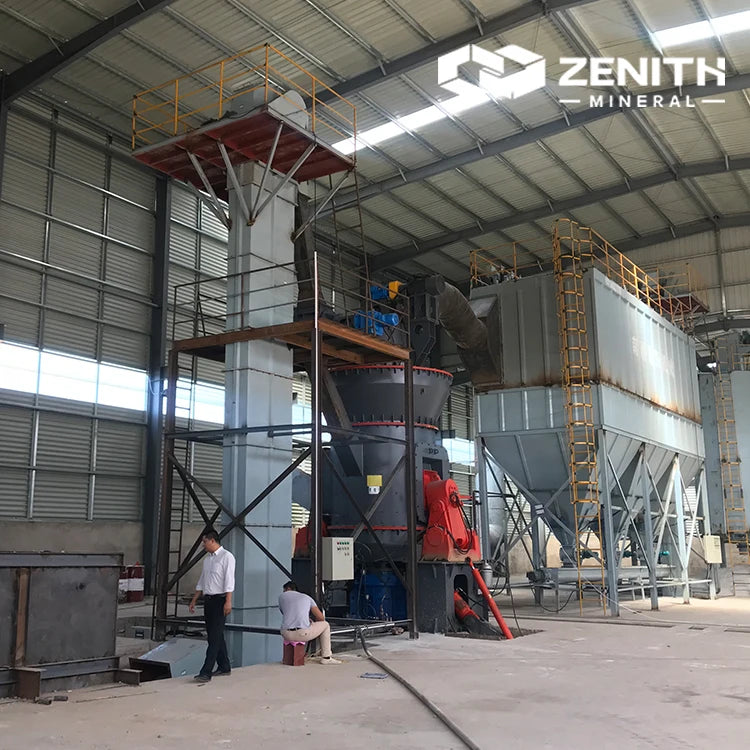

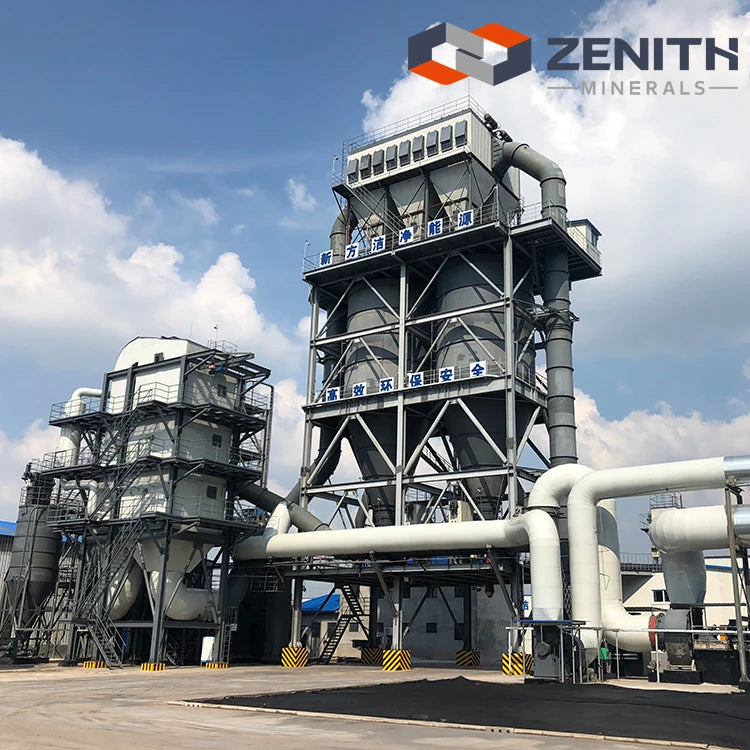

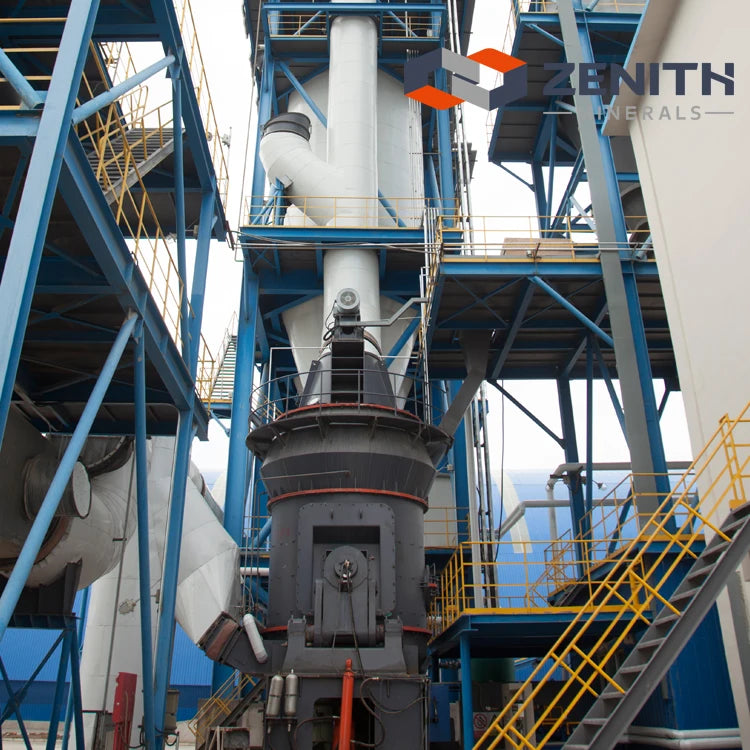

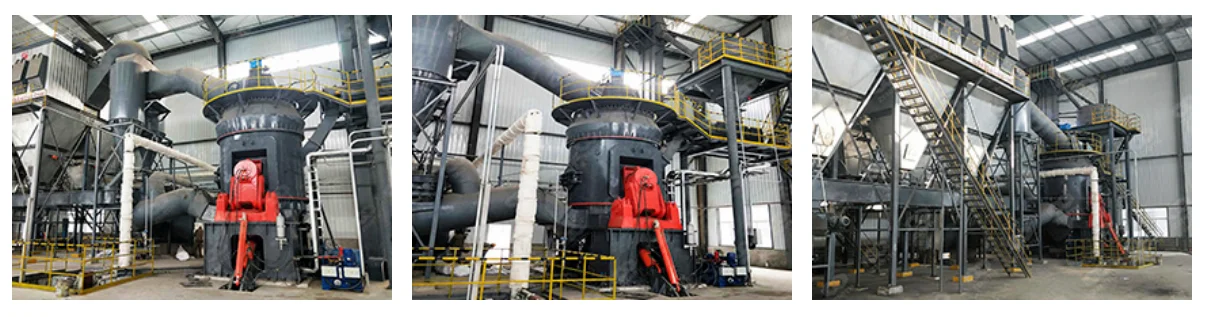

Hot Sale Powder Mill Machine Vertical Coal Mill album:

vertical coal mill

Hot Sale Powder Mill Machine Vertical Coal Mill parameters:

Vertical Coal Mill Series

Model	LM80M	LM110M	LM130M	LM150M	LM170M	LM190M	LM220M	LM240M	LM280M	LM340M
Wheel diameter(mm)	800	1100	1300	1500	1700	1900	2200	2400	2800	3400
Output (th)	3-5	7-10	10-17	16-22	20-30	26-40	35-45	50-70	70-90	100-140
Coal powder fineness (R0.08)	5~20%	5~20%	5~20%	5~20%	5~20%	5~20%	5~20%	5~20%	5~20%	5~20%
Coal powder moisture (%)	<1%	<1%	<1%	<1%	<1%	<1%	<1%	<1%	<1%	<1%
Grinding material particle size D80 (mm)	<10	<10	<10	<10	<10	<10	<10	<10	<10	<10
Grinding material max feed size(mm)	20	25	<38	<40	<42	<45	<50	<50	<50	<50
Material moisture of into mill (%)	<15%	<15%	<15%	<15%	<15%	<15%	<15%	<15%	<15%	<15%
Into mill air temperature (°C)	<350	<350	<350	<350	<350	<350	<350	<350	<350	<350
Out of the mill air temperature (°C)	75~95	75~95	75~95	75~95	75~95	70~95	75~95	75~95	75~95	70~95
Raw coal hardgrove grindability index (HGI)	>55	>55	>55	>55	>55	>55	>55	>55	>55	>55
Main motor power (kw)	45	90	185	250	315	400	500	630	900	1400

Company Information

vertical coal mill

A VARIETY OF TRUSTED EXPERIENCE

ZENITH has a variety of professional, reliable and efficient crushing lines all around the world. So customers have great confidence in us.

INFINITE BRAND VALUE

What ZENITH is doing is customizing economical and suitable production lines for customers and building brand value.

1200,000 SQUARE METERS OF PRODUCITION AREA

6 large-scale manufacturing bases occupy 1200,000 square meters in total. So quick delivery is a matter of course.

Shanghai Zenith Mineral Co., Ltd. is a hi-tech, engineering group. We are specialized in the research, development, and production of industrial crushing, powder grinding, mineral processing equipments and other related devices. Our products have been sold to 120 countries and areas of Southeast Asia, East Europe, South America, the Middle East and Africa etc, and more foreign markets will be promoted in future.

vertical coal mill

Zenith Factory

Headquarter of Zenith is located in Shanghai, China and now we have two manufacturing bases as our strong support. One is located in Shanghai about 450,000 square meters, and the other is in Qidong city, about 600,000 square meters. It takes about one-hour driving from Shanghai to Qidong city.

vertical coal mill

Exhibition

Zenith participate in various exhibitions frequently,such as Bauma China,China Import and Export Fair , Asia-pacific's International Mining Exhibition, Bauma Africa, CONEXPO Latin America , etc.

vertical coal mill

Our Services

Pre-sales Service:

The wide product range enables us to provide our customers with stand-alone machines or complete processing plants. Based on our customers’ request and budget, our experts make efficient, reliable solutions. Following customers’ order we produce strictly, what’s more, before placing the order every customer has the chance to visit zenith working machines or complete plant in the site.

To ease the trip for every visitor to China, in particular the first-time visitor, we provide FOR FREE all relevant visitor-friendly services including invitation letter preparation, hotel reservation, airport pick-up, incity transportation, and sightseeing guide, etc.

After-sales Service:

Experienced technicians guidance is available on the phone, and on the internet. One or more engineers will be dispatched to the quarry site to help install the customers’ plants. Necessary training about machine daily maintenance to local workers is provided also.
After-Sales department is made of well-trained employees and installation engineers, the installation engineers are special and professional members of Zenith, they are now strategically located home and abroad, working for our customers.

Packaging & Shipping

Ways of Packing:

1.Sand blasting, coat with high quality paint;

2.Product wrap by PP-Bubble

3.Load container, Spear Parts in wooden case.
