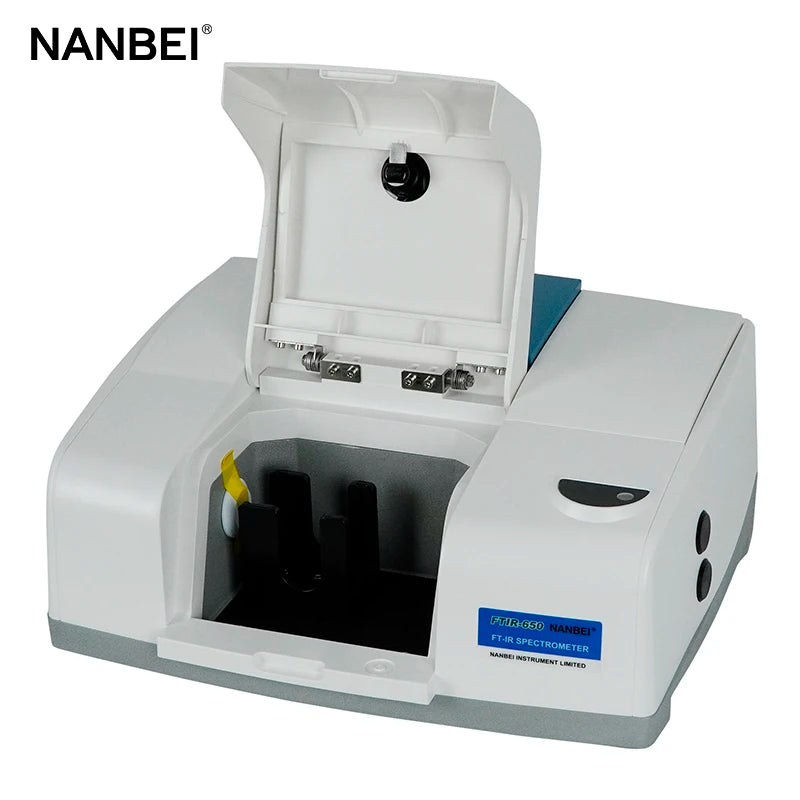

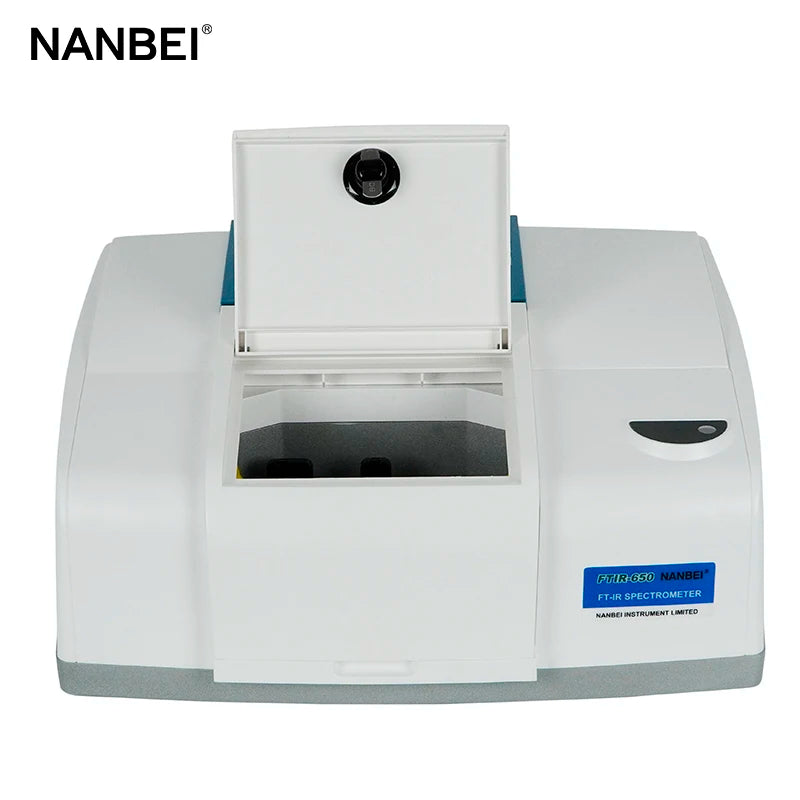

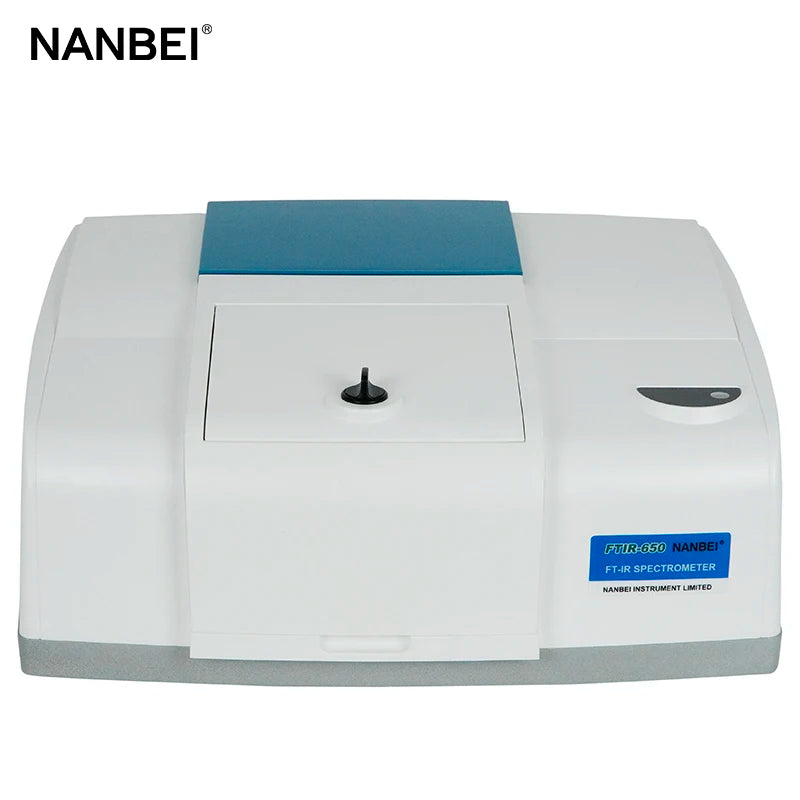

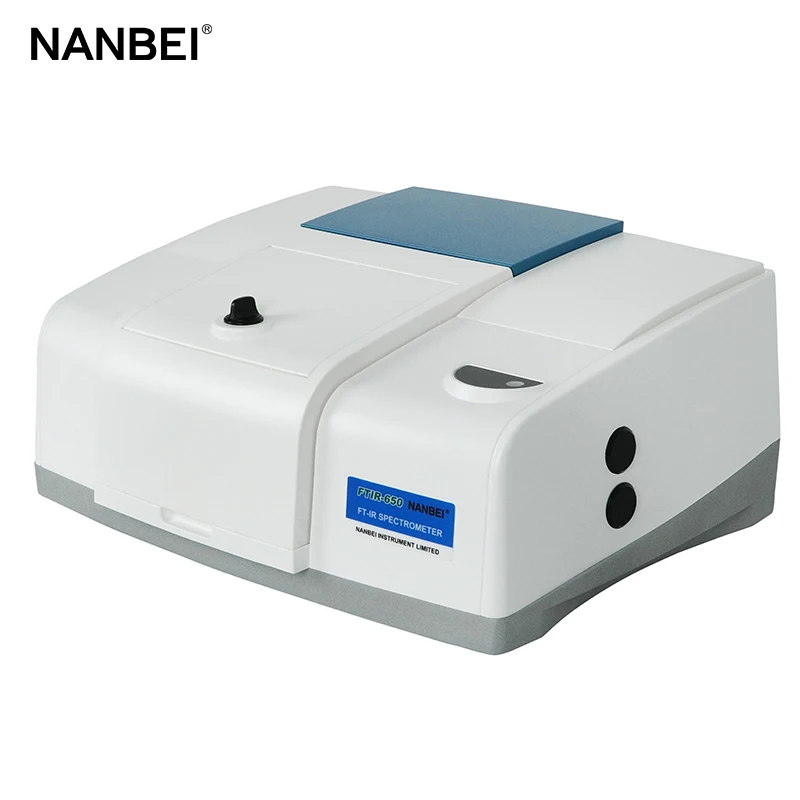

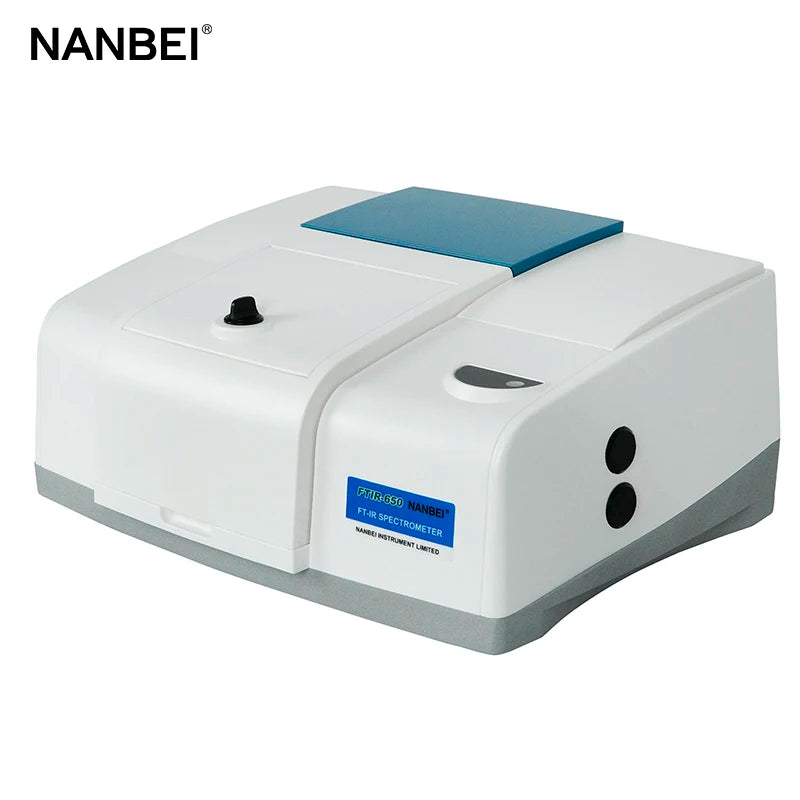

FTIR-650 FTIR Spectrometer has the characteristics of stable performance, easy operation, long service life, and low maintenance cost. It is widely used in medicine, chemical industry, petroleum, environmental protection, food, materials, public security, national defense semiconductor, optics and other fields. It is an indispensable analytical test tool for laboratory research and enterprise production, and can be used as a special test system for free silica in air, a special test system for SiO2, a special test system for carbon and oxygen content in silicon, a special tester for Fatty acid methyl ester content, and a special spectral analyzer for solid waste.
Shoppiline
High Resolution Metal Oil Analysis FTIR---850 Fourier Transform Infrared Spectrometer Ftir Spectrophotometer Price
High Resolution Metal Oil Analysis FTIR---850 Fourier Transform Infrared Spectrometer Ftir Spectrophotometer Price
Regular price
49.844,40 €
Regular price
Sale price
49.844,40 €
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
SPECIFICATIONS
Beam splitter: .KBr substrate coated with germanium and moisture-proof coating
Detector: .Imported pyroelectric detector
Light source: Long Life High Intensity Air Cooled Infrared Light Source
Power supply: AC220V/50HZ
Signal-to-noise ratio: Better than 30000:1
Spectral Bandwidth: 1.0cm
Wavelength Range: 7800-350cm-1
brand name: NANBEI
customized support: OEM,ODM
data transfer interface: USB2.0
place of origin: Henan, China
resolution: 0.5cm-1
support system: windows 98/XP/Vista/7
type: Infrared Spectrometer
warranty: 1year
wavelength repeatability: 0.01cm-1
wavenumber accuracy: 0.01cm-1
weight: .
Products Description
Main technical features
(1) Highly stable optical system
The integrated design of the optical platform, the overall mold forming, and the primary components are positioned in one go,without the need for later adjustments, greatly improving the mechanical stability and long-term reliability of the instrument.
(2) High performance electronic systems
The new 24 bit A/D conversion technology, combined with imported pyroelectric detectors, ensures reliable, real-time data
acquisition and high-speed transmission.
(3) High precision optical system
The integrated gold-plated corner mirror has good matching consistency and enlarged reflection surface, ensuring higher luminous flux and reflectivity; The vertical accuracy of each side of the corner mirror is high, and it is free from bonding and will not be affected by environmental temperature, improving the stability of the instrument.
(4) Intelligent protection system
The design of a sealed interferometer allows for quick recognition of humidity conditions, reducing the workload of operators on instrument maintenance. It reminds users to replace desiccants in a timely manner through obvious color changes, solving hidden dangers during infrared use. You can replace the desiccant without opening the cover.
(5) Diversified accessory selection
The process of accessory replacement and experimental installation is simple, and the large sample compartment can facilitate the expansion of other infrared accessories, such as ATR accessories, gas cells, liquid cells, polarization accessories, etc.
(6) Audit tracking function
The instrument supporting software has the function of "three-level management authority", which meets the testing requirements of the national pharmacopoeia.
(7) 3Q certification services
Provide 3Q certification installation services.
The integrated design of the optical platform, the overall mold forming, and the primary components are positioned in one go,without the need for later adjustments, greatly improving the mechanical stability and long-term reliability of the instrument.
(2) High performance electronic systems
The new 24 bit A/D conversion technology, combined with imported pyroelectric detectors, ensures reliable, real-time data
acquisition and high-speed transmission.
(3) High precision optical system
The integrated gold-plated corner mirror has good matching consistency and enlarged reflection surface, ensuring higher luminous flux and reflectivity; The vertical accuracy of each side of the corner mirror is high, and it is free from bonding and will not be affected by environmental temperature, improving the stability of the instrument.
(4) Intelligent protection system
The design of a sealed interferometer allows for quick recognition of humidity conditions, reducing the workload of operators on instrument maintenance. It reminds users to replace desiccants in a timely manner through obvious color changes, solving hidden dangers during infrared use. You can replace the desiccant without opening the cover.
(5) Diversified accessory selection
The process of accessory replacement and experimental installation is simple, and the large sample compartment can facilitate the expansion of other infrared accessories, such as ATR accessories, gas cells, liquid cells, polarization accessories, etc.
(6) Audit tracking function
The instrument supporting software has the function of "three-level management authority", which meets the testing requirements of the national pharmacopoeia.
(7) 3Q certification services
Provide 3Q certification installation services.
Details Images
Product Paramenters
Spectral range |
7800-350cm-1 |
Resolution |
Better than 1.0cm-1 |
Detector |
Imported pyroelectric detector |
Beam splitter |
KBr substrate coated with germanium and moisture-proof coating |
Scanning speed |
Select the corresponding scanning speed under computer control |
Light source |
Long Life High Intensity Air Cooled Infrared Light Source |
Signal-to-noise ratio |
Better than 30000:1 (P-P value, 4cm-1, 1 minute background and sample scanning, at 2100cm-1) |
Power supply |
AC220V/50HZ |
Dimensions |
450mm * 350mm * 210mm |
Weight |
14kg |

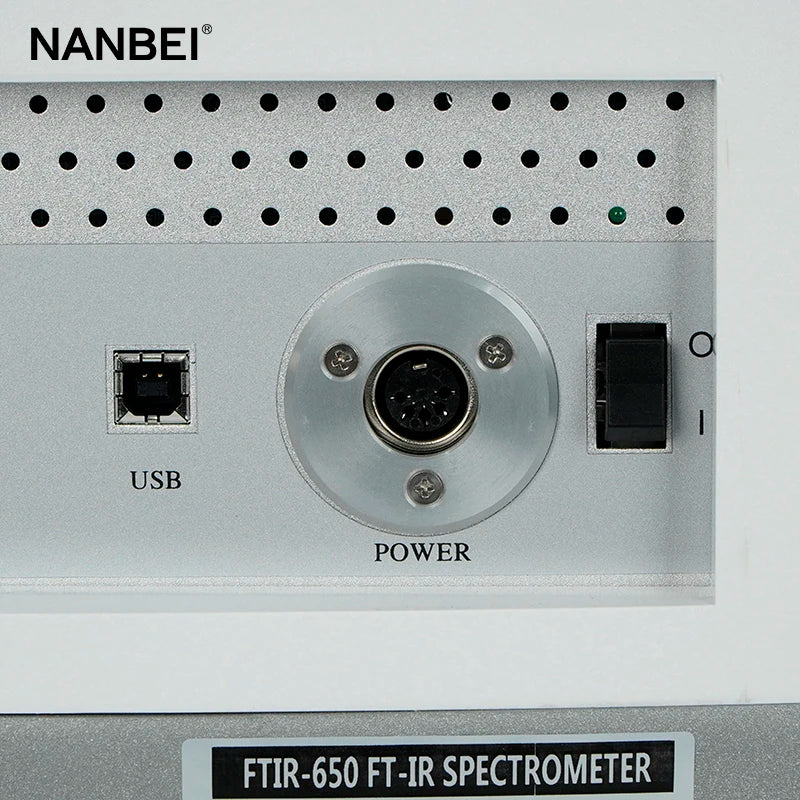

Communication interface |
USB 2.0 |
Work system |
Windows XP, Windows 7 |
Packing & Delivery
Company Profile
FAQ
I.Q1: Why Choose NANBEI ?
(1).Professional manufacturer with more than 13 years experience
(2).Exported to more than 97% Countries
(3).Turnkey Solution is no problem
Q2:OEM,ODM acceptable or not?
Absolutely Yes
Q3:What's kind of Payment terms for customer choosing?
T/T ,Western Union, Money Gram , Credit Card, Paypal , L/C ...
Q4:Can you visit your factory online?
Absolutely no problem
Q5:Can online video inspection before shipment?
Absolutely no problem
Q6: what's the MOQ ? Sample order is OK?
MOQ:1 set, sample order is no problem
Q7:What's kind of shipment for customer choosing?
Usually ship by sea, by air, by international express .
We can also provide reasonable solutions according to your transportation requirements
Q8:How to ensure product quality and after-sales service?
We have CE, ISO quality certificate, and SGS authentication.
After-sale service:
1.Warranty : 1 year
2.We supply free part for quality problem in warranty
3.Long life technical support and service
