For Granite Stone Crusher Mobile Impact Crusher with AC Motor PLC Control Max.650t/h Capacity
For Granite Stone Crusher Mobile Impact Crusher with AC Motor PLC Control Max.650t/h Capacity
Couldn't load pickup availability
SPECIFICATIONS
After-sale service: For whole using life
After-sales Service Provided: Field installation
Application: Granite, marble, basalt, limestone
Brand Name: ZENITH
Capacity(t/h): Max.650t/h
Color: Iron Grey
Core Components: PLC,Pressure Vessel,Gear,Motor,Engine,Bearing,Gearbox,Pump,Other
Dimension(L*W*H): 12150*2600*3950
Key Selling Points: Competitive Price
Keyword: granite stone crusher
Machinery Test Report: Provided
Motor Type: AC Motor
Packaging Details: Standard Container
Place of Origin: Shanghai, China
Port: Shanghai
Spare parts supply: For whole year
Supply Ability: 30 Set/Sets per Month
Test&Installation: Engineer assigned
Type: Impact Crusher
Video outgoing-inspection: Provided
Warranty: 1 Year,12 Months
Weight: 20 KG

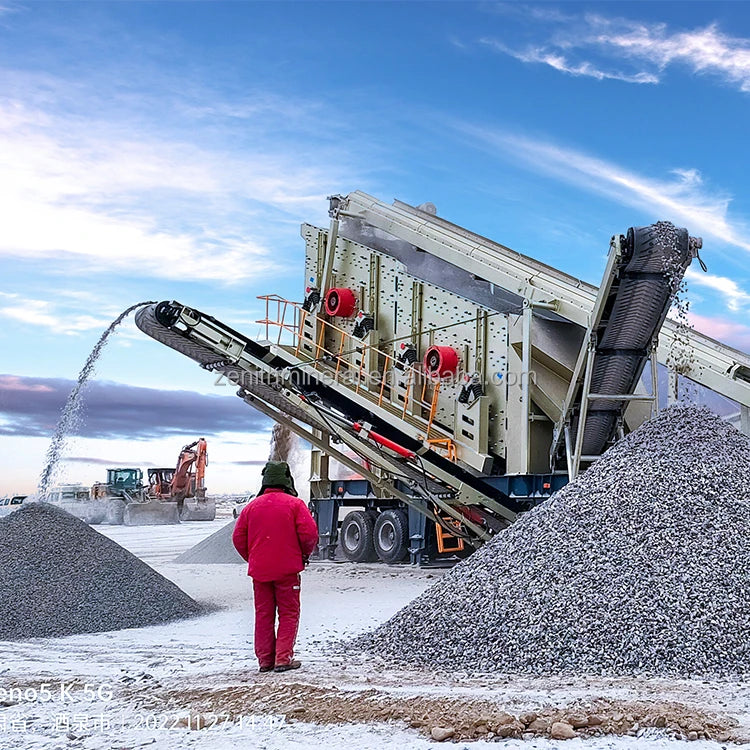

The granite stone crusher is a versatile rock crushing solution suitable for secondary or tertiary crushing in quarries, construction waste recycling, and mining operations. As a trailer-mounted plant, it provides the high-performance of stationary crushing with unmatched flexibility.
Powered by reliable electric drive systems, these granite stone crushers feature heavy-duty impact, cone or jaw crushing chambers configured within robustFrames. Large-capacity vibrating grizzly feeders smoothly deliver material to primary or secondary crushers. Compact construction allows for convenient road transport between sites for maximum mobility.
Automatic centralized lubrication systems ensure components receive continuous lubricant supply to minimize downtime. Hydraulic support also adjusts discharge openings and powers operations like adjusting crushing chambers. Large onboard generators provide continuous electricity to operate crushers, conveyors and electronic controls.
With productions capacities ranging 50-650 tons per hour depending on models, granite stone crusher offer consistent throughput to match operator needs. Common output material sizes include 05-50mm suitable for roadbeds and concreting. Additionally, screens may be added to provide on-site grading as well.
Adaptable to any terrain, these plants provide a reliable and flexible aggregate processing solution. Material can be crushed on-site to prevent wasted transportation. Operators benefit greatly from the mobility to follow rock deposits or shift production. Contact ZENITH for high-performance crushing equipment.
Granite Granite Stone Crusher Mobile Impact Crusher
ZENITH offers customers portable crushers and granite stone crusher which are preferred by contractors engaged in road construction due to their flexibility. Such crushing plants can be constructed more efficiently and rapidly, resulting in faster earnings for the users.

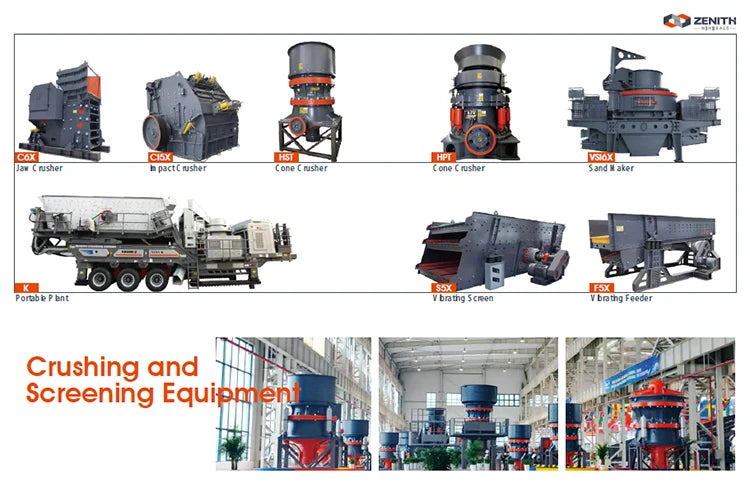

WE have four kinds of granite stone crusher:
NK granite stone crusher
MK granite stone crusher and Screen
K3 granite stone crusher
LD granite stone crusher
Advantage of granite stone crusher:
Fast Installation
Low investment
High Productivity
Integrated Vehicle Design
Integrated Control System
granite stone crusher parameters:
Mobile stone jaw crusher:
granite stone crusher provides a new field of business opportunities for contractors, quarry operators, recycling and mining applications. It offers high efficient and low cost project plan without environment limit for the client.
| Model | Car Body | Feeder | Crusher | Belt Conveyor (standard configuration↵ ) | Engine (Optional) | Overall dimension (mm) | ||||
| Model | Feeding Size (mm) | Power (kw) | Model | Feeding Size (mm) | Power (kw) | Size(m) | Power(kw) | |||
| YF938J69-N | Two-Spindle | GZD960×3800 | 500 | 6-11 | PE600×900 | 500 | 6-75 | B800×8.5 | 200 | 12600×2550×3870 |
| YF1142J710-N | Three-Spindle | GZD1100×4200 | 580 | 6-11 | PE750×1060 | 630 | 8-90 | B1000×9.5 | 250 | 13900×2750×4320 |
| YF1349J912-N | Three-Spindle | GZD1100×4900 | 750 | 6-22 | PE900×1200 | 750 | 8-130 | B1200×10.5 | 270 | 15450×2950×4380 |
| YF1349J811-N | Three-Spindle | GZD1300×4900 | 750 | 6-22 | PEW860 | 720 | 6-132 | B1200×10.5 | 320 | 15450×2950×4380 |
| YF1349J1120-N | Three-Spindle | GZD1300×4900 | 750 | 6-22 | PEW1100 | 930 | 8-185 | B1200×10.5 | 400 |
15450×2950×4380 |
Mobile stone impact crusher plant:
granite stone crusher provides a new field of business opportunities for contractors, quarry operators, recycling and mining applications. It offers high efficient and low cost project plan without environment limit for the clifent.
| Model | Car Body | Feeder | Crusher | Belt Conveyor (standard configuration) | Engine (Optional) | Overall dimension (mm) | ||||
| Model | Feeding Size (mm) | Power (kw) | Model | Feeding Size (mm) | Power (kw) | Size(m) | Power (kw) | |||
| YF938FW1214Ⅱ | Two-Spindle | GZD960×3800 | 500 | 6-11 | PFW1214II | 500 | 4-132 | B800×8.5 | 360 | 12600×2550×3870 |
| YF1142FW315Ⅱ | Three-Spindle | GZD1100×4200 | 580 | 6-15 | PFW1315II | 600 | 4-160 | B1000×9.5 | 400 | 13900×2750×4180 |
| YF1349FW318Ⅱ | Three-Spindle | GZD1300×4900 | 750 | 6-22 | PFW1318II | 700 | 4-200 | B1200×10.5 | 500 | 15450×2950×4180 |
| Y3S1860F1214-N | Three-Spindle | 3YK1860 | ≤400 | 4-22 | PF1214 | 350 | 6-132 | B800×8.5 | 360 | 14300×2830×4380 |
| Y3S2160F1315-N | Three-Spindle | 3YK2160 | ≤400 | 4-30 | PF1315 | 350 | 6-200 | B1000×8.5 | 500 | 14300×3190×4380 |
| Y3S1860FW214Ⅲ | Three-Spindle | 3YK1860 | ≤400 | 4-22 | PFW1214Ⅲ | 250 | 4-132 | B800×8.5 | 360 | 14300×2830×4380 |
| Y3S2160FW315Ⅲ | Three-Spindle | 3YK2160 | ≤400 | 4-30 | PFW1315Ⅲ | 300 | 4-160 | B1000×8.5 | 400 |
14300×3190×4380 |
Mobile stone cone crushing plant:
granite stone crusher provides a new field of business opportunities for contractors, quarry operators, recycling and mining applications. It offers high efficient and low cost project plan without environment limit for the client.
Mobile combined crushing plant:
The granite stone crusher has the advantages of easy transportation, low transportation cost, flexible configuration, convenient maintenance etc. It can be operated as independent units, or as two-stage crushing plant with primary and secondary crushing, or as three stage crushing plant with primary, secondary, and tertiary crushing according to different clients' requirements. Likewise, it can be easily adjusted to suit the crushing application by choosing feeding to crusher or feeding to screen options.
180-250TPH Limestone granite stone crusher
Project Profile
Raw Material: Limestone
Capacity: 180-250t/h
Output Size: 0-10-20-30mm
Applications: The finished materials for mixing plant
Major Equipment: KE750 Portable Crushing Plant, KF1315 Portable Crushing Plant
Technological Process of granite stone crusher:
Materials are evenly sent to PE jaw crusher by TSW grizzly feeder (soil can be pre-sifted for removal), then delivered tovibrating screen for screening and to PFW impact crusher under the action of belt (screening first, and then crushing). And then the materials would be screened again till the qualified products (0-5-20-30mm) are produced.
Advantages of granite stone crusher:
1. Rational design, low investment cost
Reasonable design can not only cut the use of stock bin, belt and construction cost, but greatly shorten installation period and reduce failure rate.
2. High efficiency
The PE jaw crusher equipped is of higher efficiency and lowerenergy consumption compared to traditional ones. TSW Feeder can effectively realize soil separation. All these greatly improve productivity.
3. Short construction period
The operation doesn't need the concrete foundation and many bin hoppers, which can avoid the demolition and construction after project ends and is very suitable for road and high-speed railway construction whose crushing plants have a strict demand for flexibility.
