SPECIFICATIONS

Brand Name: EACHINE

Certification: NONE

Choice: yes

For Vehicle Type: Helicopters

Four-wheel Drive Attributes: Receiver

High-concerned chemical: None

Is Batteries Included: No

Is Electric: No Battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Composite Material

Model Number: 40CH 5.8G

Origin: Mainland China

RC Parts & Accs: RECEIVERS

Recommend Age: 14+y

Remote Control Peripherals/Devices: Receiver

Technical parameters: Value 10

Tool Supplies: Receiver

Upgrade Parts/Accessories: Receiver

Use: Vehicles & Remote Control Toys

semi_Choice: yes

Description :

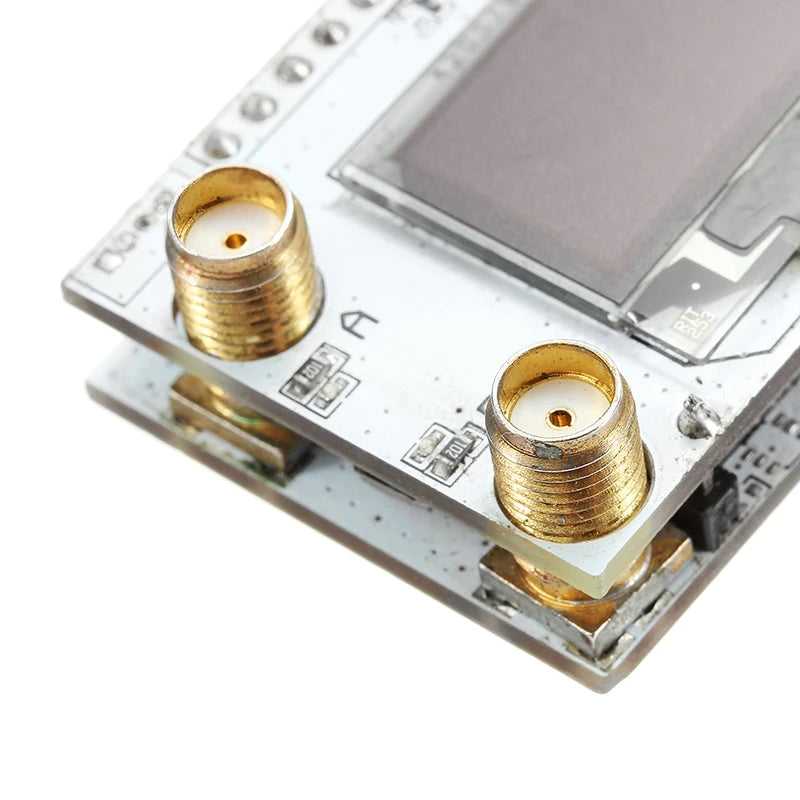

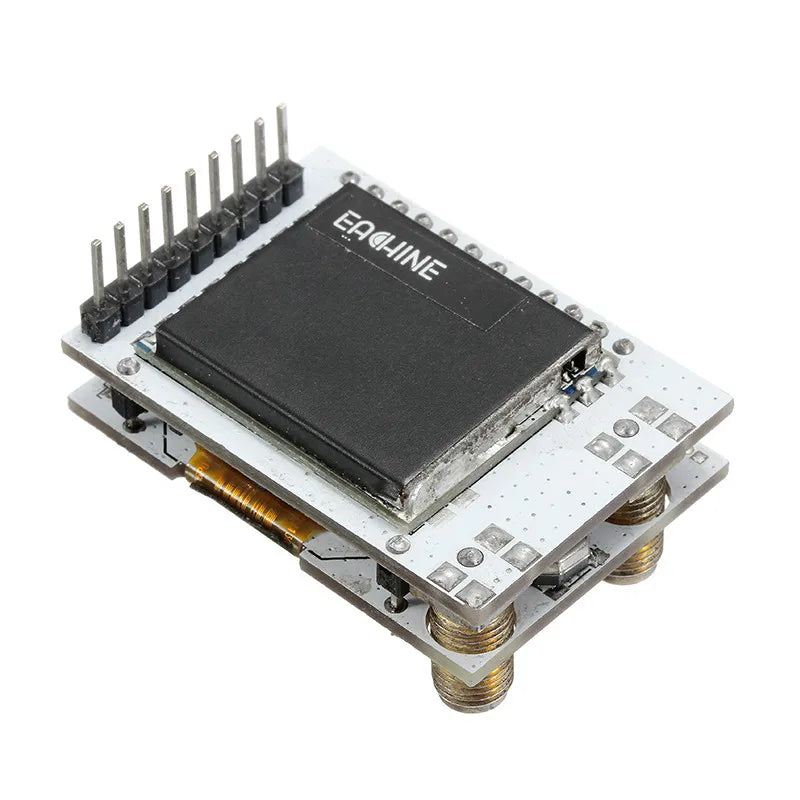

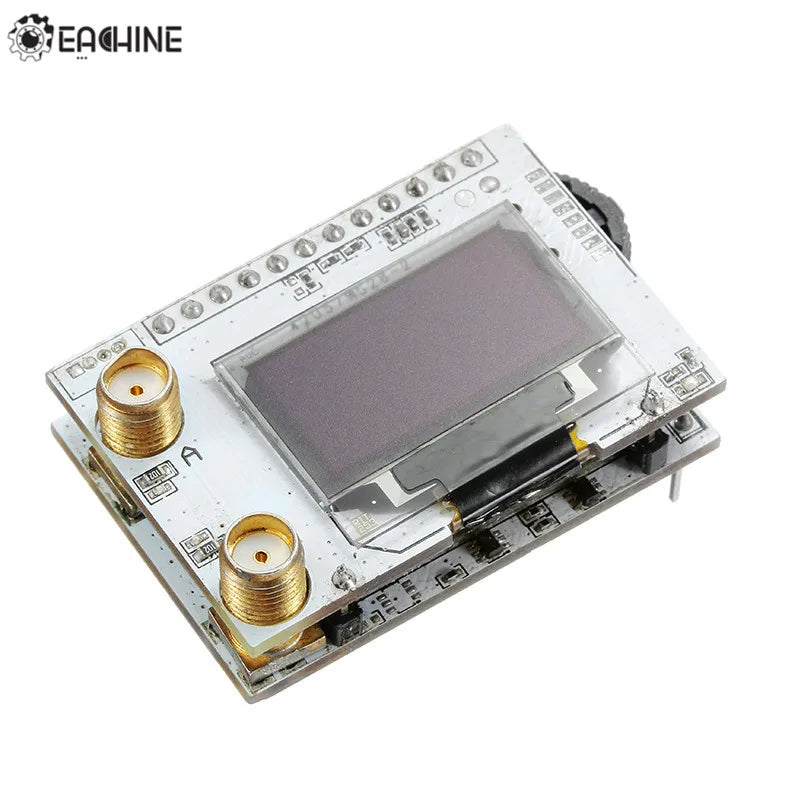

Brand Name : Eachine

Item Name : PRO58 RX

Frequency : 5.8G

Channel : 40CH

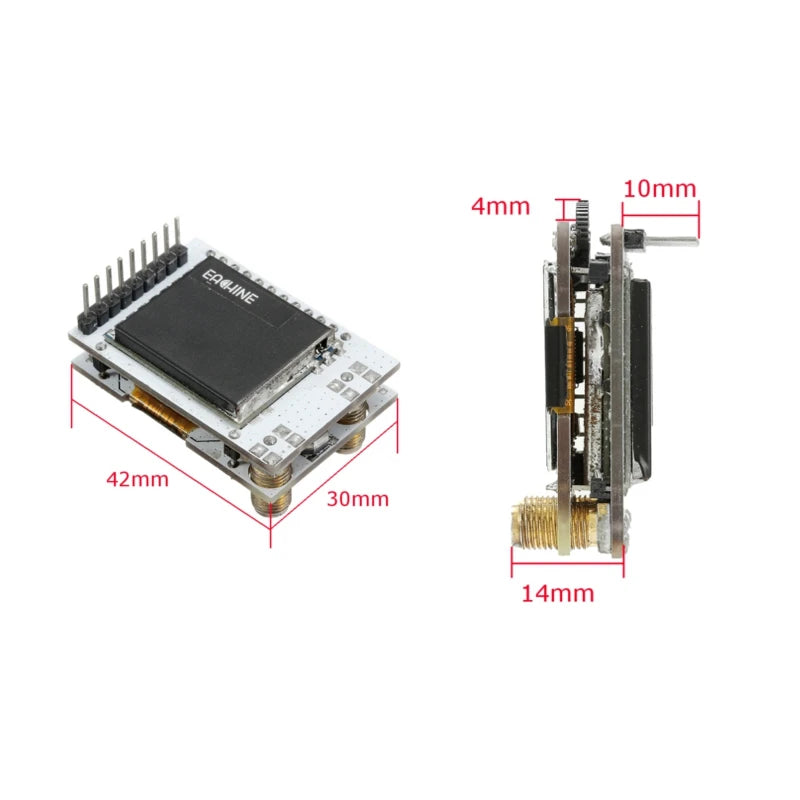

Size : 42 x 30 x 25mm (check detail dimension on picture)

Weight : 23g



Specifications:

Duo way working signal/Diversity;

All frequencies scanning, and result selectable;

Easy and fast way to show wireless information;

Great RX part for FatShark or similar Goggles;

40ch included RaceCH;

Nice sensitiveness -92dBi;

5V working, power from goggles;

partially control by goggles buttons, the ch+ and ch-;

SMA and RP-SMA versions both available;

1built-in beeper to indicate your operations

Frequency :
Build in 5.8G 40CH RaceCH receive

Frequency Table
Frequency CH A	5865	5845	5825	5805	5785	5765	5745	5725
Frequency CH B	5733	5752	5771	5790	5809	5828	5847	5866
Frequency CH E	5705	5685	5665	5645	5885	5905	5925	5945
Frequency CH F	5740	5760	5780	5800	5820	5840	5860	5880
Frequency CH R	5658	5695	5732	5769	5806	5843	5880	5917



Features :

1. Directly control by the buttons (ch+ and ch-) on FatShark Goggles, but limited with channels selection 1-8, due to FatShark inside S/W.



2. Customized booting LOGO of EACHINE.



3. Searching mode show you all frequencies working and their strength, and you can select them on the result table. We present all frequencies in order of A-B-E-F-R sequent, each channel has a small bar to show its strength, the longer bar stand for stronger signal.



A typical searching result shows: there are 6 signals, and E1(5705M) is most strong. You can press confirm to select it, or you can up or down to select another channel and press confirm to show it,



4, Main working interface offer abundant information, including: working frequency name (like E1, in bigger size letter), exact working frequency (like 5705M), working mode (like AUTO, working on RX A, Auto way), and signal strength (right-up Conner), and if you work on diversity mode, there will be current working RX (A or B) just before the strength sign.



5. Simple and easy interface way to show you most useful information.



6. Easy to use up-down-select 3 ways button



7, Full compatible with all series FatShark Goggles



8, Great 5.8G performance





Package Included :

1 x 5.8G 40CH Diversity RX
