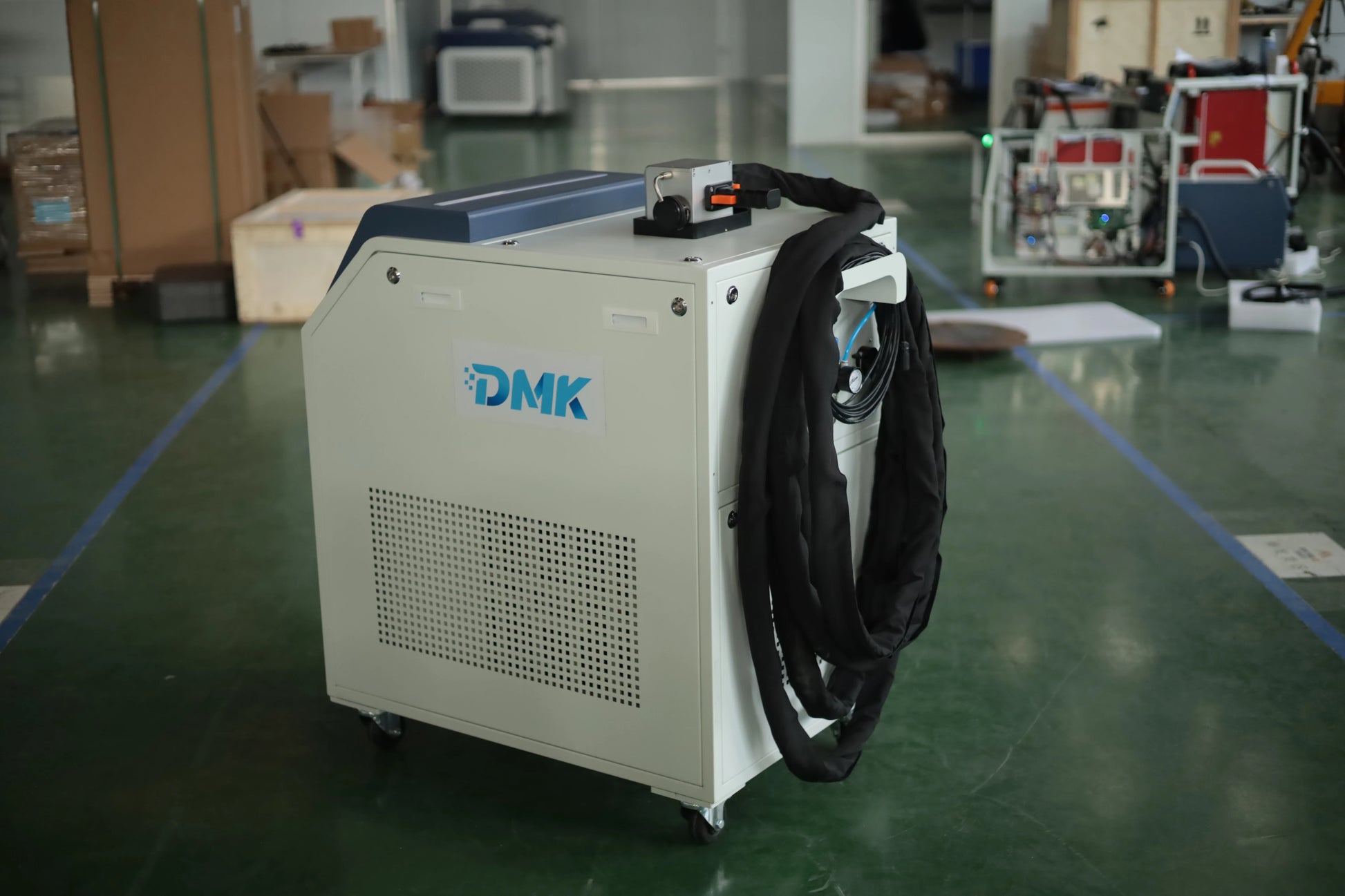

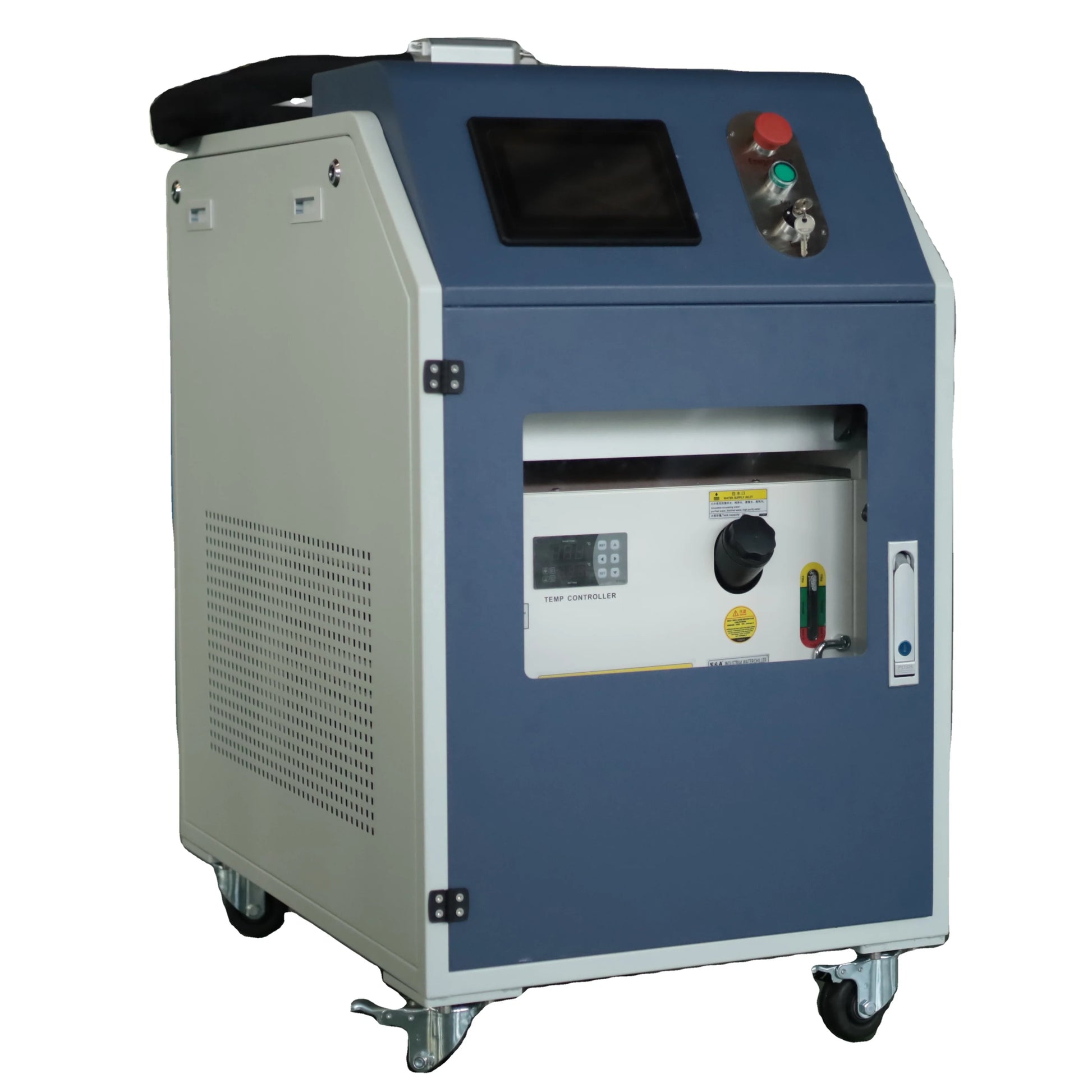

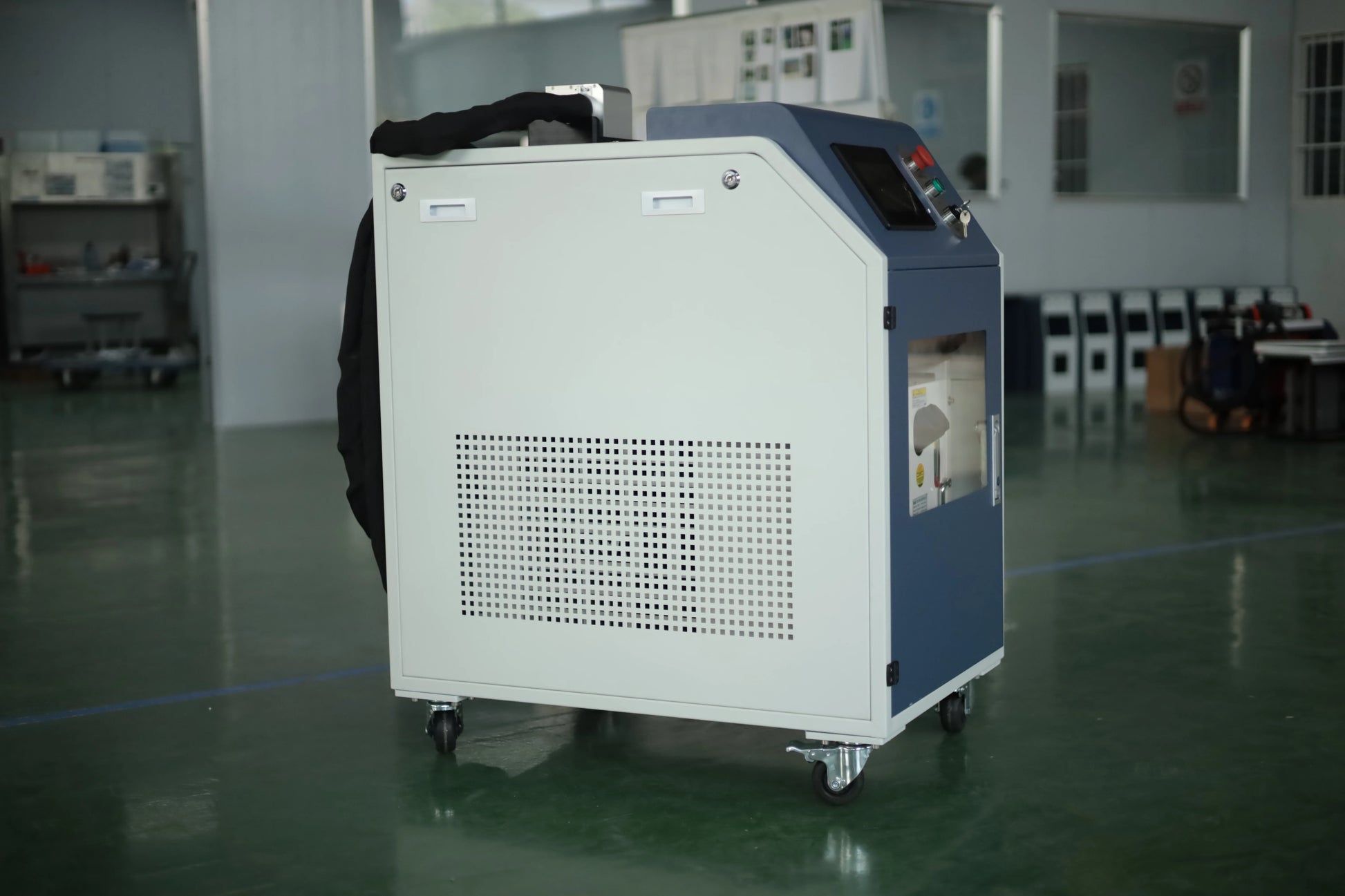

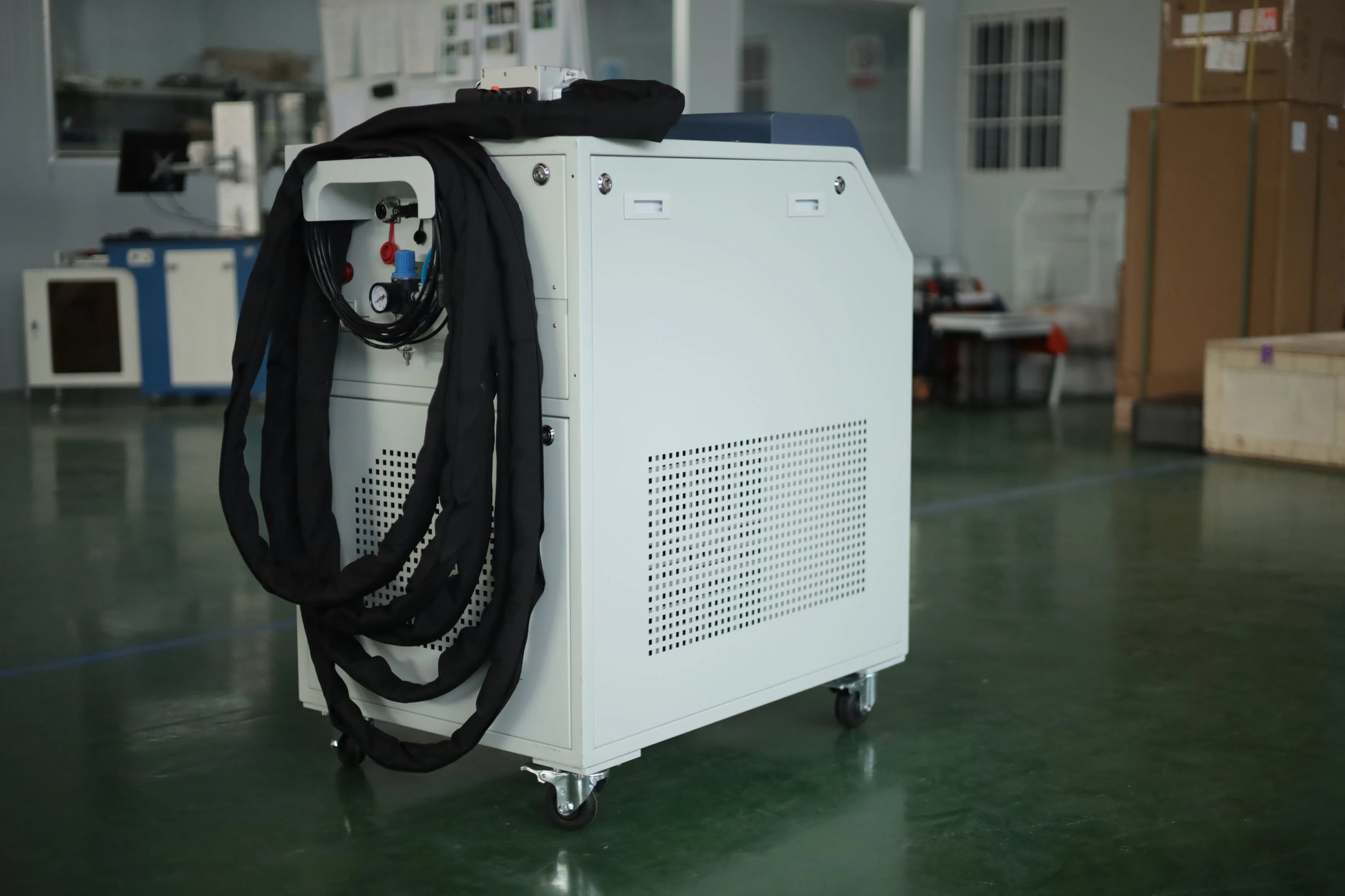

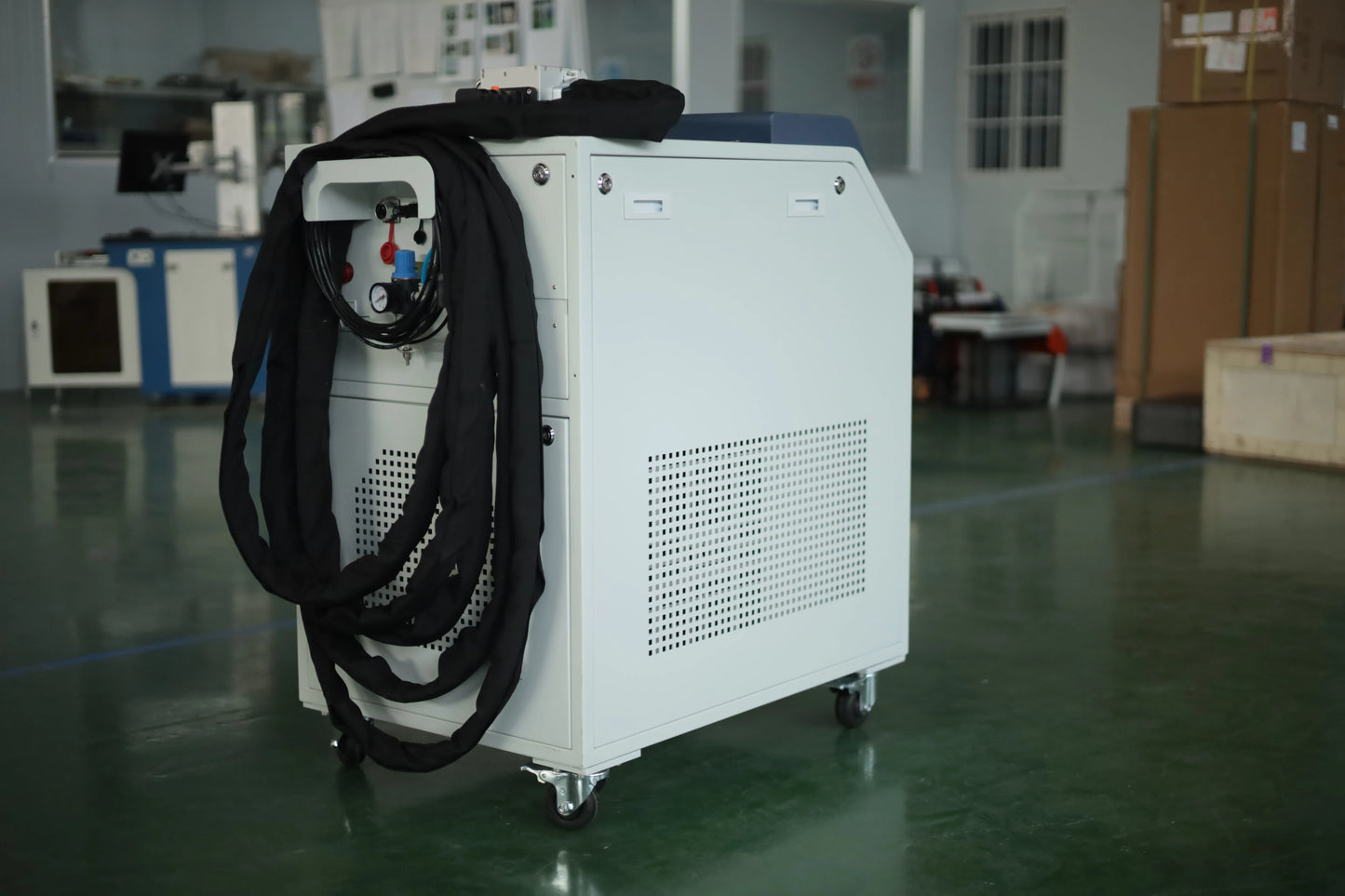

DMK DPL-1000W-B Pulse Laser Rust Removal Machine

74.178,29 €

Sale Sold out

Shipping calculated at checkout.

power(w) 1000 W

model number DPL-1000-B

SPECIFICATIONS

After Warranty Service: Video technical support

After-sales Service Provided: Online support

Application: Rust Remove Metal Cleaning

Certification: ce

Key Selling Points: Easy To Operate

Output Power: 1000W

Usage: cleaning

Wavelength: 1064nm

Weight: 170 KG

brand name: DMK

condition: New

control system brand: NO

focal spot diameter: 0.2-5mm

guiderail brand: NO

laser head brand: DMK

laser source brand: JPT

place of origin: Hubei, China

servo motor brand: NO

single pulse energy: 15mj

warranty: 1 Year

Products Description

Laser cleaning is a new cleaning method in industrial cleaning. The company's DMK-1000-B series laser cleaning equipment adopts peak
power pulse laser, imported high-speed scanning system, high-precision control system and power supply of domestic and well-known enterprises. The whole machine is stable and reliable with good performance, and has the characteristics of super portability, high efficiency and high cost performance.

Features and Advantages

Compared with traditional cleaning methods, laser cleaning has the following advantages:
* Safe, non-contact, no damage tosubstrate;
* Environmental protection, no secondary pollution, and removed substances recyclable；
* Precision and controllable, optional area cleaning, and micronlevel precision control in thickness direction；
* Ultra high cost performance, laser cleaning equipment in the use of no consumables, only powerconsumption;
* It has strong applicability and mobility, can be hand-held or integratedinto automation。

Product Paramenters

Model	DPL-1000-B
Supply voltage	Single-phase 220V±10%, 50/60Hz AC
Machine power consumption	4000W (including chiller)
Average laser power	≥1000W

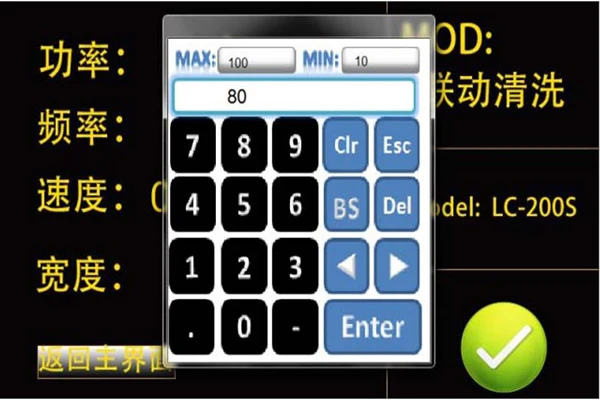

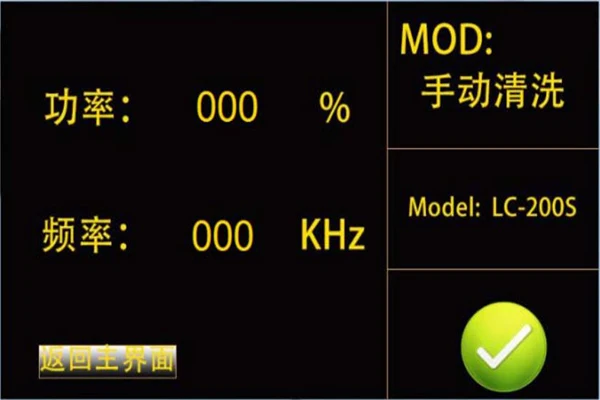

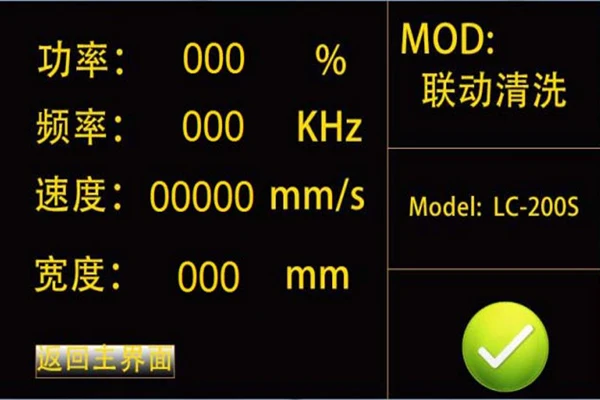

Power adjustment range (%)	10-100 (gradient adjustable)
Repetition rate (KHz)	20-50 (gradient adjustable)
Center wavelength (nm)	1064
15Single pulse energy (mj)	15
Focal length (mm)	210/160 (replaceable)

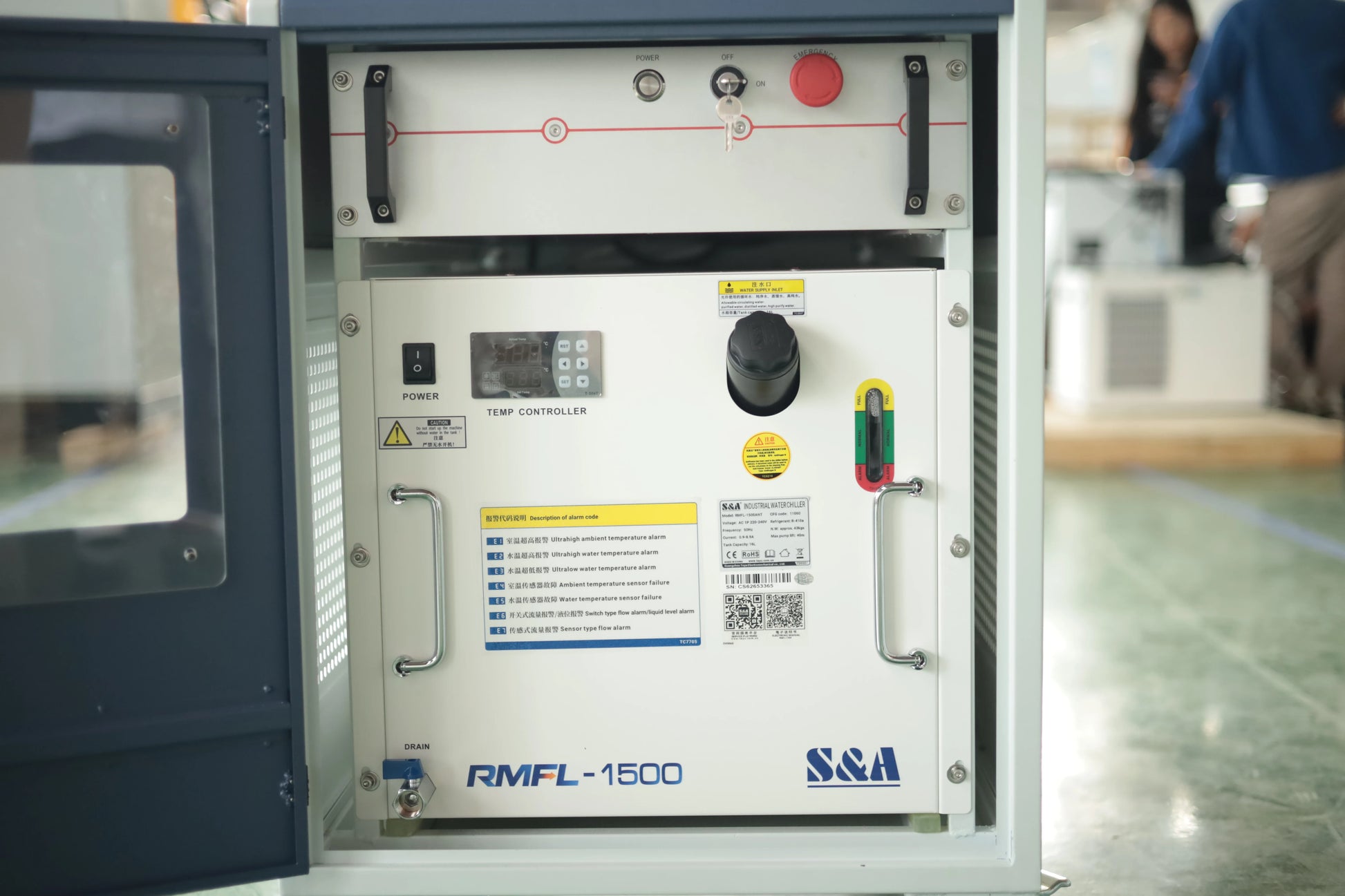

Cooling method	water cooling
Size	1130mm×830mm×1300mm
Weight	170Kg
Fiber length	10 meters (can be customized)

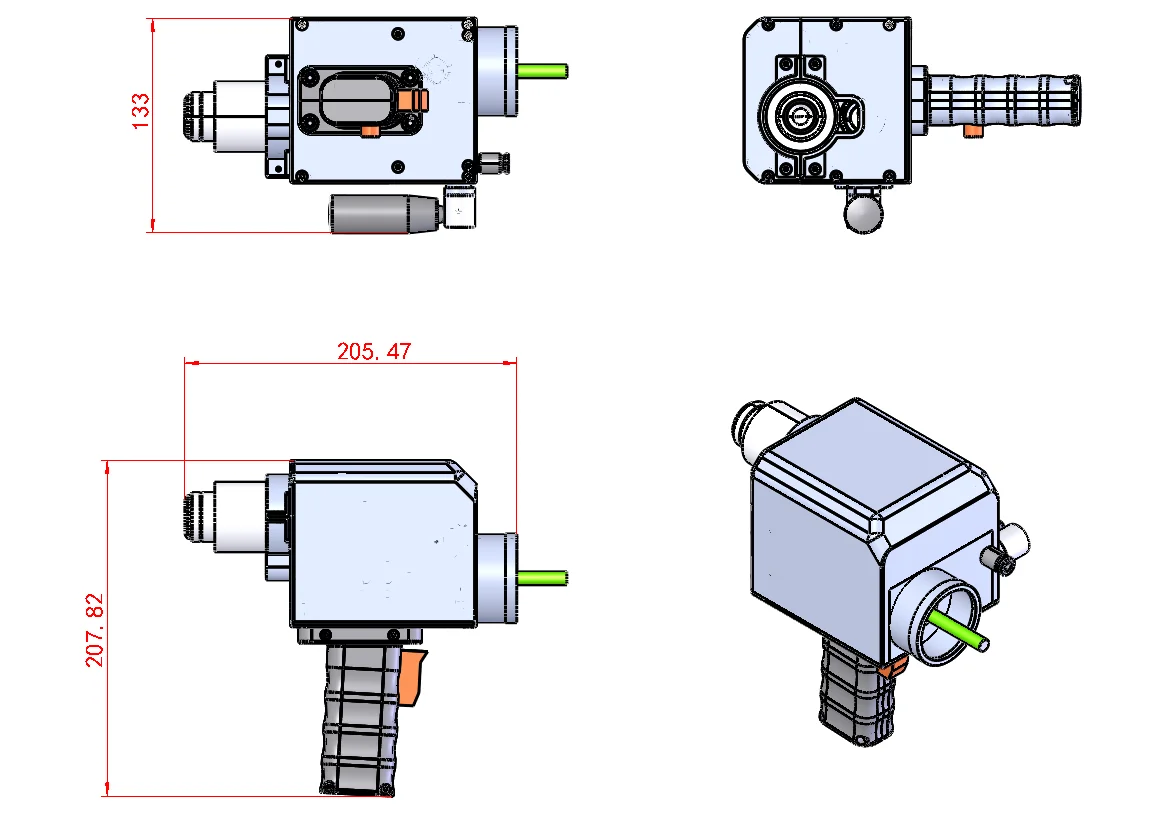

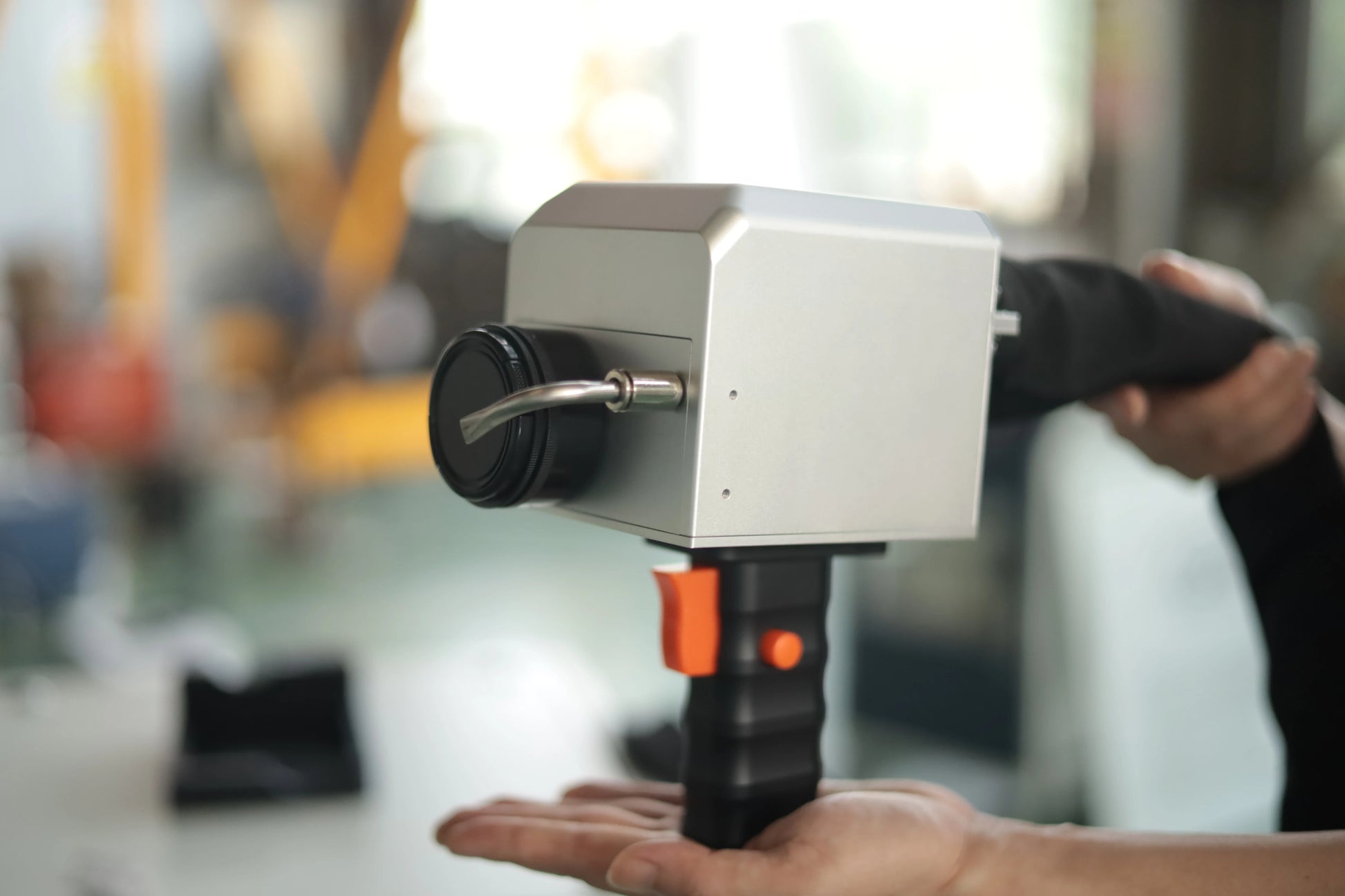

Cleaning head weight	2Kg
Scan width	Length：5mm ~ 100mm, adjustable Wide：5mm ~ 100mm, adjustable
Mobile way	Handheld/Automatic (Optional for robotic arm)
