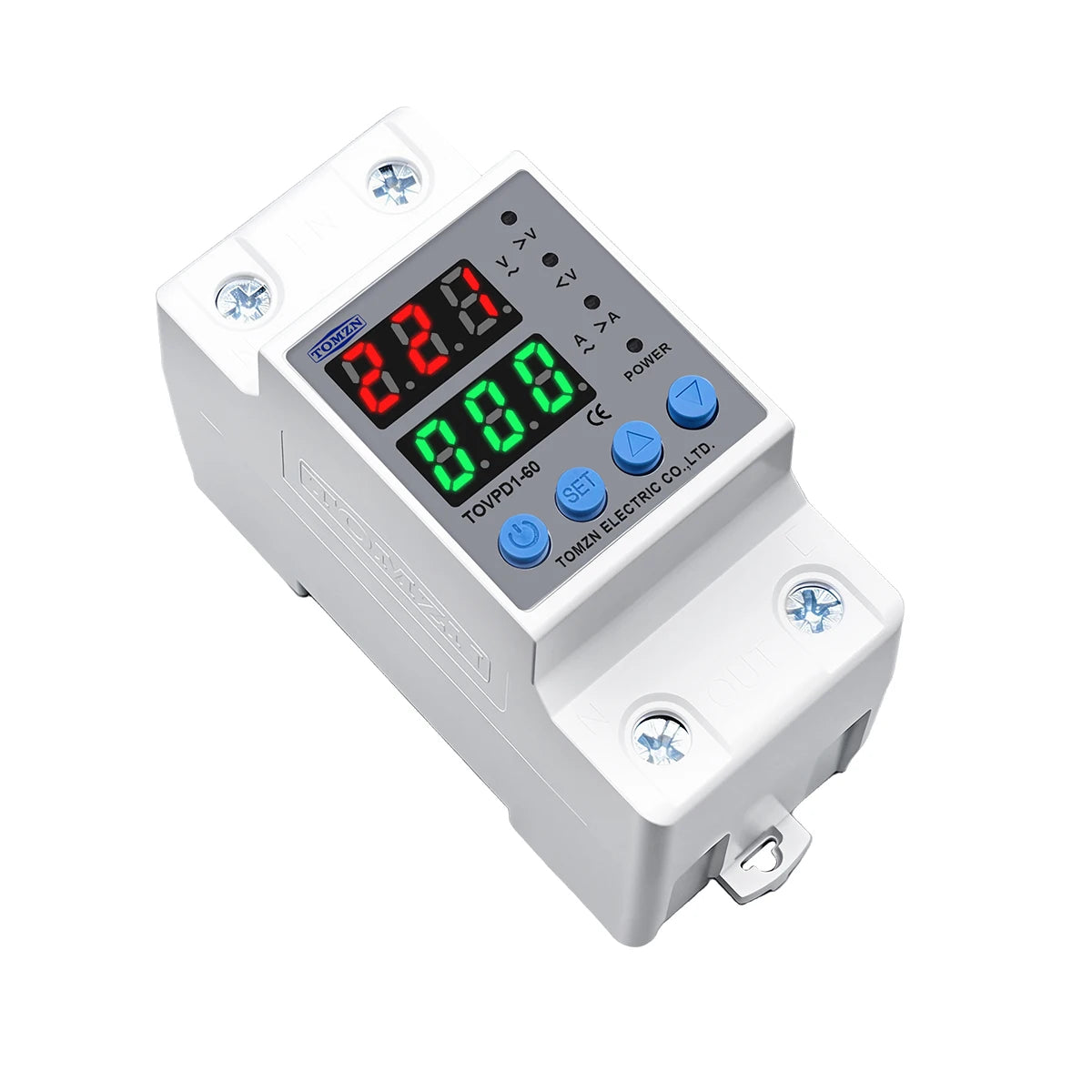

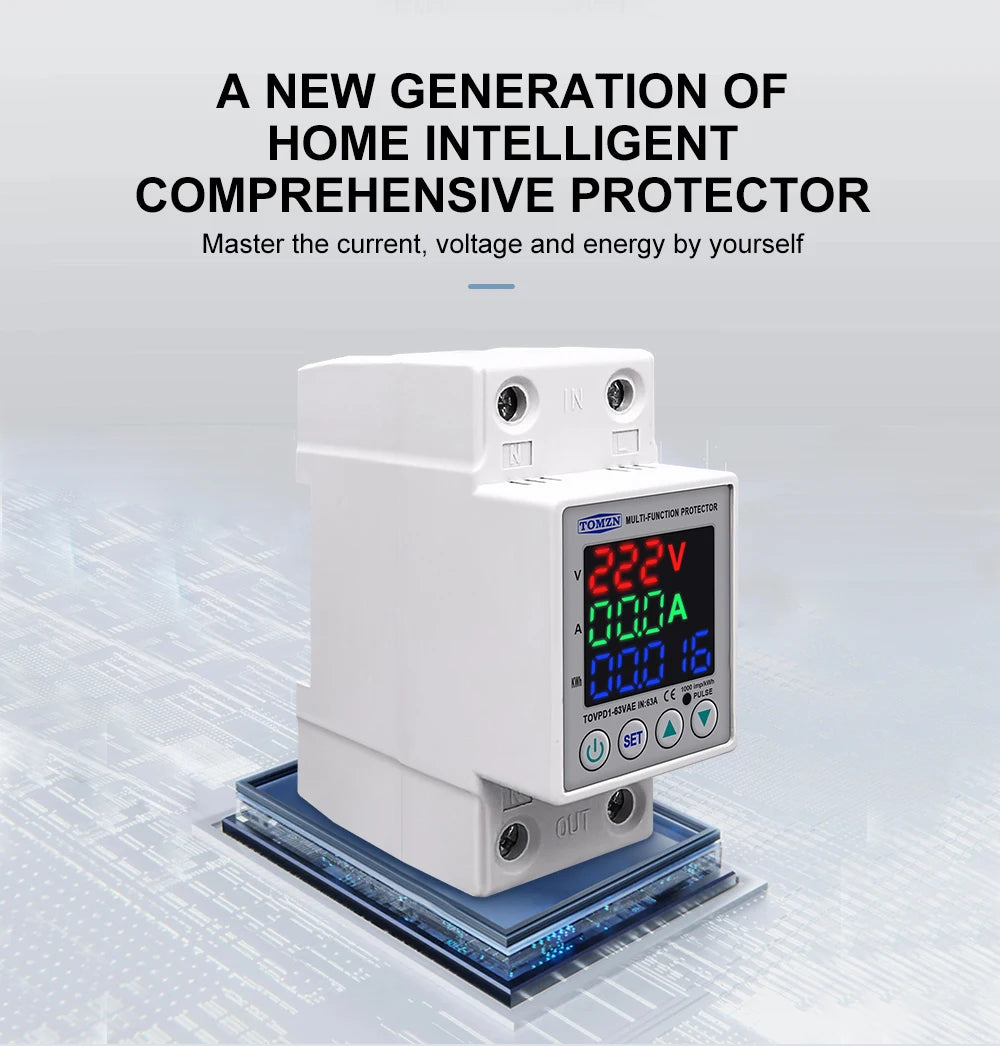

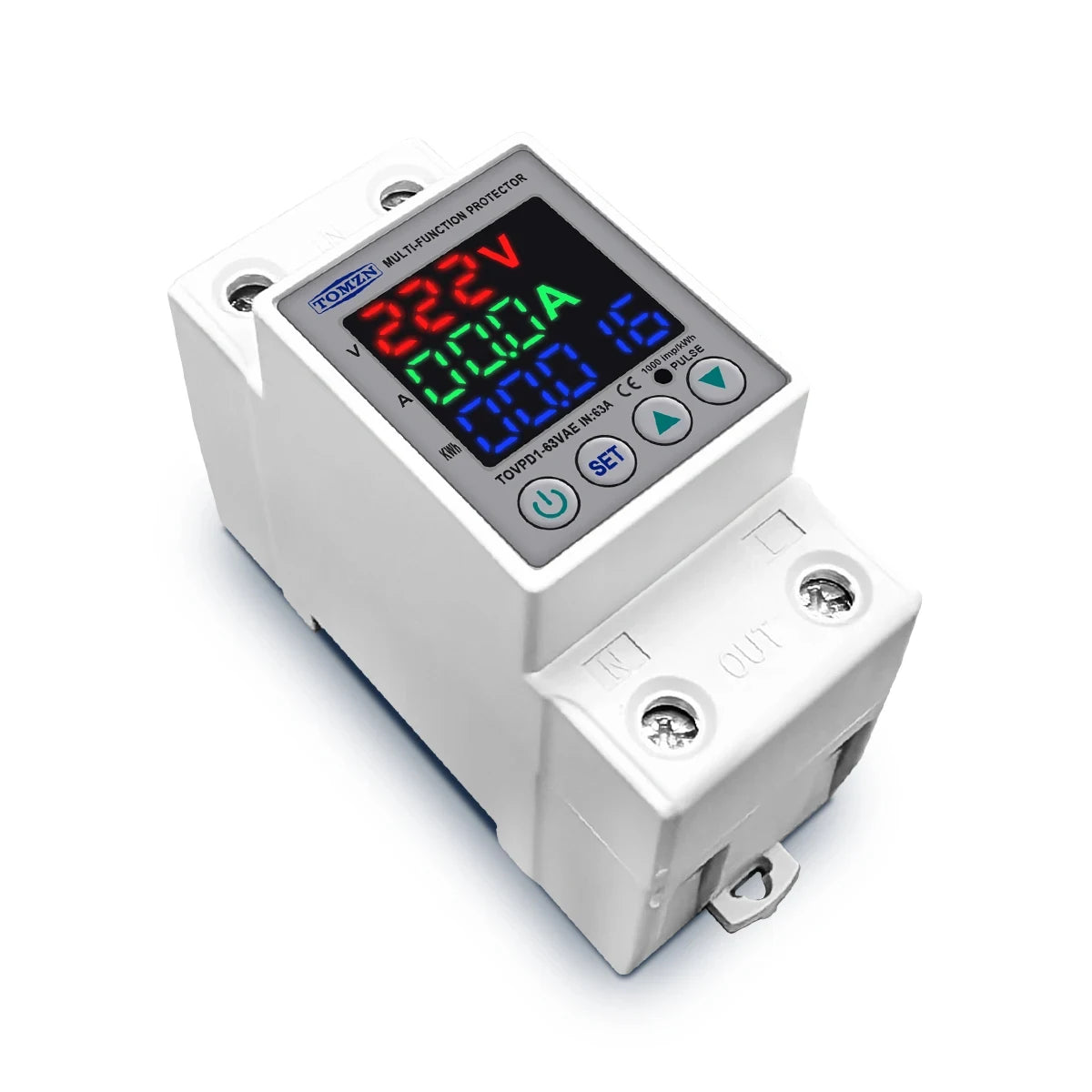

DIN Rail Dual Display Adjustable Over Voltage Current And Under Voltage Protective Device Protector Relay 40A 63A 80A 220V 230V

DIN Rail Dual Display Adjustable Over Voltage Current And Under Voltage Protective Device Protector Relay 40A 63A 80A 220V 230V

42,34 €
42,34 €
Sale Sold out
Shipping calculated at checkout.
Rated Current
Poles Number
PayPal Klarna American Express

SPECIFICATIONS

Brand Name: TOMZN

Certification: CE

Choice: yes

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: None

Is Smart Device: No

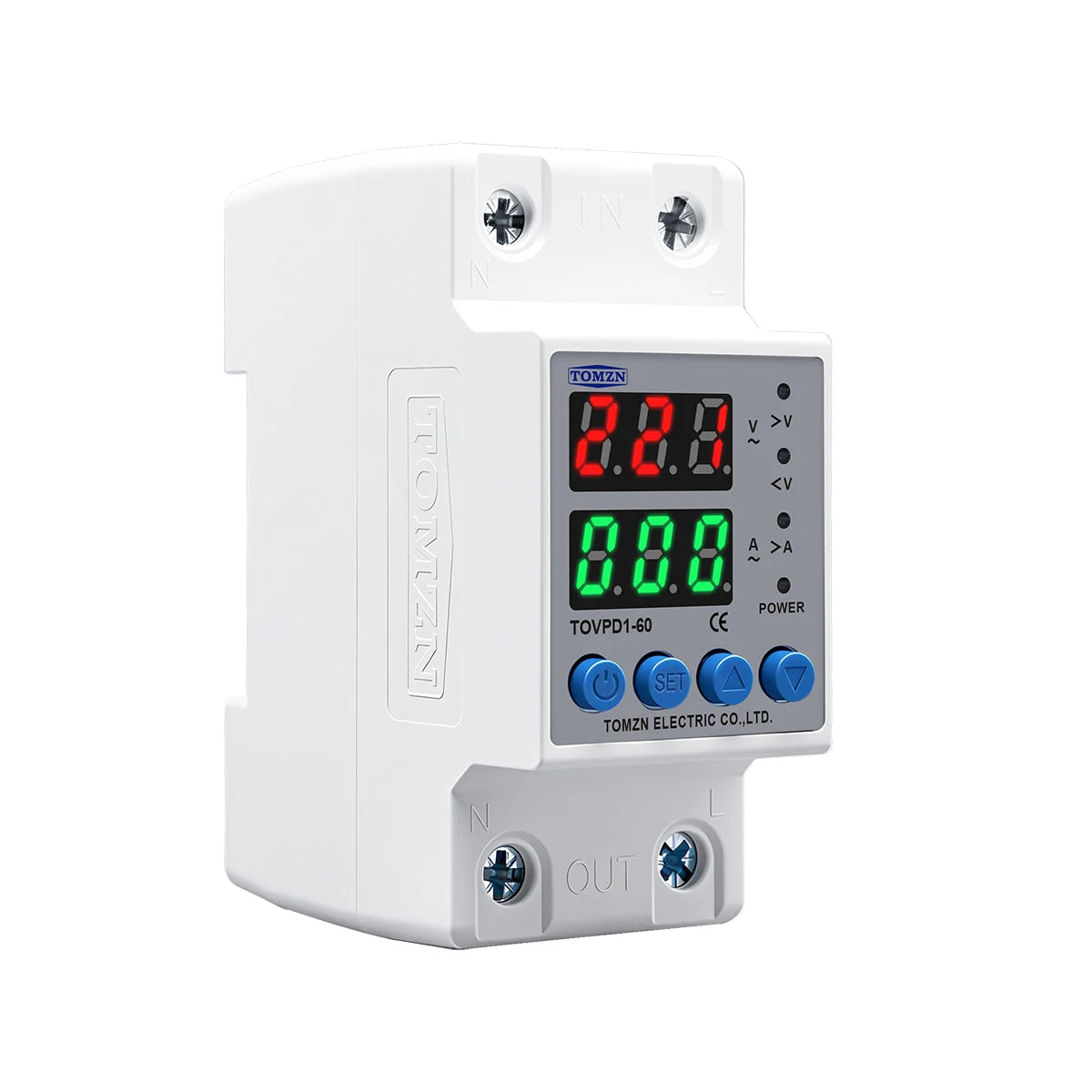

Model Number: TOVPD1-60-EC

Origin: Mainland China

Over current protection: 1A-80A (adjustable) (default: 20A)

Over voltage proteciton: 230V-300V (adjustable) (default: 280V)

Reconnect time: 3s-300s (default: 5A)

Type: Voltage protector,Voltage relay

Under voltage protection: 140V-210V(adjustable) (default: 160V)

is_customized: Yes

semi_Choice: yes

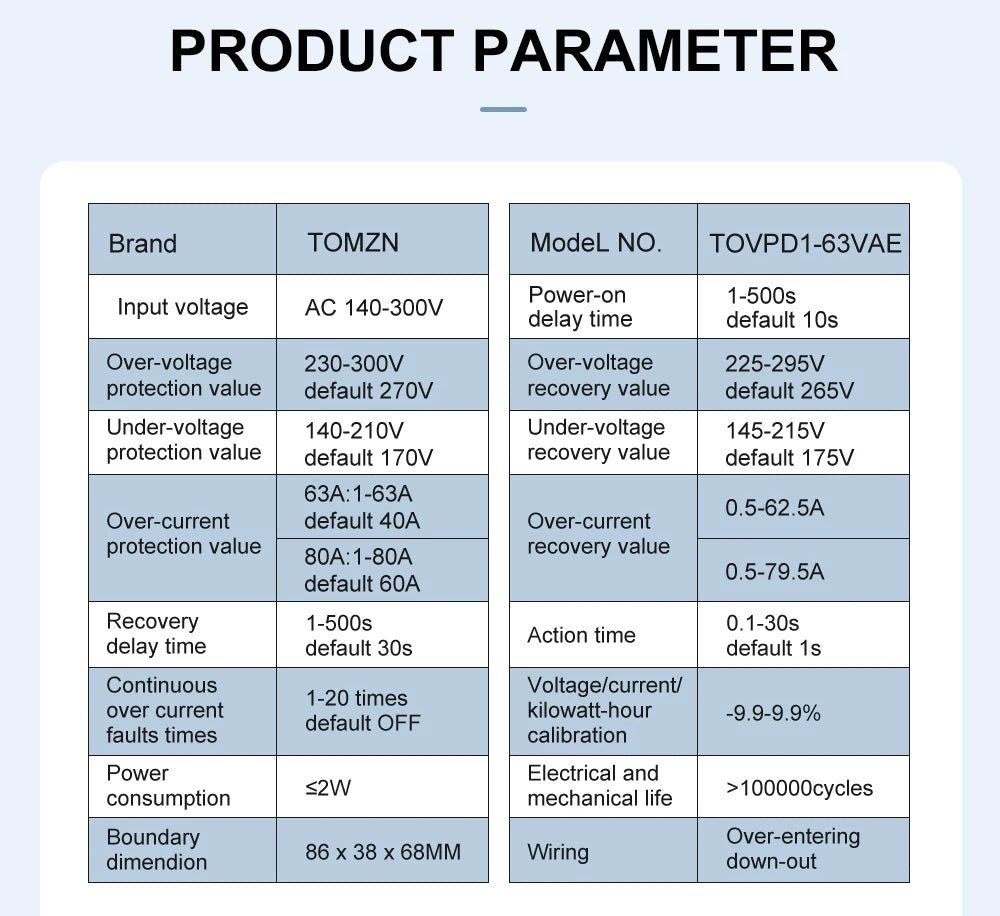

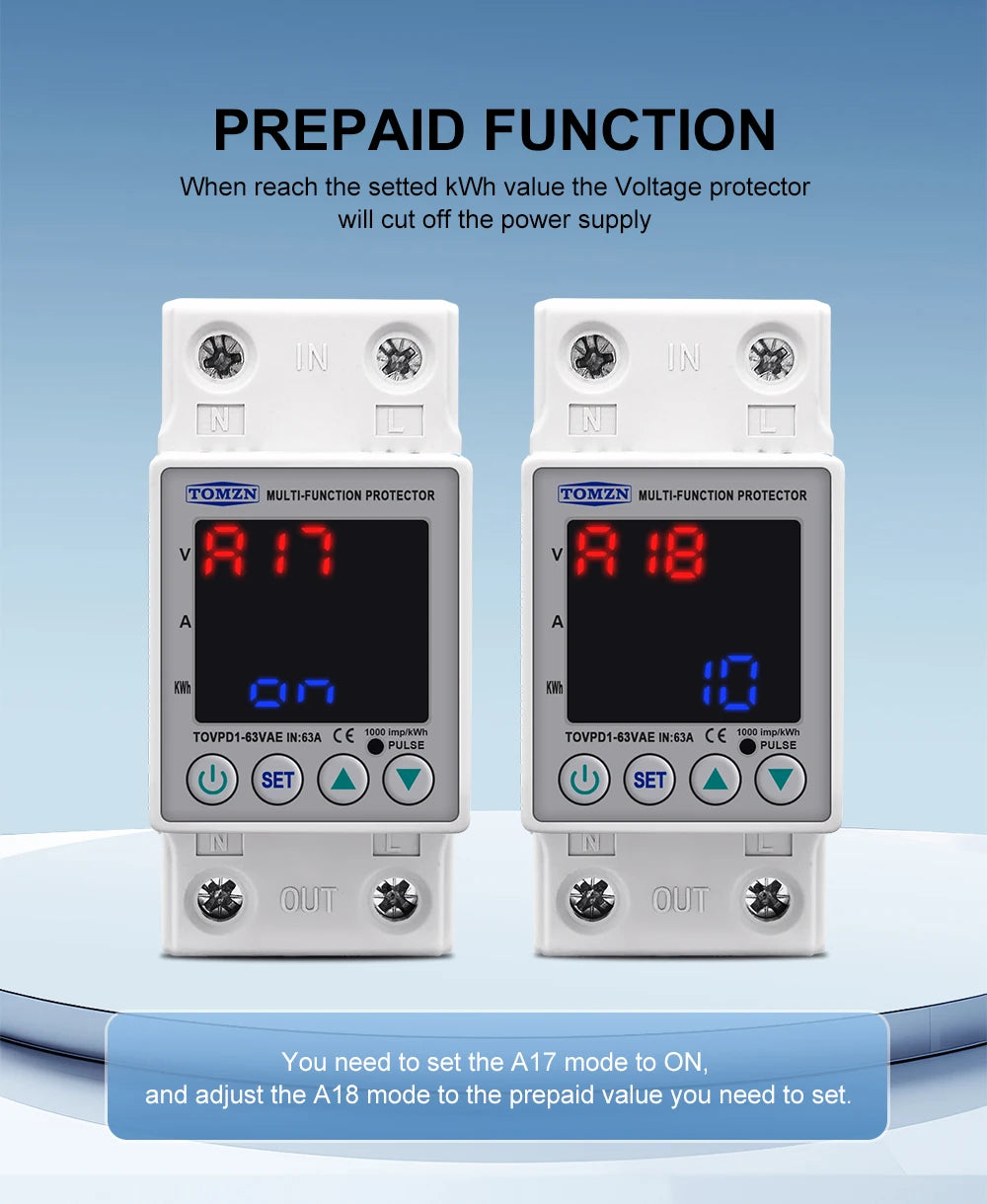

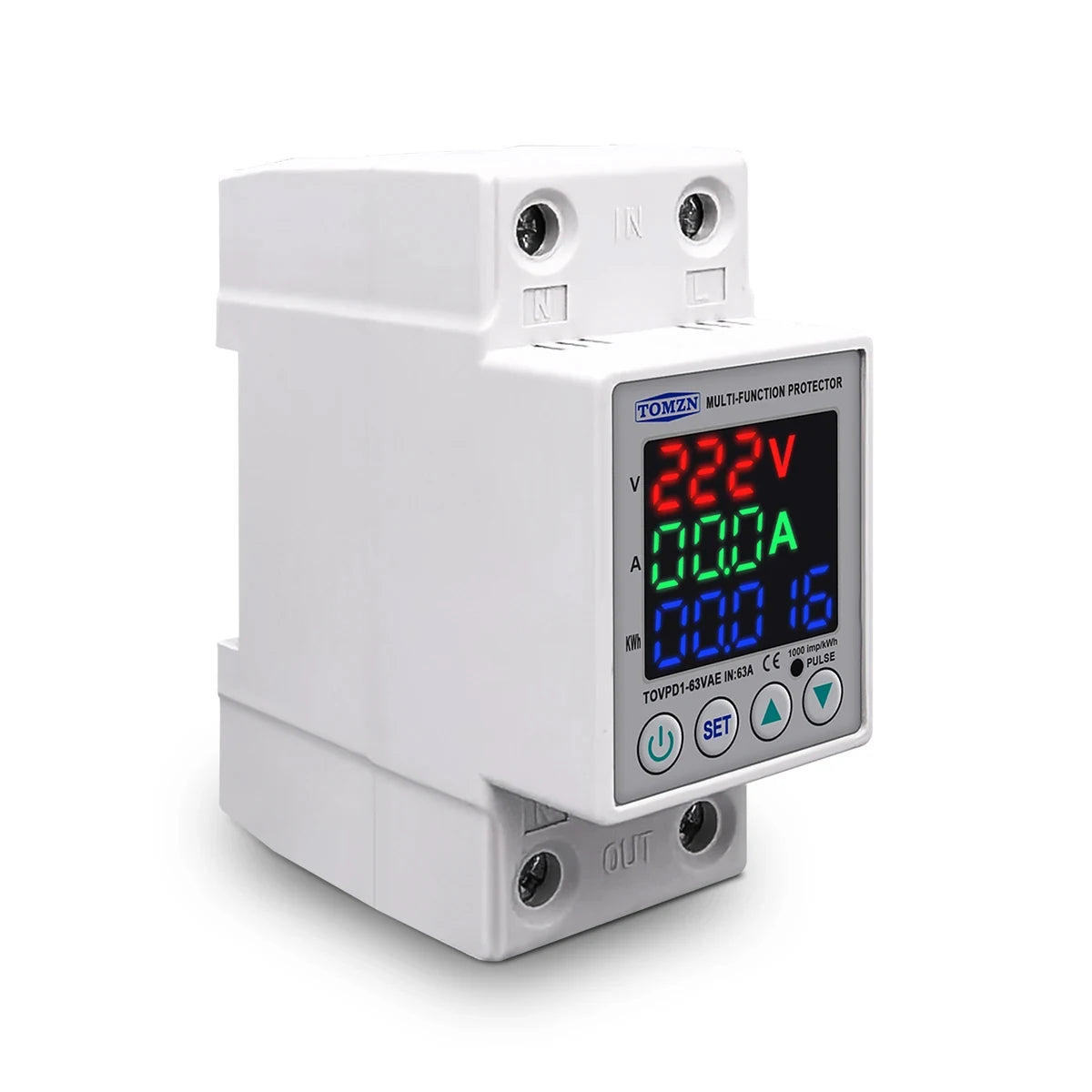

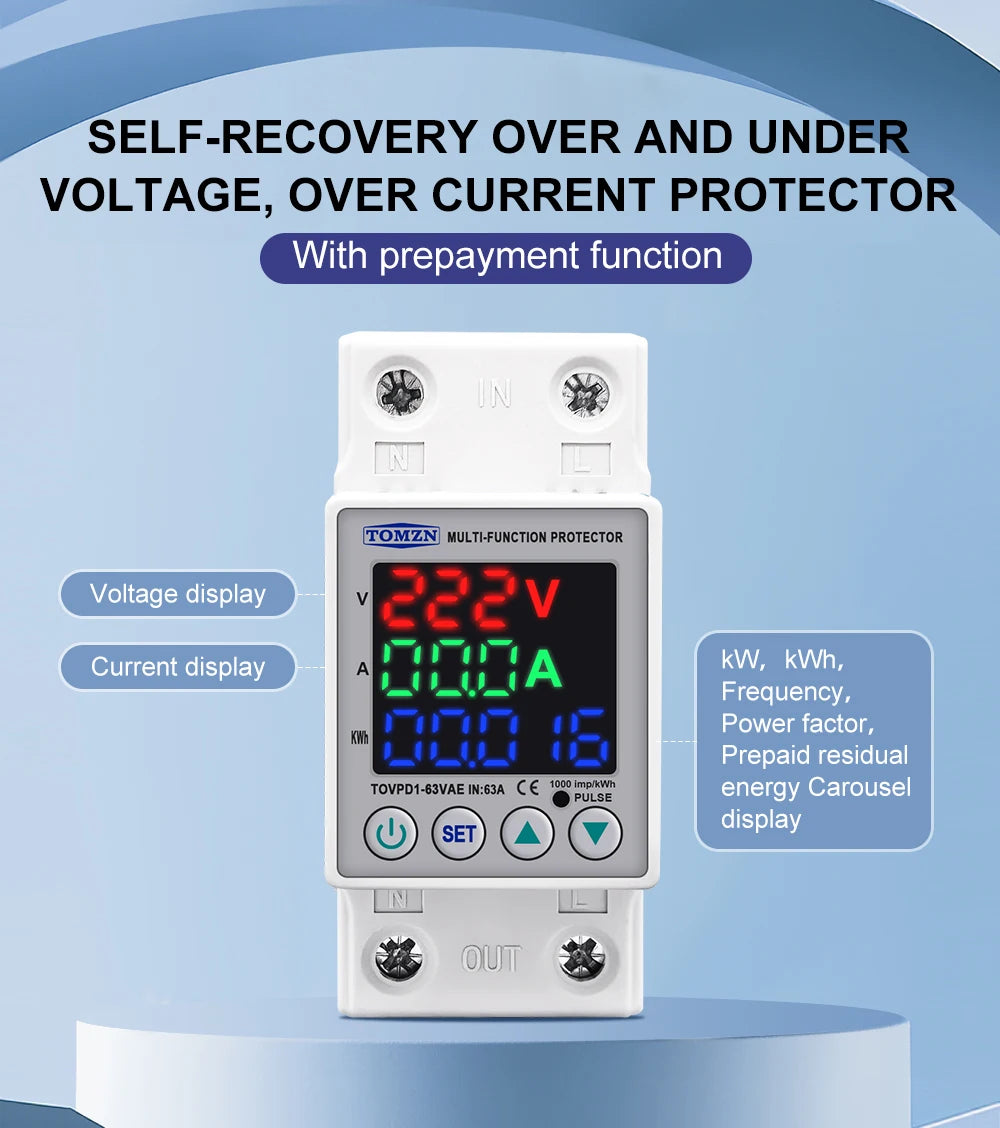

TOVPD1-63VAE has added prepaid function.

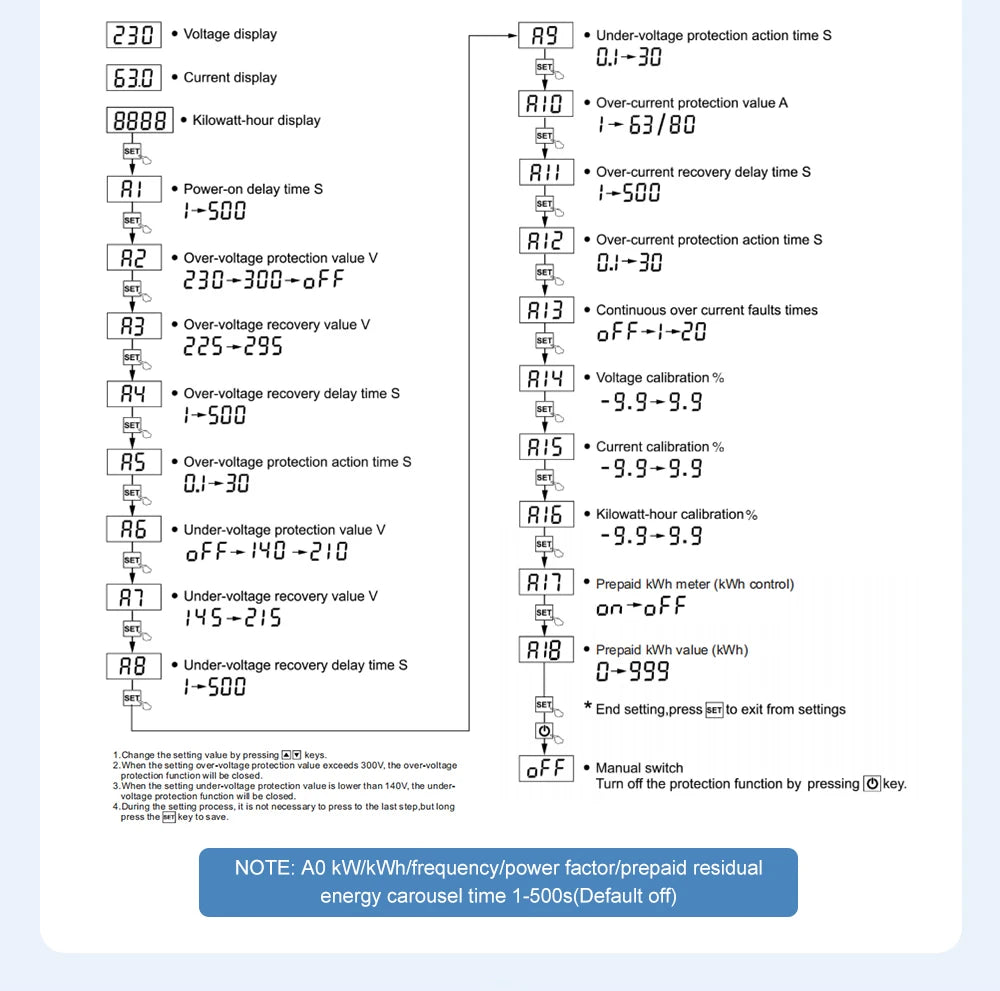

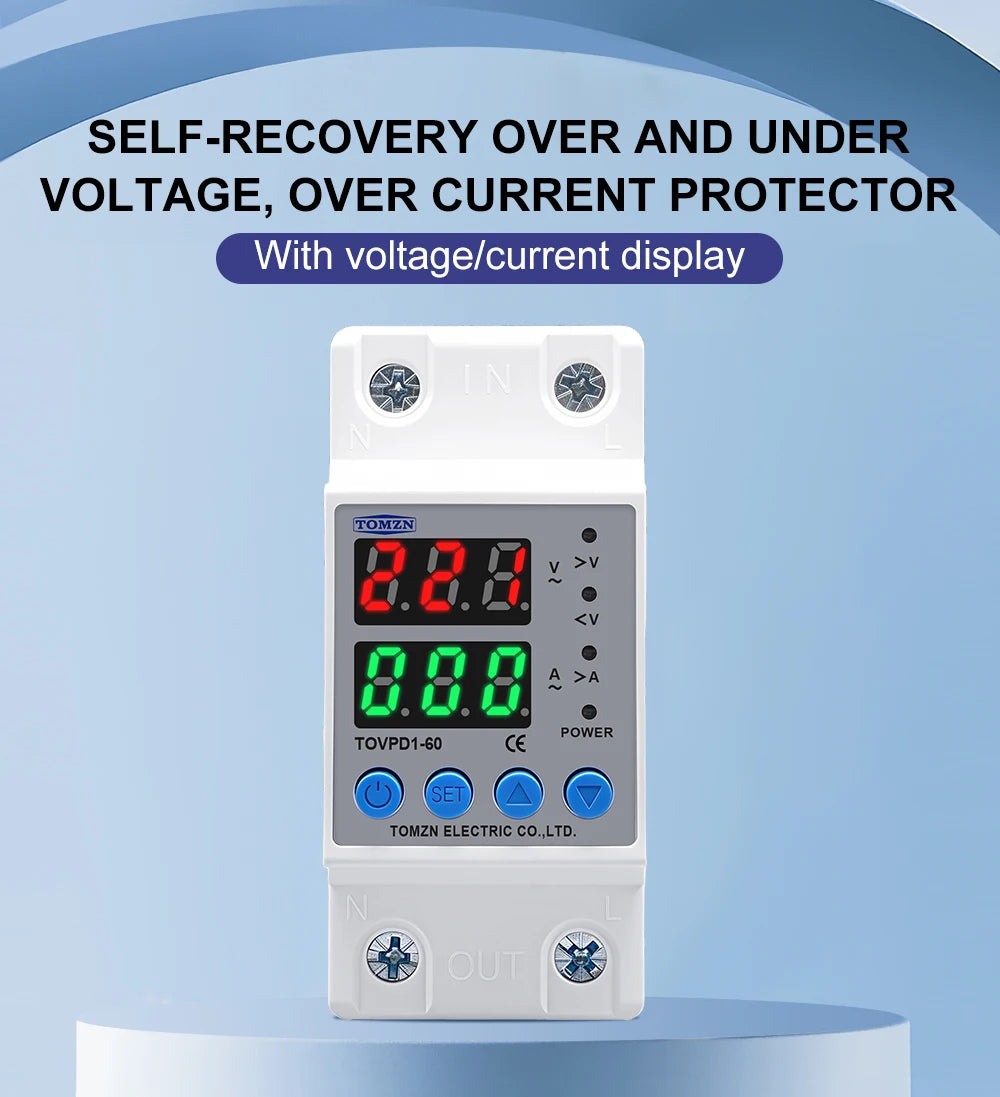

Functions:
1.Over-voltage protection
2.Under-voltage protection
3.Over-current protection
4.Automatic recovery

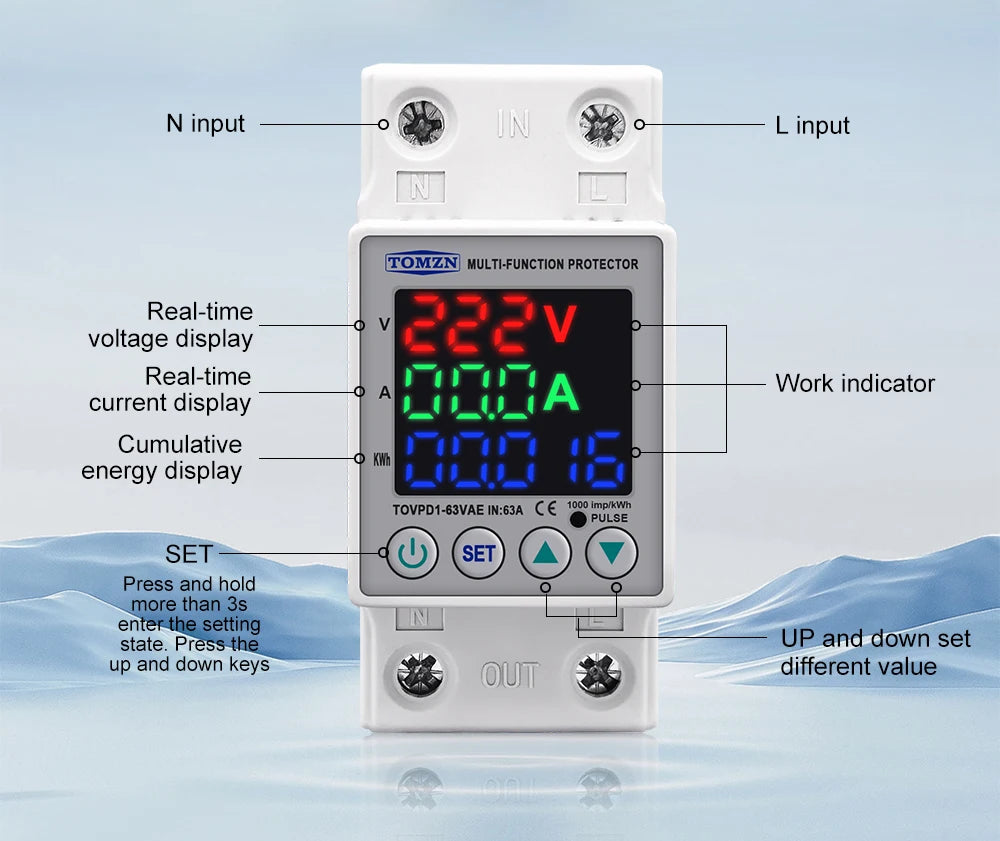

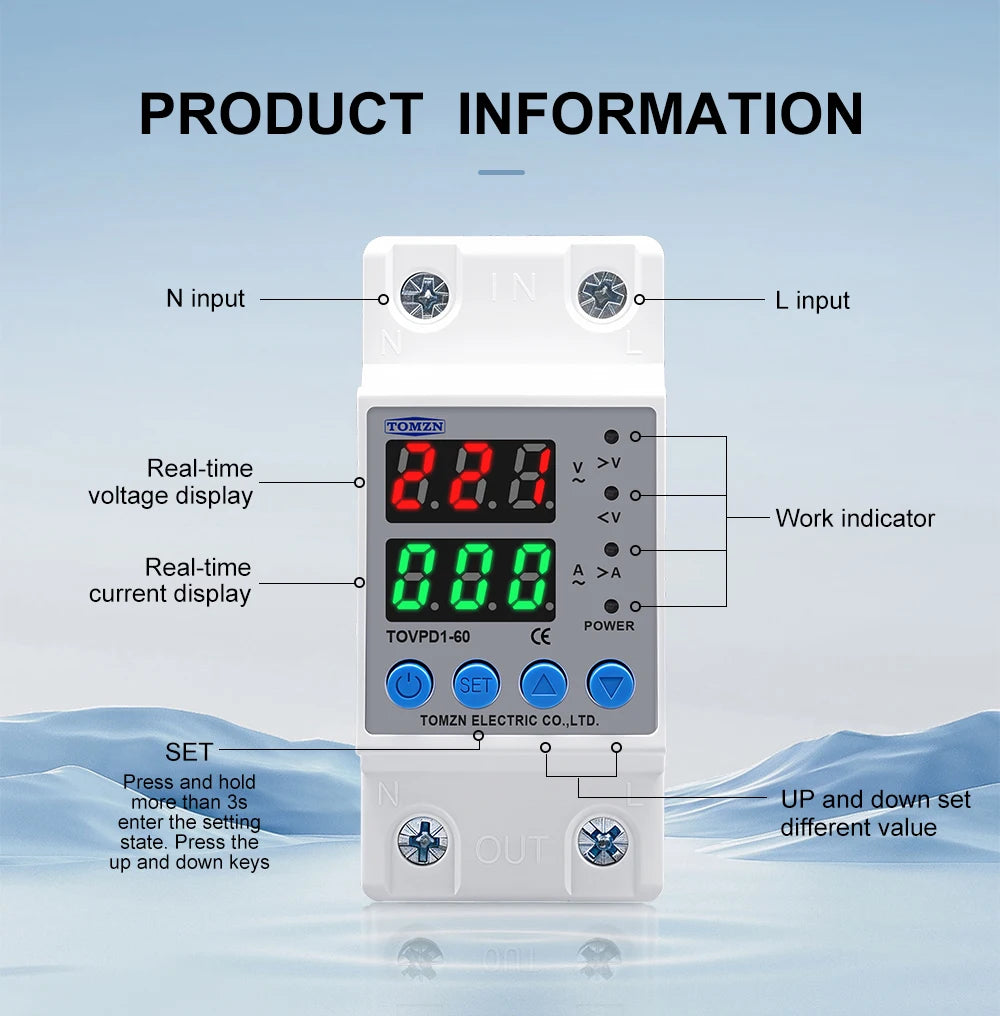

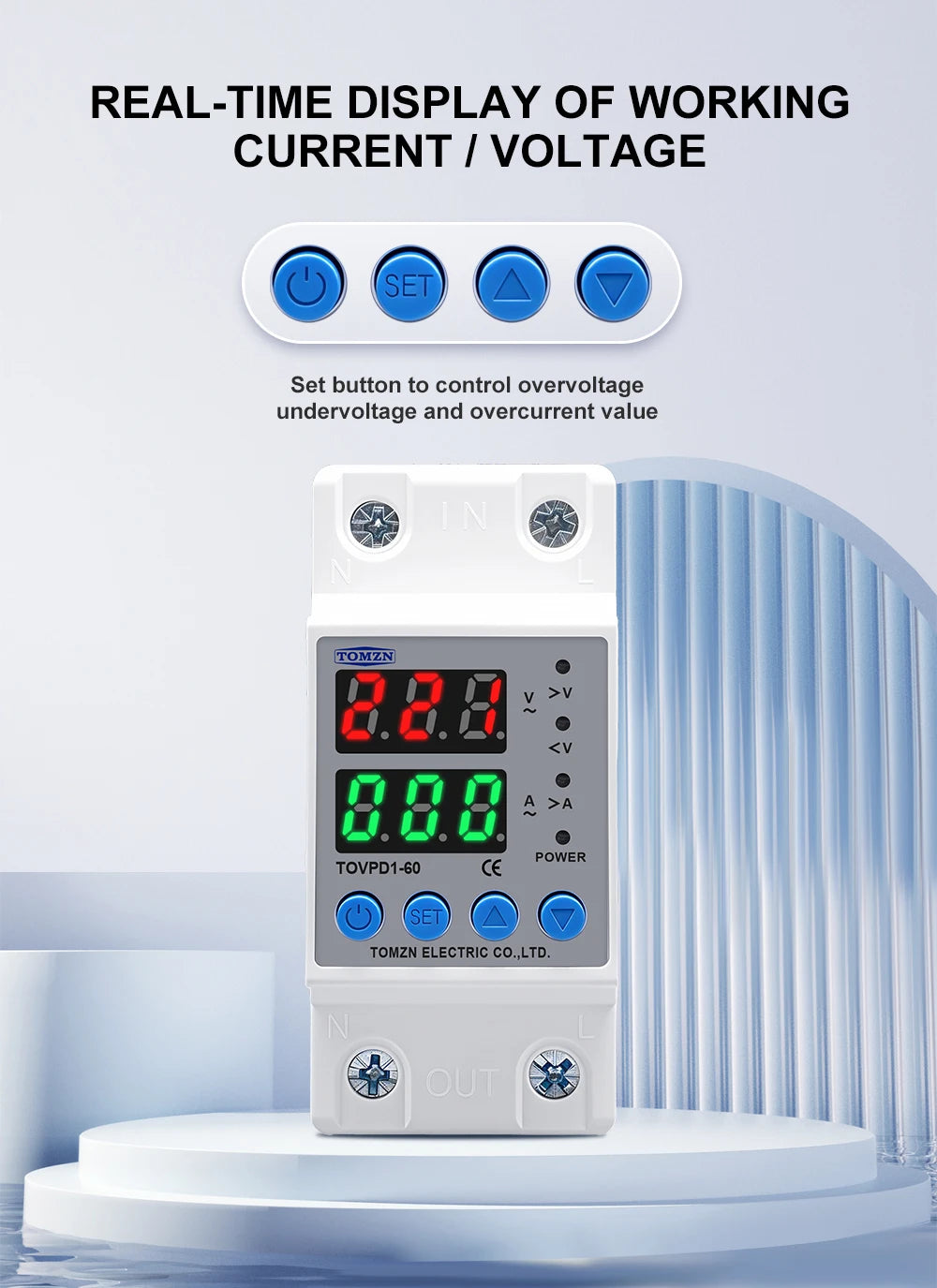

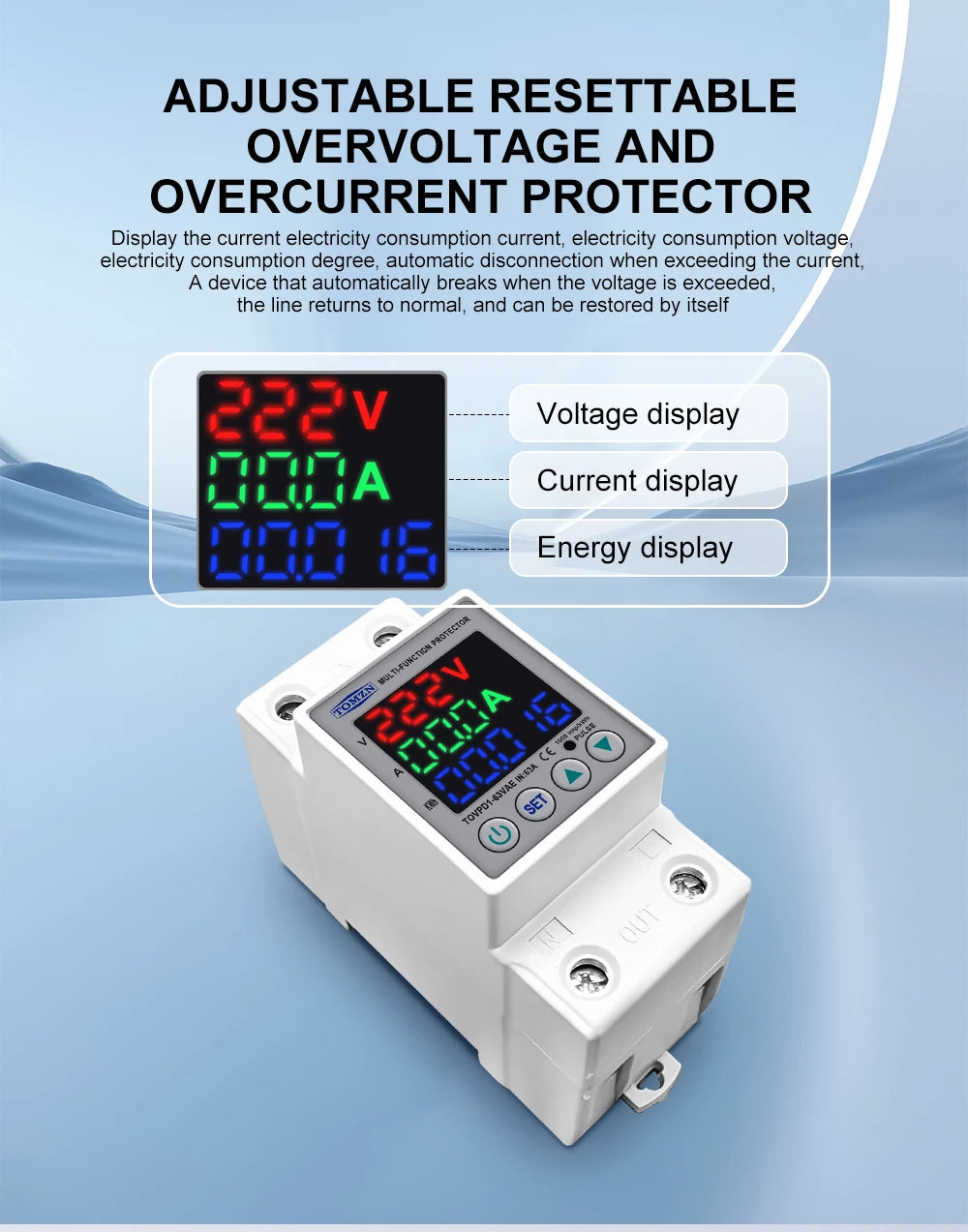

5.Voltage display(voltage measurement)
6.Current display (current measurement)

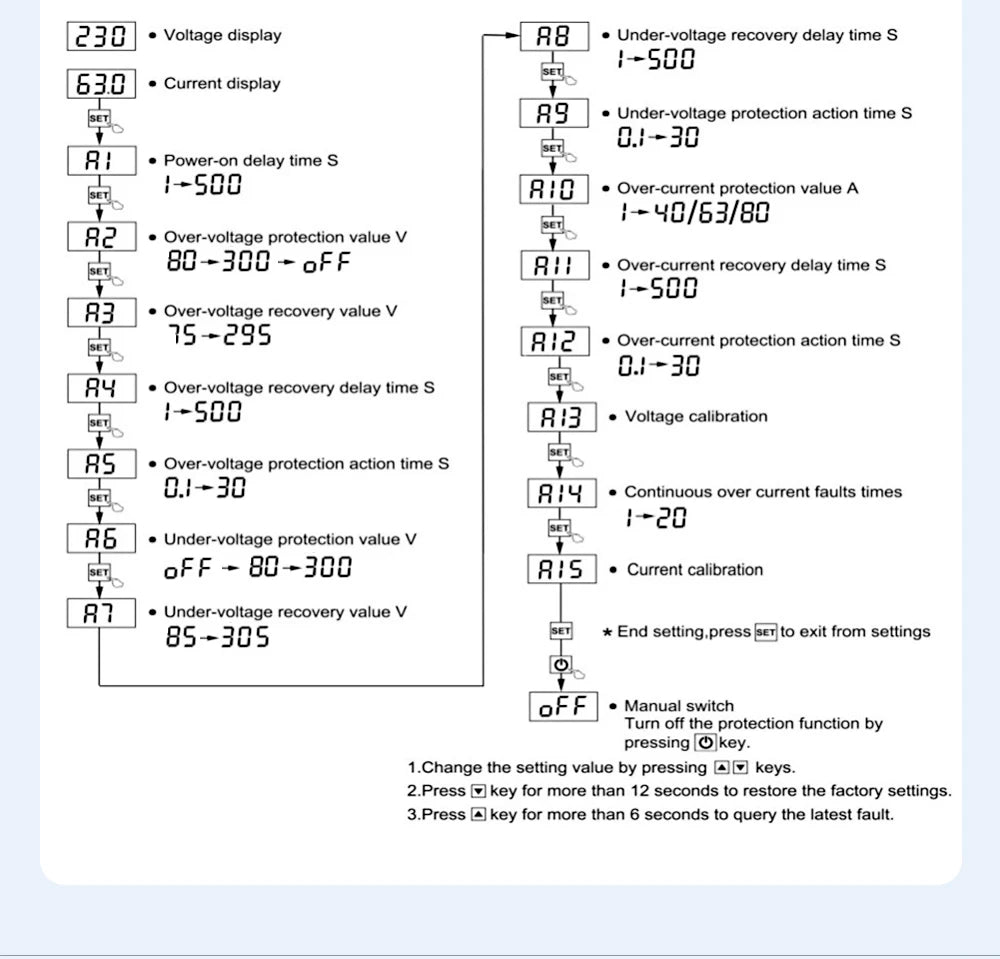

7. Voltage calibration: Voltage +-10% adjustable. A13
8. Restore factory settings: press the down button for more than 12s
9.Fault inquiry: Press the UP button from more than 12S

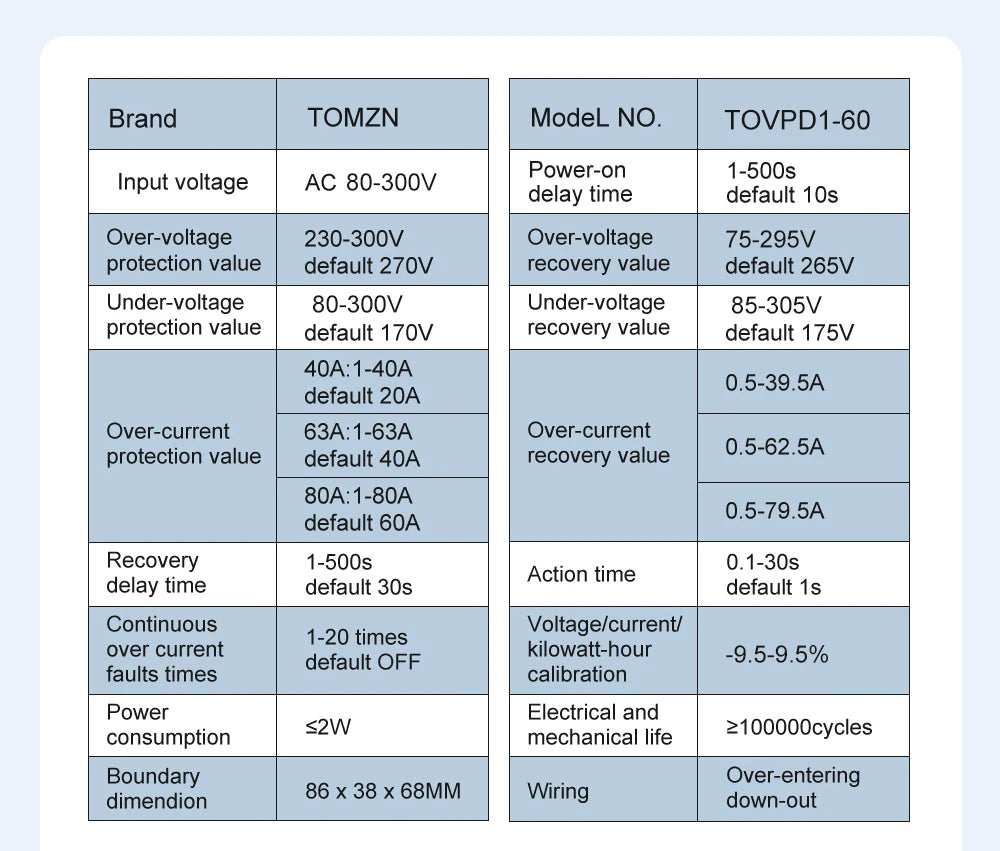

Product Parameters:
1.Model number:TOVPD1-60-EC
2.Power supply:230VAC 50/60Hz
3.Max.Loading power:1~40A  Adjustable(default:40A)
                                    1~63A  Adjustable(default:63A)
4.Over-voltage protection value range:230V~300~OFF(default:270V)
 Over-voltage recovery voltage range:225V--295V(default:250V)
   Over-voltage protection action time:0.1s~30s(default value:0.5s)
Over-voltage recovery delay time:1s~500s(default:30s)
5.Under-voltage protection value range:140V--210V --OFF(default:170V)
 Under-voltage recovery voltage range:145V--215V (default:190V)
   Under-voltage protection action time:0.1s~30s(default:0.5s)
   Under-voltage recovery delay time:1s~500s(default:30s)
6.Over-current adjustment range:1-40A (default:20A)1-63A (default:40A)
   Over-current action range:0.1~30 second (default:0.5s)
Over-currentrecovery delay time:1s~500s(default:30s)
7.Power-on delay time:1s~500s(default:10s)
9.Power consumption : <2W
10.Electric machinery life : 100,000 times

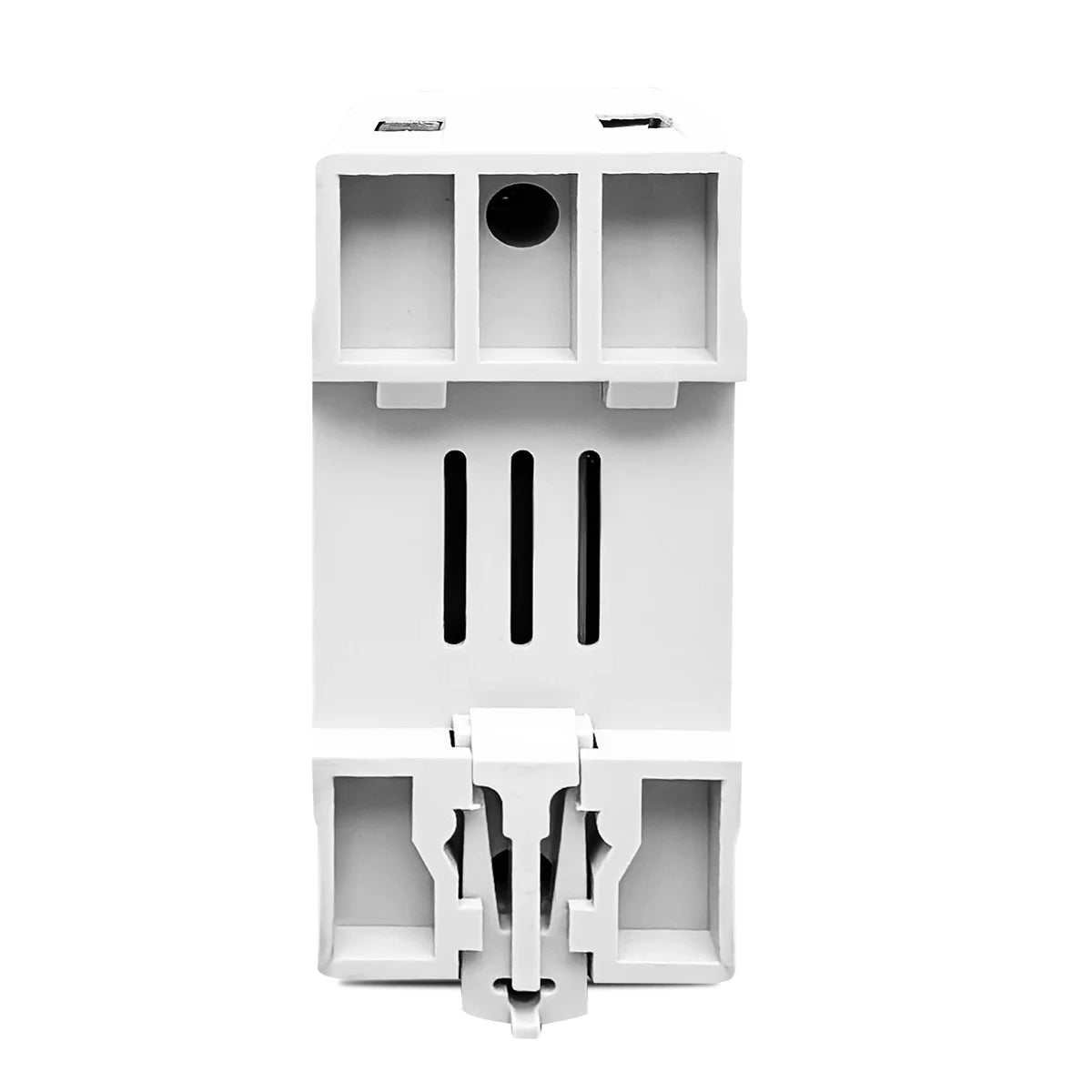

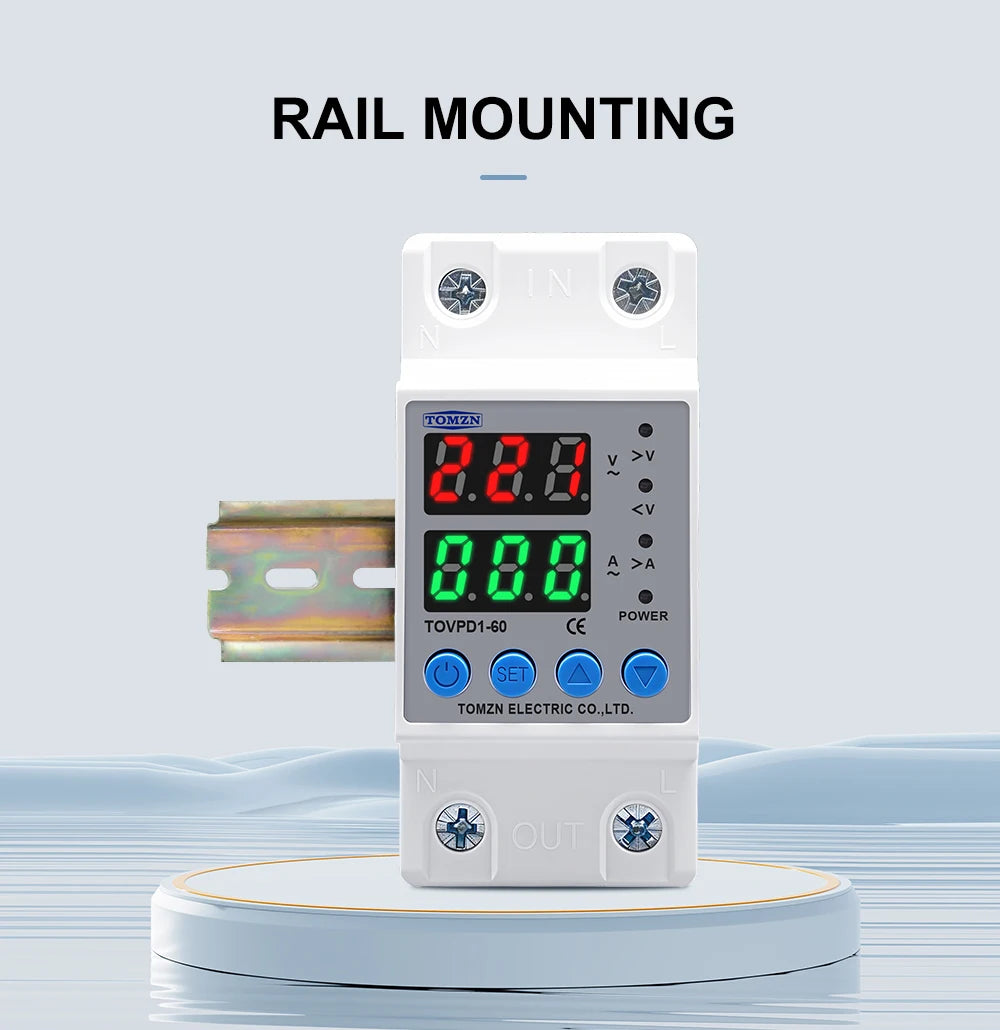

11.Installation:35mm DIN rail
110V Version
2.Power supply:110VAC 50/60Hz
3.Max.Loading power:1~63A Adjustable(default:63A)
4.Over-voltage protection value range:80V~300~OFF(default:145V)
Over-voltage recovery voltage range:75V--295V(default:140V)
Over-voltage protection action time:0.1s~30s(default value:0.5s)
Over-voltage r ecovery delay time:1s~500s(default:30s)
5.Under-voltage protection value range:80V--300V --OFF(default:90V)
Under-voltage recovery voltage range:85V--305V (default:95V)
Under-voltage protection action time:0.1s~30s(default:0.5s)
Under-voltage r ecovery delay time:1s~500s(default:30s)
6.Over-current adjustment range:1-63A (default:40A)
Over-current action range:0.1~30 second (default:0.5s)
Over-current r ecovery delay time:1s~500s(default:30s)
7.Power-on delay time:1s~500s(default:10s)
8.Power consumption : <2W
9.Electric machinery life : 100,000 times
10.Installation:35mm DIN rail
