SPECIFICATIONS

Engine brand: Yunnei brand engine

Engine power: 85KW

Fuel tank capacity: 40L

Maximum height of allowable stacking: 1200mm

Maximum width of allowable accumulation: 2600mm

Roller rotation speed: 250-305rpm

The battery: 24v

Type: JHC95

Walking speed: 0-10m/min

application: Disposal of manure

brand name: JH

color: Bule

core components: Engine,Bearing,Motor

dimension(l*w*h): 2750*4000*3100mm

features: High productivity

key selling points: High Productivity

machinery test report: Provided

place of origin: Shandong, China

production capacity: 1000 - 1200m³/h

video outgoing-inspection: Provided

voltage: 24v

warranty: 1 Year

weight: 3300

Equipment Model	JHFD-2600	JHFD-3000	JHFD-3500
Overall Dimensions (mm)	2750*4000*3100(mm)	4400*2800*3250(mm)	4800*2800*3300(mm)
Turning Width (mm)	2600	3000	3500
Inner Door Height of Turning (mm)	1500	1500	1500
Diameter of Turning Drum (mm)	910	910	910
Turning Height (mm)	1000 - 1300	1000 - 1500	1000 - 1500
Processing Capacity (m³/h)	1000 - 1200	1000 - 1500	1000 - 1500
Speed Regulation Mode	6 forward gears, 2 reverse gears
Diesel Engine	Shandong Weifang Tractor Group, 85kw diesel engine
Special Function - Hydraulic Lifting	Hydraulic lifting of the turning shaft
Special Function - Hydraulic Pushing Plate	Hydraulic lifting of the front material pushing plate
Special Function - Rotation Speed Adjustment	The rotation speed of the turning shaft can be adjusted according to the moisture content of the material. The turning shaft has undergone a balancing process, and the equipment runs smoothly at full throttle during idle running, with almost no failure rate during operation.
Component Brand - Walking Wheel	Heavy-duty walking wheel system
Component Brand - Transmission and Chain	The turning transmission is Dongfeng 153, and the turning chain is a well-known domestic brand Ziqiang.
Component Brand - Shaft Balance	The turning shaft is balanced by a balancing machine, ensuring stable operation at high speed and effectively protecting the bearings.
Component Supplier	Diesel engines, transmissions, crawlers, hydraulic systems, and other components are provided by state-owned enterprises or large-scale group suppliers.

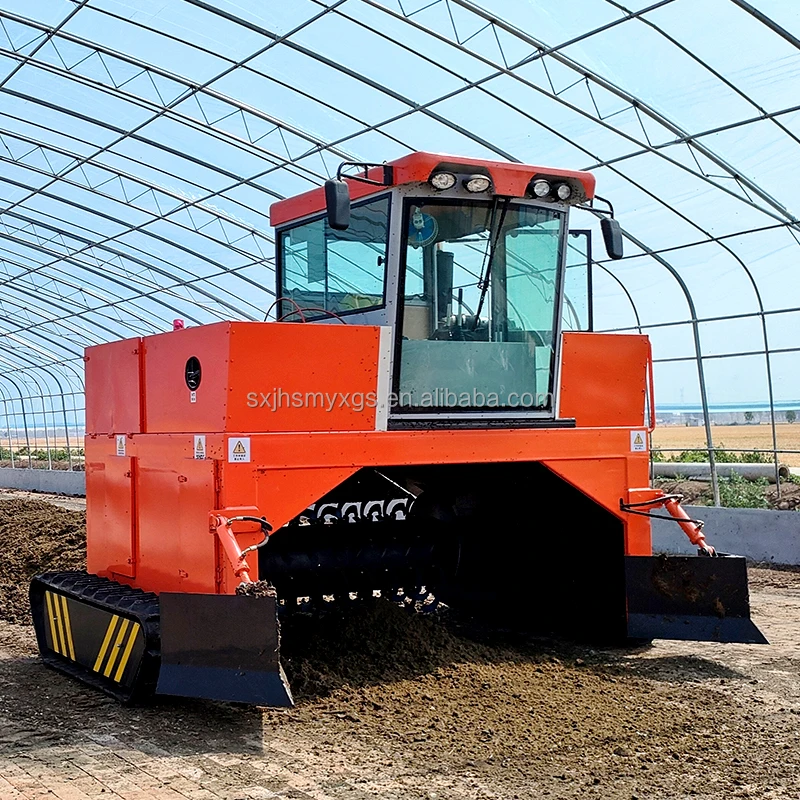

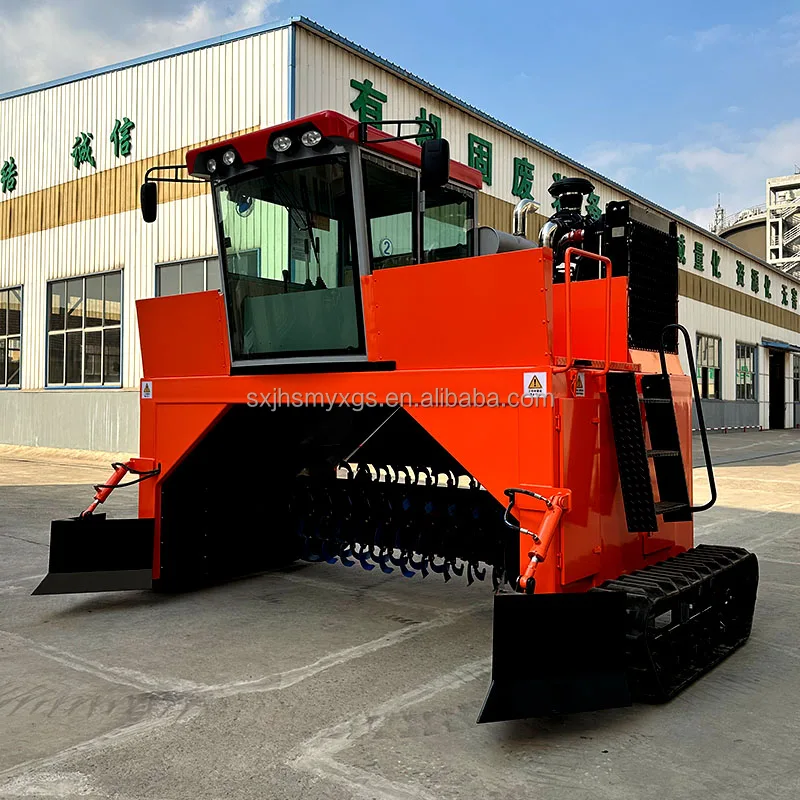

Self - propelled crawler - type windowsill composting machine is specifically designed for windowsill spaces. It moves on
crawlers, offering high mobility, enabling it to be flexibly placed in narrow spaces such as windowsills. Equipped with built - in stirring and ventilation systems, it processes organic waste like kitchen waste into compost. By using microorganisms to decompose the waste and convert it into fertilizer, it has a high degree of automation. This not only facilitates waste disposal but also provides natural nutrients for the green plants on the windowsill, achieving an ingenious combination of environmental protection and practicality.
