SPECIFICATIONS

Air pressure: 0.5-0.8Mpa

Automatic Grade: Automatic Turning Lathe

CNC or Not: CNC Lathe Machine

Dimension: 2300*1700*1800mm

Function: Spinning

Max Spinning Diameter: 300mm

Precision: High Precision Machine

Product name: CNC Metal Lathe Vertical Automatic Spinning Machine

Spindle speed: 0-800 turns/min

Total power: 35kw

brand name: BOBO

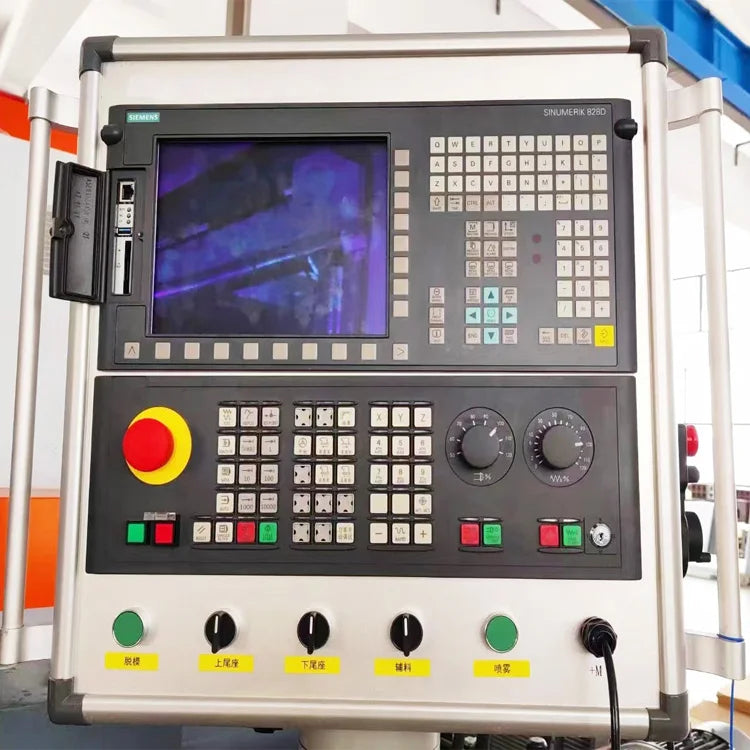

cnc control system: Siemens

cutting torque: 100 N.m

dimension(l*w*h): 4.5*3.5*2.3 m

key selling points: Long Service Life

machinery test report: Provided

machining capacity: Medium Duty

max. length of workpiece (mm): 1000

max. weight of workpiece(kg): 100

model number: PX-1000

no. of spindles: Single,Twin

number of axes: 2

place of origin: Jiangsu, China

positioning accuracy (mm): ±0.02

range of spindle speed: 0 - 1000 r.p.m

repeatability (x/y/z) (mm): ±0.02

tool post stations: 4,6,8

travel (x axis)(mm): 1200 mm

travel (z axis)(mm): 800 mm

type: Horizontal

video outgoing-inspection: Provided

voltage: 380V

warranty: 1 Year

weight: 28000

width of bed (mm): 200 mm

Product Description

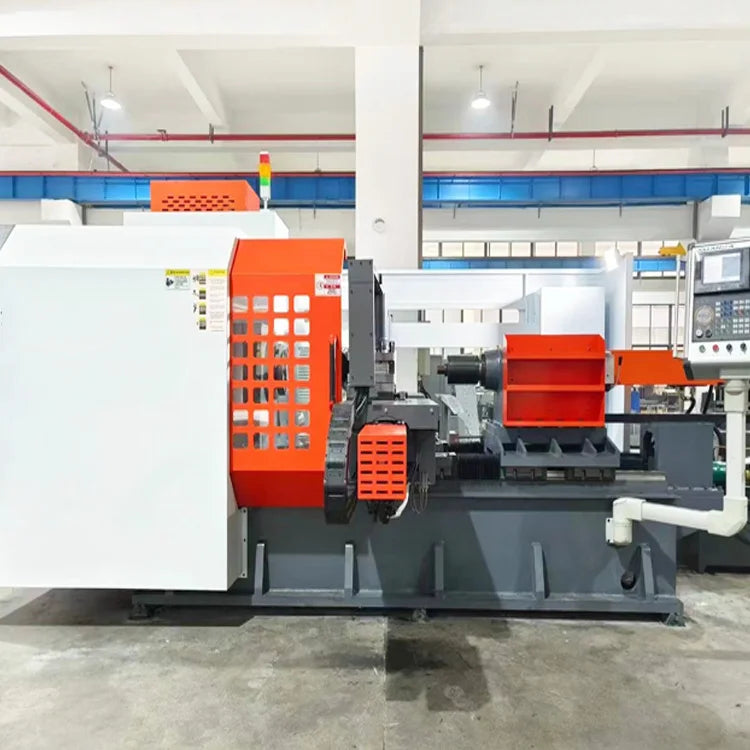

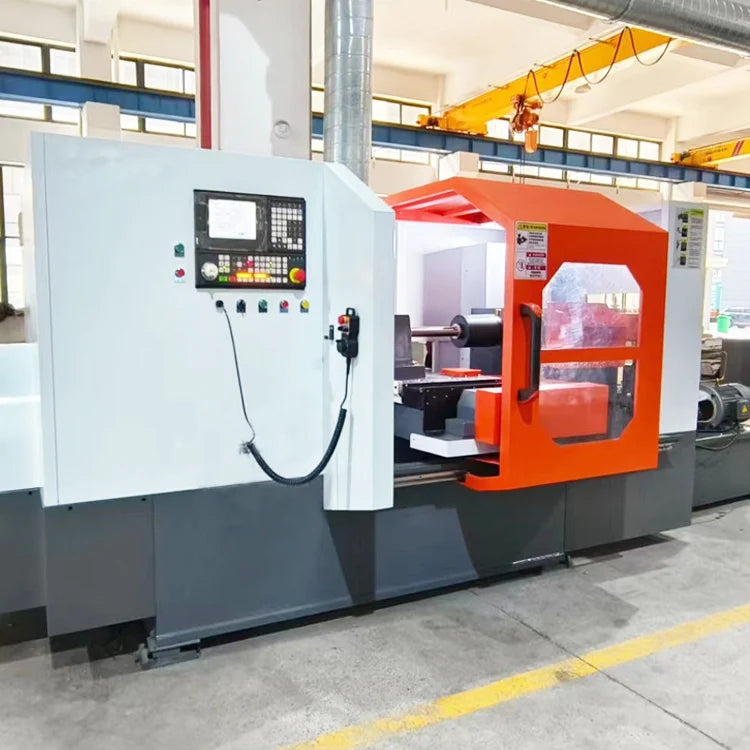

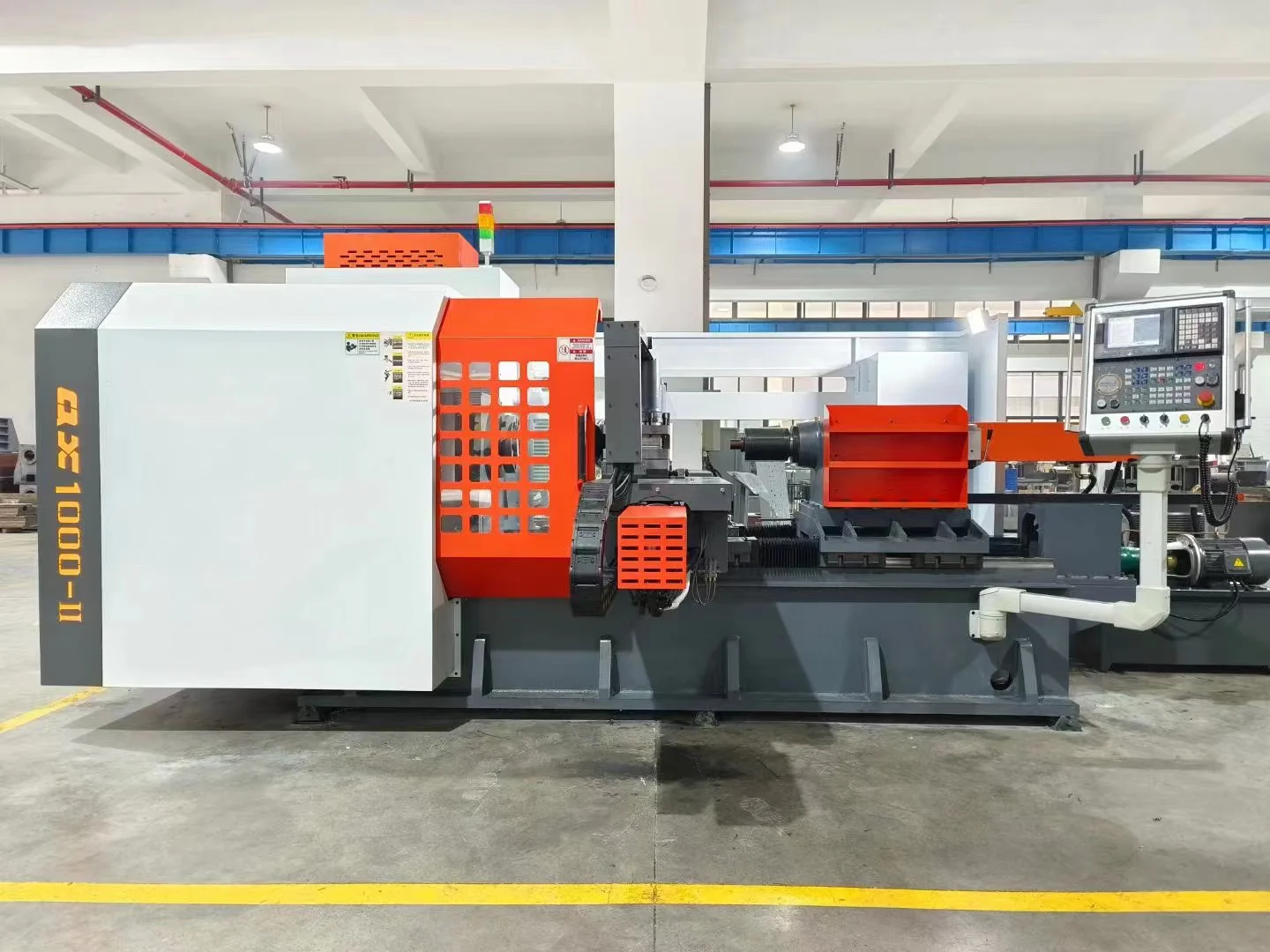

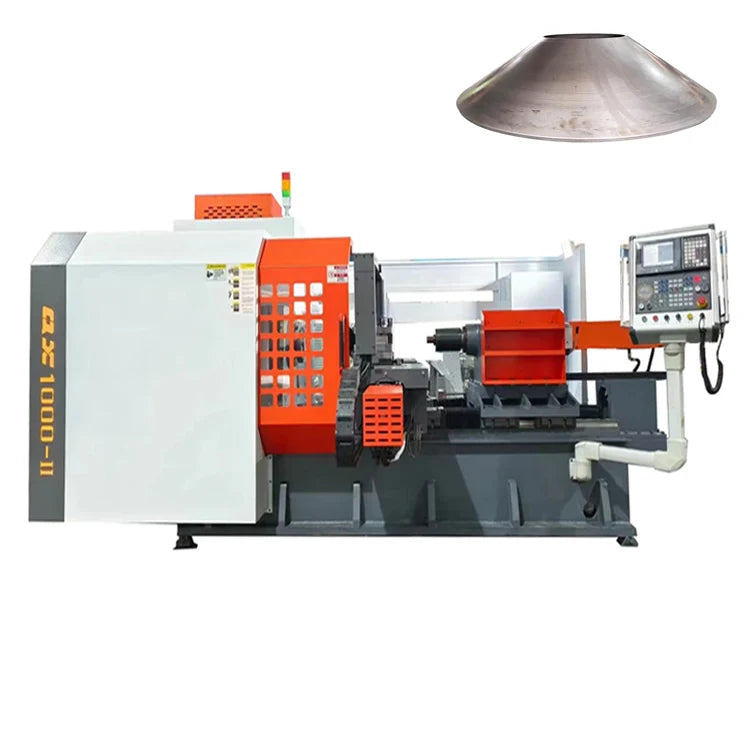

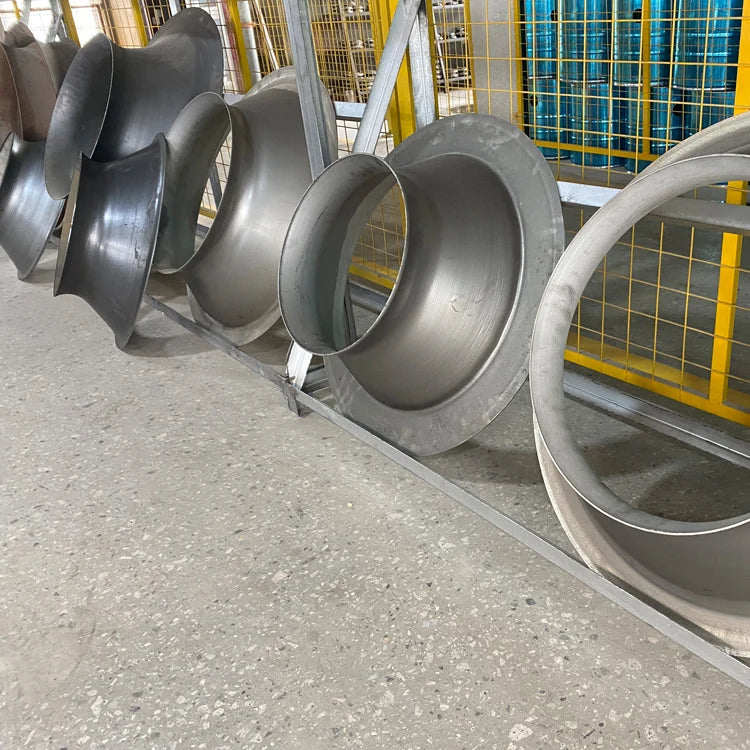

Automatic CNC Inclined Heavy Duty Power Sheet Tube Spinning Machine Wheel Number Lathes Rotary Forming Equipment

★ Description

The multi-functional CNC spinning machine is derived from European technology, combined with modern CNC technology and advanced processing and testing equipment. In production and application, the equipment has the characteristics of stability, no vibration, large feed rate, and safe operation. The surface of the processed product is smooth and the wall thickness is more uniform. It can significantly reduce material waste, improve product dimensional accuracy, smooth arc transition and accurate arc, and can also greatly reduce the workload of workers and ensure the safety of employees' operations.

★ Spinning process

When using the spinning process, the disc blank is tightly fixed between the spinner core and the tail top. The key point is that the spinner core and the internal shape of the workpiece match, and the spindle drives the blank to rotate.

The spinning wheel applies a controlled extrusion force to the blank in the longitudinal and axial directions, so that the material is gradually squeezed onto the core. At the same time, the spinning wheel alternately moves back and forth in a curve toward the edge of the blank. The final finishing movement makes the workpiece reach the expected size and surface quality.

★ Spinning principle

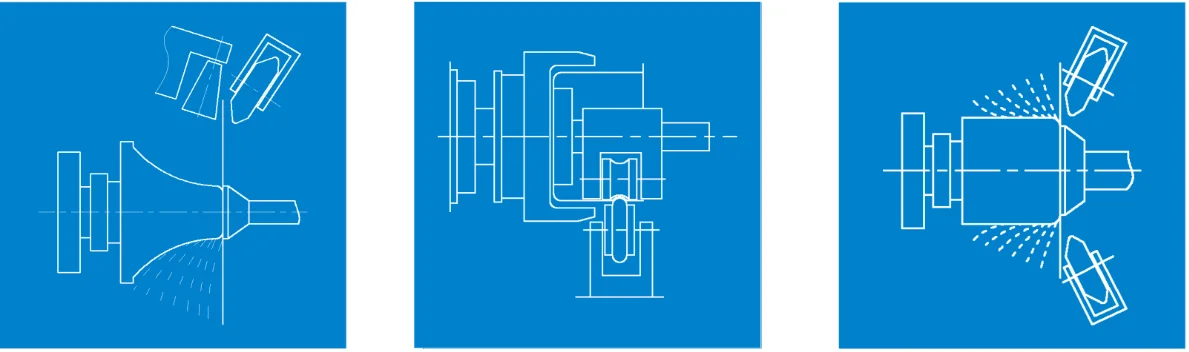

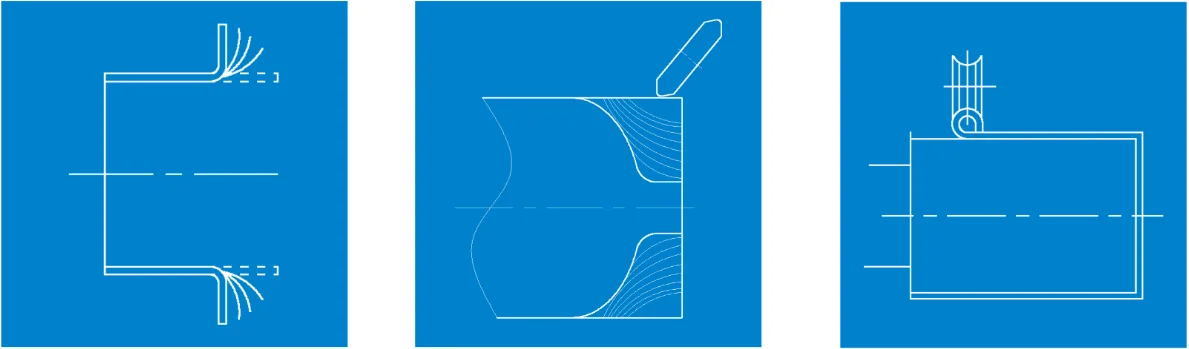

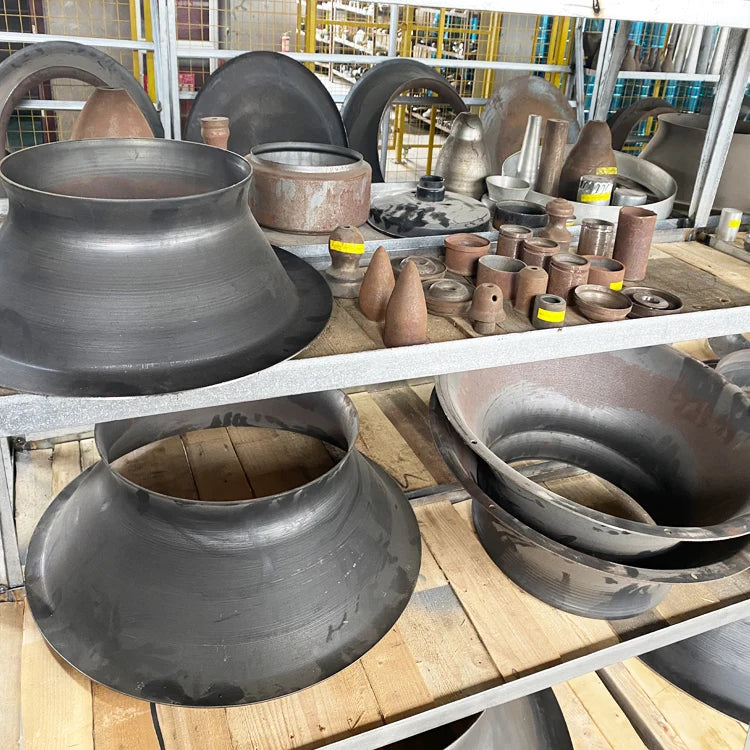

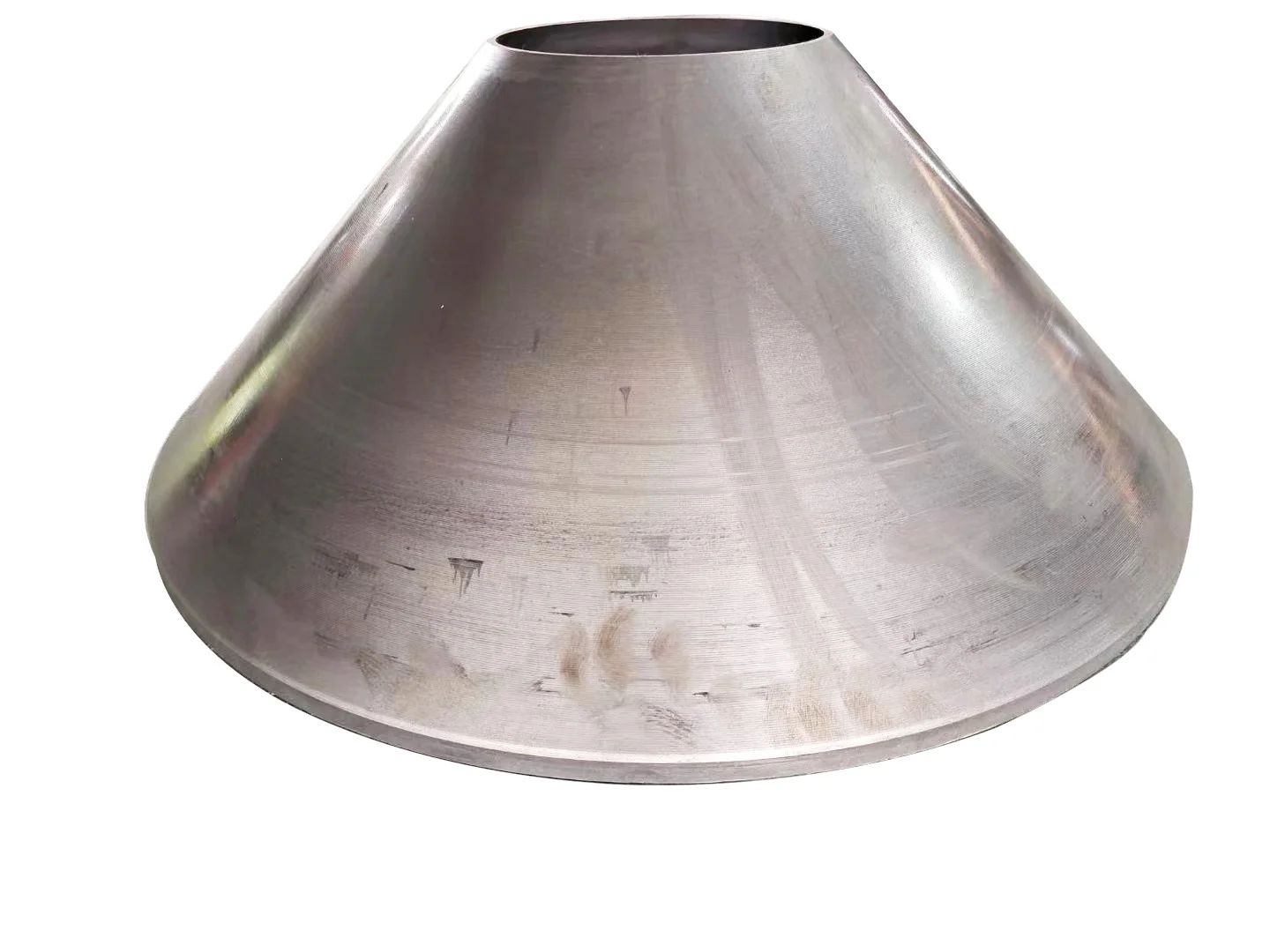

In the chipless forming process of spinning, a metal disc blank, a blank or a preform is first put into rotation. The metal part is squeezed by the spinning wheel and the metal starts to flow. In this way, complex generatrix shapes can be obtained with minimal tool costs. Various hollow bodies with extremely small tolerances and excellent surface quality. The advantages of the spinning process are obvious: using this process, the wall thickness and contour of the workpiece can be determined with the greatest possible accuracy and can be accurately repeated.

Specification

NO.	Item	Parameter
1	Maximum sheet diameter	1200mm
2	Diameter of the drag plate barrel	800mm
3	Main motor power	30kw
4	Spindle speed	1000Rpm
5	Stroke	X axis: 1200mm
6			Z axis: 800mm
7	Maximum tail force	20KN
8	Tail stroke	500mm
9	Processing material thickness	Copper/aluminum: 0.5-5.0mm
10			Steel: 0.5-4.0mm
11			Stainless steel: 0.5-2.5mm
12	Tool rest station	4/6/8
13	Wheel blank support plate stroke	300mm
14	Positioning accuracy	0.02mm

Packing and Shipping

Packaging:

Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.

Shipping:

For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like to have seamless cooperation with your forwarder at your convenience.

About Us

FAQ

1. Q: What is the power supply of the machine?
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.

2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc

3. Q: What is the payment term A: The payment term is 30% down payment, and 70% before shipment(T/T mode), we also accept other payment term, like L/C, DA, D/P etc

4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 30 days after receive down payment.

5. Q: What is the warrantee period of the machine?
A: The warrantee period is one year since the date of B/L.
