SPECIFICATIONS

After-sales Service Provided: Engineers available to service machinery overseas

Application: Woodworking

Control system: Syntec

Drive System: Taiwan SYNTEC Servo Motor

Function: Milling Engraving

Guide rail: Taiwan Hiwin Square Guide Rail

Keywords: 5 Axis cnc router machine

Motor: Yaskawa Servo motor and driver

No. of Spindles: Single

Power (kW): 11

Product name: 5 axis cnc router for large 3d mould sculptures making

Spindle: Air Cooling Spindle

Spindle Motor Power (kw): 9

Working Table Size(mm): 1500×3000

brand name: TRUSTER CNC

cnc or not: CNC

core components: Motor,Gear,Engine

dimension(l*w*h): 2000*3000*1000mm

key selling points: Multifunctional

machine type: CNC Router

machinery test report: Provided

number of axes: 5

place of origin: Shandong, China

positioning accuracy (mm): 0.01

range of spindle speed(r.p.m): 18000 - 24000 rpm

repeatability (x/y/z) (mm): 0.1

travel (x axis)(mm): 1500

travel (y axis)(mm): 3000

video outgoing-inspection: Provided

voltage: AC380V/50HZ

warranty: 2 Years

weight (kg): 5000

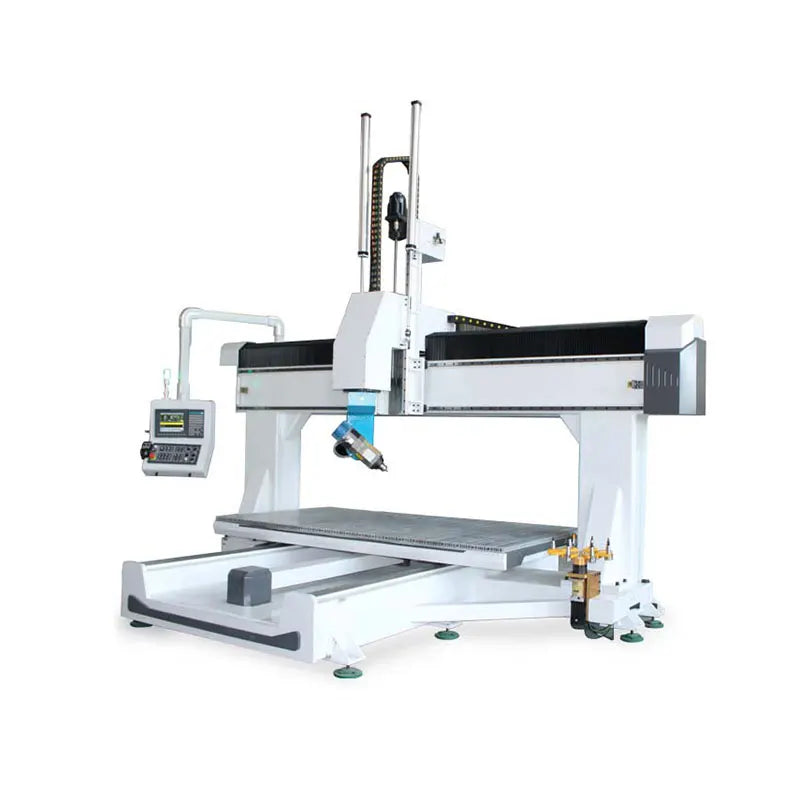

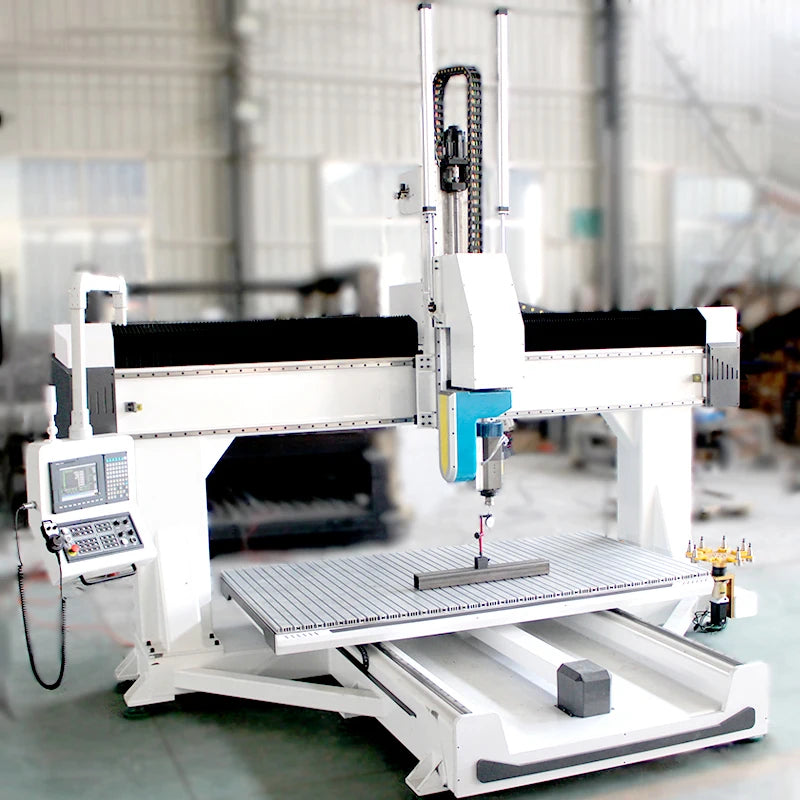

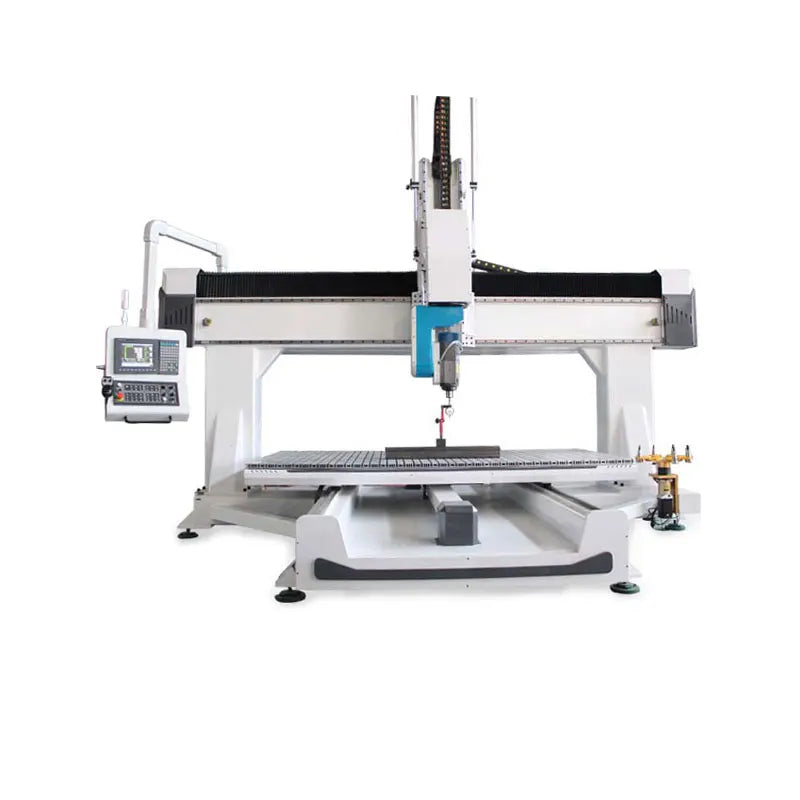

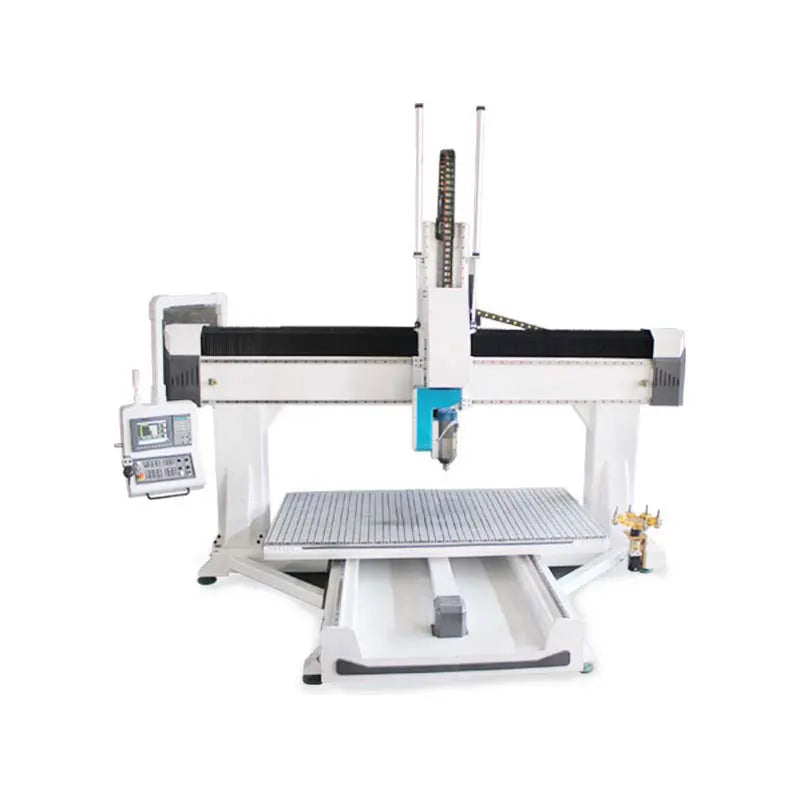

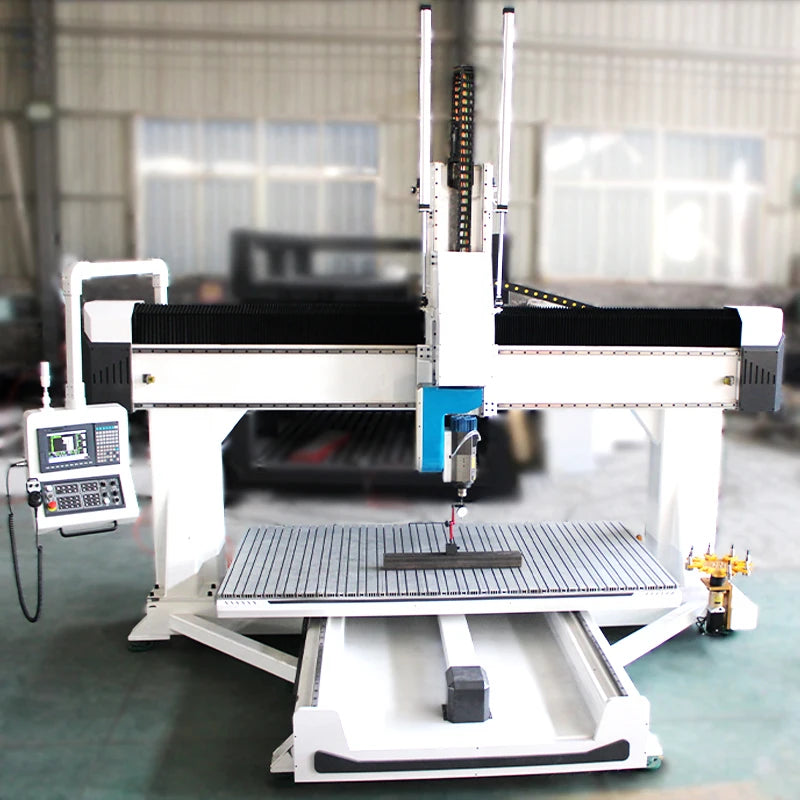

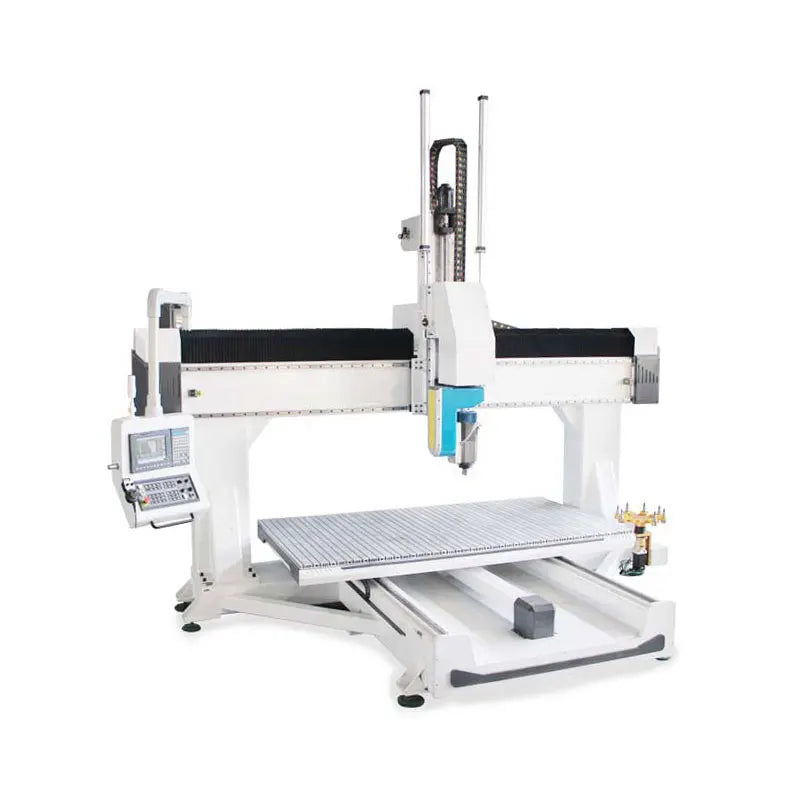

Product pictures

Technical Parameters

Mode	TR-1325	TR-1530	TR-2030	TR-2040
Travelling size	1300*2500mm	1500*3000mm	2000*3000mm	2000*4000mm
		51*98inch	59*118inch	79*118inch	79*157inch
Z-axis clearance	200mm/7.9inch
Repeatability	±0.03mm/±0.001inch
X, Y Structure	HIWIN guide rail and helical gear rack transmission
Z Structure	Guide rail and ball screw
Guide rails	20/25mm linear ball-bearing profile rails（HIWIN/PMI/THK）
Table structure	T-slot vacuum table
Motor & drive	YASKAWA(DELTA/FUJI)servo motor
Spindle	7.5KW/9KW/12KW air cooling
Working voltage	380V/220V
