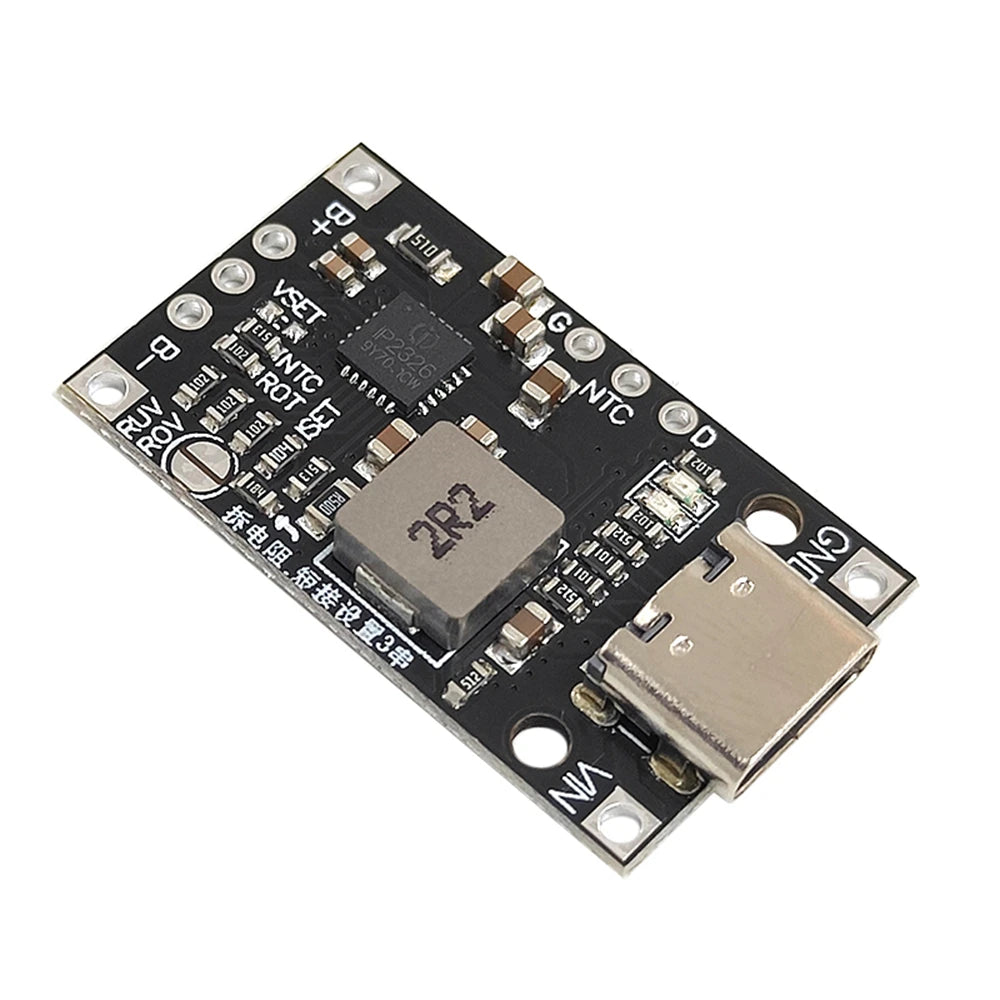

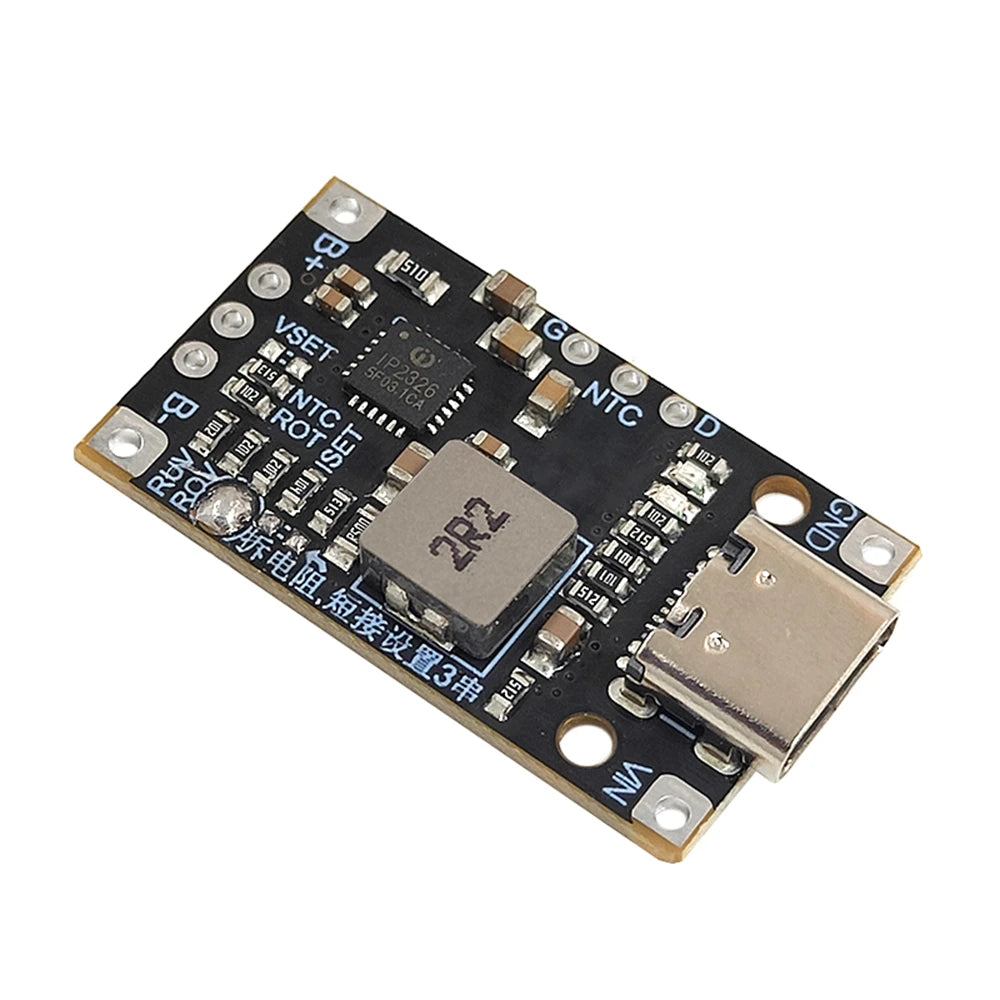

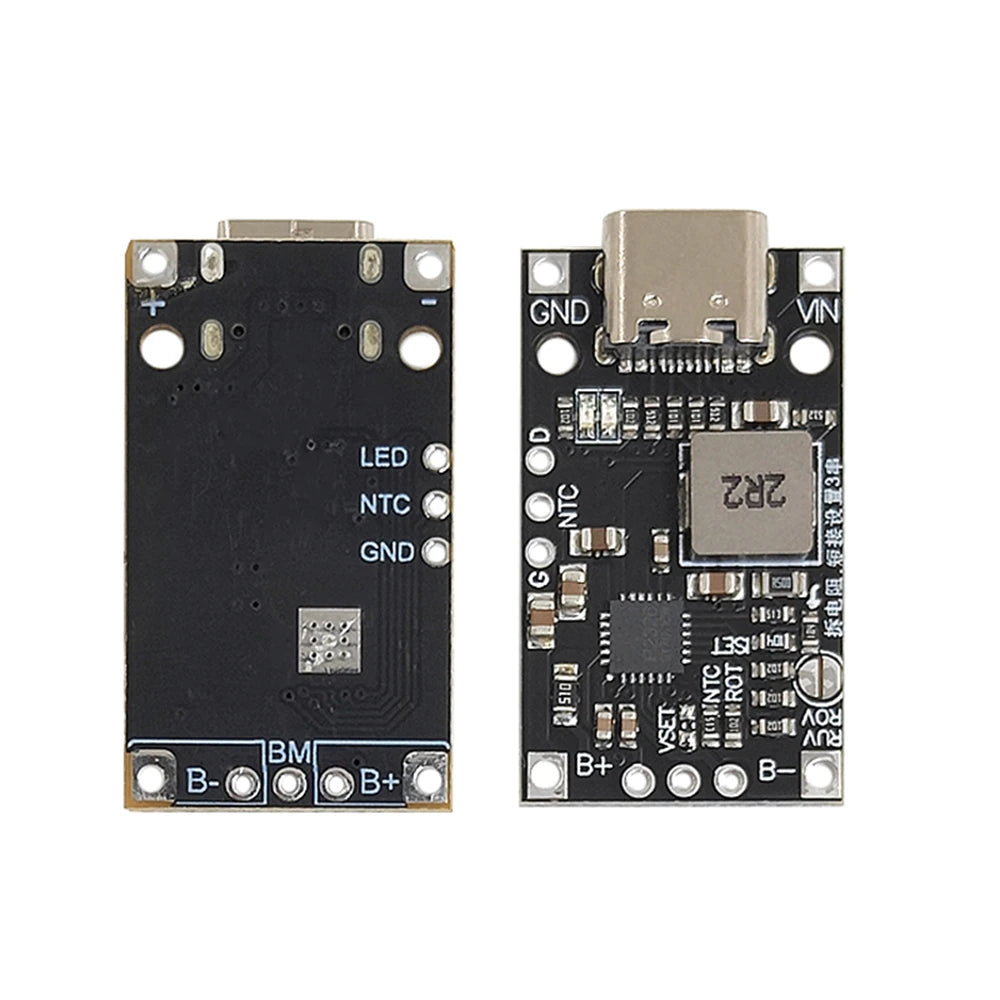

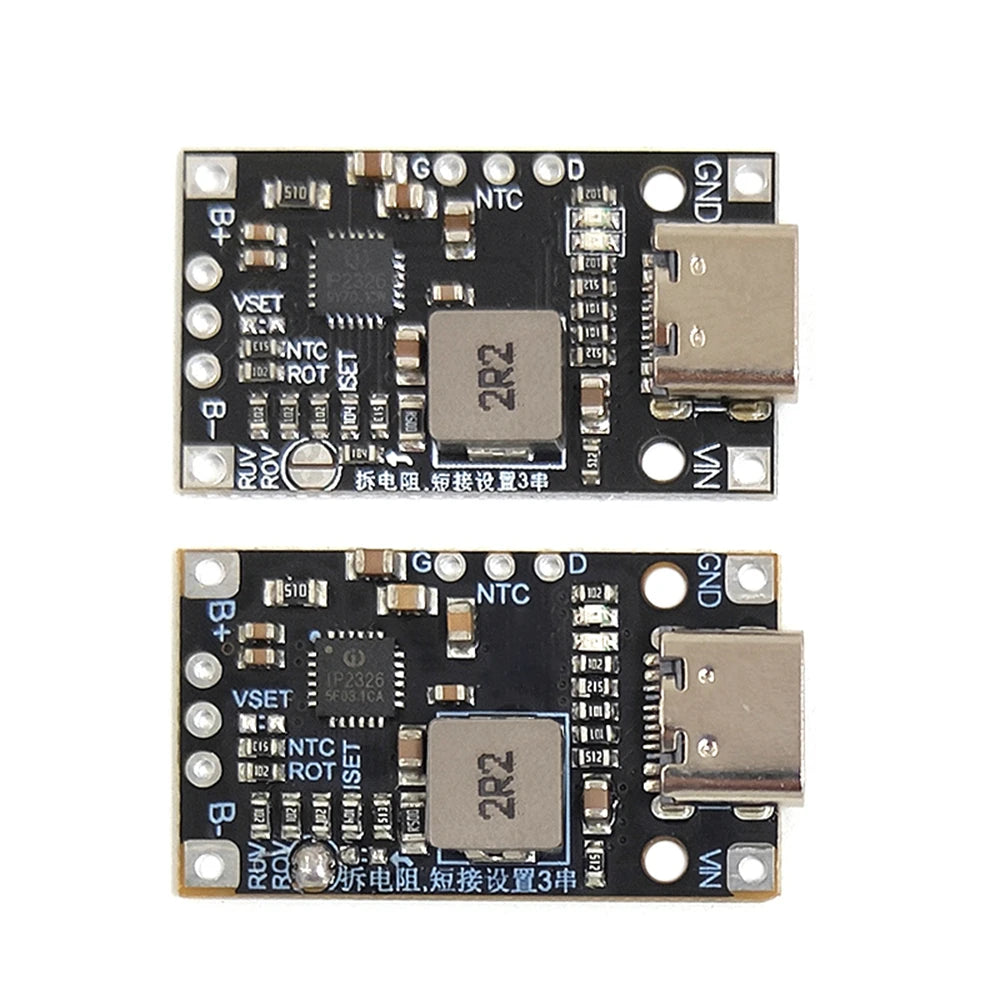

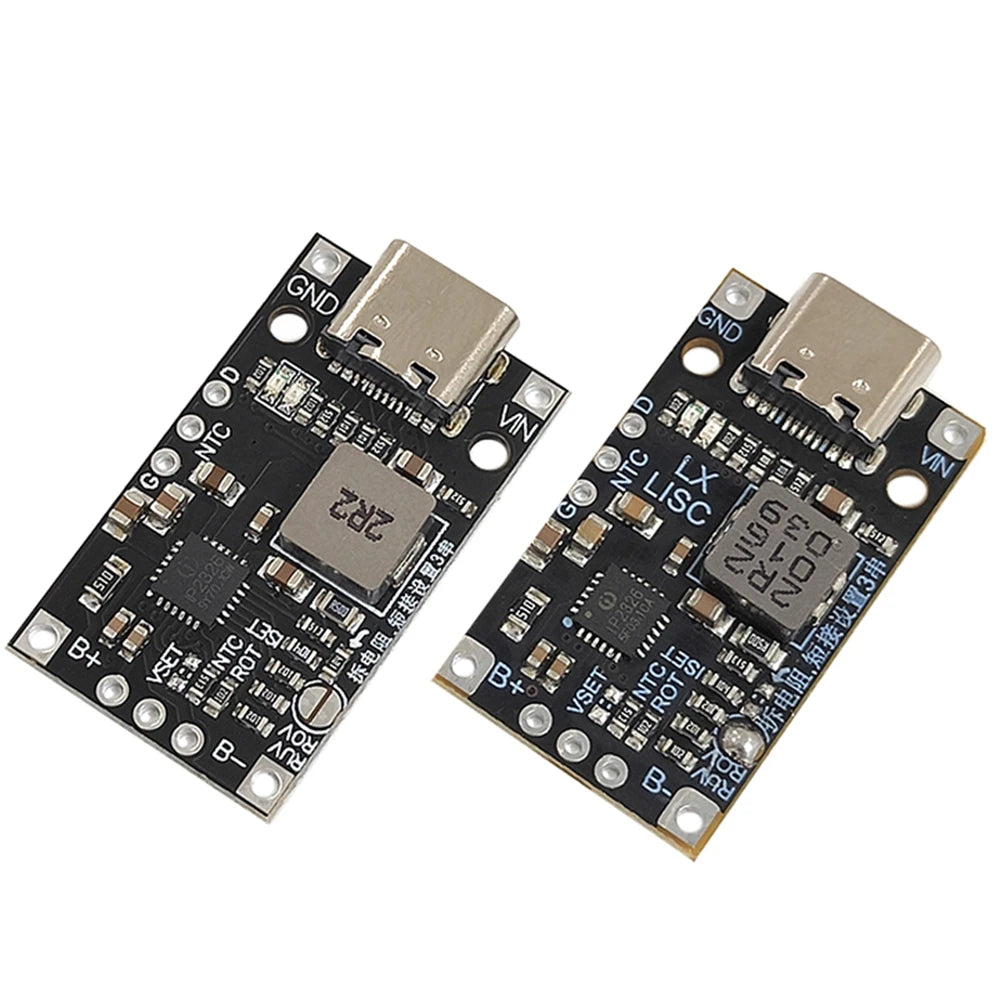

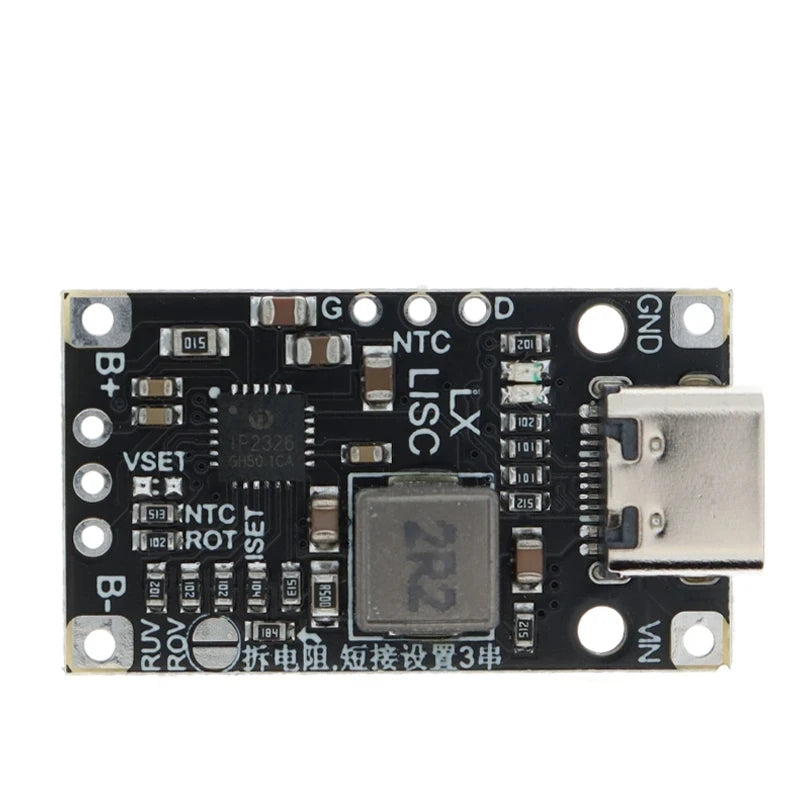

2S 3S Type-C USB BMS 15W 8.4V 12.6V 1.5A Lithium Battery Charging Boost Module With Balanced Support Fast Charge With Indicator

2S 3S Type-C USB BMS 15W 8.4V 12.6V 1.5A Lithium Battery Charging Boost Module With Balanced Support Fast Charge With Indicator

6,40 €
6,40 €
Sale Sold out
Shipping calculated at checkout.
Color
PayPal Klarna American Express

SPECIFICATIONS

Application: Electric Toy

Brand Name: GXTH

Choice: yes

Condition: New

Dissipation Power: 15W

High-concerned chemical: None

Origin: Mainland China

Package: SMD

Supply Voltage: 8.4V 12.6V

Type: Voltage Regulator

is_customized: Yes

Support QC fast charge
15W Synchronous Switching Boost Charging
Boost charging efficiency 94%
Can be set to charge 2 or 3 strings of carp batteries
2 strings with balanced charging
Adjustable charging current
Input overvoltage and undervoltage protection
Adjustable charging overtime protection
Output overcurrent, overvoltage, short circuit protection

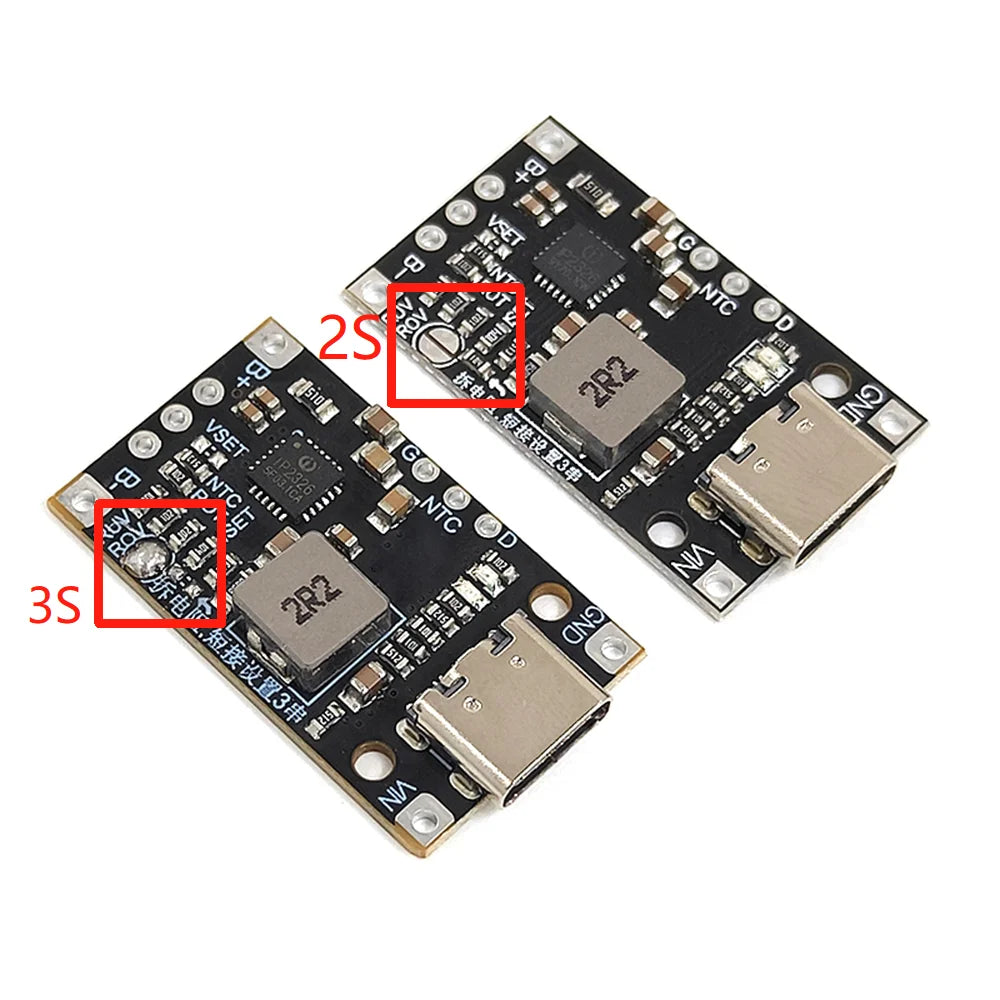

The module is suitable for two or three strings of 3.7V lithium batteries. By shorting the setting, the default is 2 strings. When two strings are used, the battery balance function that comes with the module can be used. This is very practical. The input can be type-c port and soldering When the type-c port is connected to the fast charging source, the charging voltage is automatically adjusted to improve efficiency. If the input voltage is lower than the battery voltage when the welding wire is input, the module can only work in the boost state
