SPECIFICATIONS

After-sales Service Provided: Online Support

Function: Cutting Engraving Carving Milling

Item: Cnc Router Machine 3d

Key word: Foam Mold

Keywords: Cnc Wood Router Engraver

No. of Spindles: Multi

Operating System: LNC 5 Axis Control System

Power (kW): 12

Product name: 5 Axis Cnc Router

Spindle Motor Power (kw): 12kw

Type: Auto Tool Change

Usage: Automatic CNC Engraving Machine

Working Table Size(mm): 1300×2500

Working area: 1300*2500mm

brand name: Truster cnc

cnc or not: CNC

core components: Motor

dimension(l*w*h): 3760*2280*1940mm

key selling points: Eco-Friendly

machine type: CNC Router

machinery test report: Provided

number of axes: 5

place of origin: jinan

positioning accuracy (mm): 0.01 mm

range of spindle speed(r.p.m): 15000 - 24000 rpm

repeatability (x/y/z) (mm): 0.01 mm

travel (x axis)(mm): 1300 mm

travel (y axis)(mm): 2500 mm

video outgoing-inspection: Provided

voltage: 380v

warranty: 3 Years

weight (kg): 5000

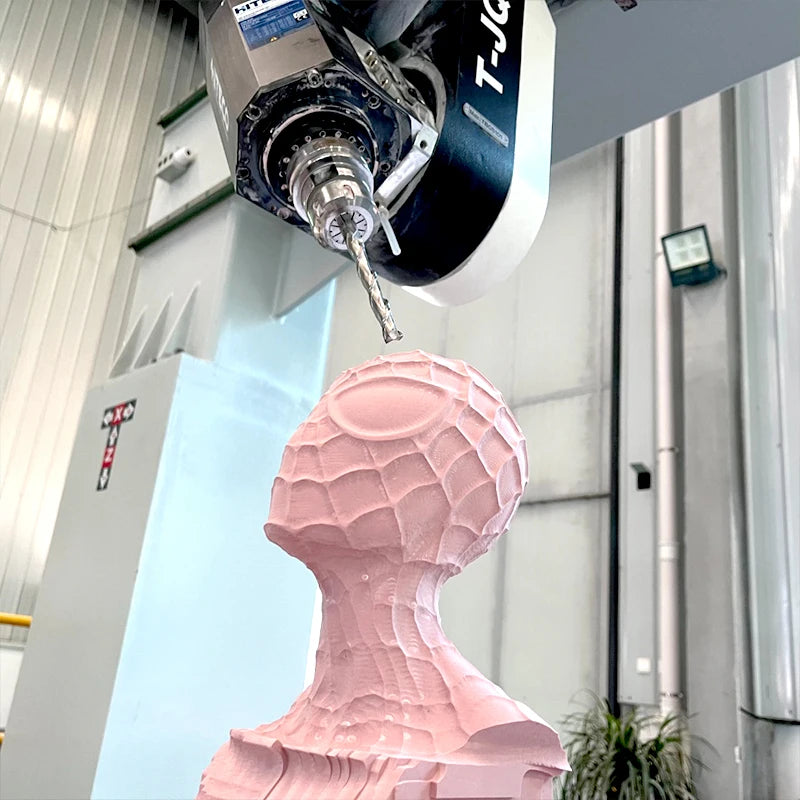

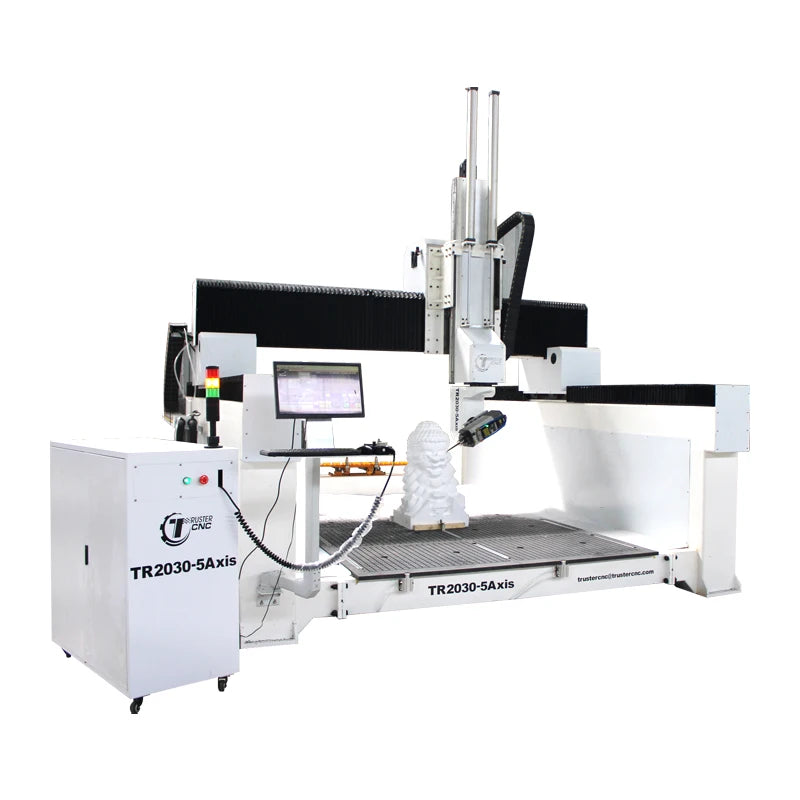

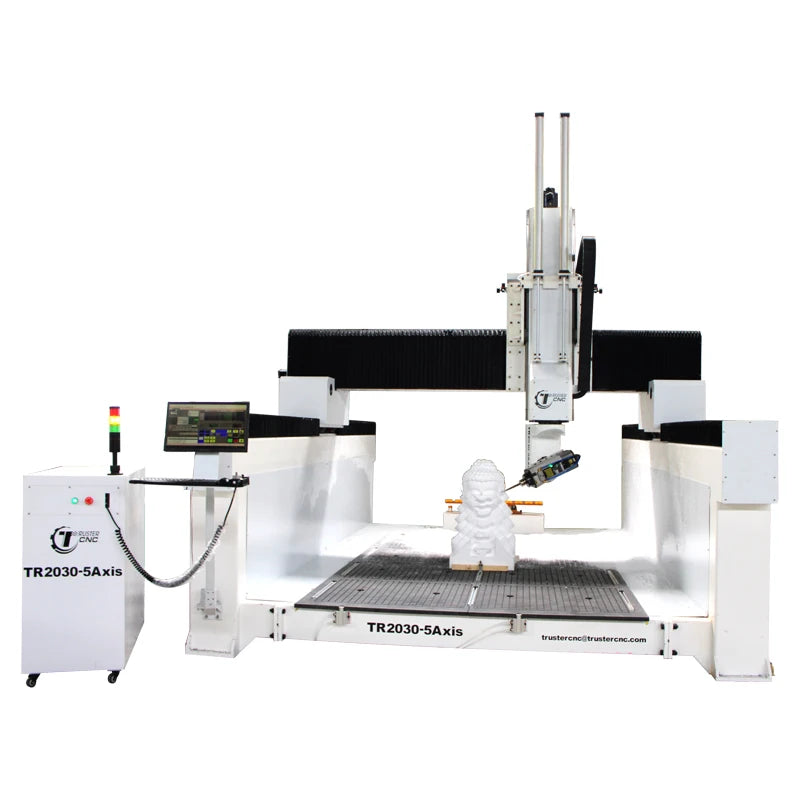

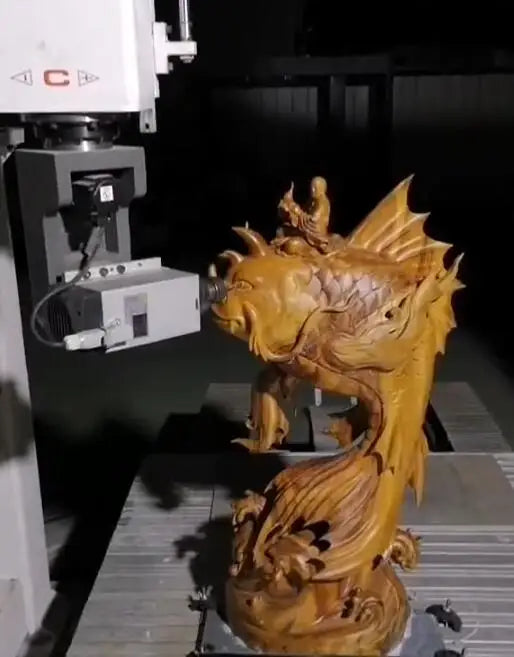

Product pictures

Main Configuration details

Techical Parameter

Mode	TR-1325	TR-1530	TR-2030	TR-2040
Travelling size	1300*2500mm	1500*3000mm	2000*3000mm	2000*4000mm
		51*98inch	59*118inch	79*118inch	79*157inch
Z-axis clearance	200mm/7.9inch
Repeatability	±0.03mm/±0.001inch
X, Y Structure	HIWIN guide rail and helical gear rack transmission
Z Structure	Guide rail and ball screw
Guide rails	20/25mm linear ball-bearing profile rails（HIWIN/PMI/THK）
Table structure	T-slot vacuum table
Motor & drive	YASKAWA(DELTA/FUJI)servo motor
Spindle	7.5KW/9KW/12KW air cooling
Working voltage	380V/220V
