SPECIFICATIONS

Brand Name: Estardyn

Choice: yes

Display Mode: 128*64

High-concerned chemical: None

Model Number: 0.96 inch OLED module

Origin: Mainland China

Resolution: 128*64

Type: OLED

is_customized: Yes

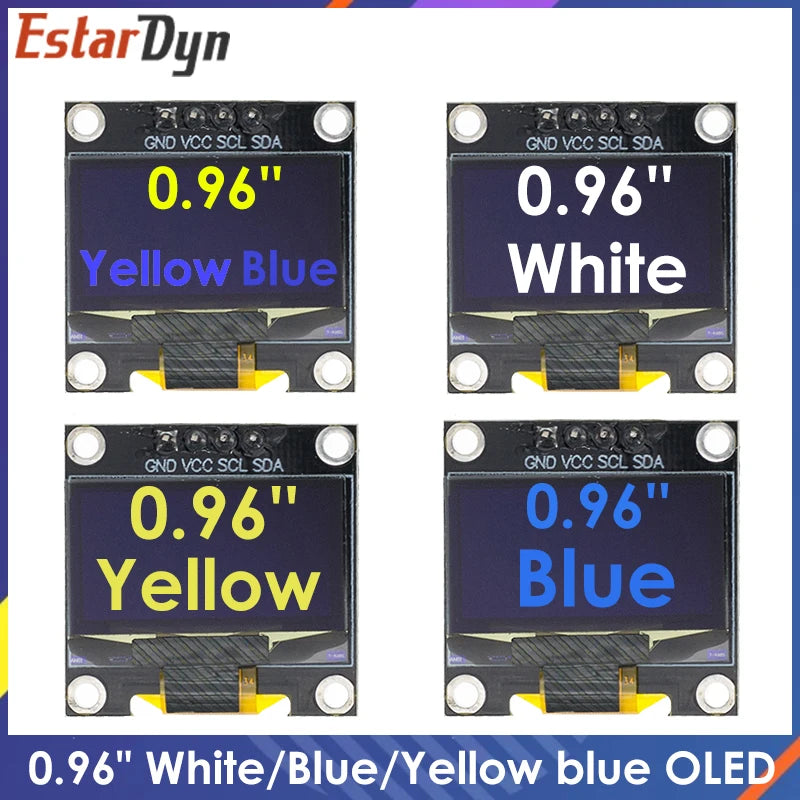

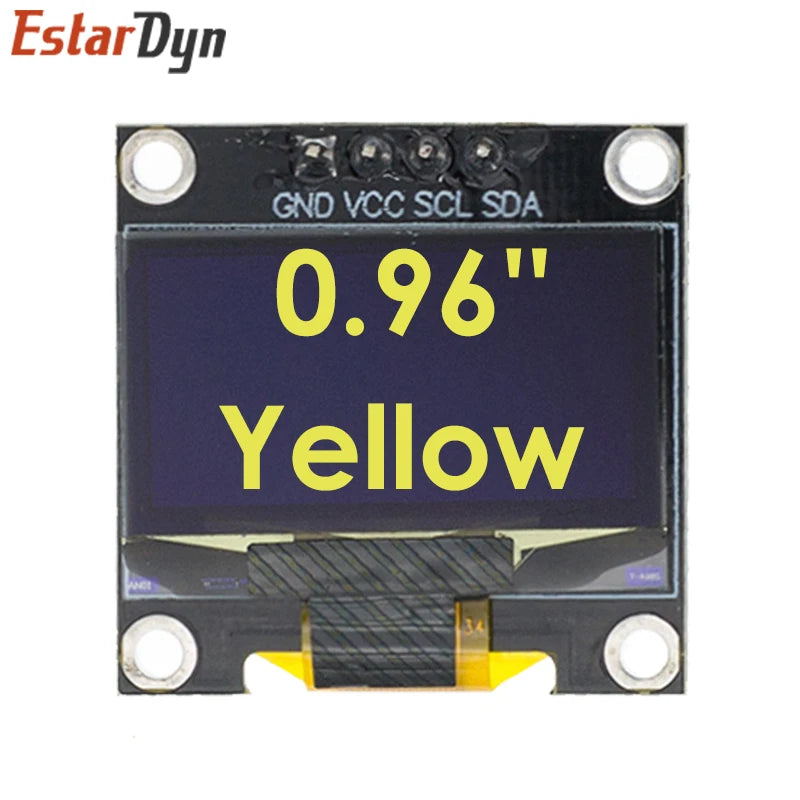

128*64 LED display module for Arduino, supports many control chip.

Fully compatible with for Arduino, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc.

Ultra-low power consumption: full screen lit 0.08W

Super high brightness and contrast are adjustable

With embedded driver/controller

Interface type is IIC

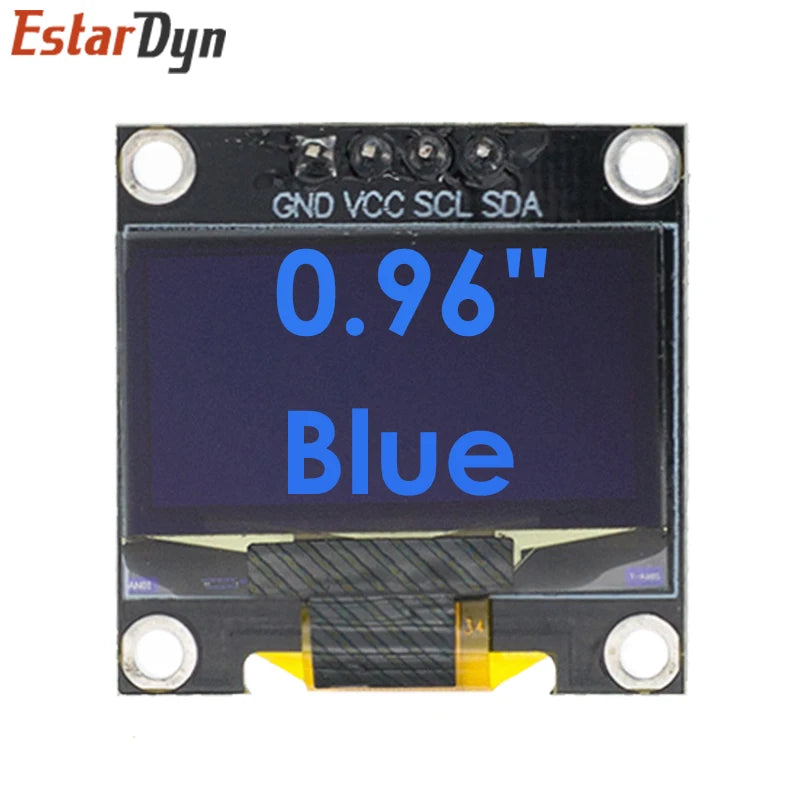

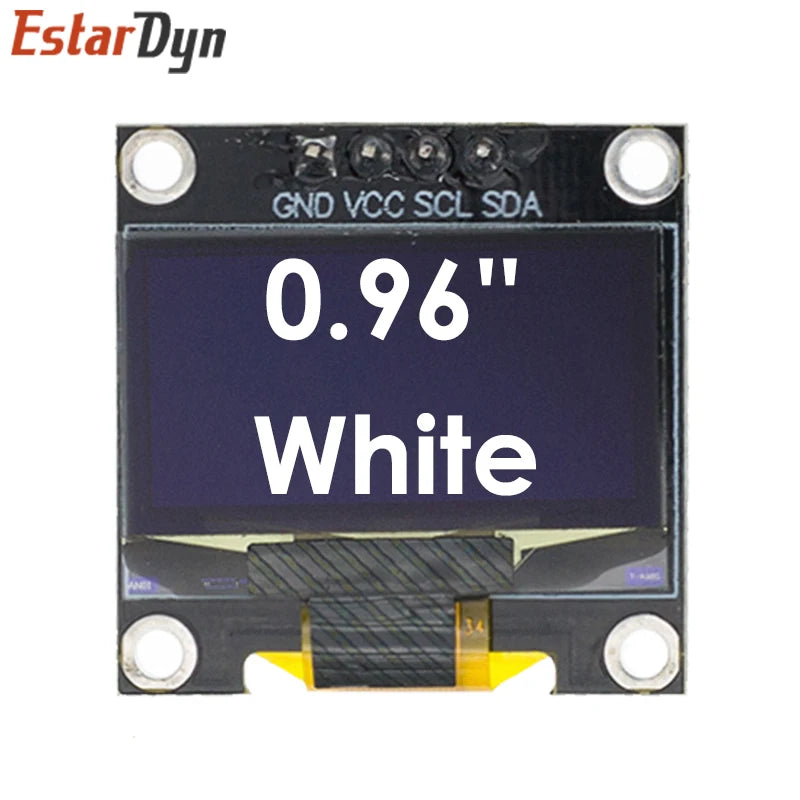

Pin Definition: GND, VCC ,SCL(SCK), SDA

Pins: 4 pins

Voltage: 3V ~ 5V DC

Working Temperature: -30 ° ~ 70 °

Drive Duty: 1/64 Duty

High resolution: 128 * 64

Panel Dimensions: 26.70* 19.26* 1.85mm/1.03*0.76*0.07 inch(approx)

Active Area: 21.74* 11.2mm /0.86*0.44 inch(approx)

Driver IC: Black board SSD1315
