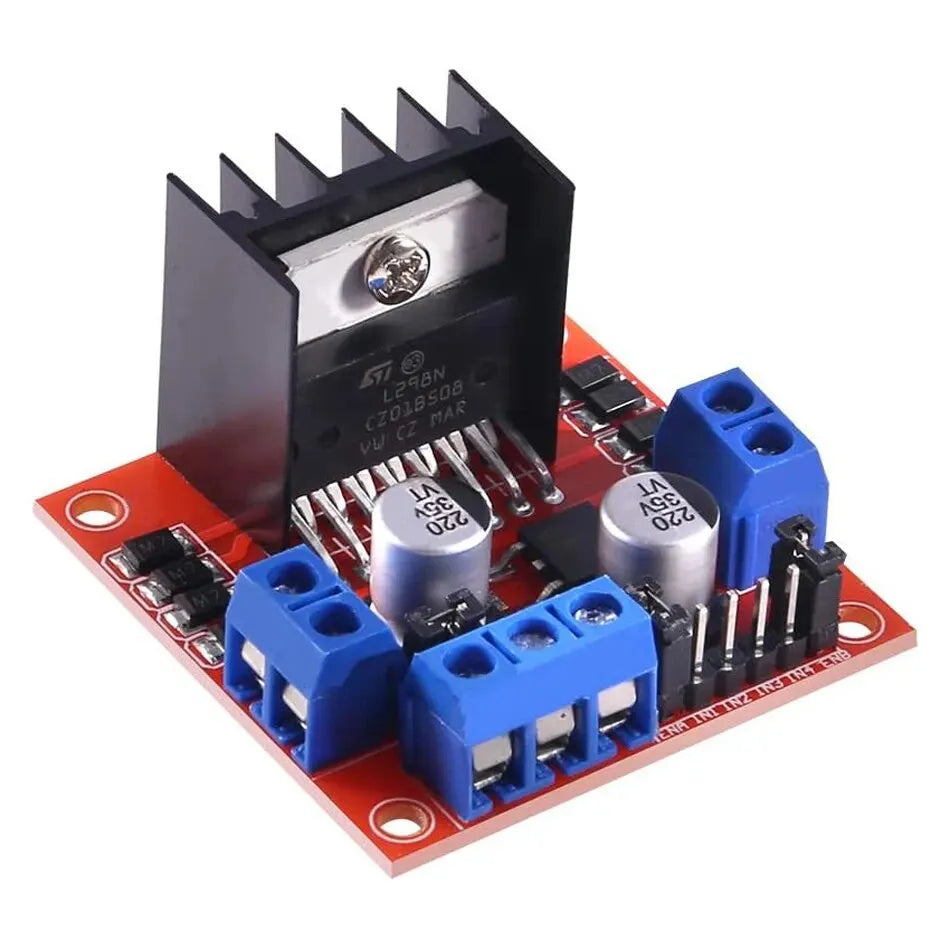

L298N Stepper Motor Driver Controller Board Dual H Bridge Module for Smart Car Power MEGA R3 Mega2560

7,01 €

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

Color L298N

SPECIFICATIONS

Application: Computer

Brand Name: AOKIN

Choice: yes

Condition: New

Dissipation Power: 2A

High-concerned chemical: None

Origin: Mainland China

Package: SOP

Supply Voltage: 5V-35V

Type: Drive IC

is_customized: Yes

Main driver chip L298N, strong driving ability, strong anti-interference, low calorific value, afterflow diode protection, more stable and reliable.
Double H bridge design, can drive one 2-phase stepper motor, one 4-phase stepper motor or two DC motors, high efficient
No assembly required. This L298N board comes ready to go. Just wire up motors and power, easy to use
External size 43*43*27mm / 1.69*1.69*1.06 inch, voltage 5V-35V, drive current 2A (Max single bridge)
Great for DIY Smart Car Robot Power MEGA R3 Mega2560 Duemilanove. If driving voltage is more than 12V, please use external standard 5volt TTL outputs to switch the H-bridge circuits

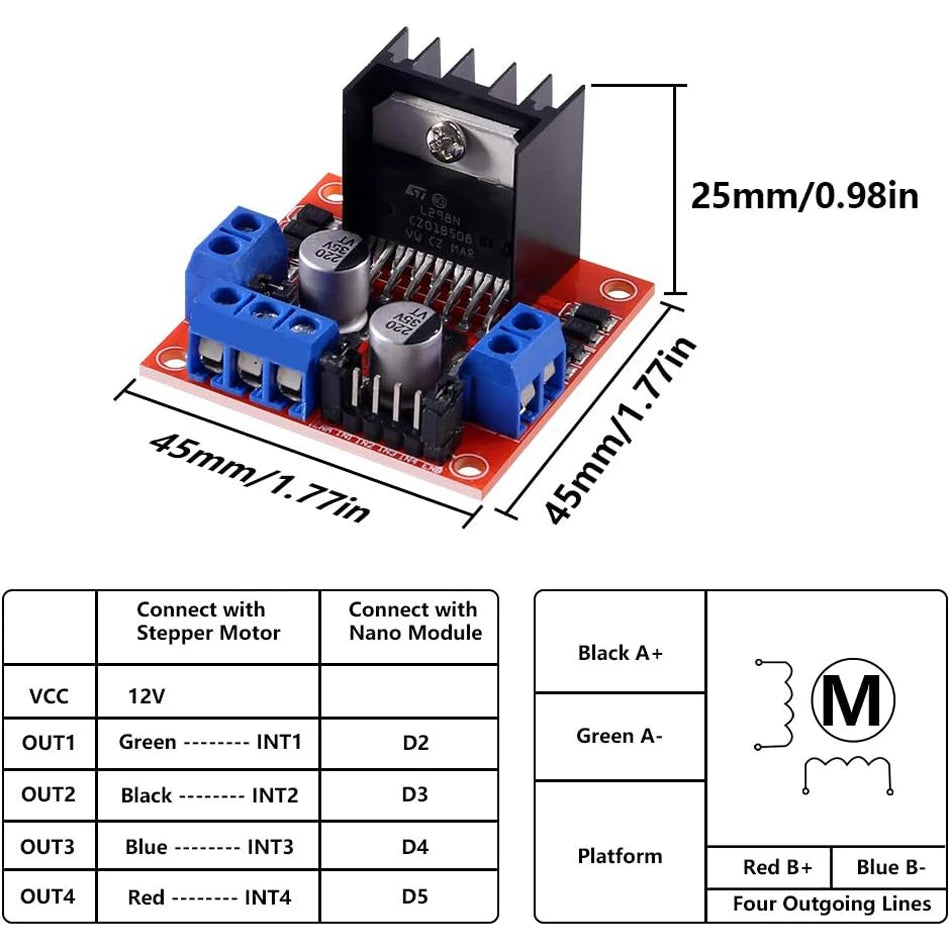

Size: 45*45*25mm/ 1.77*1.77*0.98 inch Dual H bridge drive (can drive 2 DC motors)
Chip: L298N
Logical voltage: 5V
Drive voltage: 5V-35V
Logic current: 0mA-36mA
Drive current: 2A (For each DC motor)
Weight: 30g
