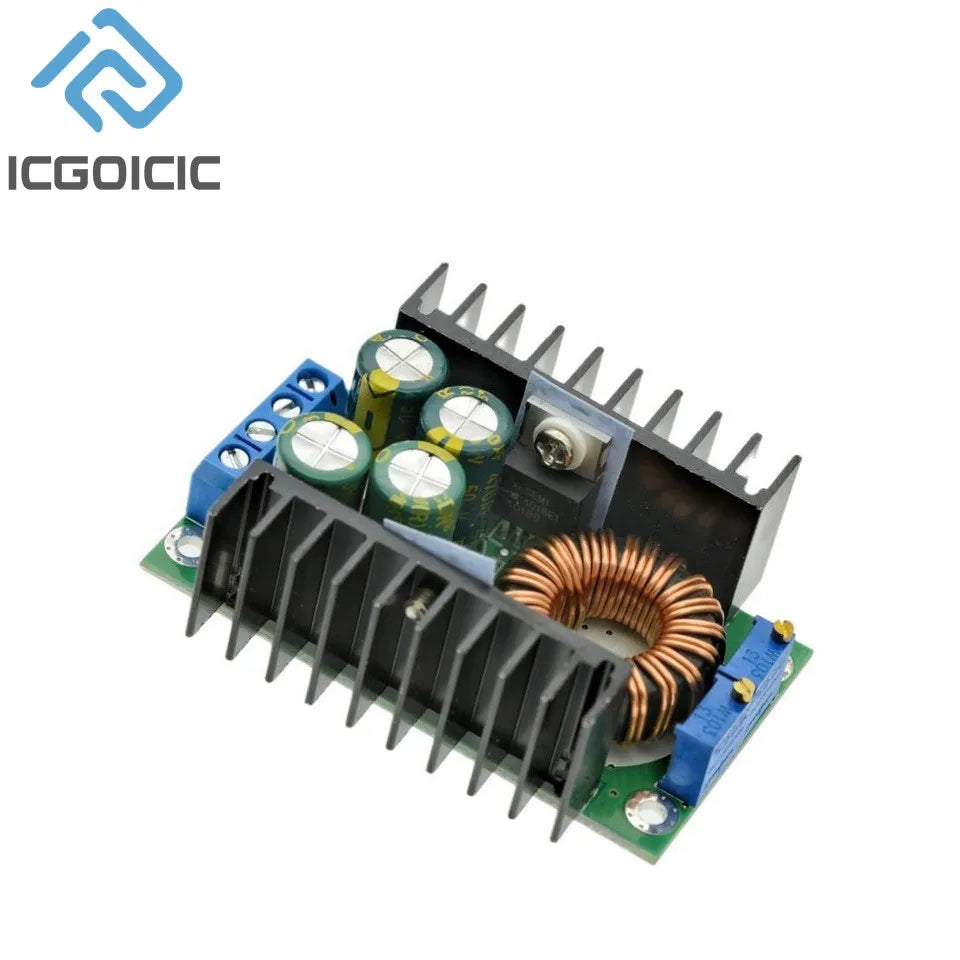

DC-DC 9A 300W 150W Boost Converter Step Down Buck Converter 5-40V To 1.2-35V Power Module LED Driver XL4016

DC-DC 9A 300W 150W Boost Converter Step Down Buck Converter 5-40V To 1.2-35V Power Module LED Driver XL4016

9,09 €
9,09 €
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Color
PayPal Klarna American Express

SPECIFICATIONS

Application: Computer

Brand Name: ICGOICIC

Choice: yes

Condition: New

Dissipation Power: N/A

High-concerned chemical: None

Operating Temperature: N/A

Origin: Mainland China

Supply Voltage: N/A

Type: buck (stepdown) regulator

is_customized: Yes

150W Module:

Input voltage : DC 10 - 32 V
Output Voltage : DC 12-35 V(Adjustable)
Output Current : 6A(MAX)
Input current : 10A (MAX) (more than 10A please strengthen heatsink)
Output Power : natural cooling 100W (MAX), strengthening cooling 150W (MAX) real power.
Conversion efficiency : 94% (when Input 19V 2.5A Output 16V, Reference)
Output ripple : 2% (MAX)
Working Temperature : industrial (- 40 ° c to +85 °c) ( environmental temperature, more than 40 degrees, please reduce power to use, or - enhance cooling).
Full-Load temperature : 45 degrees
No-load current : 25mA typical
Voltage regulation :  ± 0.5%
Load regulation :   ± 0.5%
Dynamic response speed :  200uS 5%
Short circuit protection: No (Please installs the fuse or protection circuit at input parts).
Input Reverse protection: No (please comply with a reverse protection or connect a diode at input parts.)
Size : 65*23*56.3 mm
300W Module:
Material: PCB board and electronic component
Color: as the pic shows
Input voltage: 5-40V
Output voltage: 1.2-35V (continuously adjustable)
Output Current: 9A (power tube temperature exceeds 65°C please add cooling fan)
Constant current range:0.2-9A ( adjustable )
Output Power: Maximum power is about 300W (power tube temperature exceeds 65°C please add cooling fan)
Size: Approx. 2.55*1.88*0.94inch / 6.5*4.8*2.4cm(Length*width*thickness)
