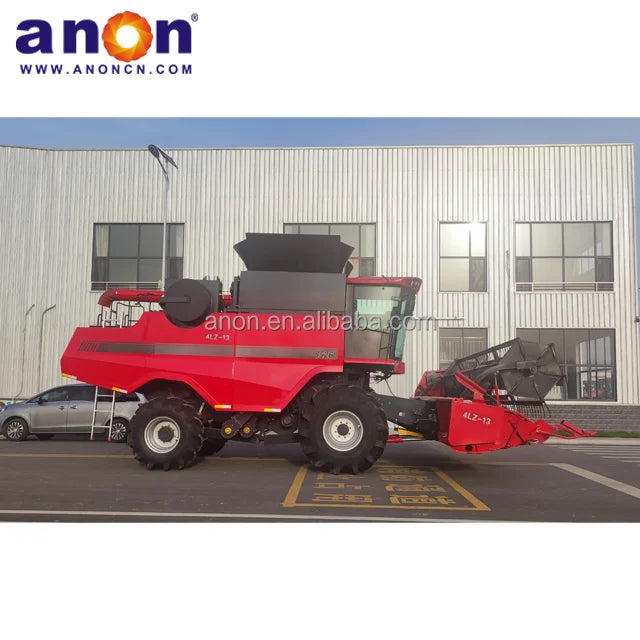

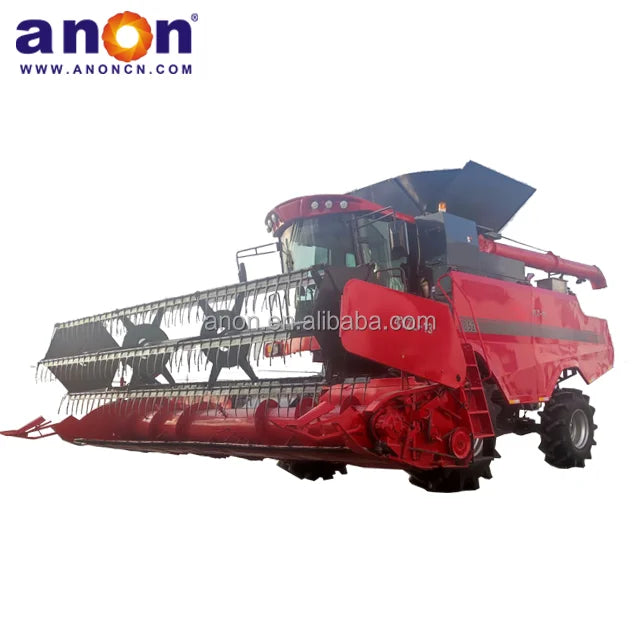

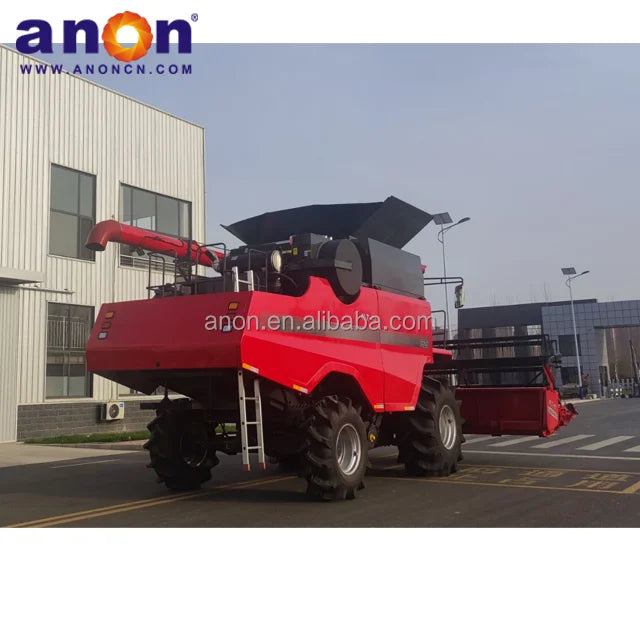

ANON Harvesters Wheat Corn Soybeans Sunflower Chinese Wheat Combine Harvester Machine Harvester Machine for Wheat
ANON Harvesters Wheat Corn Soybeans Sunflower Chinese Wheat Combine Harvester Machine Harvester Machine for Wheat
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Applicable Industries: Farms
Certificate: ce
Condition: New
Cutting width (mm): 5400
Driven Type: Gear Drive
Feed quantity: 13 Kg/s
Function: Cutting,threshing and collection
Marketing Type: New Product 2020
Model: AN4LZ-13
Product name: Combine Rice Wheat Harvester
Showroom Location: Germany,Mexico,Russia,South Korea,Sri Lanka,Romania,South Africa

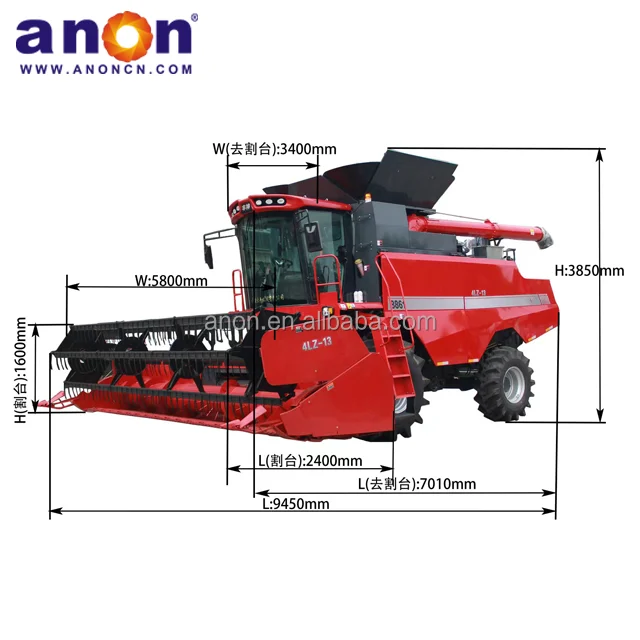

Size: 9450X5800X3850mm
Speed: 2200 r/min
Style: 6 Cycle Diesel
Warranty of core components: 1.5 years
Wheel: 4 WD
application: Rice,Corn,Wheat
brand name: ANON
core components: Gear,Bearing,Engine
dimension(l*w*h): 9450*5800*3850
key selling points: Automatic
machine type: Combine Harvester
machinery test report: Provided
number of rows: 6
oil consunmption: <35kg/hm^2
place of origin: Hubei, China
row distance(mm): 600 - 800 mm
tractor power(hp): 260 - 350 HP
type: Combine Harvester
usage: Grain Harvester
video outgoing-inspection: Provided
warranty: 1 Year
weight: 12500 KG
working width(mm): 5400 mm

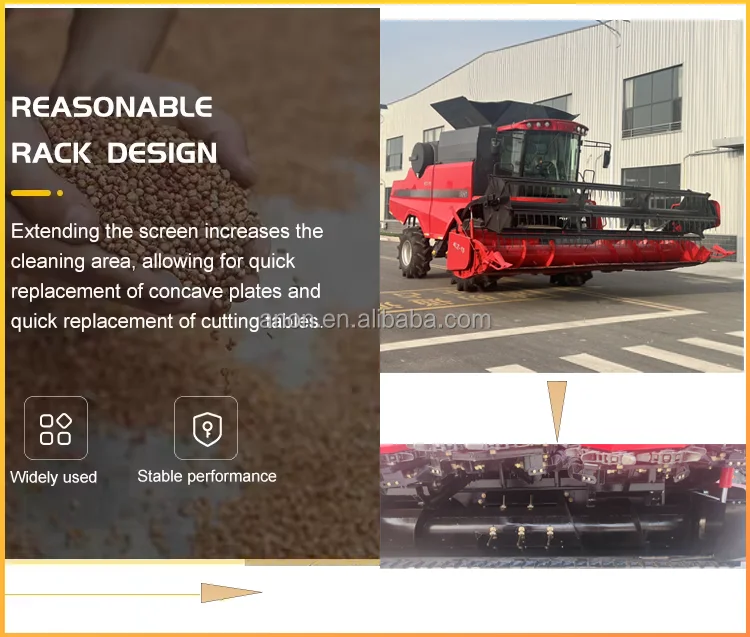

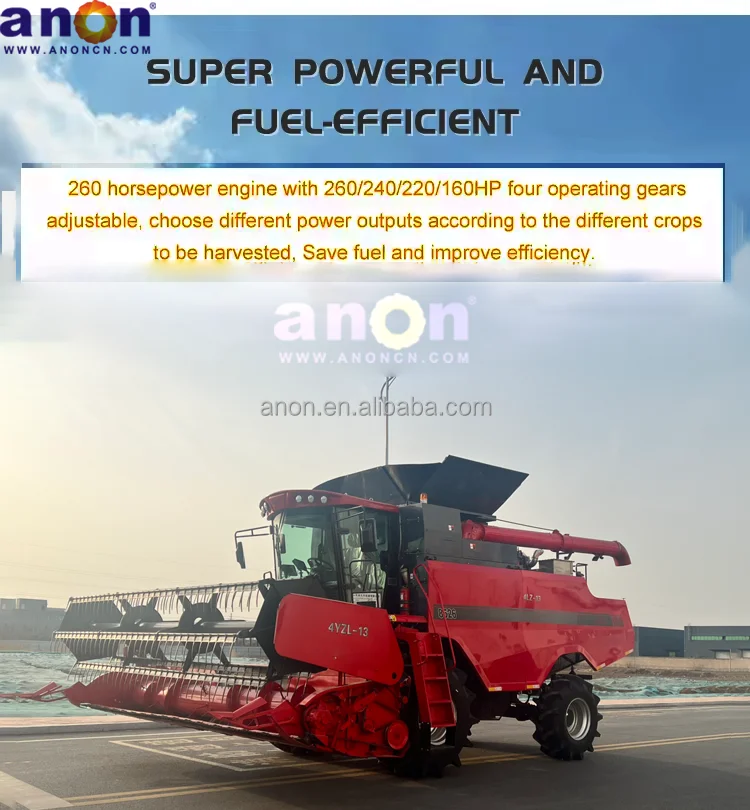

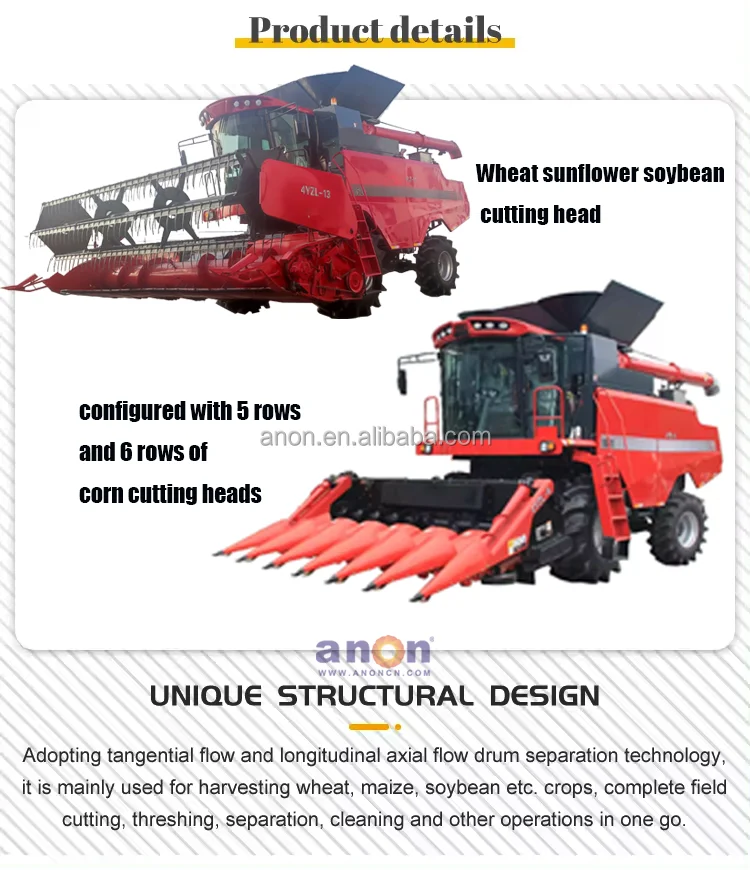

1.The working width is as high as 5.4 meters, and the feeding amount is 13 kg/s. If wheat is harvested in a large area with flat land, 2.5 hectares can be harvested in one hour at the earliest. 2.It is equipped with Yuchai 260 HP engine, and the four working gears of power 260, 240, 220 and 160 are adjustable. Drivers can choose different power outputs according to different crops to be harvested, saving energy and fuel. The tires are widened and high-flowered tires, which have strong adaptability to sandy soil, muddy and slippery plots. 3.Steady four-wheel drive structure, the front drive is driven by hydrostatic pressure, which is comfortable and convenient to control; Weighted front axle+heavy four-wheel drive rear axle, strong bearing capacity and good passability. 4.The threshing drum is vertically arranged, with a length of 3 meters, which has higher threshing performance and lower crushing rate. Lengthening the fish scale screen to increase the cleaning area. Eight convenient and quick-replaceable intaglio screens can harvest crops such as wheat, corn grains, soybeans, sorghum, etc. only by replacing the cutting table and threshing parts, thus realizing multi-purpose of one machine. 5.Weighted high-low shift roller transmission box, with stepless speed change disc, the roller speed can be adjusted adaptively from 300 to 1100. The spherical bearings of the whole vehicle are all American Peel bearings, which have strong bearing capacity and long service life. The transmission belt adopts a black-toothed belt, which has strong tension and good heat dissipation. Meet the needs of long-term and large-area operations. 6.It is worth mentioning that the header of this high-end longitudinal axial flow harvester has the function of crossing the bridge and reversing the header, which is convenient for cleaning the bridge and header blockage. 7.The volume of the granary is 10 cubic meters, and the granary is raised by hydraulic one-button automatic opening and closing. The driver can open and close the granary cover through the electric control button, which can hold 7.5 tons of wheat in the open state.
Application |
Rice, Corn, Wheat，soybean ，sunflower |
Tractor Power(HP) |
260HP |
Dimension(L*W*H) |
9450×5800×3850mm |
Weight |
12540KG |
Product name |
4LZ-13 self-propelled grain combine harvester |
Model |
4LZ-13 |
Cutting width (mm) |
5400 |
Wheel |
4 drive wheel, |
Function |
Cutting,threshing and collection |
Speed |
2200 r/min |
Feed quantity |
13 Kg/s |
oil consunmption |
<=35 kg/hm^2 |
Engine structure |
Yuchai, 6-cylinder, in-line, water-cooled, direct injection, four-stroke |
