240TPD Lithium Ore Lepidolite Concetrate Spodumene Beneficiation Plant

171.377,42 €

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

Power(W) based on the models

Model Number 24TPD 48TPD 100TPD 200TPD

SPECIFICATIONS

After sale service: Life-long Service Installation

Brand Name: JXSC

Certification: CE ISO

Color: Customers' Requirements

Core Components: Motor,Engine

Dimension(L*W*H): depends on the model

Factory visit: Warmly welcomed

Feature: High Recovery Rate Easy

Key Selling Points: High Productivity

Keywords: Spodumene Ore/Lithium Ore mining plant

Machinery Test Report: Provided

Place of Origin: Jiangxi, China

Price: Negotiable

Product name: Lithium Ore Processing Plant

Quality: High Reputation

Recovery rate: 98%~99%

Type: Flotation Separator

Video outgoing-inspection: Provided

Voltage: 380V

Warranty: 1 Year

Weight: 5200 KG

Product Description

Overview

With the development of science and technology, electronic equipment and new energy industry, the demand for lithium ore has rapidly increased. Therefore, lithium ore is known as the "energy metal that promotes world progress".

Typical lithium ore is divided into 5 kinds of spodumene (containing Li2O 5.80%-8.10%), petalite (containing Li2O 2.90%-4.80%), lepidolite (containing Li2O 3.20%-6.45%), Zinnwaldite (containing Li2O 1.10%-5.00%), and lepidolite (containing Li2O 7.10%-10.10%). The more common ones are spodumene and lepidolite.

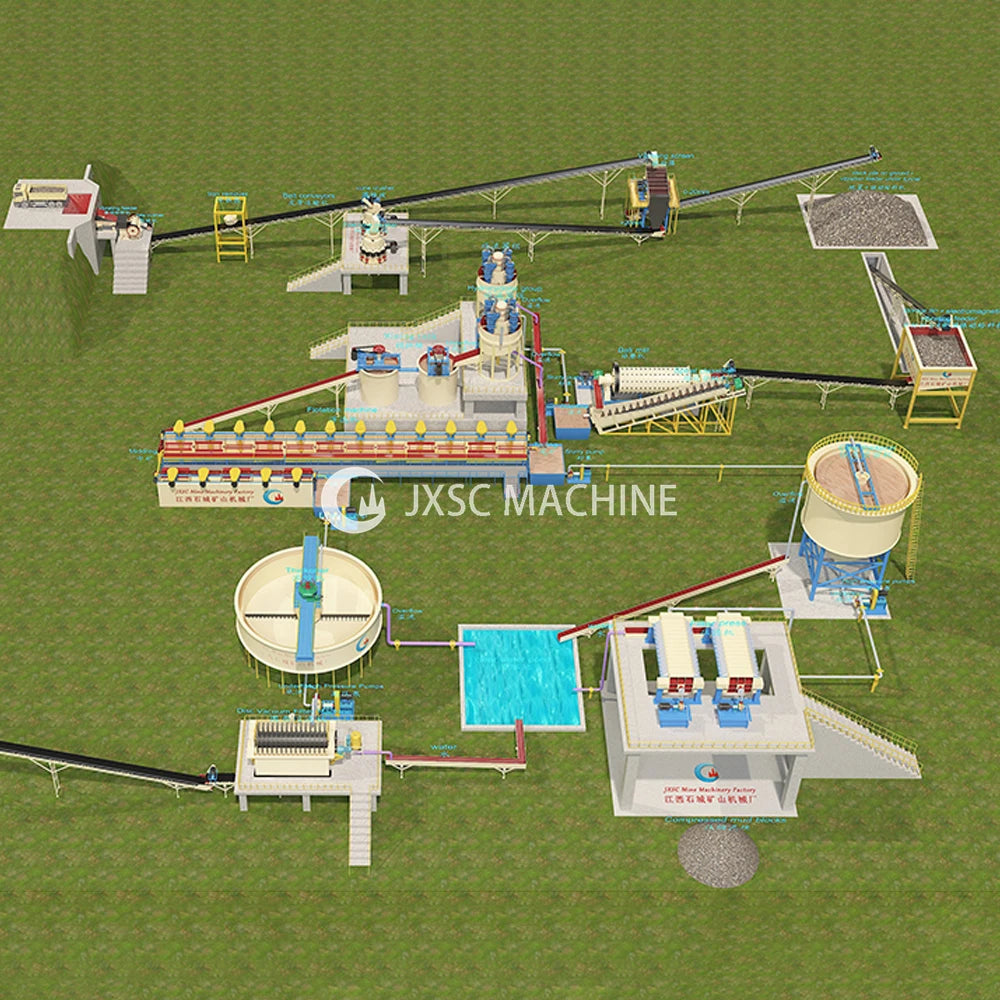

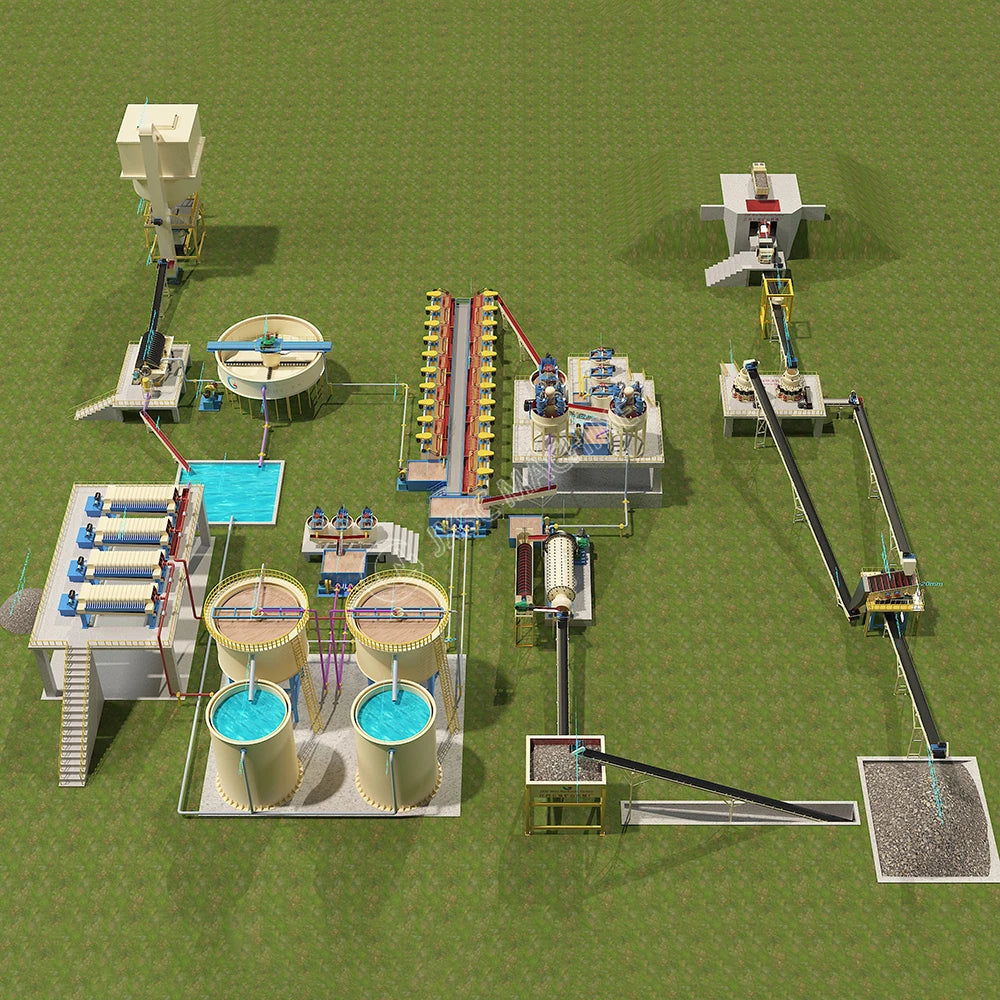

Building an efficient lithium ore processing plant

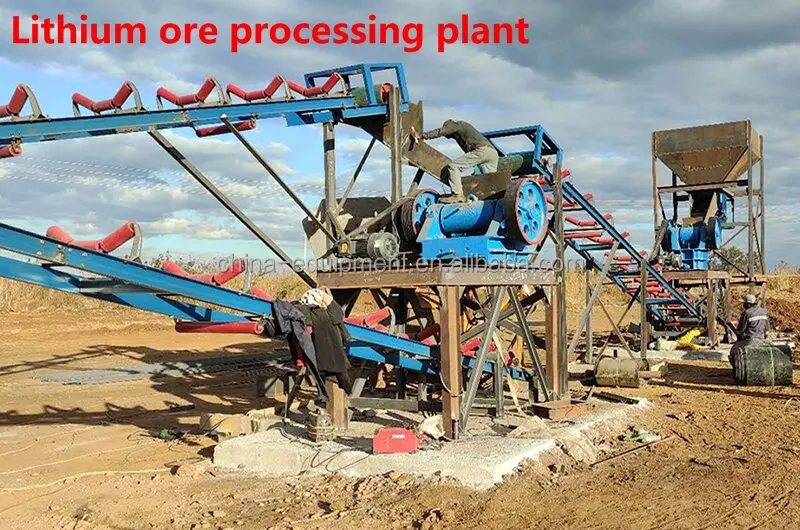

An effective lithium ore processing plant mainly includes crushing line, grinding line, beneficiation line, and some auxiliary
equipment.

The most commonly used production equipment is crusher (jaw crusher, impact crusher, cone crusher), ball mill, flotation machine or magnetic separator, etc.

WALKER Machinery can provide a set of Lithium ore beneficiation equipment, which are well received in the world market. We aim for creating more wealth for customers. How to choose an efficient beneficiation method needs to be determined according to the ore properties and actual needs.

1. The first step is to conduct a mineral test

It is recommended to conduct a lithium mineral test before the separation and production.

At the same time, customers can customize the most effective and scientific beneficiation process and equipment based on the ore properties and investment budget to avoid waste of resources.

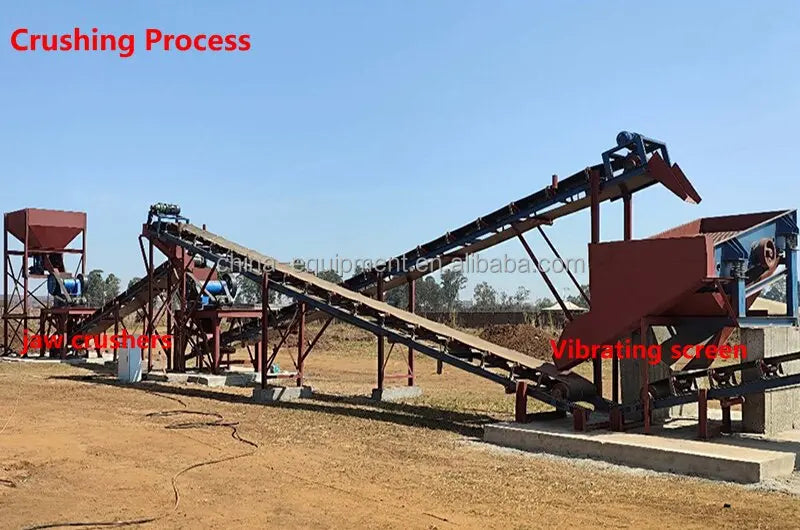

2. Crushing production line

First, lithium ore goes through a crushing and grinding process in turn to produce a uniform fine particle size.

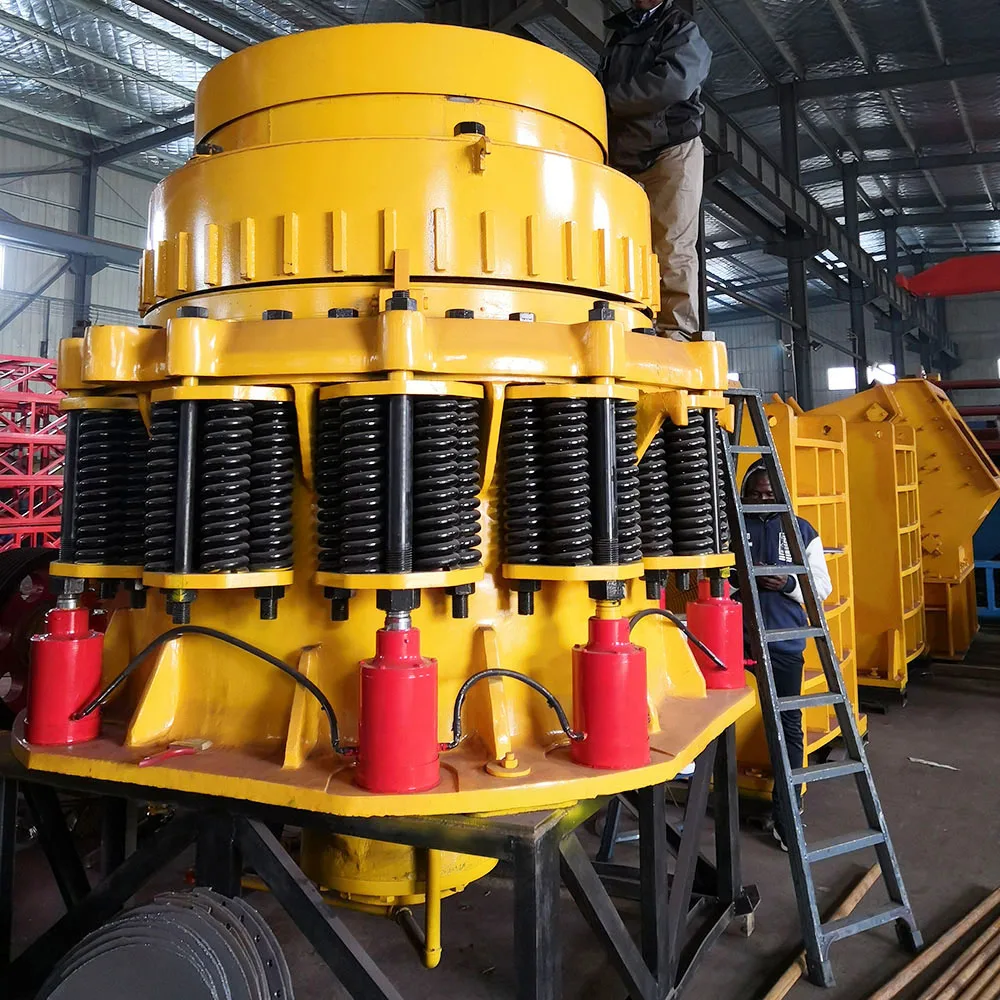

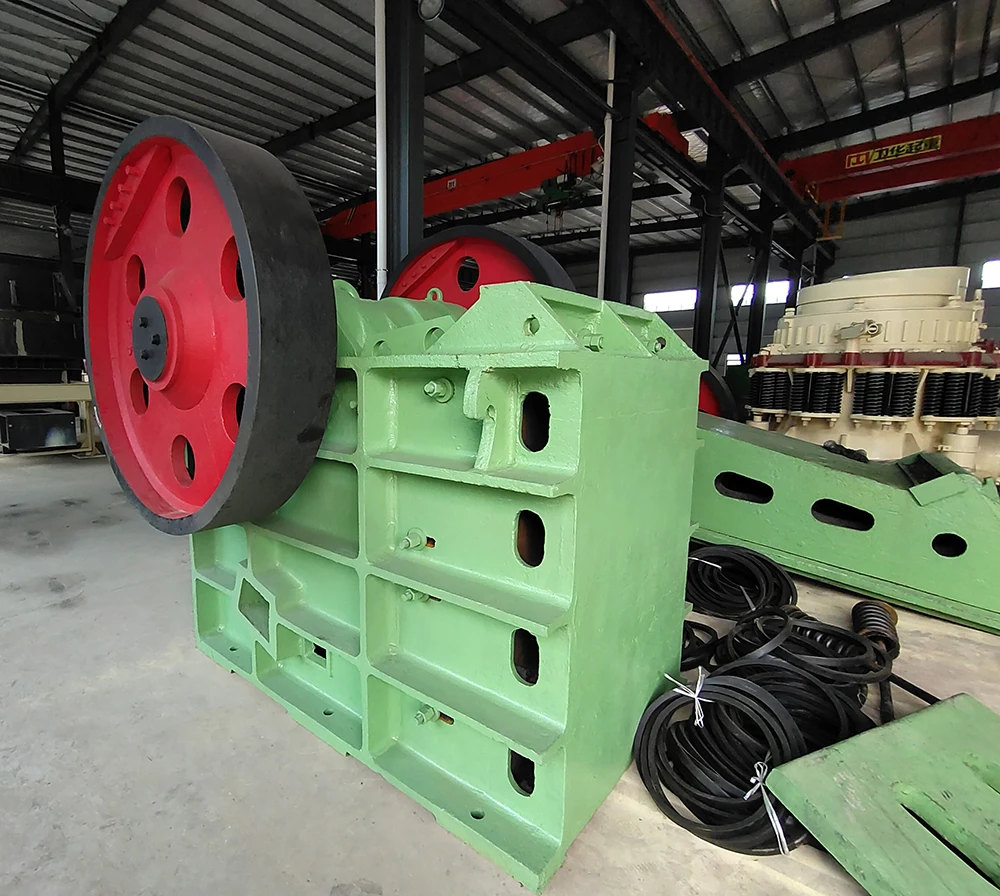

● When crushing, use a jaw crusher for primary crushing, and then use a cone crusher for fine crushing.

● When grinding, use a ball mill.
● As proper grinding fineness is crucial to the flotation results, the particle size of lithium ore generally needs to be ground
to less than 0.15 mm for a better flotation effect.

3. Beneficiation production line

Many industries, especially the battery industry, require high-grade lithium carbonate, and the removal of iron, magnesium and other harmful minerals is key to these high-value markets.

To improve the lithium ore grade, a beneficiation process is required. Flotation is the main method for producing lithium
concentrate. Other methods like magnetic separation and chemical methods play an auxiliary role.

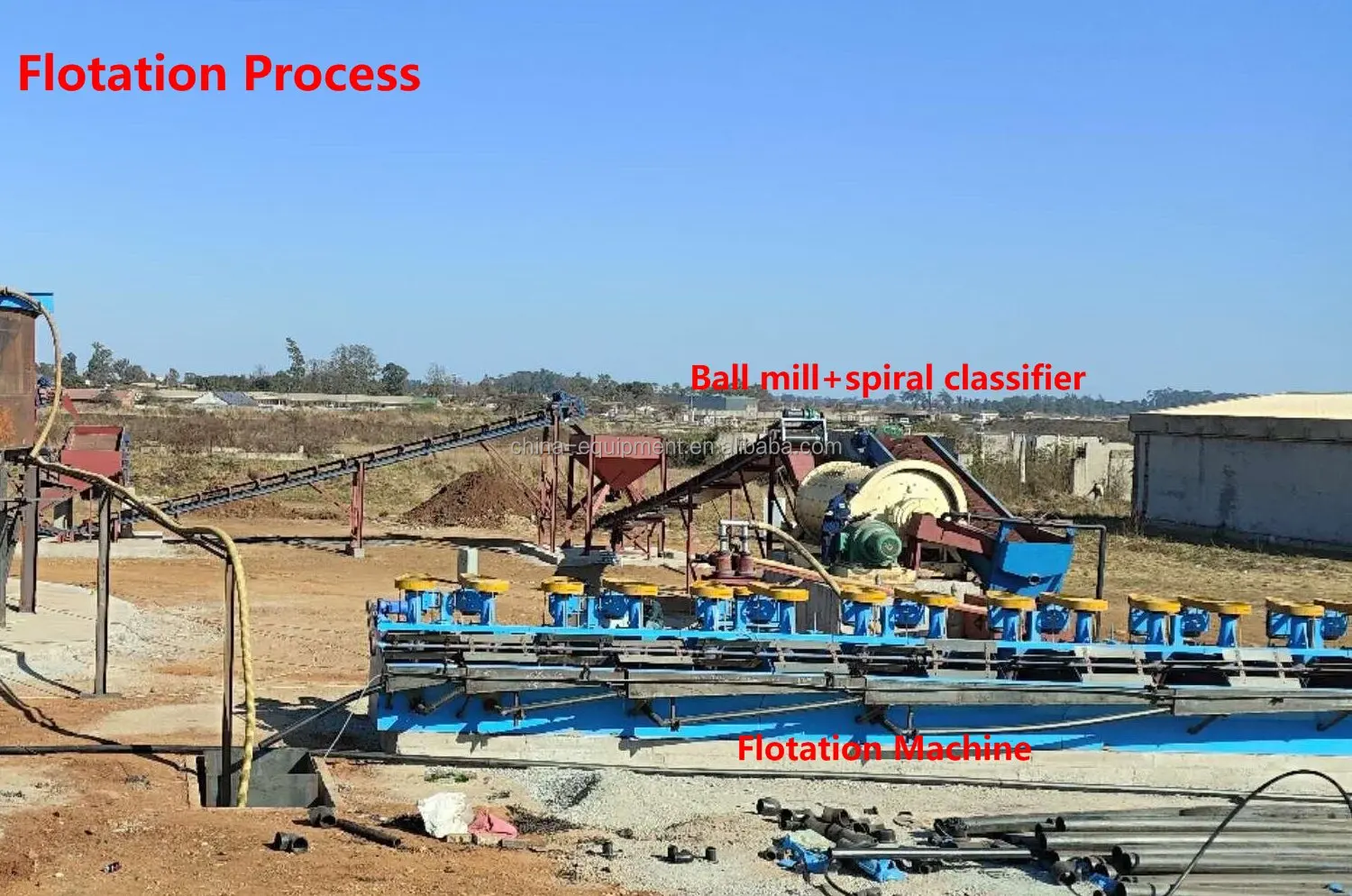

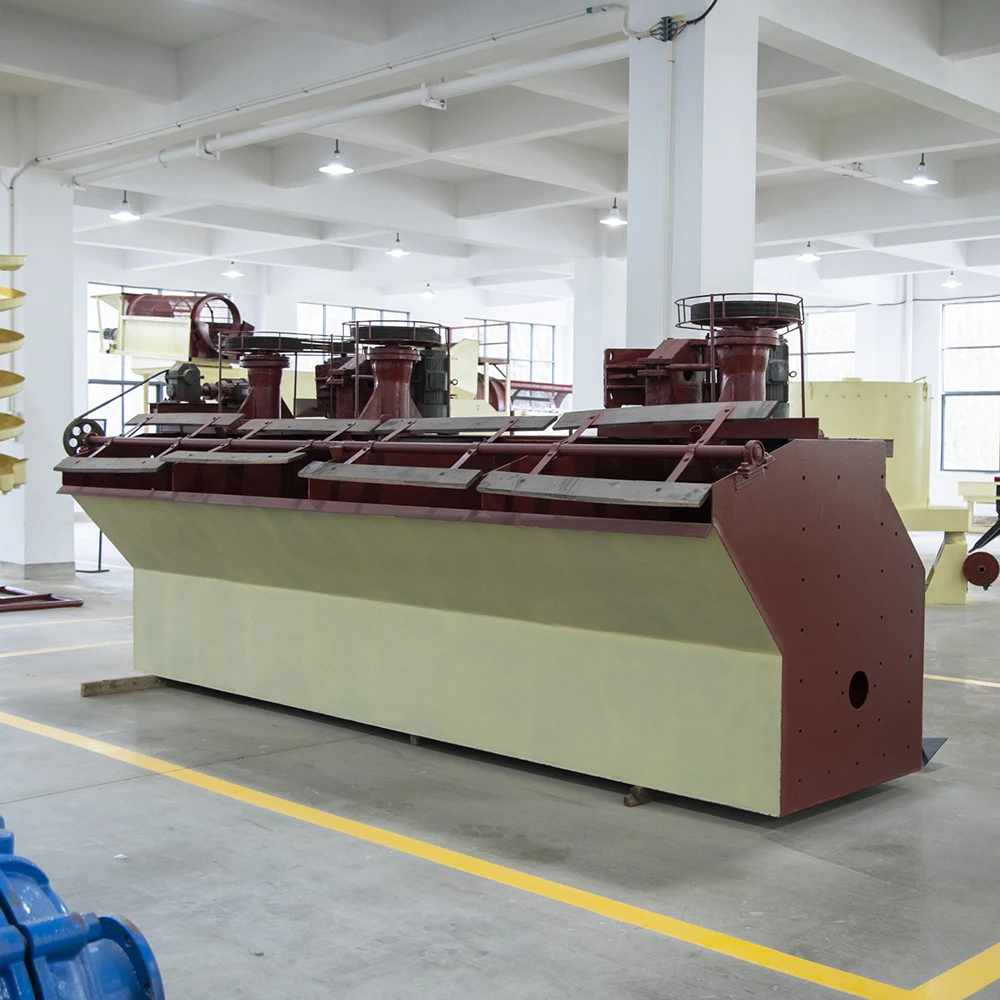

Flotation separation
Flotation is the main method of separating lithium ore at present. All lithium ore with industrial value can be enriched by
flotation, especially the fine-grained disseminated lithium ore.

There are two flotation processes of lithium ore: one is positive flotation and the other is reverse flotation. Flotation is done in an alkaline environment, as it not only has a good flotation result, but also protects theflotation machineand is easy to control.

● Lithium ore positive flotation method

Add strong alkali (such as sodium hydroxide or sodium carbonate) for flotation after the lithium ore is ground.

After high-concentration, strong stirring, and multiple scrubbing in alkaline medium, oleic acid and its soaps are added as
collectors to float lithium concentrate, leaving gangue minerals in the tank. This process does not require inhibitors.

● Lithium ore reverse flotation method

Use lime to create an alkaline environment, and add regulators like starch and dextrin to inhibit the floating of lithium ore. At the same time, use cationic collectors to make silicate gangue minerals float to the surface of the slurry, and the products in the flotation tank is lithium concentrate.

If the lithium ore contains iron minerals, a foaming agent (such as HF, resinate) can be added to further help remove impurities such as iron minerals.

Magnetic separation method
Lithium ore is often associated with complex components and the lithium concentrate obtained by flotation sometimes contains more iron. To improve lithium concentrate grade, the magnetic separation method is used as an auxiliary method.

Commonly used magnetic separators are vertical ring pulsating high gradient magnetic separator and wet magnetic separator.

For example, spodumene concentrate produced by flotation in North Carolina, USA, is high in iron. It can only be sold as a
chemical-grade concentrate. To meet the requirements of the ceramic industry, the plant uses magnetic separation to remove iron.

In addition, due to the weak magnetic properties of lepidolite, magnetic separation can be used as the main method to produce concentrate.

Main Products

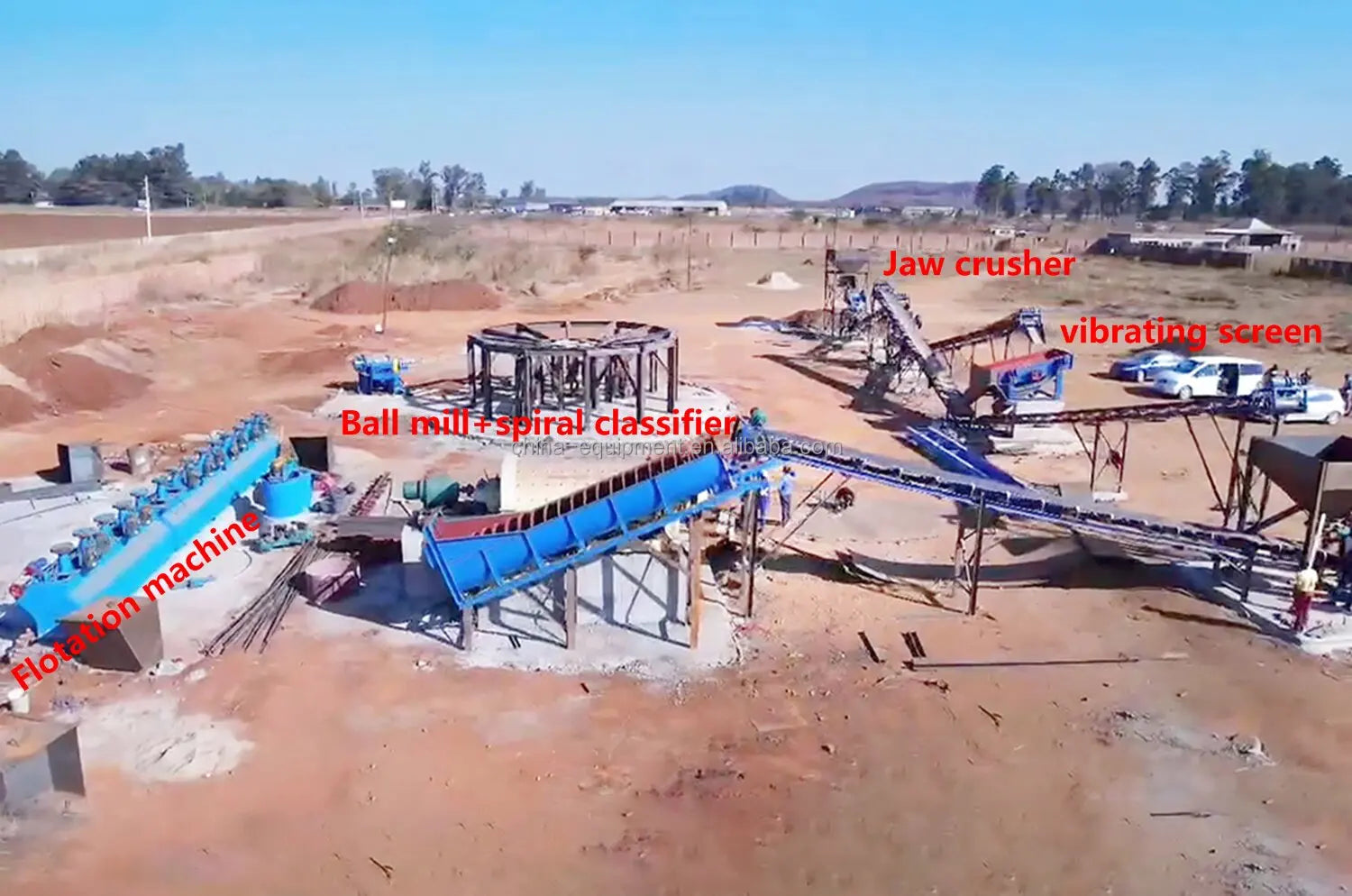

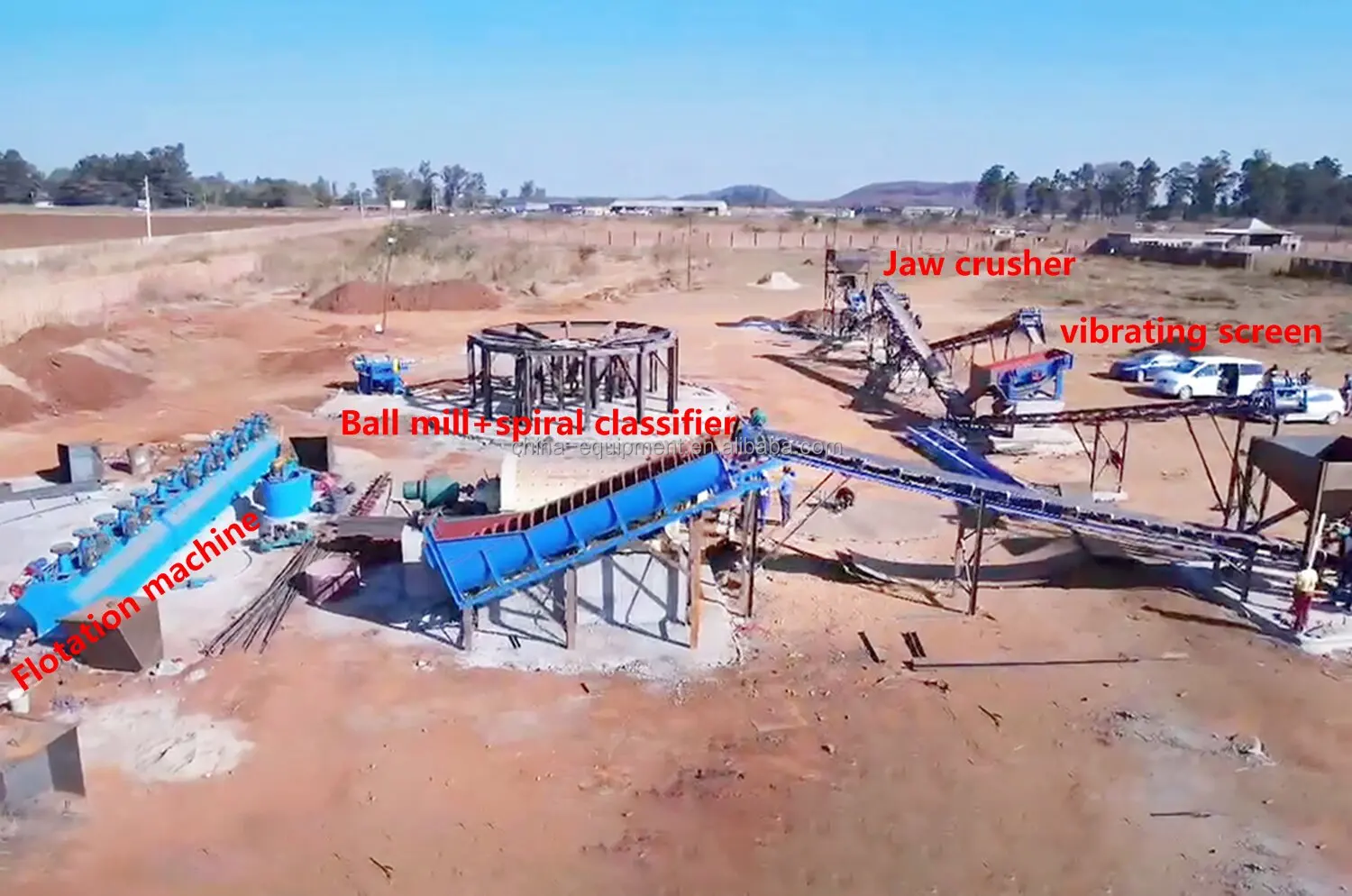

We have professional engineers team to draw flowchart based on customer's stone site details. We supplied full set stone crusehr plant: vibrating feeder, jaw crusehr, cone crusehr, cone crusehr, Magnetic Machine, Flotation Machine, belt conveyor.

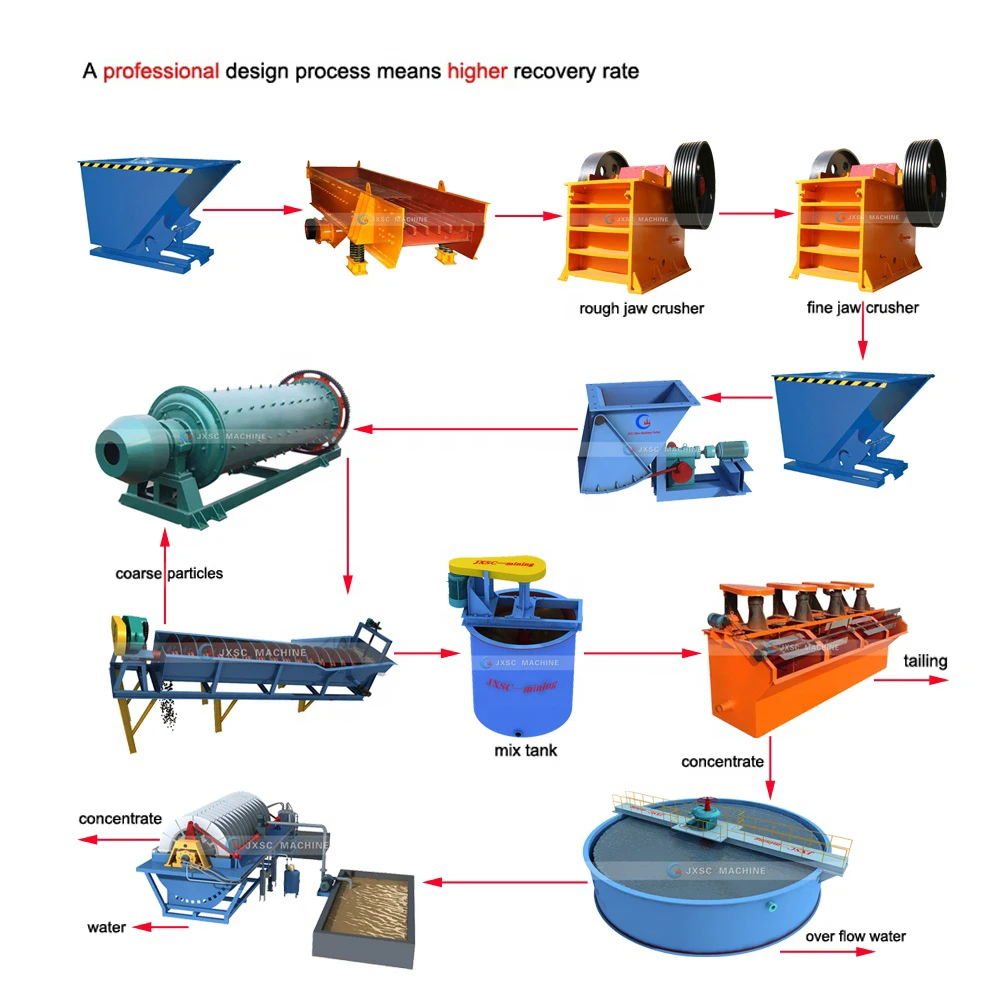

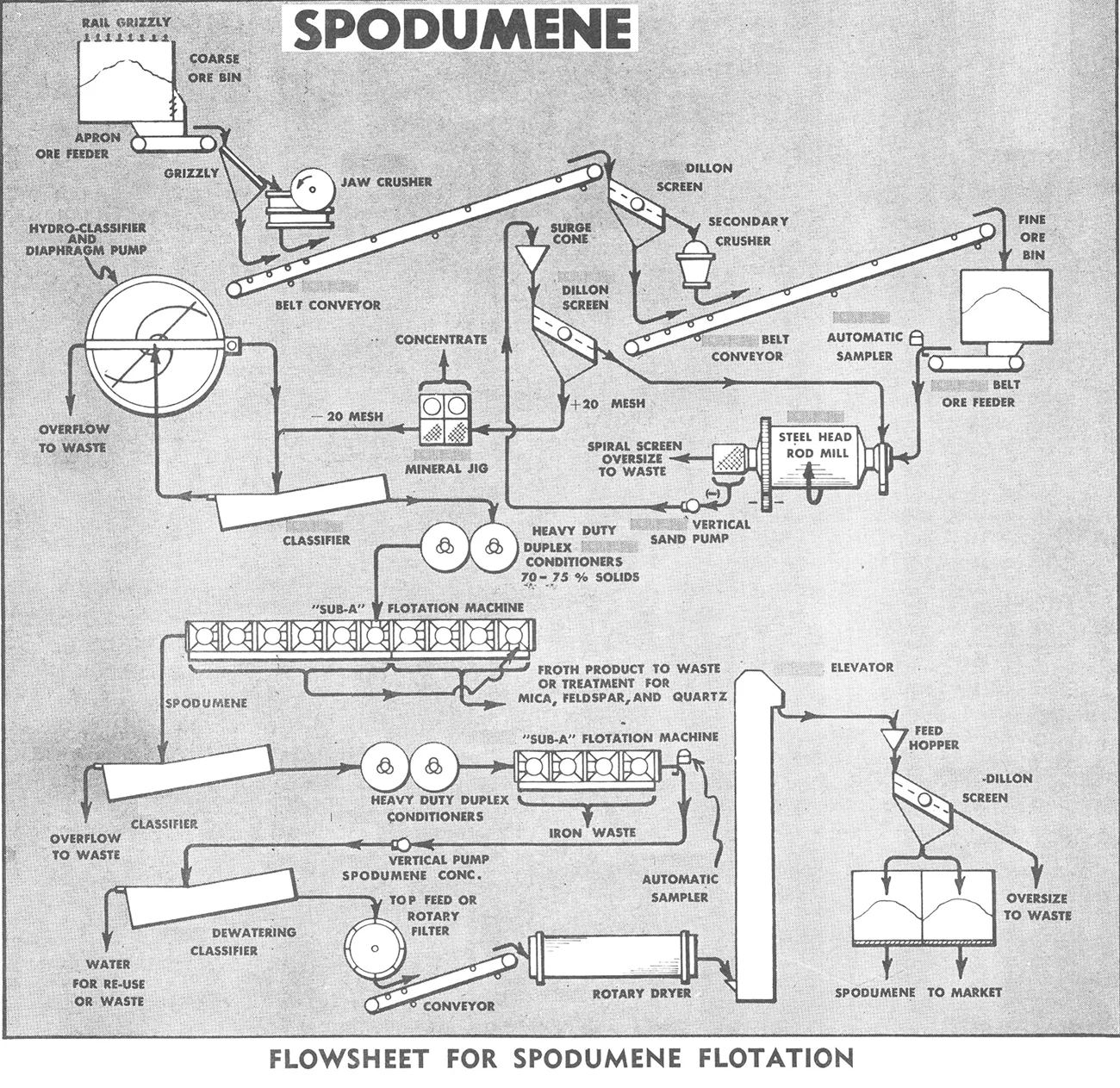

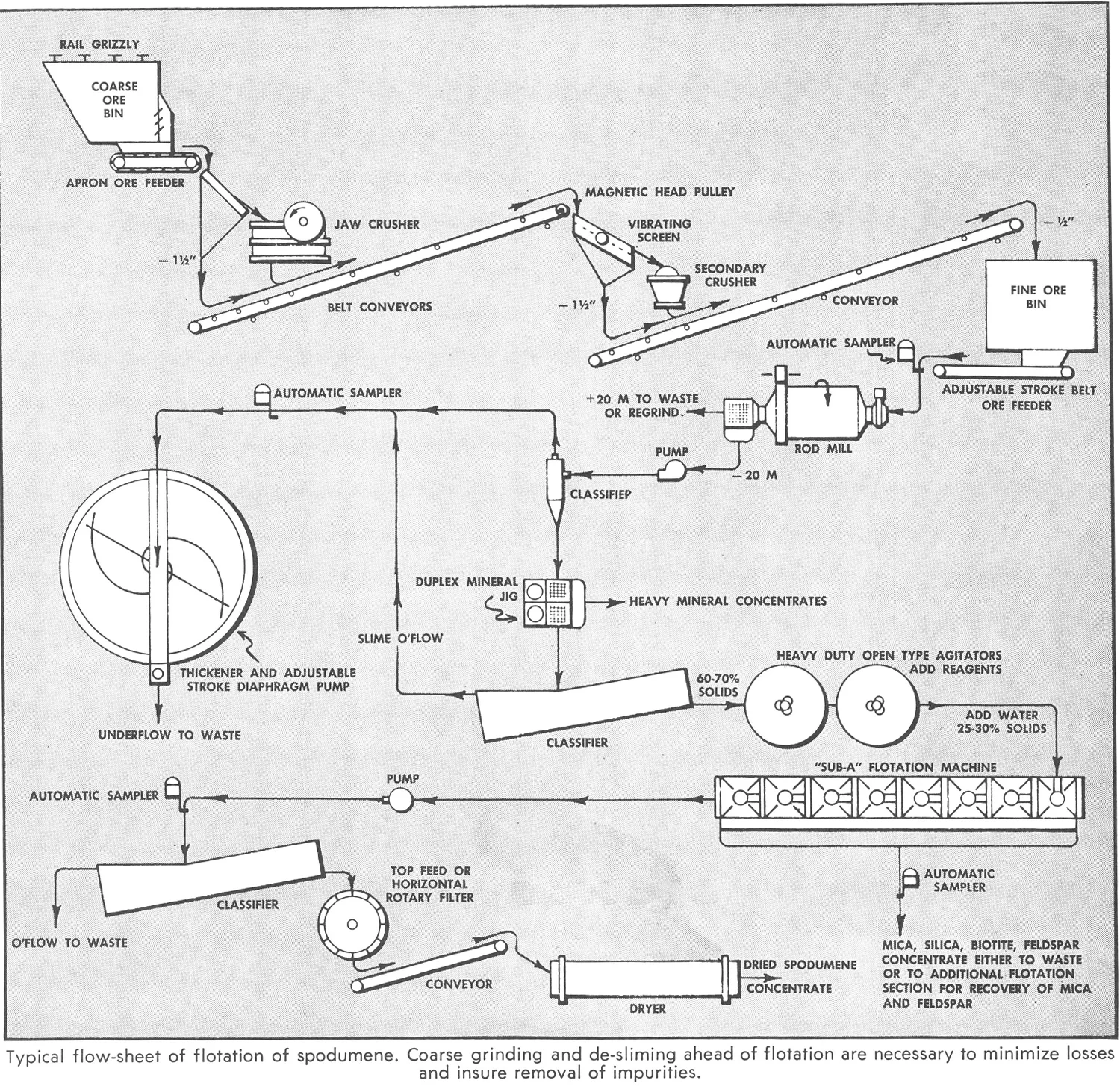

Flow Chart

Packing & Delivery

●Ways Of Packing

1.Small parts packed in the wooden cases.

2.Big parts packed by plastic membrane.

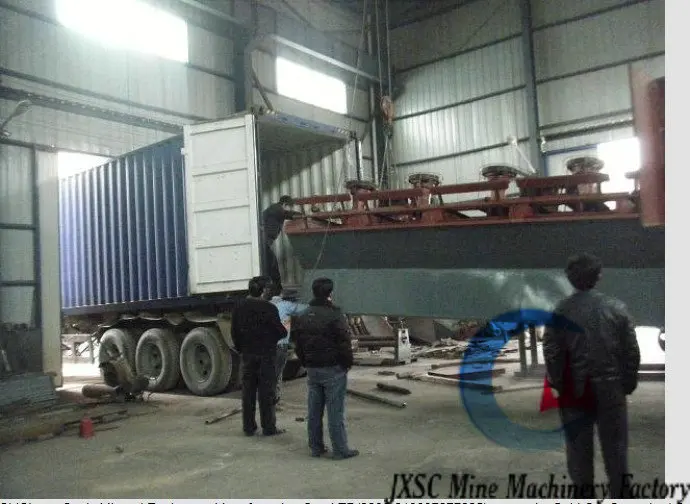

3.The whole big machine is loaded in the container.

● Shiping by sea/air freight

or any way the customer requires.

Our Company

Jiangxi Province County Mining Machinery Factory is a leading mining machinery manufacturer with over 30 years
experiences,providing complete set processing equipments for Gold ore /Tin ore /Tungsten ore /Iron ore /Diamond/ Coltan ore /Silica sand /Zircon sand/ Black sand/Chrome ore/Cobalt ore/Antimony ore, ect. As well as complete set small laboratory mining machines.

7*24 hours online consulting service, we provide you with the prophase plan, process flow design and
manufacturer equipment according to your special demand.

Send technicians to the job site guiding the installation and adjustment, training operators and finishing the check and accept together with you.

Our service & FAQ

●Pre-sales service: We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.

●Sales service: Send technicians to the site to guide the installation and commissioning, train the operators, and complete the acceptance with you.

●After-sales service: To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.

●Lifelong service: One year warranty to make sure your machine runs constantly.Always offer lifelong service and provide spare parts for a long term.

●How is the quality of your products?

Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.

●How about the Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.

●How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.

●How about the service and payment terms?
Answer: We can accept T/T or other payment ways you request; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
