DC 5V 12V 24V 1 2 4 6 8 Channel Relay Module Board Shield with Optocoupler / High and Low Level Trigger for Arduino Raspberry
DC 5V 12V 24V 1 2 4 6 8 Channel Relay Module Board Shield with Optocoupler / High and Low Level Trigger for Arduino Raspberry
Verfügbarkeit für Abholungen konnte nicht geladen werden
SPECIFICATIONS
Brand Name: NoEnName_Null
Choice: yes
Condition: New
High-concerned chemical: None
Origin: Mainland China
Type: Logic ICs
is_customized: Yes
DC 5V 12V 24V 1 2 4 6 8 Channel Relay Module Board Shield with Optocoupler / High and Low Level Trigger for Arduino Raspberry

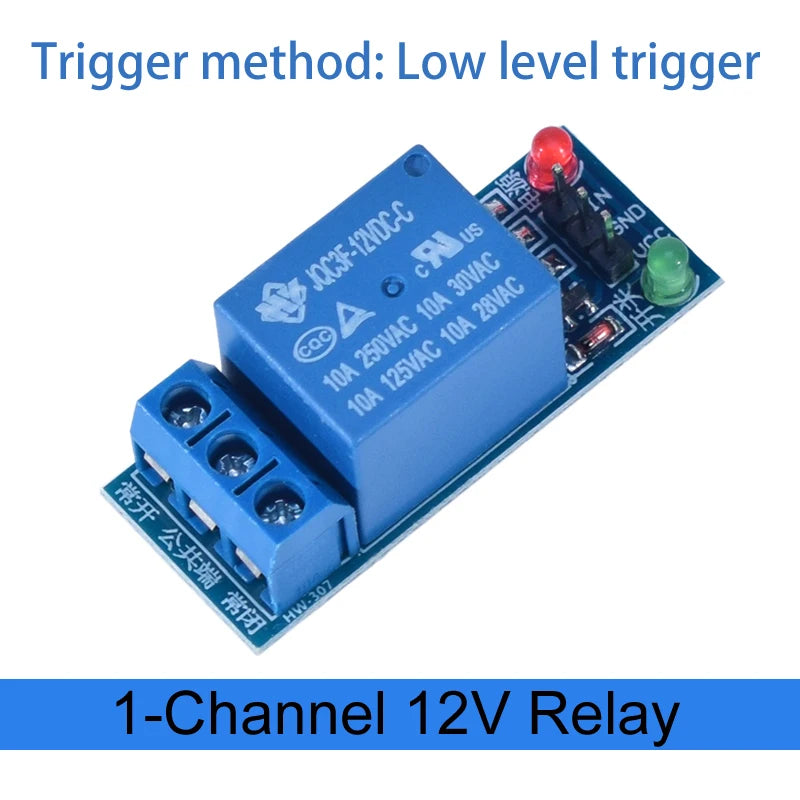

1-channel 5V/12V/24V relay module
VCC: Connect to the positive pole of the power supply, supply voltage:+5V/12V/24V DC
GND: Connect to the negative pole of the power supply.
IN: Trigger signal input terminal, low level (0V) effective, controls relay to pull in.
Size:17.3mm*43.2mm
2-channel 5V/12V/24V relay module
VCC: Connect to the positive pole of the power supply, supply voltage:+5V/12V/24V DC
GND: Connect to the negative pole of the power supply.
IN1: Trigger signal input terminal, low level (0V) effective, controls K1 relay to pull in.
IN2: Trigger signal input terminal, low level (0V) effective, controls K2 relay to pull in.
Size:50.4mm*38.7mm
4-channel 5V/12V relay module
VCC: Connect to the positive pole of the power supply, supply voltage:+5V/12V DC
GND: Connect to the negative pole of the power supply.
IN1: Trigger signal input terminal, low level (0V) effective, controls K1 relay to pull in.
IN2: Trigger signal input terminal, low level (0V) effective, controls K2 relay to pull in.
IN3: Trigger signal input terminal, low level (0V) effective, controls K3 relay to pull in.
IN4: Trigger signal input terminal, low level (0V) effective, controls K4 relay to pull in.
Size:55.5mm*75.5mm
8-channel 5V/12V/24V relay module
VCC: Connect to the positive pole of the power supply, supply voltage:+5V/12V DC
GND: Connect to the negative pole of the power supply.
IN1: Trigger signal input terminal, low level (0V) effective, controls K1 relay to pull in.
IN2: Trigger signal input terminal, low level (0V) effective, controls K2 relay to pull in.
IN3: Trigger signal input terminal, low level (0V) effective, controls K3 relay to pull in.
IN4: Trigger signal input terminal, low level (0V) effective, controls K4 relay to pull in.
IN5: Trigger signal input terminal, low level (0V) effective, controls K5 relay to pull in.
IN6: Trigger signal input terminal, low level (0V) effective, controls K6 relay to pull in.
IN7: Trigger signal input terminal, low level (0V) effective, controls K7 relay to pull in.
IN8: Trigger signal input terminal, low level (0V) effective, controls K8 relay to pull in.
Size:56.5mm*138.4mm
